Bently Nevada 330104-01-06-10-02-00 3300 XL Spare: Precision Replacement for Industrial Vibration Monitoring

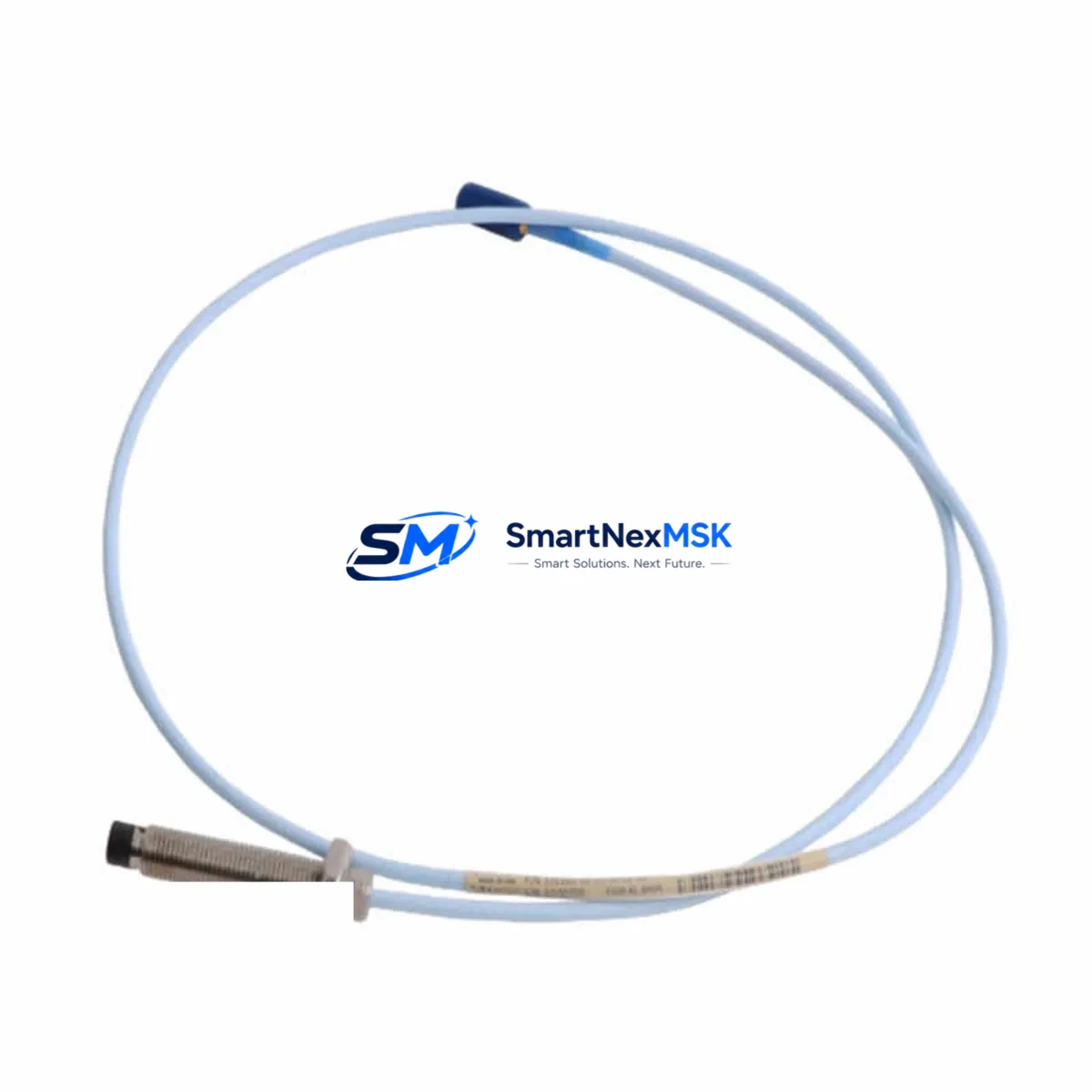

The Bently Nevada 330104-01-06-10-02-00 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is the primary sensing element for shaft radial vibration, axial position, and differential expansion measurement. When this component fails or degrades, the entire machinery protection loop is compromised, creating immediate risk of undetected rotor excursion, bearing failure, and unplanned shutdown.

Stocking a verified original spare of the 330104-01-06-10-02-00 is a fundamental requirement for any maintenance program operating Bently Nevada 3300 XL systems. Procurement engineers and reliability teams managing critical rotating assets should treat this probe as a Tier-1 spare — one that must be on-shelf, pre-tested, and ready for same-shift installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When a 330104-01-06-10-02-00 probe is pulled from service — whether due to tip damage, cable fatigue, connector corrosion, or calibration drift — the maintenance window should be used to inspect the entire measurement chain and adjacent components in the control cabinet.

Begin with the 330130 Series extension cable that connects the probe to the Proximitor. Extension cables are subject to mechanical stress at conduit entry points and connector pins; a degraded cable will produce erratic gap voltage even with a new probe installed. Verify continuity and insulation resistance before closing the loop.

The 3300 XL 8mm Proximitor (330180 Series) should be bench-tested or replaced as a matched pair when probe replacement is triggered by a calibration failure rather than physical damage. The Proximitor’s internal oscillator and demodulator circuit age independently of the probe, and a worn Proximitor will produce non-linear output with a new probe.

Inspect the 3300 XL I/O module and its terminal block connections in the rack. Loose or oxidized terminals on the −24 VDC supply line and the output signal wire are a common source of intermittent alarms that are misdiagnosed as probe failures. Torque all terminals to specification and apply contact enhancer where appropriate.

If the machine is also monitored for axial position or differential expansion, check the companion 330104 Series thrust probes and their associated Proximitors simultaneously. Axial and radial probes share the same rack power supply in most 3300 XL configurations; a power supply ripple issue will affect all channels.

Review the 3300 XL rack power supply module output voltage under load. A supply delivering less than −23.5 VDC will cause all probes in the rack to read high gap voltage, triggering spurious alerts. This is a frequently overlooked root cause during probe replacement campaigns.

For systems integrated with a DCS or safety PLC via 4–20 mA or relay outputs from the 3300 XL monitor, verify that the analog output signal and the relay contact states are correctly received at the DCS I/O card after probe replacement. A wiring error at the marshalling panel can mask a successful probe installation.

Where the 3300 XL system feeds a Bently Nevada 3500 Series rack or a System 1 condition monitoring platform, confirm that the new probe’s gap voltage is within the accepted baseline range in the software before returning the machine to service. Document the as-found and as-left gap readings in the maintenance record.

Finally, inspect the probe mounting bracket and armored conduit for mechanical integrity. Vibration-induced fretting at the bracket weld or conduit fitting is a leading cause of repeat probe failures within 6–12 months of replacement. Address the mechanical root cause before installing the new 330104-01-06-10-02-00.

Site Replacement Workflow

Step 1 — Isolation: Coordinate with operations to place the affected monitor channel in bypass mode via the 3300 XL front-panel keyswitch or System 1 software. Do not remove the probe while the channel is in alert or danger state without bypass confirmation.

Step 2 — As-Found Documentation: Record the existing gap voltage (target: −10.0 VDC ± 0.5 VDC for a nominal 1.0 mm gap on steel), vibration amplitude, and any active alarms. Photograph the probe tip condition and cable routing.

Step 3 — Removal: Loosen the locknut and unscrew the probe from the bracket. Disconnect the integral cable from the extension cable at the junction box. Inspect the extension cable connector for pin damage or moisture ingress.

Step 4 — Installation: Thread the new 330104-01-06-10-02-00 into the bracket. Set the gap to the specified value using a feeler gauge or by monitoring the Proximitor output voltage. Tighten the locknut to the specified torque. Reconnect the extension cable and verify connector seating.

Step 5 — Verification: Remove bypass, observe gap voltage stability, and confirm vibration readings are within historical baseline. Log as-left gap voltage and sign off the work order.

This workflow minimizes downtime to under 2 hours for a prepared maintenance team with a pre-staged spare, compared to 8–24 hours when the spare must be sourced reactively after a trip event.

Spare Parts Support FAQ

Q1: Is the 330104-01-06-10-02-00 compatible with both 3300 XL and 3500 Series monitors?
The 330104-01-06-10-02-00 is natively designed for the 3300 XL 8mm system. It is also compatible with 3500 Series racks when paired with the appropriate 3500/42M or 3500/46M monitor module and a matched 330180 Series Proximitor. Always verify the Proximitor model and scale factor match before installation in a 3500 rack.

Q2: How should this probe be stored as a long-term spare?
Store in the original packaging or an anti-static bag in a dry environment between −20°C and +70°C. Avoid coiling the integral cable tighter than a 50 mm radius. Inspect the connector pins and probe tip annually. Shelf life under proper storage conditions exceeds 5 years without performance degradation.

Q3: What pre-shipment testing is performed on this spare?
Each 330104-01-06-10-02-00 unit is bench-tested for gap voltage linearity, scale factor accuracy, and cable continuity before dispatch. A test report is available upon request. The 12-month warranty covers manufacturing defects and performance deviation from published specifications under normal operating conditions.

Q4: Can this probe replace older 330104-00 or 330104-01-05 variants?
The 330104-01-06-10-02-00 is a direct form-fit-function replacement for most 330104 Series 8mm probes with the same cable length and connector configuration. Verify the suffix digits against your existing installation drawing to confirm cable length and temperature rating compatibility before ordering. Our technical team can assist with cross-reference confirmation prior to shipment.
