Bently Nevada 330104-03-12-10-02-00 Spare 3300 XL

Bently Nevada 330104-03-12-10-02-00 Maintenance-Ready Spare for 3300 XL Automation

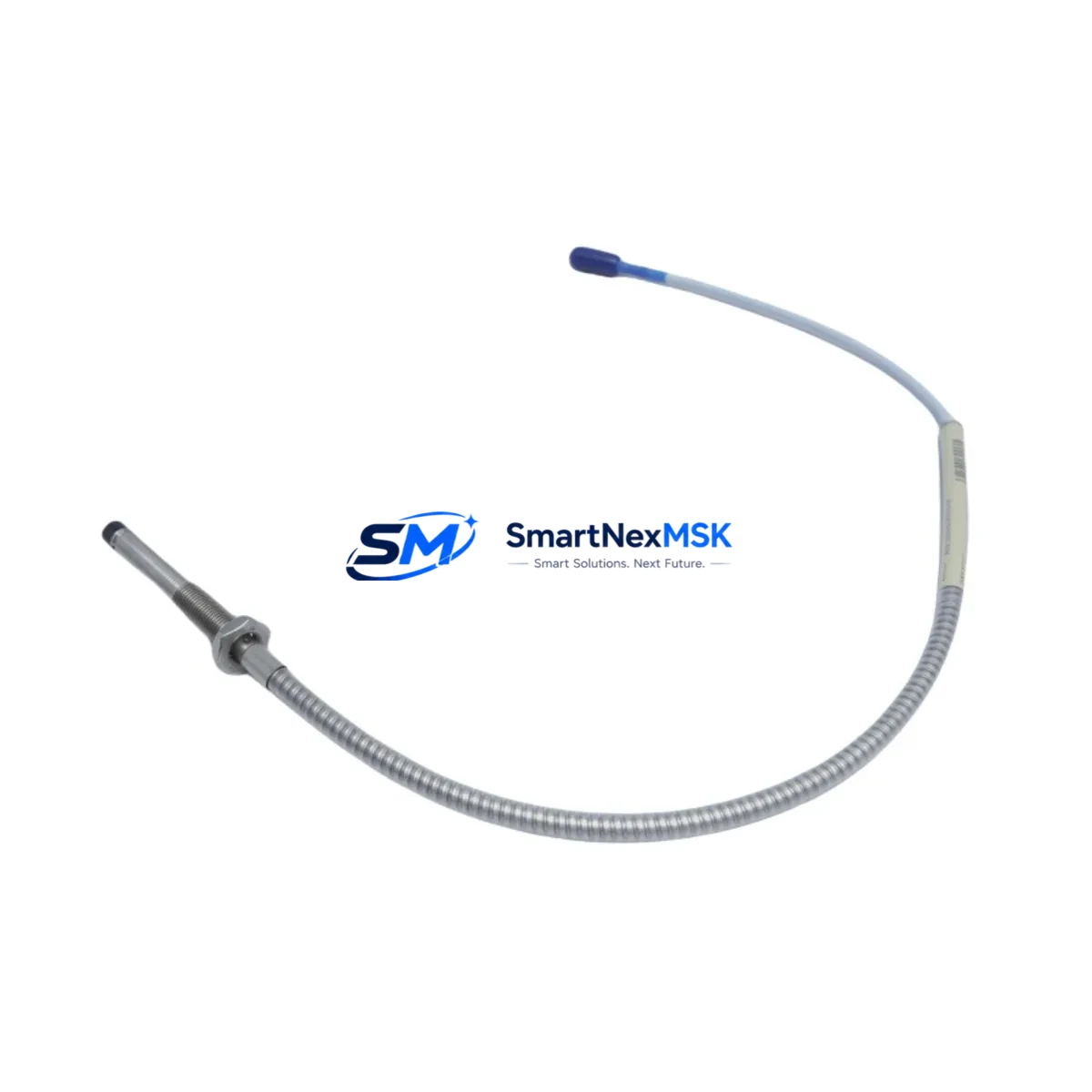

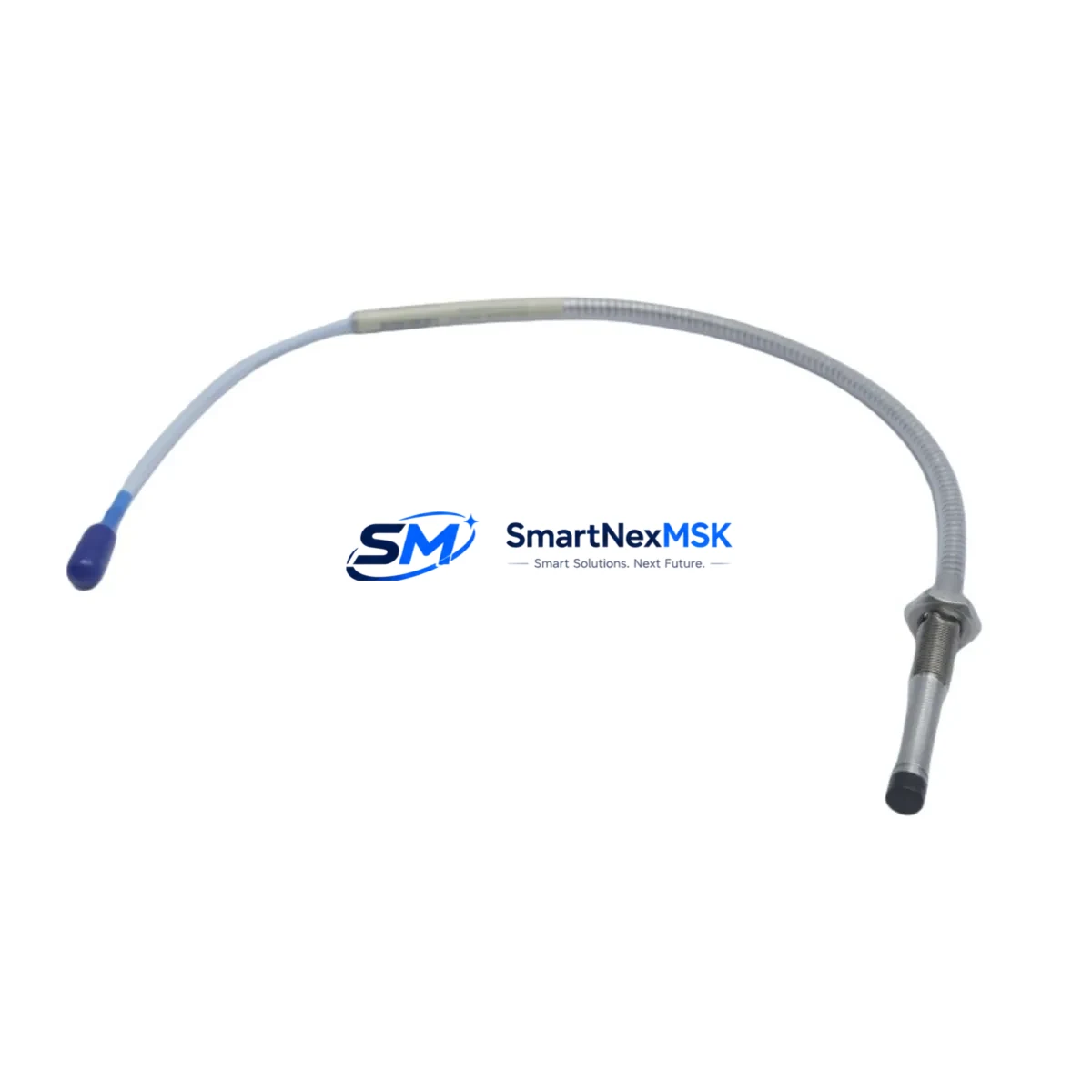

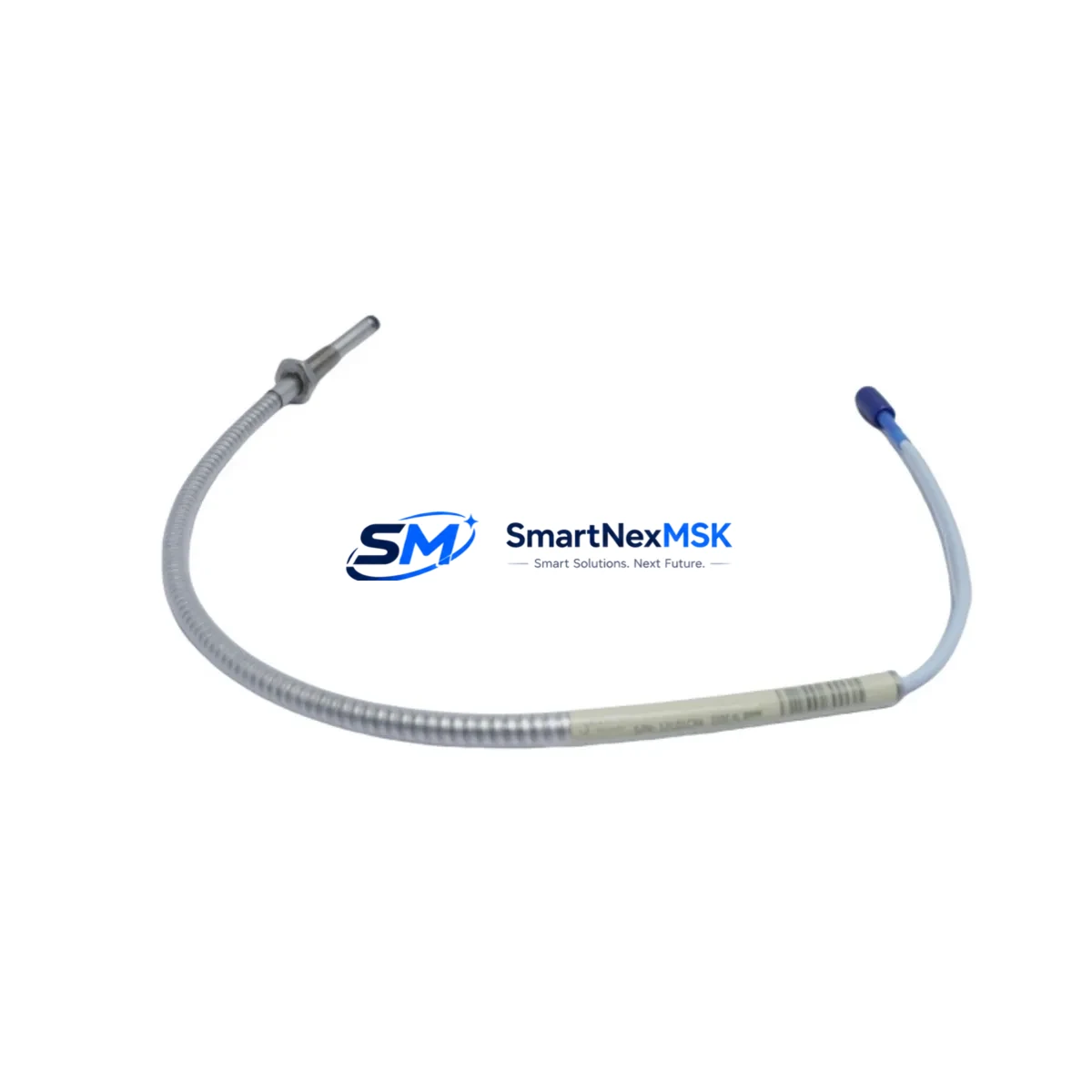

The Bently Nevada 330104-03-12-10-02-00 is an 8mm eddy-current proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. As a direct maintenance spare for the 3300 XL Series monitoring system, this probe is engineered to meet OEM specifications for gap voltage, sensitivity, and frequency response — ensuring seamless drop-in replacement without recalibration of the monitoring rack.

For maintenance engineers managing turbines, compressors, pumps, and gearboxes in oil and gas, power generation, and petrochemical facilities, the 330104-03-12-10-02-00 represents a critical line-replaceable unit. Its 3-metre integral cable and standard TNC connector interface directly with the 3300 XL proximitor/seismic transducer, eliminating the need for adapter hardware during emergency replacement. Procurement engineers should note that this probe is fully interchangeable within the 3300 XL platform and is stocked for immediate dispatch to minimise unplanned downtime.

When replacing the 330104-03-12-10-02-00 in the field, maintenance teams should simultaneously inspect the companion Bently Nevada 330180-51-05 proximitor extension cable for insulation integrity and connector seating, as cable degradation is a common secondary failure mode. The 3300 XL proximitor/seismic transducer module — typically the 3300/16 or 3300/20 — should be verified for correct bias voltage output (nominally −10 VDC at the calibrated gap) before the new probe is commissioned. If the monitoring rack includes a 3500/42M Proximitor/Seismic Monitor card, confirm that the channel configuration in the 3500 Rack Configuration Software still matches the probe type and scale factor after replacement.

In planned maintenance windows, it is best practice to replace the proximity probe alongside the proximitor extension cable and to inspect the field wiring terminal blocks within the junction box for corrosion or loose terminations. The 3300 XL system’s barrier isolator — often a Bently Nevada 3300/05 or equivalent Zener barrier — should be tested for correct impedance if the installation is in a hazardous area classified zone. Maintenance planners should also verify that the DCS historian tag associated with the vibration channel, typically interfaced via a 3500/92 Communication Gateway or a 3500/94 Ethernet module, continues to receive valid engineering-unit data after the probe swap.

For facilities running legacy 7200 Series or 3000 Series monitoring hardware alongside newer 3300 XL racks, the 330104-03-12-10-02-00 probe body dimensions and thread specification (M10 × 1.0) remain consistent, simplifying cross-platform spare parts rationalisation. However, the proximitor model must be matched to the probe series — a 3300 XL probe must be paired with a 3300 XL proximitor, not a 7200 Series proximitor, to maintain calibrated sensitivity of 7.87 V/mm (200 mV/mil). Maintenance supervisors should document this pairing requirement in the site spare parts register to prevent mismatched installations during night-shift emergency repairs.

SMARTNEXMSK maintains verified stock of the 330104-03-12-10-02-00 and associated 3300 XL spare components. Every unit is inspected and function-tested prior to shipment. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and performance deviations from OEM specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for rotating machinery monitored by the 3300 XL system requires a coordinated spare parts strategy that extends beyond the proximity probe itself. When scheduling a planned outage for probe replacement, maintenance engineers should pull the following components from the site spare parts store for concurrent inspection or replacement as required.

The Bently Nevada 330180-51-05 proximitor extension cable connects the probe to the proximitor and is subject to mechanical fatigue at conduit entry points and connector threads. Inspect the cable jacket for cracking and the TNC connectors for corrosion or bent centre pins. The 3300 XL proximitor/seismic transducer — commonly installed as a field-mounted unit near the machine — should be checked for correct bias voltage and replaced if output is outside the −18 VDC to −24 VDC supply range tolerance.

Within the control cabinet, the 3500 monitoring rack houses the 3500/42M Proximitor/Seismic Monitor card, which processes the probe signal and generates alarm and danger relay outputs. Maintenance teams should verify that the relay output module — typically the 3500/32 Relay Module — is functioning correctly and that all relay contacts are clean and within specified resistance. The 3500/01 Rack Interface Module (RIM) provides power distribution and communication backplane functions; inspect its status LEDs and confirm firmware revision compatibility with any recently updated monitor cards.

For facilities where the 3300 XL system feeds vibration data to a DCS or safety system via the 3500/92 Communication Gateway, confirm that Modbus or OPC data tags are updating correctly after the probe replacement. If the site uses a Bently Nevada System 1 software platform for online machinery diagnostics, verify that the channel health indicator returns to normal status and that no latched alarms remain active in the 3500 rack after the new probe is commissioned. Terminal blocks within the field junction box — particularly Phoenix Contact or equivalent DIN-rail mounted screw terminals — should be inspected for torque and corrosion as part of the same maintenance visit.

Site Replacement Workflow

A structured site replacement workflow for the 330104-03-12-10-02-00 minimises exposure to unplanned downtime and reduces the risk of commissioning errors. The following sequence is recommended for maintenance engineers performing a scheduled or emergency probe replacement on a 3300 XL-monitored machine.

Step 1 — Permit and Isolation: Obtain a work permit and confirm that the machine is in a safe state for maintenance. If the probe is installed in a hazardous area, verify that the Zener barrier (3300/05 or equivalent) is correctly installed and that intrinsic safety requirements are met before disconnecting the field wiring.

Step 2 — Record Pre-Removal Data: Note the existing gap voltage reading from the 3500/42M monitor card or the System 1 software display. This value (typically −10 VDC ± 0.5 VDC at the calibrated air gap) serves as the commissioning target for the replacement probe.

Step 3 — Remove and Replace: Disconnect the TNC connector at the proximitor. Unthread the probe from the machine casing using the correct spanner on the probe body — never apply torque to the cable. Install the 330104-03-12-10-02-00 replacement probe, applying thread-locking compound as specified in the OEM installation manual. Reconnect the extension cable TNC connector, ensuring full thread engagement.

Step 4 — Gap Setting and Commissioning: Adjust the probe tip-to-shaft gap to achieve the target bias voltage recorded in Step 2. Lock the probe in position and re-verify the gap voltage. Confirm that the 3500/42M channel displays a valid vibration reading within normal operating range and that no alert or danger alarms are active.

Step 5 — Documentation and Handover: Record the replacement in the site maintenance management system (CMMS), including the new probe serial number, installation date, gap voltage, and technician sign-off. Update the spare parts register to trigger replenishment of the consumed probe.

Spare Parts Support FAQ

Q1: Is the 330104-03-12-10-02-00 a direct replacement for all 3300 XL proximity probe variants?
The 330104-03-12-10-02-00 is a specific configuration within the 3300 XL 8mm probe family. The part number suffix encodes cable length, connector type, and temperature rating. Confirm that the suffix matches your installed configuration before ordering. SMARTNEXMSK can assist with cross-referencing alternative suffixes if your exact configuration is required.

Q2: How is the probe tested before shipment?
Every 330104-03-12-10-02-00 unit is electrically tested for coil resistance, insulation integrity, and sensitivity prior to dispatch. Units are shipped with a test report confirming compliance with 3300 XL OEM specifications. The 12-month warranty covers any performance deviation identified after installation.

Q3: Can this probe be used with a 7200 Series or 3000 Series proximitor?
No. The 330104-03-12-10-02-00 is calibrated for use with the 3300 XL proximitor/seismic transducer only. Pairing it with a 7200 Series or 3000 Series proximitor will result in incorrect sensitivity and unreliable vibration readings. Always match the probe series to the proximitor series.

Q4: What is the recommended spare parts holding strategy for this probe?
For critical rotating machinery, a minimum of two spare probes per monitored machine is recommended, with at least one held on-site and one available from a qualified distributor such as SMARTNEXMSK. Given the probe’s role in machinery protection, a stockout during an unplanned outage can extend downtime significantly. SMARTNEXMSK offers long-term supply agreements and priority dispatch for registered maintenance accounts.
