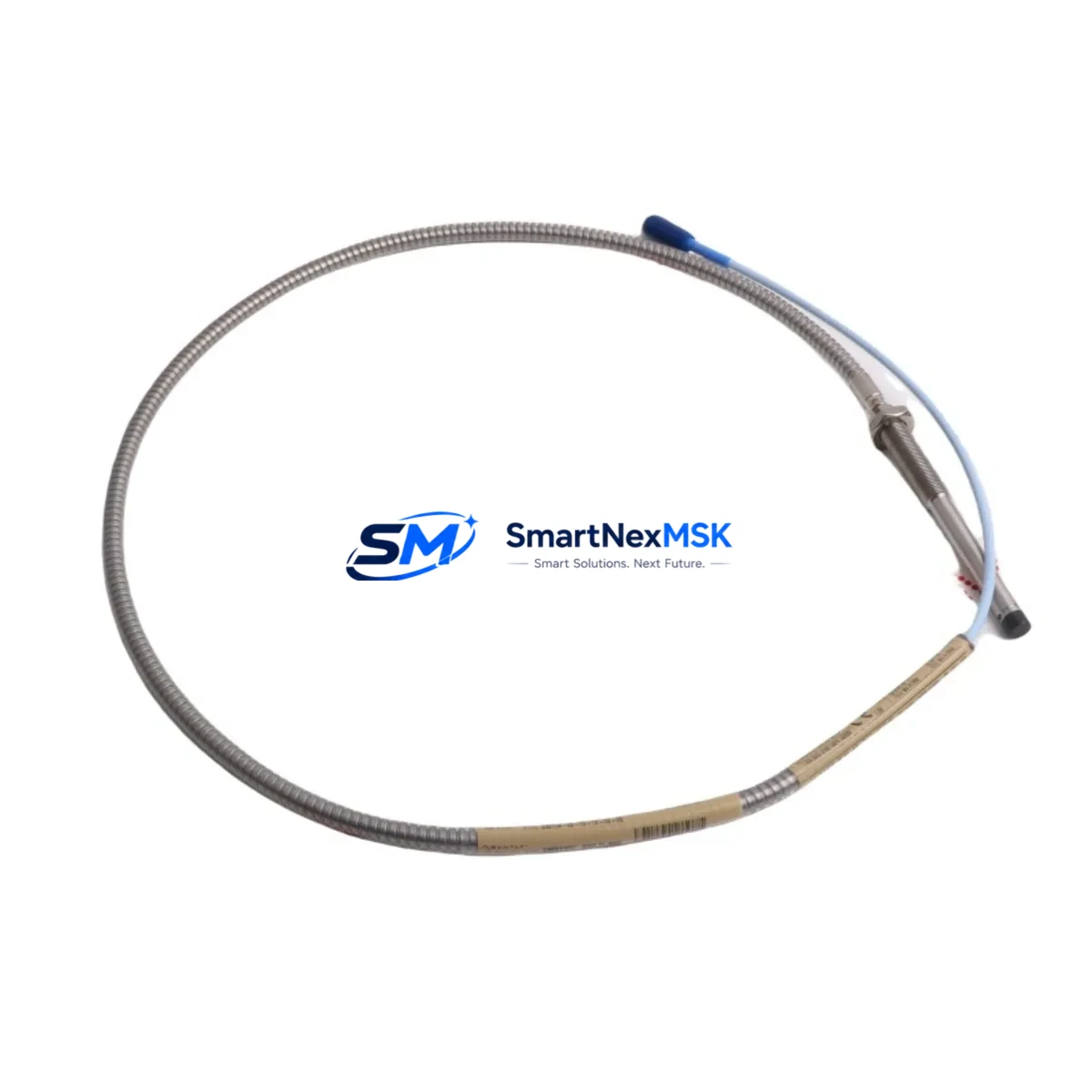

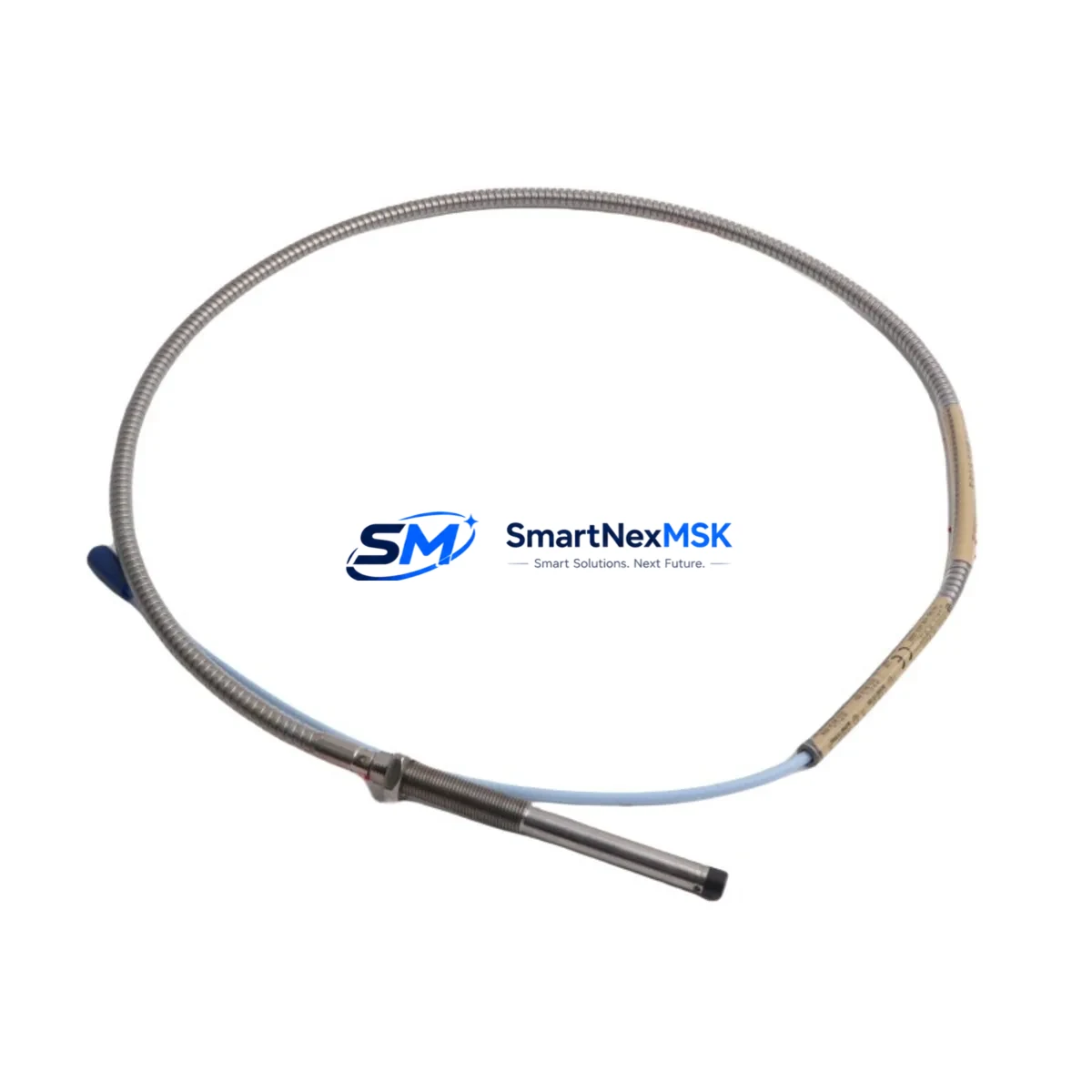

Bently Nevada 330104-05-10-50-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330104-05-10-50-02-00 is an 8mm eddy current proximity probe engineered for seamless integration into legacy 3300 XL Series vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of aging machinery protection platforms, this probe serves as a verified drop-in replacement for discontinued or end-of-life units — enabling smooth system modernization without requiring full rack replacement or reprogramming of existing monitor logic.
Whether you are managing a turbine protection panel, compressor monitoring rack, or rotating equipment health system, the 330104-05-10-50-02-00 delivers the same gap voltage characteristics, sensitivity, and cable length specifications as the original factory-installed probe. This ensures that your existing Bently Nevada 3300 XL Proximitor sensor — typically the 330180 or 330130 series — continues to operate within calibrated parameters without requiring reconfiguration of the signal conditioning chain.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 330104-05-10-50-02-00 |
| Series Compatibility | Bently Nevada 3300 XL Vibration Monitoring System |
| Probe Diameter | 8mm Eddy Current |
| Cable Length | 5m probe + 10m extension = 15m total system length |
| Connector Type | Standard BNC / coaxial, compatible with 3300 XL Proximitor inputs |
| Gap Voltage Range | -10 VDC nominal at 1.0mm gap (per 3300 XL calibration standard) |
| Proximitor Compatibility | 330180-51-00, 330130-040-01-00, and equivalent 3300 XL Proximitor sensors |
| Installation Requirement | Standard 8mm threaded mounting boss; no bracket modification required |
| Communication Compatibility | Analog 4-20mA / voltage output; compatible with System 1 and TDXnet data acquisition |
| Replacement Recommendation | Direct drop-in for worn, damaged, or discontinued 330104-series probes |
| Commissioning Note | Re-gap and re-calibrate after installation; verify OK LED on Proximitor module |
| Warranty | 12-Month Warranty — covers manufacturing defects and signal performance |
Retrofit Planning for Existing Automation Systems
Retrofitting a 3300 XL-based machinery protection system requires careful coordination across multiple hardware layers. The 330104-05-10-50-02-00 probe is typically installed as part of a complete measurement chain that includes the extension cable (such as the 330130-080-00-00 or 330130-040-01-00), the Proximitor sensor module, and the 3300 XL monitor card seated in the rack backplane. Before replacement, engineers should verify that the existing Proximitor module is functioning correctly — a faulty 330180 Proximitor will produce erroneous gap voltage readings even with a new probe installed.
In many retrofit scenarios, the 3300 XL rack itself may be approaching end-of-support, prompting facilities to evaluate migration toward the Bently Nevada 3500 Series platform. In such cases, the 330104-05-10-50-02-00 can serve as an interim solution — maintaining measurement continuity while the broader migration plan is developed. The 3500/42M Proximitor I/O Module and 3500/22M Transient Data Interface are commonly specified in parallel during this planning phase, as they accept the same probe and extension cable assemblies.
For facilities operating mixed-generation panels, it is also common to encounter the 330100-series probes alongside 330104-series units within the same control cabinet. Technicians should document each probe’s serial number, gap setting, and Proximitor pairing before beginning any swap to avoid cross-channel calibration errors. The 330104-05-10-50-02-00 is compatible with standard 3300 XL rack configurations using the 3300/16 or 3300/20 monitor modules, and no firmware changes are required on the monitor side.
Where I/O expansion is part of the retrofit scope, the 3300 XL I/O module assignments should be reviewed against the existing PLC or DCS interface — particularly if the vibration data feeds into a Rockwell Automation ControlLogix or Siemens S7-400 safety layer via a 4-20mA hardwired connection or Modbus RTU link. Ensuring signal scaling consistency between the new probe output and the existing analog input card prevents false alarm conditions during the commissioning window.
Downtime Control During System Migration
Minimizing unplanned downtime during a probe replacement or system migration is a primary concern for operations teams managing continuous-process equipment. For the 330104-05-10-50-02-00, the physical swap can typically be completed within a planned maintenance window of two to four hours, provided that the replacement probe, extension cable, and calibration tools are staged in advance.
The recommended sequence is: (1) isolate the measurement channel at the 3300 XL monitor card without tripping the overall machinery protection logic — most 3300 XL monitors support channel bypass via the front-panel keypad or System 1 software; (2) remove the existing probe and extension cable assembly, noting the installed gap dimension; (3) install the 330104-05-10-50-02-00 and set the gap to the original specification using a non-conductive feeler gauge; (4) reconnect the Proximitor and verify the OK LED status; (5) confirm gap voltage at the Proximitor output terminals before restoring the channel to active monitoring.
Where the machinery cannot be taken offline, a hot-standby probe arrangement using a dual-probe bracket may be considered, allowing the new probe to be pre-gapped and verified before the old probe is disconnected. This approach is particularly valuable on critical turbine or compressor trains where continuous vibration monitoring is a safety requirement. Throughout the migration, original program logic in the connected PLC or DCS — including alarm setpoints, trip thresholds, and HMI display tags — should remain unchanged, as the 330104-05-10-50-02-00 maintains identical signal characteristics to the original unit.
Retrofit Support FAQ
Q1: Is the 330104-05-10-50-02-00 a direct replacement for all 330104-series probes?
The 330104-05-10-50-02-00 is a direct replacement for probes with the same cable length configuration (5m probe + 10m extension). If your existing installation uses a different suffix combination — such as 330104-05-10-50-01-00 or 330104-05-10-50-03-00 — verify the total system cable length before ordering, as the Proximitor calibration is length-dependent.
Q2: Do I need to recalibrate the Proximitor after installing this probe?
Yes. After installing the 330104-05-10-50-02-00, you should re-gap the probe to the manufacturer’s recommended air gap (typically 1.0-1.5mm for 8mm probes) and verify the gap voltage at the Proximitor output. If the gap voltage falls outside the -10 VDC +/-0.5 VDC window, adjust the probe position accordingly before restoring the channel to service.
Q3: What testing is performed before shipment?
Each 330104-05-10-50-02-00 unit undergoes pre-shipment functional testing including continuity verification, insulation resistance check, and gap voltage output confirmation against a reference Proximitor. Units are shipped with a test report and are covered by a 12-month warranty against manufacturing defects and signal performance deviations.
Q4: Can this probe be used with a Bently Nevada 3500 Series system?
Yes, with qualification. The 330104-05-10-50-02-00 is electrically compatible with 3500 Series Proximitor I/O modules (such as the 3500/42M) when used with the correct extension cable and within the supported total cable length. Confirm the 3500 Series monitor card’s input specifications and recalibrate the channel after installation.
—
