Bently Nevada 330104-05-10-50-02-RU Spare 3300 XL

Bently Nevada 330104-05-10-50-02-RU Maintenance-Ready Spare for 3300 XL Automation

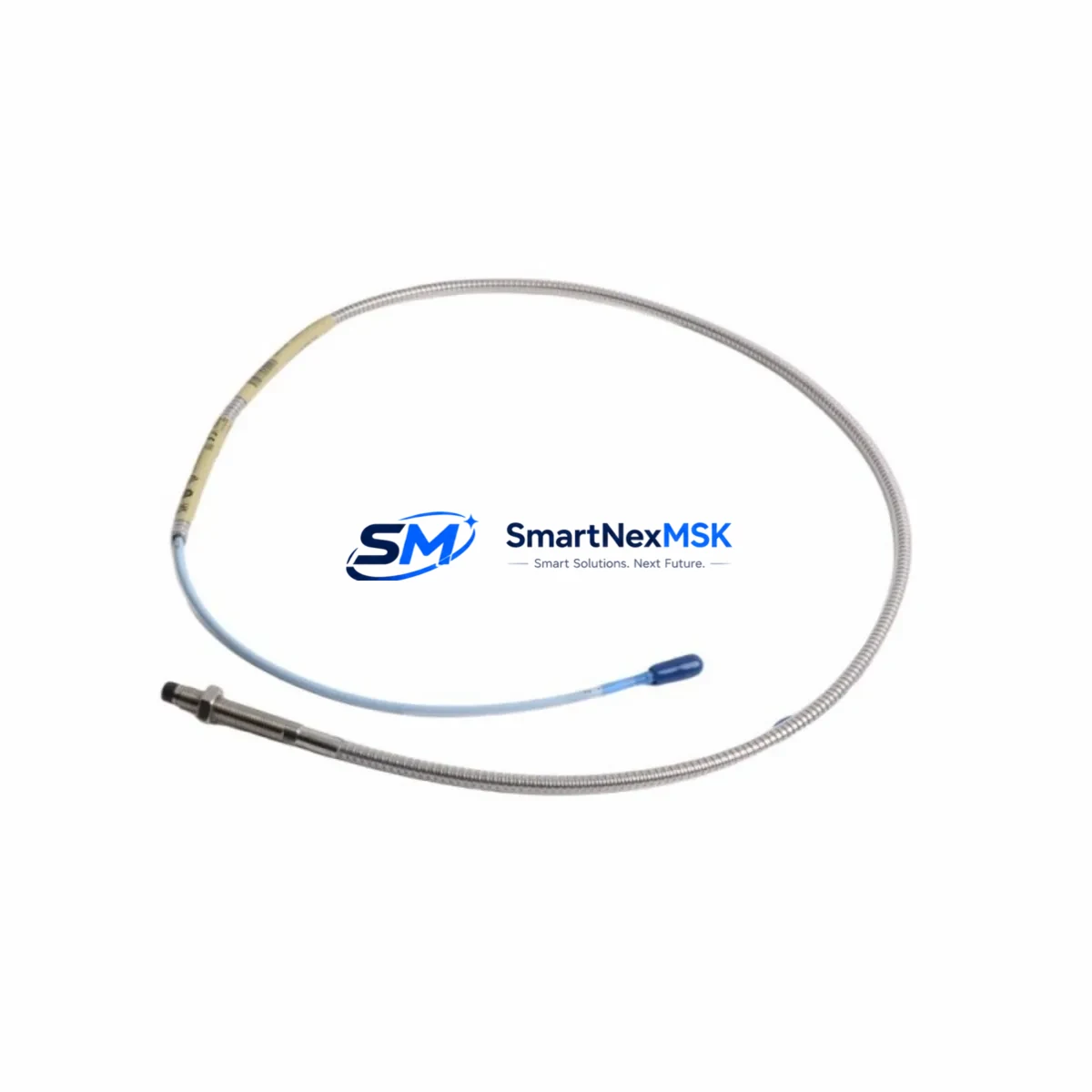

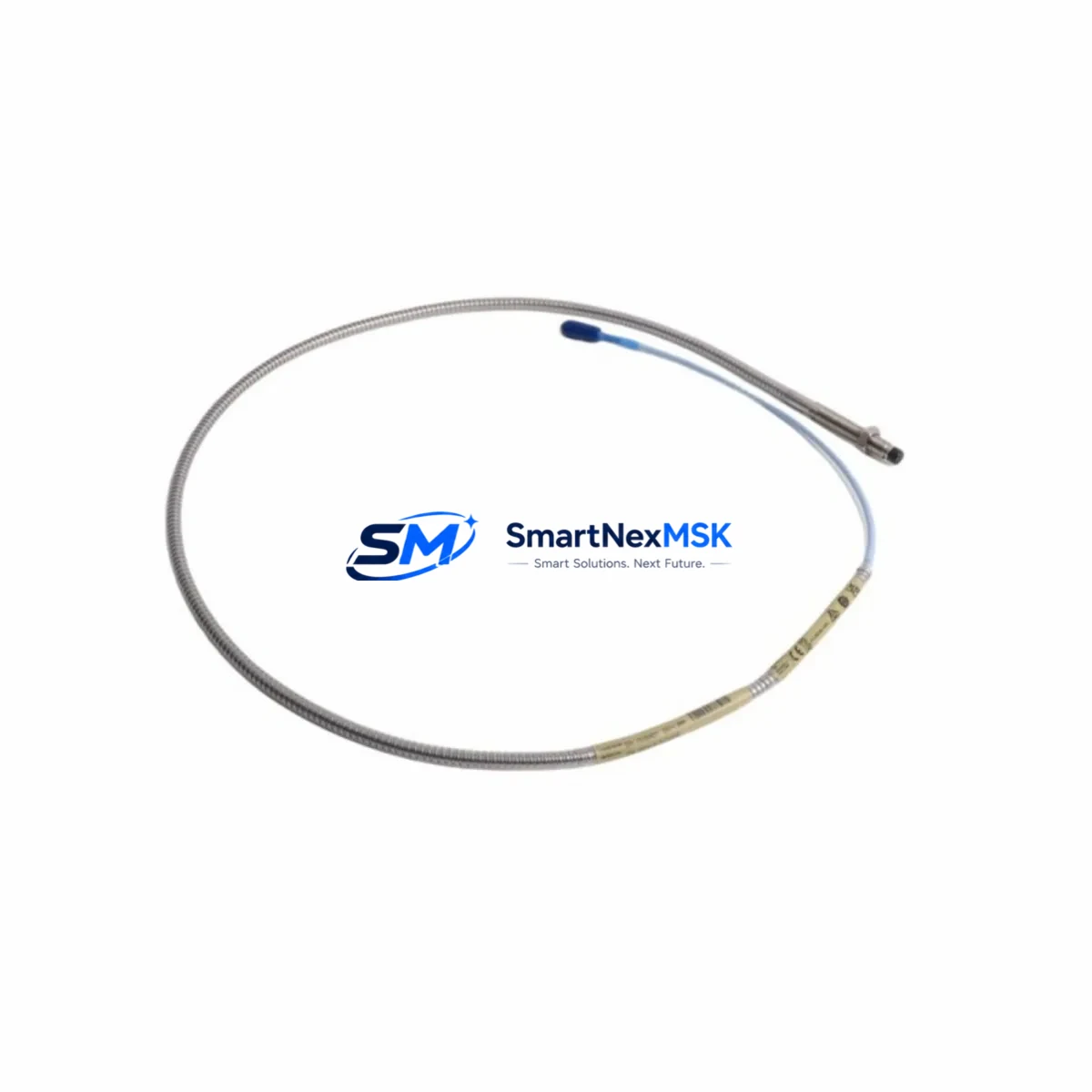

The Bently Nevada 330104-05-10-50-02-RU is an original 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed for radial vibration, axial position, and differential expansion measurement on rotating equipment, this transducer is a critical spare for turbines, compressors, pumps, and gearboxes operating in oil & gas, power generation, petrochemical, and heavy industrial environments.

For maintenance engineers managing rotating machinery health, unplanned downtime caused by a failed proximity transducer can cascade into catastrophic bearing damage or unplanned shutdown events. Stocking the 330104-05-10-50-02-RU as a certified maintenance spare eliminates the lead-time risk associated with OEM procurement channels and ensures your 3300 XL monitoring loop remains fully operational during planned turnarounds or emergency callouts.

This unit ships fully tested against Bently Nevada factory specifications, including gap voltage linearity, sensitivity calibration at 200 mV/mil (7.87 V/mm), and frequency response verification. Each unit is individually inspected prior to dispatch and backed by a 12-month warranty covering manufacturing defects and performance deviation from published specifications.

Procurement engineers sourcing replacement transducers for aging 3300 XL installations will find this part directly interchangeable with earlier 330104 series variants, subject to cable length and connector compatibility verification. The -05-10-50-02-RU suffix denotes 5-metre extension cable, 10mm probe, 50mm armored cable, standard connector, and RU (Russian) documentation package — confirm your system’s cable assembly and proximitor pairing before installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-05-10-50-02-RU in the field, a disciplined maintenance engineer will treat the transducer swap as an opportunity to audit the entire vibration monitoring loop and adjacent control cabinet components. The 3300 XL proximity system is a tightly coupled measurement chain — a degraded proximitor, damaged extension cable, or misconfigured monitor channel can produce false readings even after a new probe is installed.

Begin by inspecting the paired 3300 XL 8mm Proximitor (330180 series) for housing cracks, moisture ingress, and terminal corrosion. Verify the extension cable assembly (330130 series) for jacket abrasion, connector pin integrity, and continuity. Check the 3300/16 or 3300/20 monitor module for alarm setpoint configuration and channel OK status. If the cabinet houses a 3500 Series rack, confirm the transducer interface card firmware is current and the OK relay output is functioning correctly.

Simultaneously inspect the 24 VDC power supply module feeding the proximitor — voltage sag or ripple is a common root cause of spurious vibration alarms. Review the terminal block assemblies (Phoenix Contact or equivalent) for loose terminations on the signal and shield conductors. If the system includes a signal isolator or barrier for hazardous area installations, verify the barrier’s input/output voltage drop is within specification.

For installations integrated with a DCS or safety system, confirm the 4–20 mA or voltage output from the monitor card is correctly received at the DCS I/O module and that the engineering unit scaling matches the transducer sensitivity. Where Modbus or PROFIBUS communication modules relay vibration data to the control room, validate the data mapping after any hardware replacement. Finally, check the HMI trend displays for baseline vibration signatures to confirm the new transducer is reading within expected gap voltage range (typically –10 to –18 VDC at operating clearance).

Maintaining a minimum of two 330104-05-10-50-02-RU units in your critical spare inventory — alongside matched proximitors, extension cables, and a spare monitor channel card — is recommended for any facility operating rotating machinery on a continuous basis.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitor channel. Do not de-energize the entire rack unless required; most 3300/3500 racks support hot-swap of individual monitor modules.

Step 2 — Gap Voltage Verification: Before removing the old probe, record the existing gap voltage and compare against the machine’s baseline. A reading outside –10 to –18 VDC indicates the probe may already be failed or the target surface is damaged.

Step 3 — Probe Removal: Loosen the probe locknut and back the probe out carefully. Inspect the target area for scoring, pitting, or contamination that could affect the new probe’s linearity.

Step 4 — New Probe Installation: Thread the 330104-05-10-50-02-RU to the correct gap distance per the calibration chart (typically 1.0–1.5 mm for 8mm probes). Secure the locknut and route the cable to avoid mechanical contact with rotating components.

Step 5 — System Verification: Re-energize the channel and confirm gap voltage, OK status, and alarm relay function. Compare the vibration baseline against historical trend data before returning the machine to service.

This workflow minimizes downtime to under two hours for a prepared maintenance team and eliminates the risk of re-work caused by incorrect gap setting or cable routing errors.

Spare Parts Support FAQ

Q1: Is the 330104-05-10-50-02-RU a direct replacement for earlier 330104 variants?
The 330104 series shares a common probe body and sensitivity specification across most suffix variants. The key differences are cable length, armored cable length, and documentation language. Confirm the extension cable length and connector type match your existing installation before ordering. The -RU suffix indicates Russian-language documentation; the hardware is electrically identical to standard variants.

Q2: What is included in the 12-month warranty?
Each unit is covered for 12 months from the date of shipment against manufacturing defects and performance deviation from Bently Nevada published specifications. Warranty claims require the unit to be returned in original packaging with a fault description. Physical damage caused by incorrect installation, over-torquing, or target surface contact is excluded.

Q3: How is the unit tested before shipment?
Every 330104-05-10-50-02-RU is bench-tested for gap voltage linearity across the full measurement range, sensitivity at 200 mV/mil, and cable continuity end-to-end. Units that fail any parameter are quarantined and not dispatched. A test report is available upon request for critical applications.

Q4: Can you support long-term or blanket orders for ongoing maintenance programs?
Yes. We support scheduled delivery agreements for facilities requiring quarterly or annual replenishment of critical rotating machinery spares. Contact our team to discuss volume pricing, lead-time commitments, and consignment stock arrangements for 3300 XL series components.
