Bently Nevada 330104-05-11-90-11-00 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330104-05-11-90-11-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

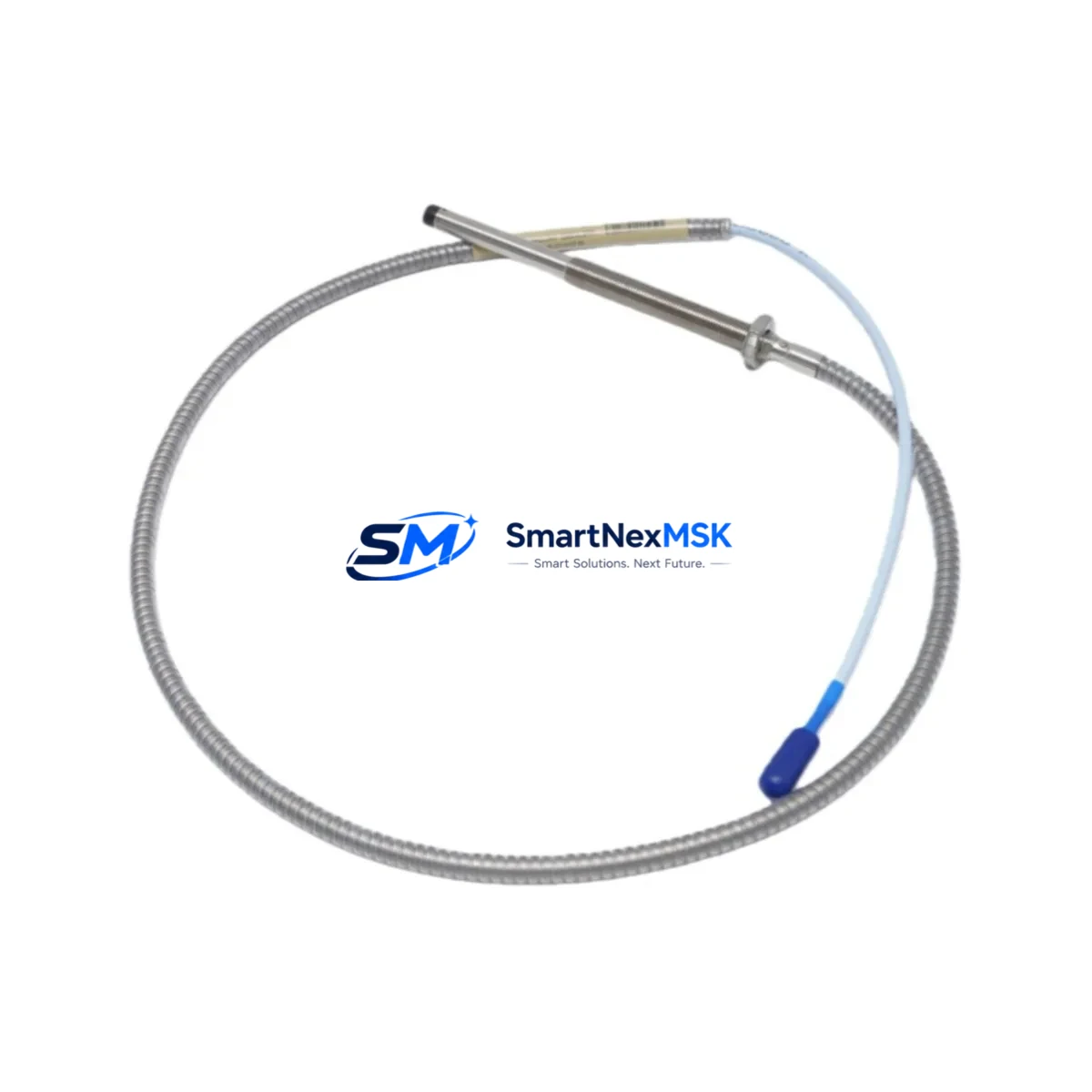

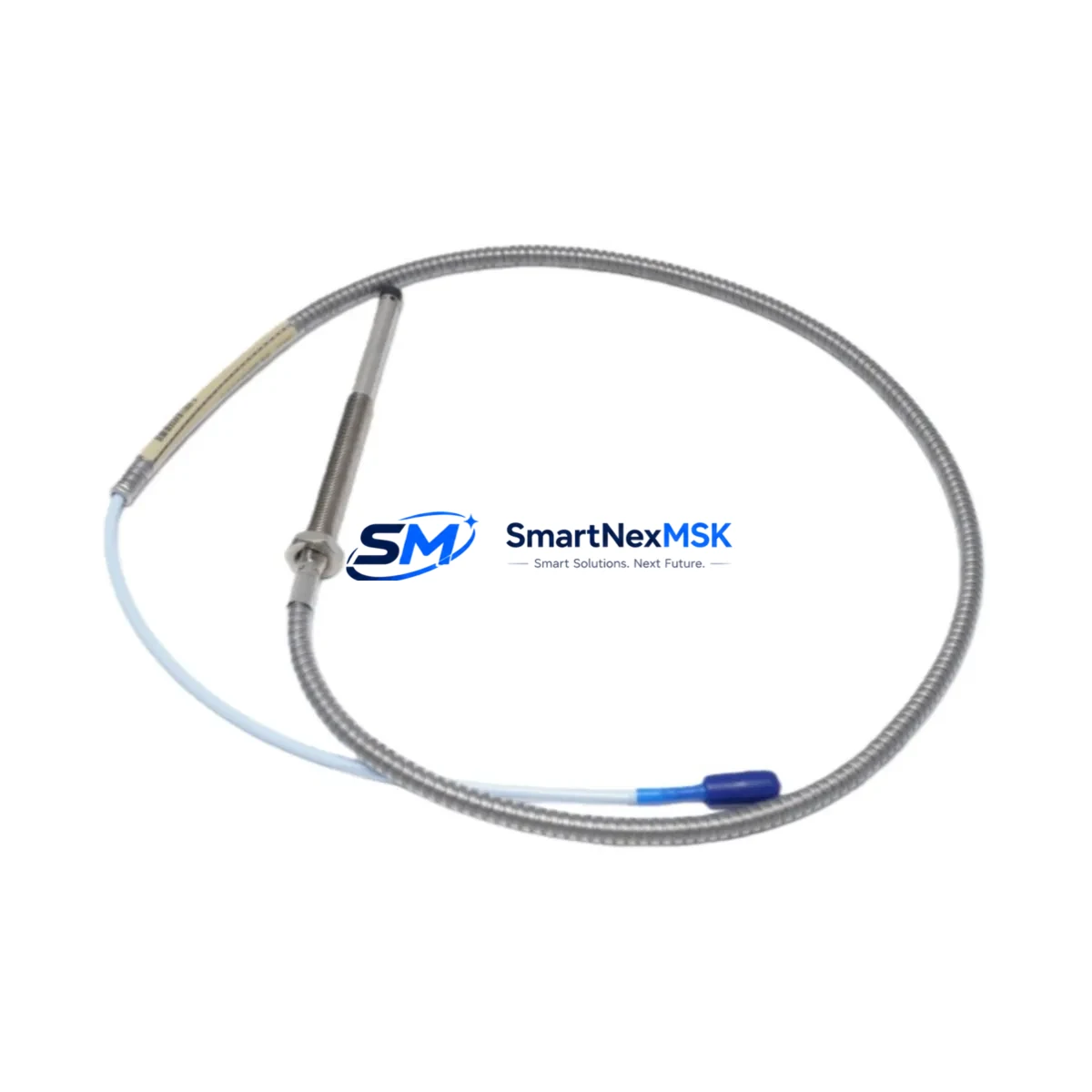

The Bently Nevada 330104-05-11-90-11-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems age and OEM support for discontinued models becomes increasingly limited, this probe serves as a verified drop-in replacement for facilities undertaking control system modernization, predictive maintenance upgrades, and rotating equipment monitoring retrofits. Whether you are replacing a failed sensor on a critical compressor train, upgrading a turbine monitoring rack, or restoring a mothballed production line, the 330104-05-11-90-11-00 delivers the dimensional accuracy, signal linearity, and environmental resilience required for continuous industrial operation.

This probe is fully compatible with the Bently Nevada 3300 XL proximitor/seismic monitor series, including the 3300/16 and 3300/20 monitor modules. It integrates directly with the standard 3300 XL extension cable assemblies and proximitor housings without requiring adapter hardware or signal conditioning modifications. The 5-metre integral cable configuration and standard TNC connector interface ensure that existing conduit routing and junction box terminations can be reused, significantly reducing installation labour and downtime during a planned outage window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-05-11-90-11-00 into an existing machinery protection architecture requires a structured pre-installation review. Begin by auditing the current 3300 XL rack configuration: confirm the slot assignments for each monitor module, verify that the proximitor power supply rail — typically sourced from a dedicated 24 VDC instrument bus — is within specification, and document the existing gap voltage readings for all active probes on the shaft. This baseline data is essential for post-installation comparison and acceptance testing.

When the replacement probe is installed, the extension cable from the 330130 series must be routed without sharp bends or contact with high-voltage conduit runs. The proximitor, typically a 330180 series unit mounted in the field junction box, should be inspected for corrosion on the BNC-to-TNC adapter and terminal block connections before the new probe is energised. If the existing proximitor shows drift or output instability, it is advisable to replace it concurrently rather than risk a repeat outage.

For facilities running a broader Bently Nevada 3500 series rack alongside legacy 3300 XL hardware, note that the 3500/42M position monitor and 3500/22M transient data interface use different probe driver architectures. The 330104-05-11-90-11-00 is not cross-compatible with 3500 series proximitors without a signal conditioning bridge. If your modernisation roadmap includes migration from 3300 XL to 3500 series, plan the probe replacement and rack upgrade as a coordinated activity to avoid mixed-system signal conflicts.

In DCS-integrated environments where the proximity probe output feeds into a Honeywell Experion PKS or Emerson DeltaV controller via a 4–20 mA transmitter card, confirm that the analogue input module scaling parameters are preserved in the controller configuration before the probe is swapped. Any change to the gap voltage setpoint or OK relay threshold must be reflected in the DCS alarm management database and the associated HMI faceplate on the operator workstation. Failure to synchronise these parameters can result in spurious trips or masked fault conditions during the post-installation run-up period.

For facilities using a GE Mark VI or Woodward 505 governor in the same control cabinet, ensure that the vibration trip interlock logic referencing the 3300 XL monitor output is placed in bypass mode — with appropriate management of change documentation — before the probe is removed. Restore and verify the interlock after gap voltage is confirmed within the acceptance band. This sequence protects both the equipment and the control system integrity during the transition.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires pre-staging all replacement components — including the 330104-05-11-90-11-00 probe, the 330130 extension cable, and a spare 330180 proximitor — at the work site before the maintenance window opens. A pre-written commissioning checklist covering gap voltage target range, OK relay output state, and DCS input verification reduces the risk of extended outage caused by on-site troubleshooting.

Where the process cannot tolerate a full shutdown, consider a hot-standby approach using a dual-probe configuration if the bearing housing has a spare probe port. This allows the replacement probe to be installed and gap-set while the primary probe remains in service, with a controlled switchover executed at a low-load operating point. After switchover, verify that the 3300 XL monitor module registers the new probe’s OK status and that the vibration trend displayed on the operator HMI is consistent with the historical baseline before releasing the unit to normal operation.

All programme logic in the associated PLC or safety instrumented system that references the vibration monitor output should be reviewed and, if necessary, re-validated after the probe replacement. Retain the original programme backup and the pre-replacement gap voltage log as part of the as-built documentation package. This supports future audits and reduces commissioning time for any subsequent replacement cycle.

Retrofit Support FAQ

Q: Is the 330104-05-11-90-11-00 a direct replacement for the original Bently Nevada part?
A: Yes. This probe is manufactured to the same dimensional and electrical specification as the original 330104-05-11-90-11-00 and is a verified drop-in replacement for 3300 XL eddy current monitoring systems. No mechanical modification or signal conditioning change is required for like-for-like substitution.

Q: What gap voltage should I set after installation?
A: The standard gap voltage for 8mm probes in the 3300 XL system is typically –10.0 VDC ±0.5 V at the nominal air gap specified for your shaft material. Refer to the original system commissioning record for the site-specific target. After installation, measure the gap voltage at the proximitor output terminal and adjust the probe position until the reading falls within the acceptance band before tightening the locknut.

Q: Can I reuse the existing extension cable and proximitor?
A: In most cases, yes. The 330130 series extension cable and 330180 series proximitor are compatible with this probe. However, inspect both components for cable jacket damage, connector corrosion, and proximitor output drift before reuse. If the proximitor has been in service for more than five years or shows output instability, concurrent replacement is recommended to avoid a repeat outage.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, dimensional non-conformance, and signal performance outside the published specification under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch typically within 3 business days. Contact sales@smartnexmsk.com with the installation date, gap voltage log, and fault description to initiate a warranty review.

—
