Bently Nevada 330104-08-12-10-02-00 3300 XL Spare: Precision Replacement for Continuous Rotating Machinery Monitoring

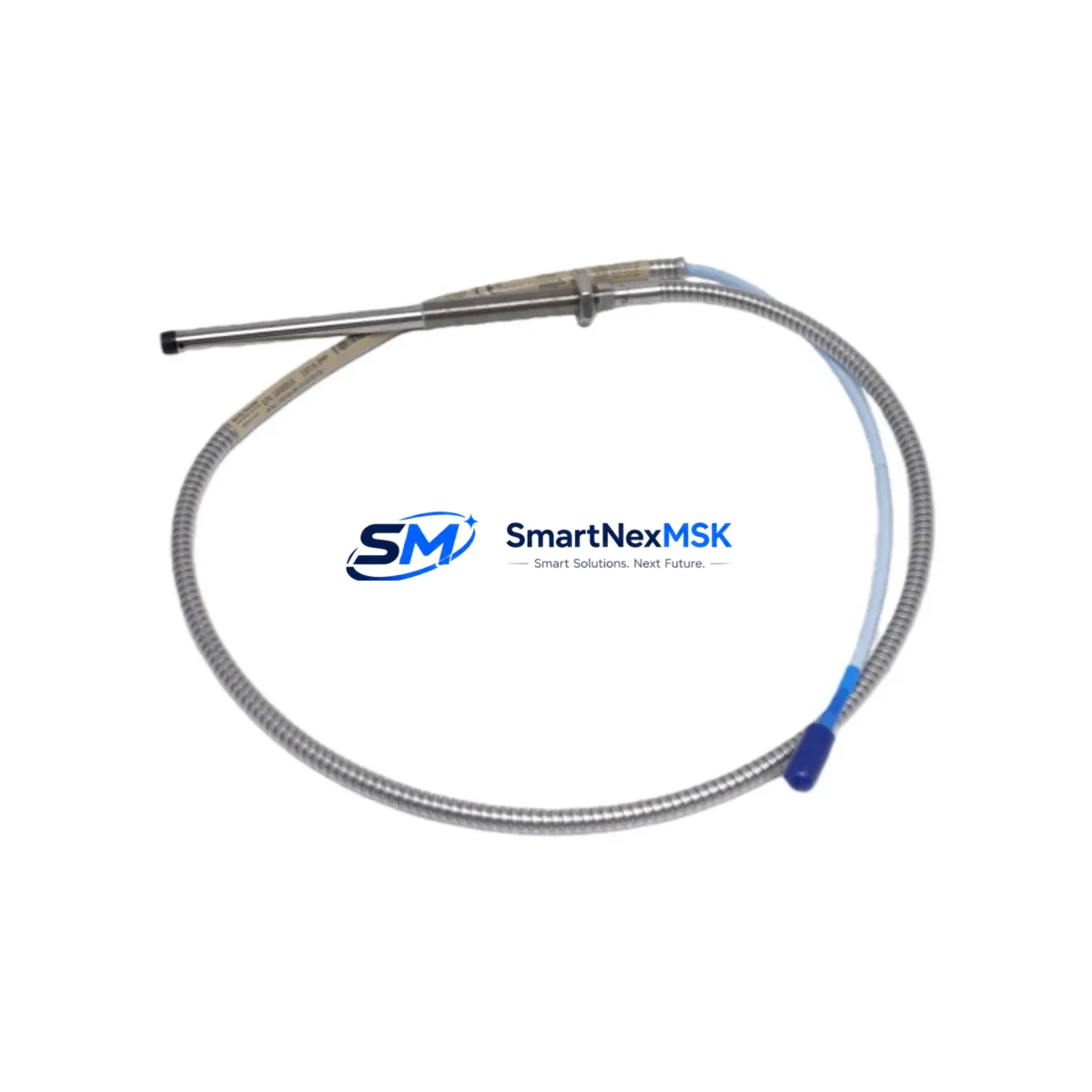

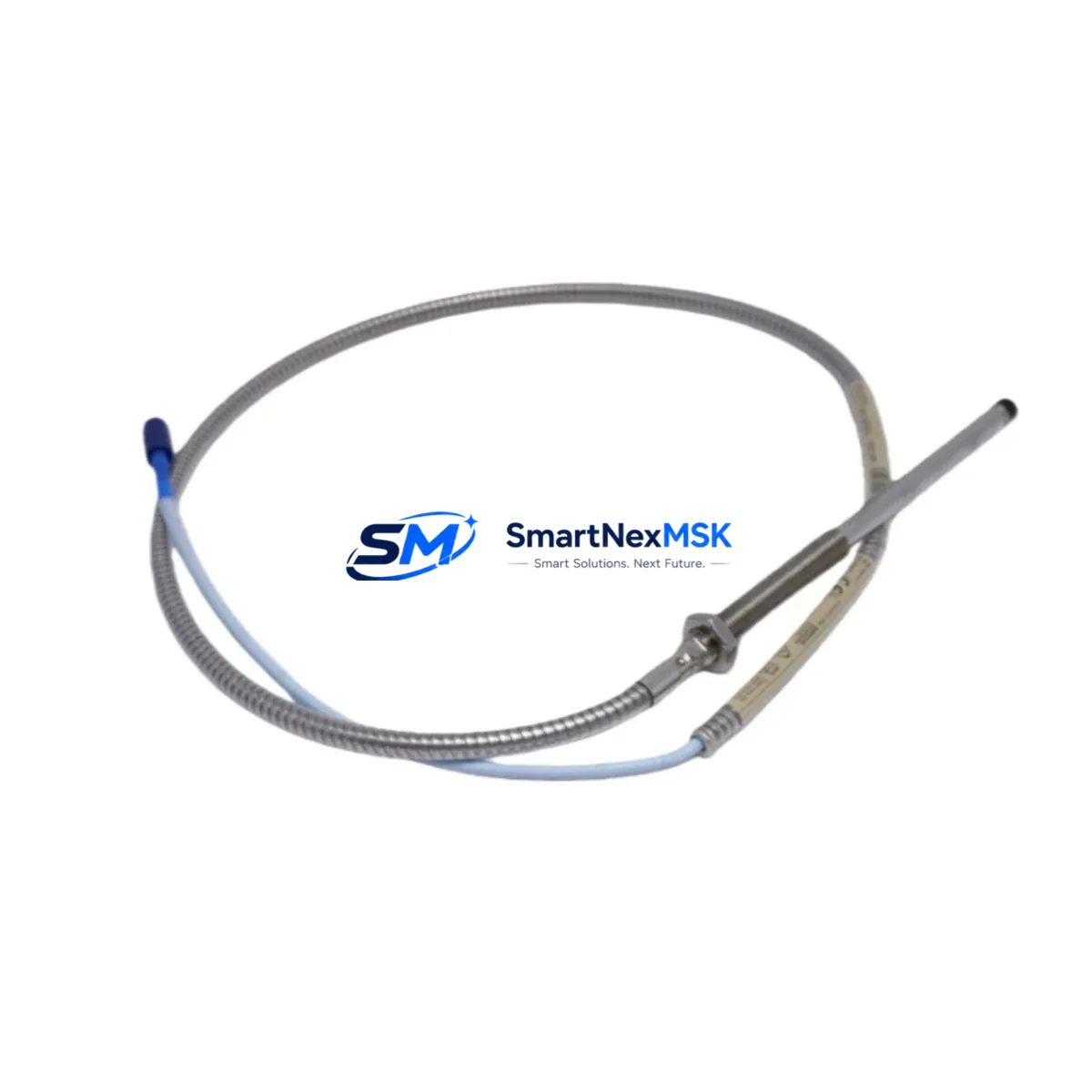

The Bently Nevada 330104-08-12-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. In rotating machinery protection applications — turbines, compressors, pumps, and gearboxes — this probe is a primary sensing element for radial shaft vibration and position measurement. When this component degrades or fails, the entire protection loop is compromised, creating unacceptable downtime risk in critical process environments. Sourcing a verified original spare and executing a structured replacement workflow is the fastest path to restoring full monitoring integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330104-08-12-10-02-00 proximity probe, the scope of inspection should extend beyond the probe itself. The 3300 XL monitoring loop is a tightly integrated system, and a single degraded component can mask or generate false alarms across the entire channel.

Begin with the Proximitor® sensor (typically a 330180 or 330181 series unit) mounted in the field junction box. The Proximitor converts the probe’s eddy-current signal into a DC voltage proportional to gap distance; if the sensor’s internal oscillator has drifted, replacing the probe alone will not restore calibration accuracy. Inspect the 3300 XL extension cable (matched to the probe’s 1.0 m lead) for jacket abrasion, connector corrosion, and continuity — extension cables are frequently overlooked during probe swaps and are a common source of intermittent signal faults.

At the monitor rack, verify the 3300 XL dual-channel vibration monitor card (e.g., 3300/16 or 3300/20 series) for alarm setpoint integrity and OK relay status. Check the rack power supply module — a sagging -24 VDC rail will shift the probe’s operating point and produce erroneous gap readings even with a new probe installed. If the installation uses a 3300 XL keyphasor® module, confirm its probe and cable are also within specification, as phase reference errors affect all vibration vectors derived from that shaft.

For installations in hazardous areas, inspect the intrinsic safety barriers or galvanic isolators in the signal path — these components age and can introduce impedance that degrades probe sensitivity. Review the terminal blocks and field wiring in the junction box for loose terminations, moisture ingress, and correct shielding continuity. In older systems, the BNC-to-terminal adapters used at the monitor card inputs are a frequent source of intermittent contact faults.

If the machinery protection system feeds a DCS or safety instrumented system (SIS), coordinate with the control room team to confirm that the analog input card receiving the vibration signal is reading correctly after probe replacement and re-gapping. Document the as-found and as-left gap voltage readings in the maintenance management system to support future trend analysis and predictive maintenance scheduling.

Site Replacement Workflow

1. Pre-work verification: Confirm the replacement 330104-08-12-10-02-00 probe is from original Bently Nevada stock and has been tested prior to shipment. Verify the matched extension cable part number against the existing installation drawing.

2. Isolation and bypass: Coordinate with operations to bypass the vibration channel in the 3300 XL monitor before removal. Do not defeat the entire protection system — bypass only the affected channel to maintain protection on remaining channels.

3. Removal: Loosen the probe locknut and back the probe out carefully. Note the as-found gap (typically measured as Proximitor output voltage, nominally -10 VDC at mid-gap for this series). Record the value for the maintenance log.

4. Installation and gapping: Thread the new 330104-08-12-10-02-00 probe into the bracket. Adjust gap to achieve the target Proximitor output voltage per the system’s calibration sheet (commonly -10.0 ± 0.5 VDC). Torque the locknut to specification and apply thread-locking compound if required by site procedure.

5. Functional verification: Remove the channel bypass. Confirm OK LED status on the 3300 XL monitor card. Verify vibration readings are within expected baseline range for the machine at operating speed. Check that alarm and danger setpoints are active.

6. Documentation: Record as-left gap voltage, probe serial number, installation date, and technician ID. Update the spare parts inventory to reflect consumption and trigger reorder of a replacement spare to maintain minimum stock levels.

This structured approach minimizes mean time to repair (MTTR), preserves system compatibility, and supports the long-term reliability of legacy 3300 XL installations — including life extension programs where original Bently Nevada components are essential to maintaining API 670 compliance.

Spare Parts Support FAQ

Q1: Is the 330104-08-12-10-02-00 compatible with both the 3300 XL and earlier 3300 series monitors?
The 330104-08-12-10-02-00 is designed and calibrated for the 3300 XL Proximitor® sensor. While the physical connector and thread form are similar to some earlier 3300 series probes, the sensitivity calibration (7.87 V/mm) is specific to the XL-series Proximitor. Using this probe with a non-XL Proximitor may result in calibration errors. Always verify the Proximitor model number before installation.

Q2: What is your pre-shipment testing process for this probe?
Each 330104-08-12-10-02-00 unit is bench-tested for output sensitivity, gap linearity, and OK status before shipment. Test records are available upon request. Units are shipped in anti-static packaging with physical protection for the probe tip and connector.

Q3: How should we manage spare inventory for this probe in a multi-machine facility?
For facilities operating three or more machines monitored by 3300 XL systems, we recommend maintaining a minimum of two 330104-08-12-10-02-00 probes plus matched extension cables in the on-site spare parts store. Given the probe’s role in machinery protection, a stockout during an unplanned outage carries significant production risk. We offer long-term supply agreements to support planned maintenance cycles.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and verified performance deviations from published Bently Nevada specifications under normal operating conditions. Warranty claims require documentation of correct installation gap voltage and operating environment. Our technical team supports compatibility verification and installation guidance at no additional charge.
