Bently Nevada 330104-09-15-05-02-00 Spare 3300 XL

Bently Nevada 330104-09-15-05-02-00 Maintenance-Ready Spare for 3300 XL Automation

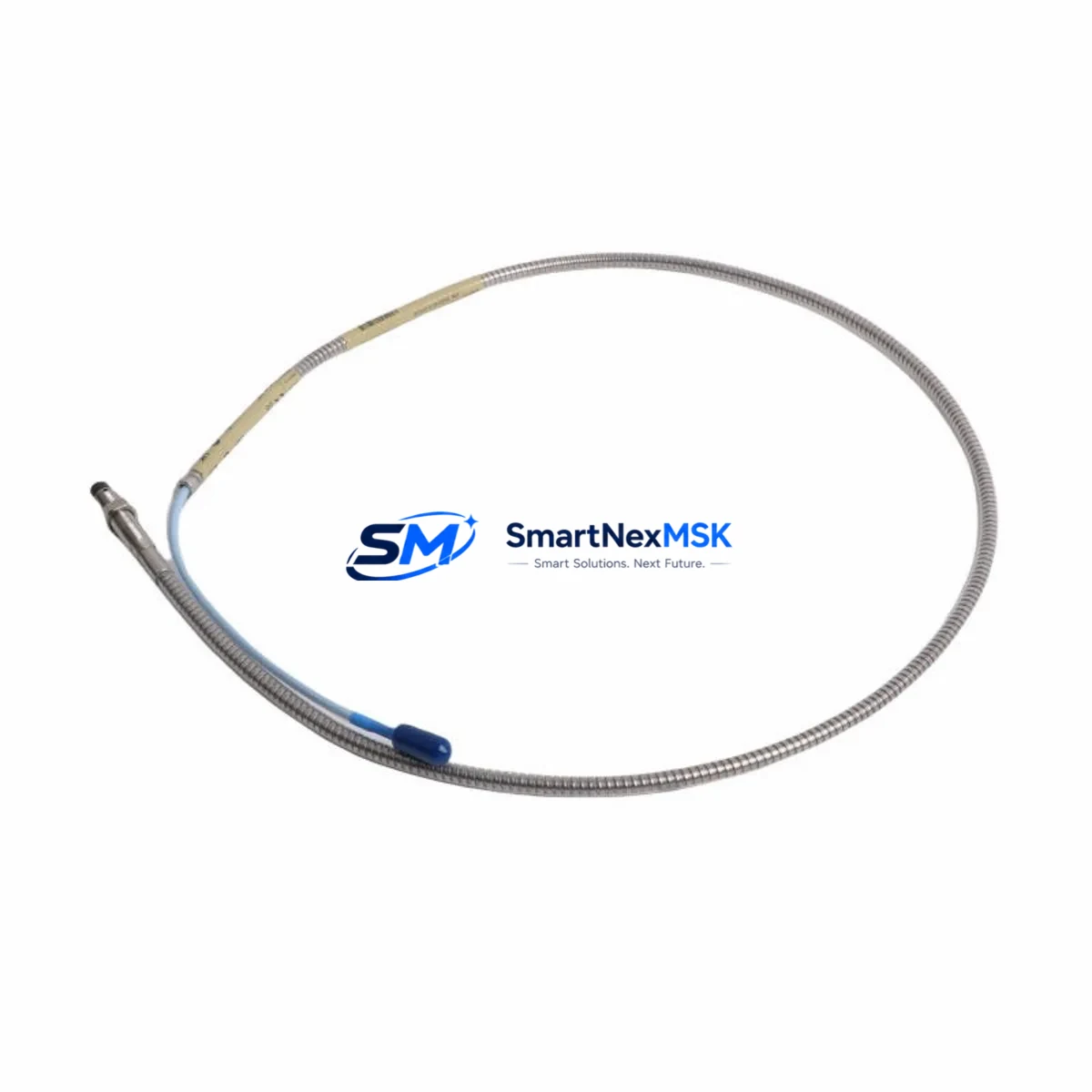

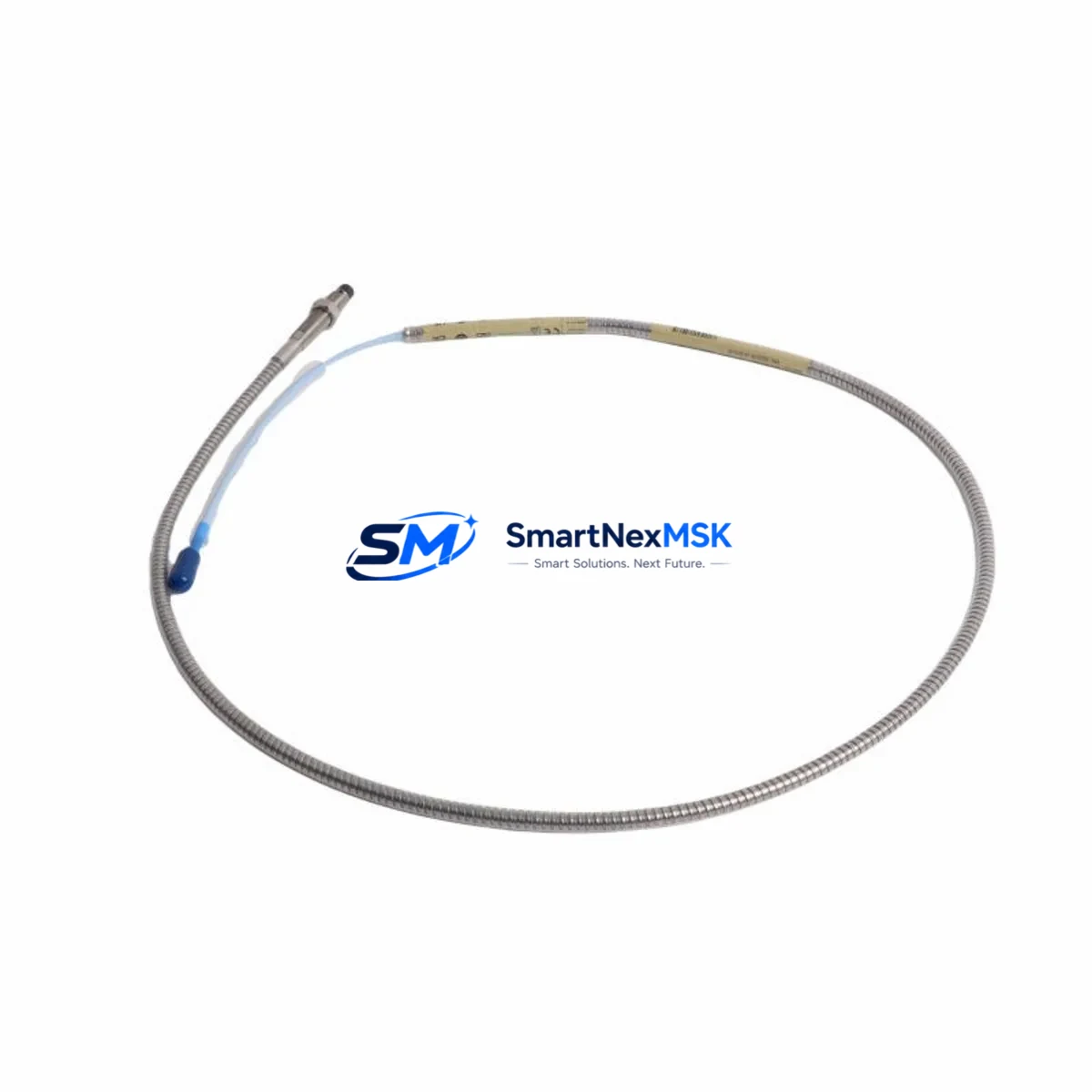

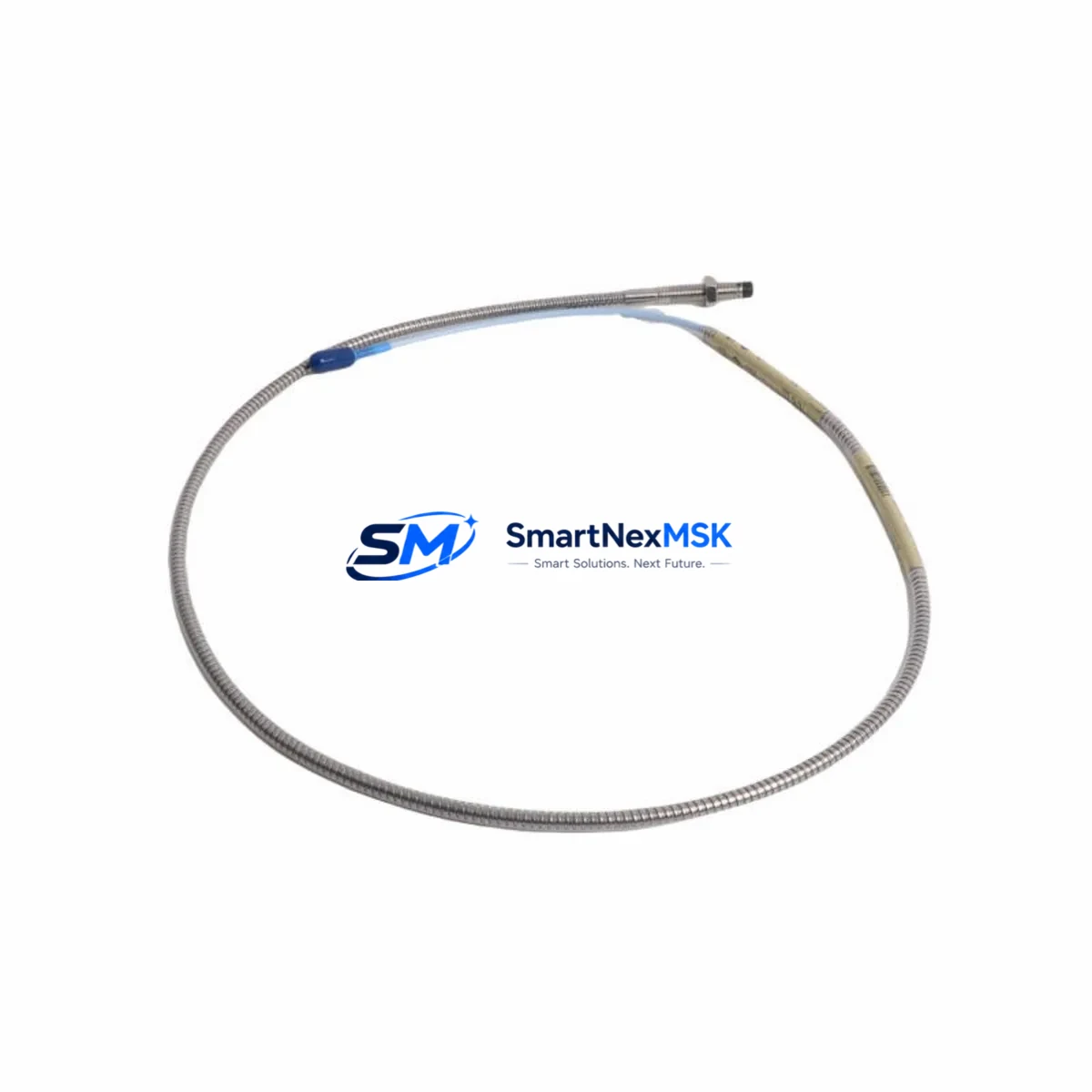

The Bently Nevada 330104-09-15-05-02-00 is an original eddy current proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in oil & gas, power generation, petrochemical, and heavy industrial environments, this transducer delivers precise shaft displacement and vibration measurements critical to predictive maintenance programs and machinery protection systems. Holding a verified spare of the 330104-09-15-05-02-00 in your maintenance inventory is a proven strategy for minimizing unplanned downtime and accelerating fault recovery when a vibration channel fails during operation.

For maintenance engineers and procurement engineers managing aging turbomachinery or compressor trains, the 330104-09-15-05-02-00 is a direct field replacement that restores full channel functionality without requiring system reconfiguration. Each unit is tested prior to shipment, backed by a 12-month warranty, and supported by long-term supply continuity — making it suitable for both emergency replacement and planned spare parts stocking programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-09-15-05-02-00 proximity transducer is flagged during a routine control cabinet inspection or machinery protection audit, the replacement workflow should extend beyond the transducer itself. Maintenance engineers are advised to simultaneously inspect the following components to prevent repeat failures and ensure the full vibration monitoring channel is restored to specification:

The 3300 XL Proximitor® Sensor (driver) paired with this transducer should be verified for output voltage and gap calibration — a degraded driver will cause erroneous readings even with a new transducer installed. The 3300/16 or 3300/20 monitor module in the rack should be checked for alarm setpoint integrity and channel OK status. If the transducer cable shows signs of abrasion or connector corrosion, the 330130 extension cable should be replaced as a matched set to maintain system accuracy.

For the power supply side, the 3300/05 Power Supply module feeding the Proximitor® should be load-tested; an unstable supply rail is a common root cause of intermittent vibration channel faults. The 3300/55 Dual Voting Logic module, if present in the rack, should be confirmed for correct voting configuration after any channel replacement. Terminal blocks and field wiring connections at the 3300 XL I/O terminal board should be inspected for loose terminations, especially in high-vibration environments where mechanical loosening is common.

In systems where the 3300 XL rack communicates with a DCS or safety system, the 3300/46 Communication Gateway or equivalent Modbus/FOUNDATION Fieldbus interface module should be verified for correct channel mapping after the transducer swap. Where signal isolation is required between the vibration monitor and the control system, signal isolators or barriers in the loop should be checked for drift. Finally, the Keyphasor® transducer (typically a 330180 or 330980 series) associated with the same machine train should be inspected during the same maintenance window, as Keyphasor signal integrity directly affects phase and 1X/2X vibration vector accuracy.

Stocking the 330104-09-15-05-02-00 alongside its matched Proximitor® driver, a spare extension cable, and a power supply module creates a complete channel spare kit — a best practice for critical rotating machinery where a single channel failure can trigger a protective shutdown.

Site Replacement Workflow

Step 1 — Verify Compatibility: Confirm the replacement 330104-09-15-05-02-00 matches the existing transducer’s cable length (9 m), armoring specification (05), and connector configuration (02-00). Cross-reference the 3300 XL system documentation to confirm the Proximitor® driver model is compatible with this transducer series.

Step 2 — De-energize and Isolate: Follow site LOTO (Lockout/Tagout) procedures. Disconnect the transducer from the Proximitor® driver before removal. Note the existing gap voltage reading from the monitor display for reference during reinstallation.

Step 3 — Physical Replacement: Remove the old transducer from the mounting bracket. Install the 330104-09-15-05-02-00 and set the gap to the manufacturer-specified range (typically 1.0–1.5 mm for 8 mm probes, yielding approximately –10 VDC). Secure the armored cable along the original routing path to avoid mechanical stress.

Step 4 — Reconnect and Verify: Reconnect to the Proximitor® driver. Re-energize the system and confirm the gap voltage is within the linear range on the 3300 XL monitor. Verify the Channel OK indicator is active and no alarms are present.

Step 5 — System Confirmation: Log the replacement in the maintenance management system (CMMS). Update the spare parts inventory record. If the machine is part of a machinery protection system, notify the control room before returning the channel to service.

This workflow supports rapid fault recovery, reduces mean time to repair (MTTR), and maintains full compatibility with existing 3300 XL infrastructure — avoiding the cost and risk of system-wide reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330104-09-15-05-02-00 a direct replacement for older 3300 series transducers?
The 330104-09-15-05-02-00 is designed for the 3300 XL Series. Compatibility with earlier 3300 (non-XL) monitors depends on the specific monitor model and Proximitor® driver version. We recommend verifying the monitor’s accepted transducer list before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: How is the unit tested before shipment?
Each 330104-09-15-05-02-00 unit undergoes functional output verification and gap linearity testing prior to dispatch. Test records are available upon request. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended spare parts stocking strategy for this transducer?
For critical rotating machinery (compressors, turbines, pumps), industry best practice recommends holding a minimum of one matched transducer-and-driver spare set per machine train. For plants with multiple 3300 XL systems, a pooled spare of 2–3 units per transducer model reduces exposure to extended lead times on legacy components.

Q4: Can this transducer be used in hazardous area (Ex) installations?
The 330104-09-15-05-02-00 configuration (armored cable, standard connector) is suitable for general industrial environments. For hazardous area (ATEX/IECEx) installations, verify the specific approval markings on the unit and confirm compatibility with the associated Proximitor® driver’s intrinsic safety or explosion-proof rating. Contact us for Ex-rated variant availability.
