Bently Nevada 330104-10-23-10-01-00 Retrofit Probe

Bently Nevada 330104-10-23-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

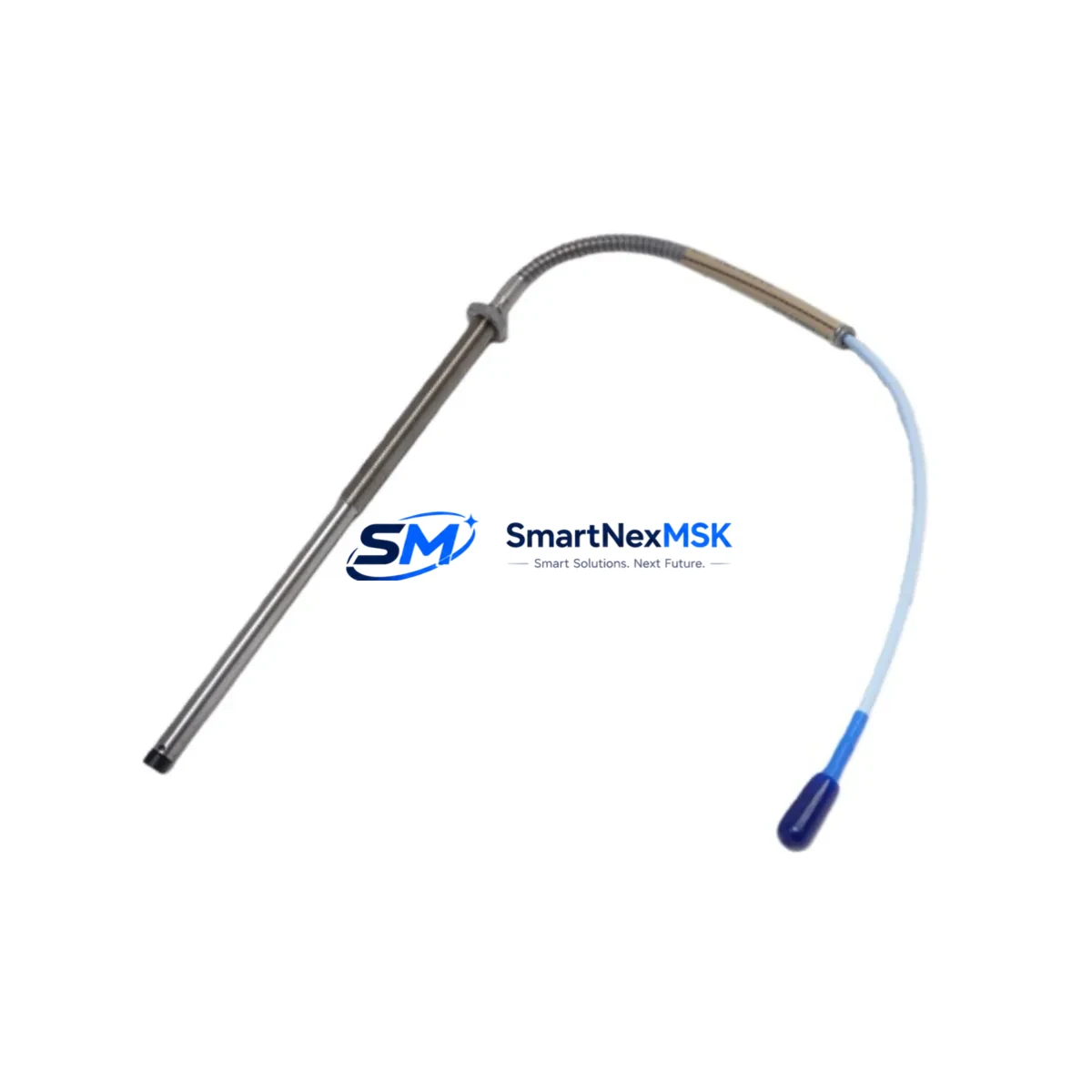

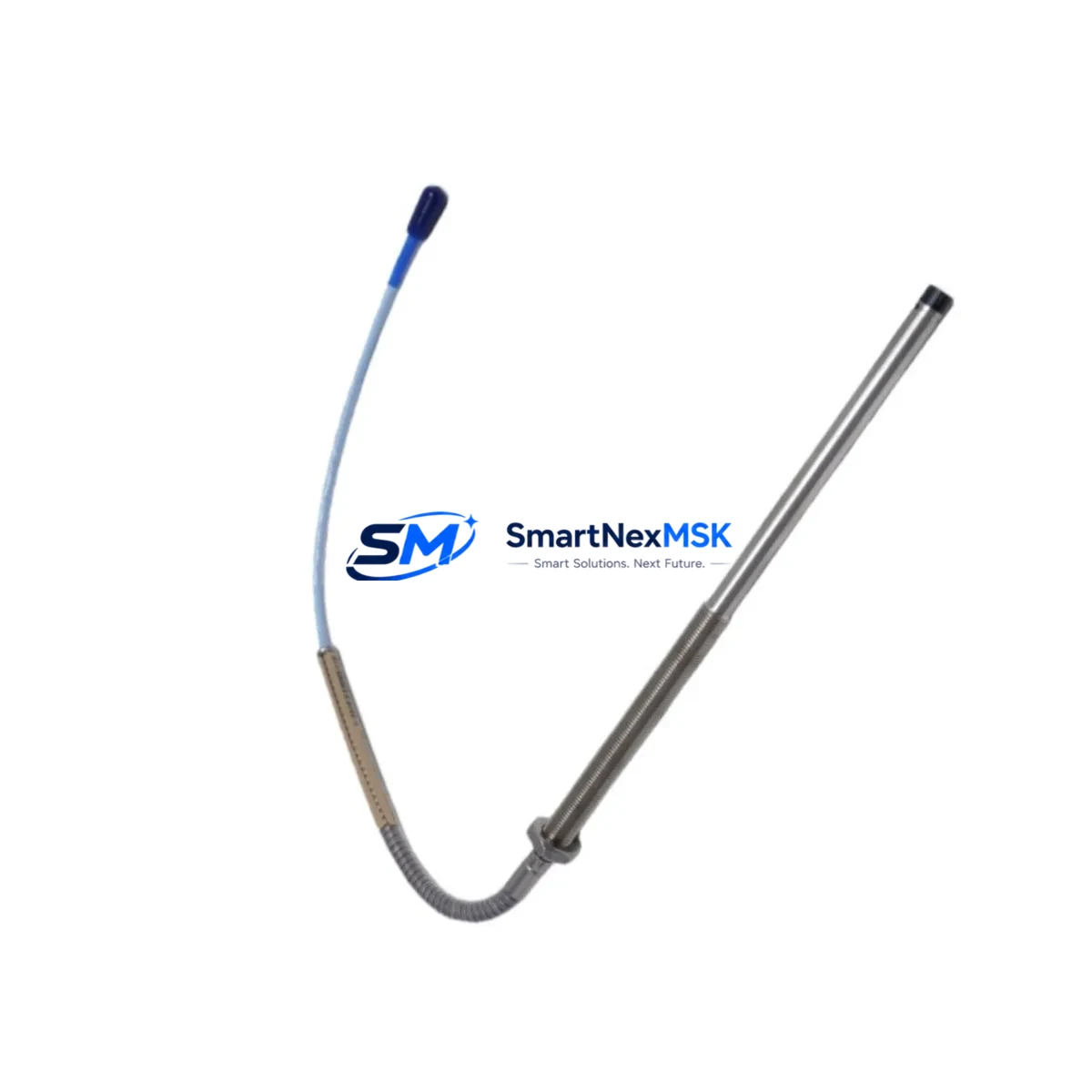

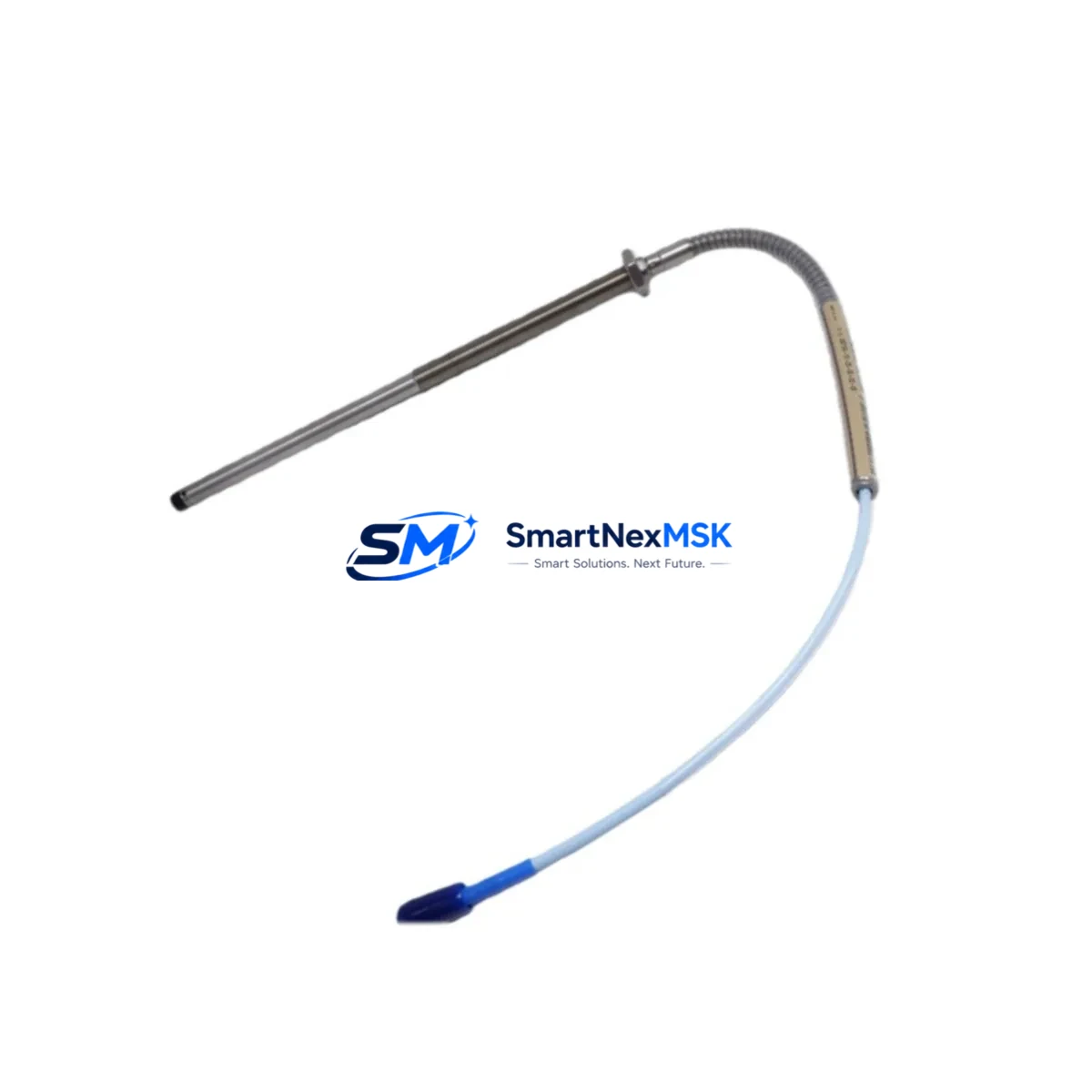

The Bently Nevada 330104-10-23-10-01-00 is an 8mm proximity probe designed for the 3300 XL Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications across petrochemical, power generation, and heavy industrial facilities. As legacy 3300 XL installations age and original components reach end-of-life, this probe serves as a direct retrofit replacement, enabling facilities to restore full monitoring capability without requiring a complete system overhaul.

When planning a retrofit or replacement using the 330104-10-23-10-01-00, engineers must verify several critical compatibility parameters. The probe operates within the standard Bently Nevada 8mm probe system, requiring confirmation of the extension cable length and part number — typically paired with a 330130 series extension cable — and the corresponding 3300 XL Proximitor® sensor (such as the 330180 series) to complete the measurement chain. The entire signal chain — probe, extension cable, and Proximitor — must be matched as a calibrated set to ensure accurate gap voltage, sensitivity (typically 7.87 V/mm), and linear measurement range.

Before installation, technicians should confirm the target material (typically AISI 4140 steel or equivalent), the probe tip-to-target gap (usually set between 1.0 mm and 1.5 mm for optimal linearity), and the thread engagement depth on the mounting bracket. Wiring termination at the 3300 XL I/O module or the rack-mounted 3500/25 Keyphasor® module should be reviewed against the original loop drawing to avoid signal inversion or grounding conflicts.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330104-10-23-10-01-00 probe requires a structured approach to the entire measurement chain and surrounding control architecture. In most 3300 XL installations, the probe is part of a larger machinery protection rack that may include the 3300/16 Dual Vibration Monitor, the 3300/20 Radial Vibration Monitor, or the 3300/46 Position Monitor — all of which accept the standard 8mm probe signal. Engineers should audit each monitor card’s configuration, including alert and danger setpoints, time delays, and voting logic, before swapping the probe to ensure the replacement does not inadvertently trigger a spurious trip.

The 3300 XL rack itself — including the 3300/05 Power Supply — should be inspected for output voltage stability. A degraded power supply delivering less than the nominal -24 VDC to the Proximitor can cause measurement drift that mimics a faulty probe, leading to misdiagnosis. If the power supply is original to the installation, replacement with a new 3300/05 unit should be considered as part of the retrofit scope.

For facilities running the Bently Nevada System 1 software platform for online machinery diagnostics, the probe replacement should be followed by a verification of the TDIX or ADRE 408 DSPi data acquisition settings to confirm that channel scaling and engineering unit conversions remain consistent with the new probe’s calibration certificate. Any deviation in sensitivity between the old and new probe must be corrected in the software configuration to prevent false alarms or missed fault detection.

Where the 3300 XL system interfaces with a DCS or safety instrumented system (SIS) via hardwired relay outputs or Modbus RTU communication, the retrofit team should confirm that the monitor card’s relay logic and communication register mapping remain unchanged after the probe swap. Changes to the Proximitor gap voltage or sensitivity can affect the analog output range seen by the DCS, potentially requiring recalibration of the receiving analog input card.

All replacement probes shipped by SMARTNEXMSK undergo pre-shipment electrical testing, including coil resistance verification and insulation integrity checks, to confirm they meet Bently Nevada factory specifications before leaving our warehouse.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a live rotating machine requires careful pre-planning. Where the machinery protection system supports channel bypass or inhibit mode — available on most 3300 XL monitor cards — the affected channel should be placed in bypass before probe removal to prevent a spurious trip from halting production. The bypass status must be logged, communicated to the control room, and time-limited per site safety procedures.

If the machine cannot be taken offline, a hot-swap procedure may be feasible on systems with redundant probe pairs (X-Y radial vibration configurations). In this case, the Y-axis probe can remain active while the X-axis probe is replaced, maintaining partial protection coverage. However, this approach requires explicit approval from the machinery engineer and the site safety authority.

Once the new 330104-10-23-10-01-00 probe is installed and gapped, the Proximitor output voltage should be measured at the terminal strip before re-enabling the monitor channel. The gap voltage should fall within the linear range (typically -10 VDC ± 1 VDC at the nominal gap). Only after confirming correct output should the channel bypass be removed and the monitor returned to normal protection mode. Final commissioning should include a slow-roll vibration check to verify that the probe is reading correctly against the shaft surface before the machine is returned to full-speed operation.

Retrofit Support FAQ

Q1: Is the 330104-10-23-10-01-00 a direct replacement for all 330104 series probes?
The 330104-10-23-10-01-00 is a specific configuration within the 330104 family, defined by its cable length, armored jacket, and connector type. Before ordering, confirm the original probe’s full part number and compare the suffix codes to ensure dimensional and electrical compatibility. SMARTNEXMSK’s technical team can assist with cross-reference verification.

Q2: What pre-shipment testing is performed on this probe?
Every unit undergoes coil resistance measurement, insulation resistance testing, and dimensional inspection prior to shipment. A test report is available upon request. All units carry a 12-month warranty covering manufacturing defects and electrical performance.

Q3: Can this probe be used with non-Bently Nevada monitors?
The 330104-10-23-10-01-00 is calibrated for use with Bently Nevada Proximitor sensors and 3300 XL monitors. Use with third-party eddy-current driver electronics is possible only if the driver is calibrated to the same sensitivity (7.87 V/mm) and the probe’s coil inductance is within the driver’s specified range. Compatibility verification is the customer’s responsibility in non-standard configurations.

Q4: What is the lead time and long-term supply availability?
SMARTNEXMSK maintains stock of the 330104-10-23-10-01-00 and related 3300 XL components to support urgent replacement and planned maintenance programs. Standard orders ship within 1–3 business days. For large-quantity or scheduled maintenance contracts, contact our sales team to discuss reserved stock arrangements and pricing.
