Bently Nevada 330105-02-12-05-02-01 Spare for 3300 XL Automation: Precision Spare Parts Replacement for Vibration Monitoring Systems

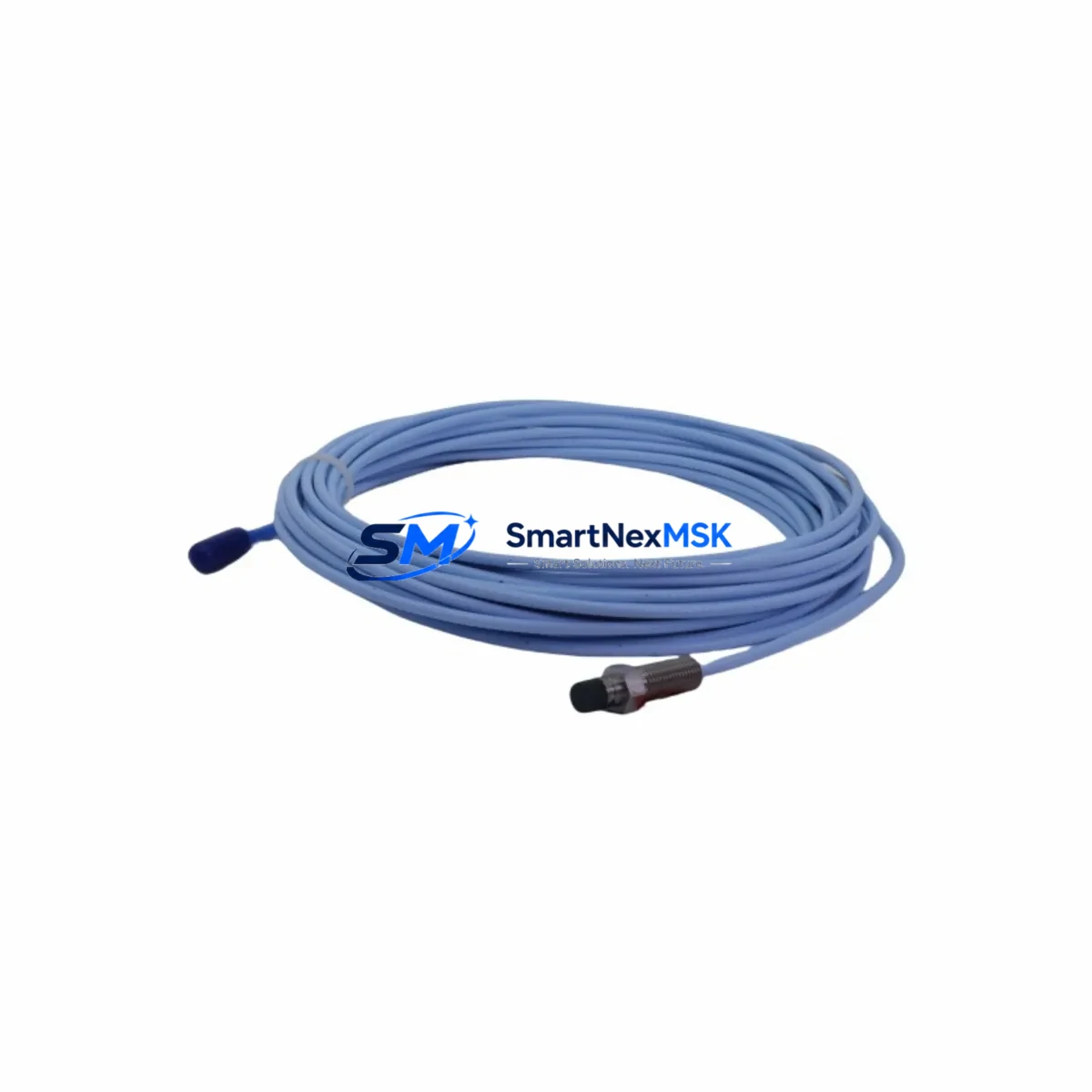

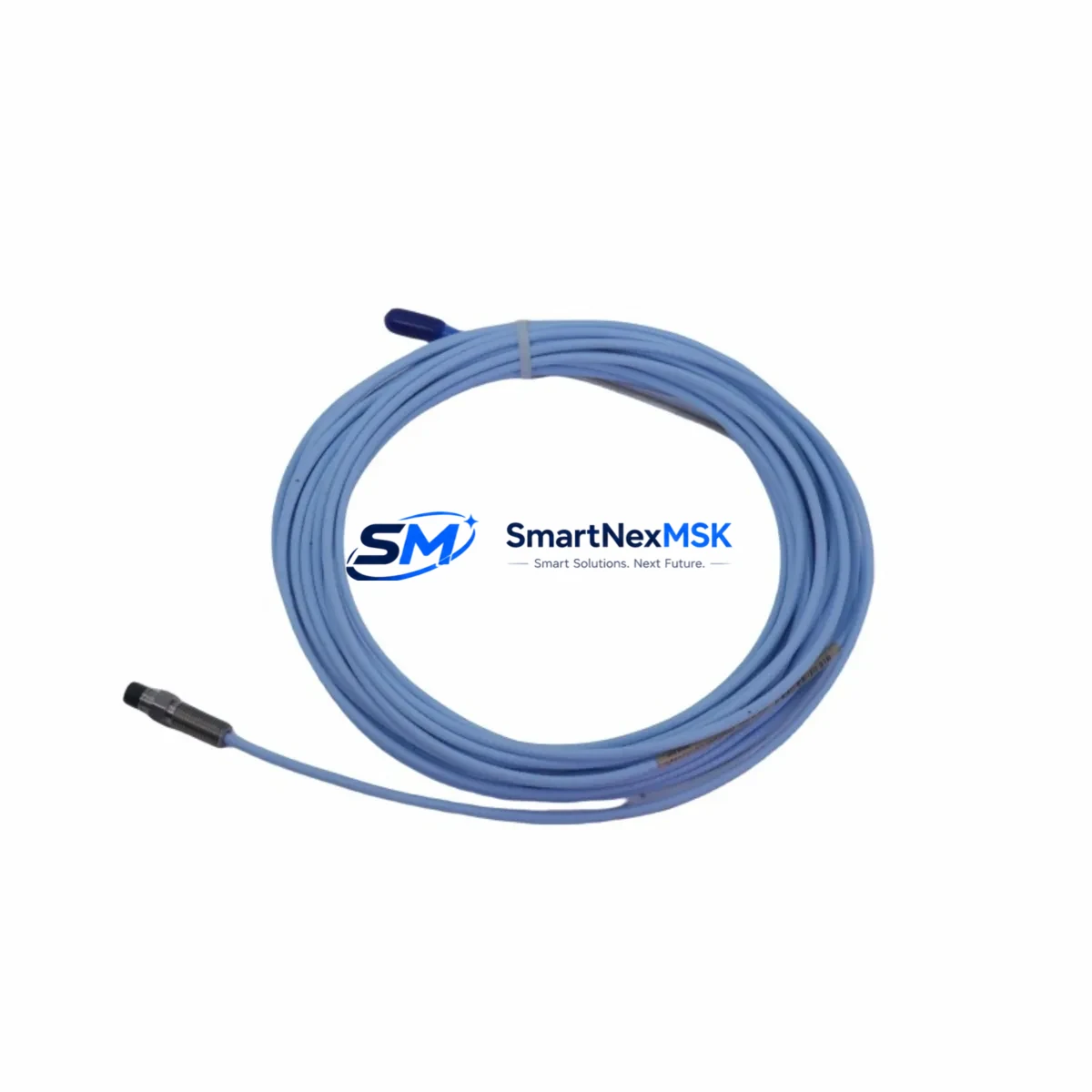

The Bently Nevada 330105-02-12-05-02-01 is an original 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous vibration monitoring platform. In rotating machinery protection systems — turbines, compressors, pumps, and gearboxes — this transducer is a front-line component responsible for converting shaft displacement into a reliable 4–20 mA or voltage signal fed directly to the 3300 XL monitor rack. When this transducer degrades or fails, the entire vibration channel goes blind, triggering nuisance trips or, worse, masking a genuine machinery fault. Maintaining a verified spare on the shelf is not optional in any serious predictive maintenance program.
For maintenance engineers managing aging turbomachinery or DCS-integrated protection systems, the 330105-02-12-05-02-01 represents a direct, pin-compatible replacement for worn or damaged transducers in the 3300 XL ecosystem. Its 8mm sensing tip, -24 VDC bias voltage, and standard 5-meter extension cable interface make it interchangeable with legacy installations without requiring recalibration of the monitor module — provided the extension cable (330130-080-00-00 or equivalent) and proximitor/oscillator (330180-X1-05 series) are also verified in good condition during the same maintenance window.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | 330105-02-12-05-02-01 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Type | Eddy-Current Proximity Transducer (8mm) |
| Sensing Range | 0–2.54 mm (0–100 mil) |
| Bias Voltage | -24 VDC (nominal) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Cable Length | 0.5 m integral cable (pairs with 5 m extension) |
| Target Material Compatibility | AISI 4140 steel (standard); other alloys require scale factor adjustment |
| Operating Temperature | -35°C to +177°C |
| IP Rating | IP67 (connector end sealed) |
| Mounting Thread | M10 × 1 (standard bracket mount) |
| Compatible Monitor | 3300 XL 8mm Monitor (3300/16, 3300/20, 3300/25 series) |
| Origin | USA |
| Warranty | 12 Months from shipment date |
| Condition | Original, tested before shipment |
| Lead Time | In-stock: ships within 2 business days |
Maintenance Planning for Continuous Operation
A structured spare parts strategy for any 3300 XL-based protection system must extend beyond the transducer itself. When a 330105-02-12-05-02-01 is pulled for replacement during a planned outage or emergency callout, the maintenance window should be used to inspect and verify the condition of the entire vibration measurement chain and associated control cabinet components.
Start with the 330130-080-00-00 extension cable — the 8-meter cable that bridges the transducer to the proximitor. Cable jacket abrasion, connector corrosion, or shield continuity loss are common failure modes in high-vibration or high-temperature environments. Next, verify the 330180-X1-05 proximitor/oscillator: this active signal conditioning module converts the transducer’s impedance change into a usable DC voltage and is equally susceptible to thermal cycling damage. A failed proximitor will produce a flat -24 VDC output that mimics a healthy signal, making it a silent failure risk.
At the monitor rack level, inspect the 3300/16 or 3300/20 monitor module input terminals for oxidation and verify that the OK relay output is functioning correctly. If the system feeds a 3500 Series rack or a DCS I/O card via a 4–20 mA loop, check the loop power supply voltage and confirm the signal isolator — such as a PR Electronics 2277 or Phoenix Contact MCR-SL series signal conditioner — is within calibration. Loose terminal blocks on the 3300 XL I/O terminal strip are a frequent source of intermittent channel faults that are misdiagnosed as transducer failures.
For control cabinet integrity, inspect the 24 VDC power supply module feeding the proximitor rail — voltage sag below 22 VDC will cause measurement drift. Check the DIN rail terminal blocks (Weidmüller or Phoenix Contact WDU series) for thermal discoloration or loose ferrules. If the system includes a Bently Nevada 3500/22M transient data interface or a System 1 software gateway, confirm communication health after transducer replacement to ensure the new channel is recognized and alarm setpoints are restored. Finally, update the maintenance log and verify the OK/Not OK relay output to the plant DCS or safety PLC before returning the machine to service.
Site Replacement Workflow
Replacing the 330105-02-12-05-02-01 in the field follows a straightforward sequence designed to minimize downtime and eliminate re-commissioning errors. Begin by de-energizing the proximitor supply rail and confirming zero voltage at the transducer connector before disconnecting. Remove the transducer from its mounting bracket — typically an M10 threaded boss welded to the bearing housing — and note the gap voltage reading from the monitor prior to removal as a baseline reference.
Install the replacement 330105-02-12-05-02-01 and set the air gap to the manufacturer-specified 1.0 mm (40 mil) nominal, which should produce a bias voltage of approximately -10.4 VDC at the monitor input. Re-energize the proximitor and confirm the OK LED illuminates on the monitor module. Verify the gap voltage is within the linear range (-2 VDC to -18 VDC) and that the dynamic signal is present by observing the vibration reading on the operator interface or HMI. If the system uses a Bently Nevada 3300 XL Keyphasor module, confirm the phase reference signal is also intact before releasing the machine.
This replacement procedure is fully compatible with legacy 3300 XL installations and does not require firmware changes or monitor reconfiguration, making it an ideal drop-in solution for extending the service life of older turbomachinery protection systems without capital investment in new monitor hardware.
Spare Parts Support FAQ
Q1: Is the 330105-02-12-05-02-01 a direct replacement for older 330105 series transducers?
Yes. The 330105-02-12-05-02-01 is backward-compatible with all 3300 XL 8mm monitor channels. The suffix digits define cable length and connector type; confirm your extension cable connector matches before ordering. No monitor reconfiguration is required for a like-for-like swap.
Q2: What does the 12-month warranty cover?
All units are tested for electrical continuity, bias voltage output, and mechanical integrity before shipment. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover physical damage from improper installation, over-range mechanical impact, or chemical exposure beyond the rated IP67 envelope.
Q3: How do you verify compatibility with my specific 3300 XL monitor configuration?
Provide your monitor module part number (e.g., 3300/16-02-01-01-00-00) and existing transducer part number when inquiring. Our technical team will confirm scale factor compatibility, OK setpoint alignment, and any required gap adjustment for your target shaft material.
Q4: Can you support long-term or blanket purchase orders for this SKU?
Yes. We support scheduled delivery agreements and consignment stock arrangements for maintenance teams managing multiple 3300 XL installations. Contact our sales team to discuss volume pricing, lead time guarantees, and dedicated inventory reservation for your facility.
