Bently Nevada 330106-05-30-10-02-05 Spare for 3300 XL

Bently Nevada 330106-05-30-10-02-05 Maintenance-Ready Spare for 3300 XL Automation

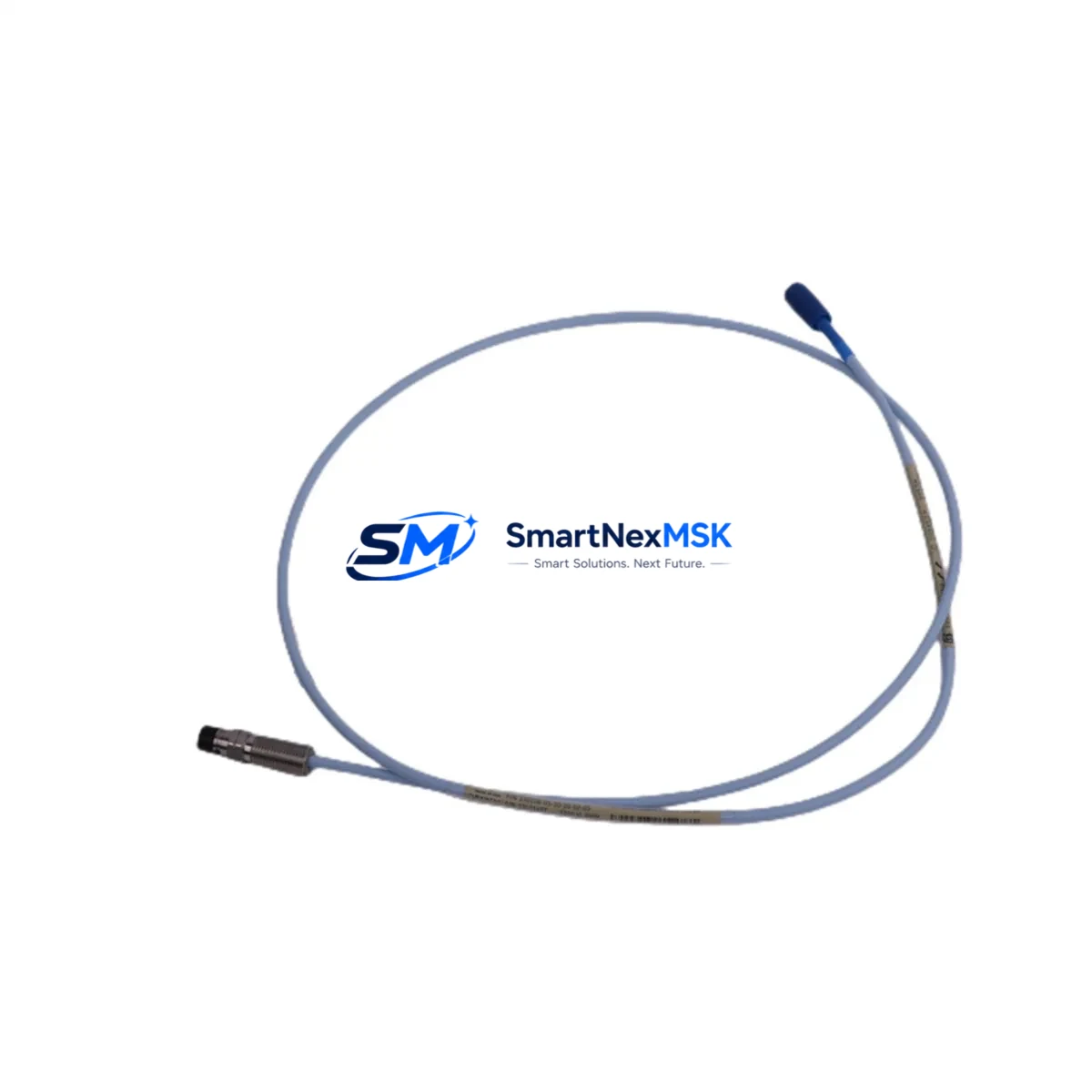

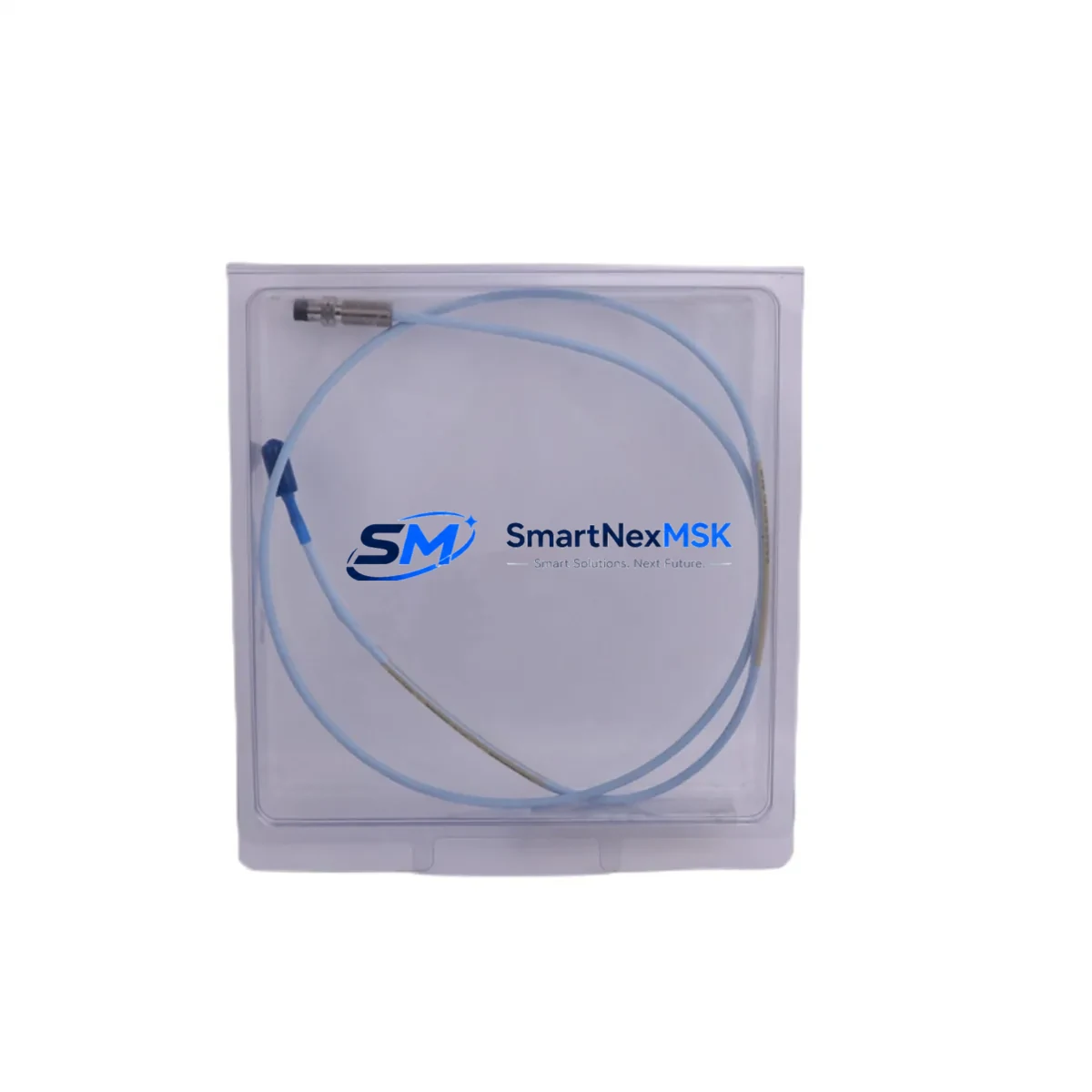

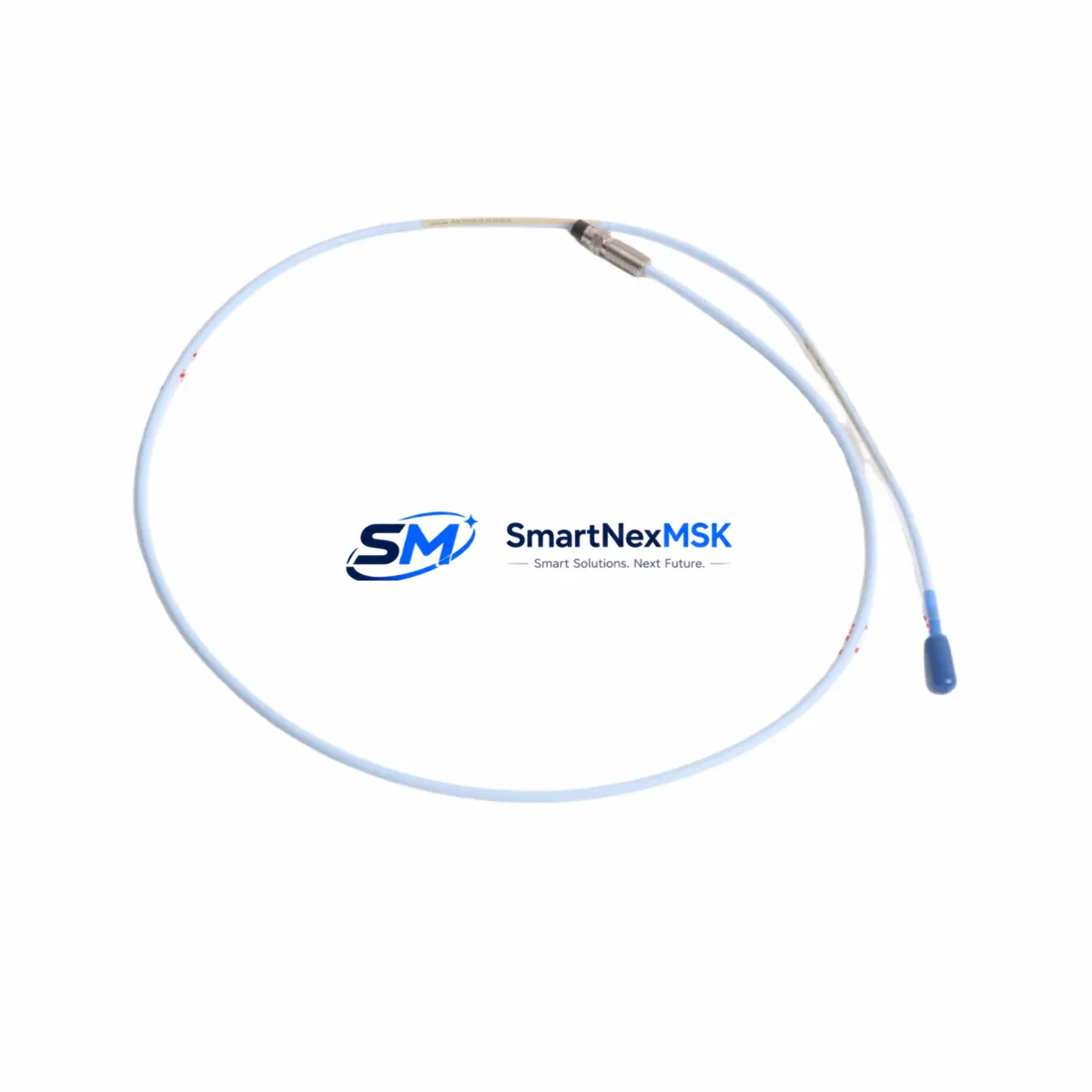

The Bently Nevada 330106-05-30-10-02-05 is an original proximity probe engineered for the 3300 XL series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical-path spare parts inventory, this probe is a direct, specification-matched replacement that restores system integrity without recalibration of the signal conditioning chain.

Maintenance engineers working on gas turbines, steam turbines, compressors, pumps, and gearboxes rely on the 3300 XL proximity probe system to deliver real-time shaft displacement and radial vibration data to the machinery protection monitor. A degraded or failed probe introduces measurement uncertainty that can mask developing faults or trigger nuisance trips — both outcomes carry significant operational and financial risk. Stocking a verified replacement such as the 330106-05-30-10-02-05 eliminates the lead-time variable from your downtime recovery equation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a proximity probe fails or drifts out of specification, the fault rarely exists in isolation. A thorough site inspection and replacement workflow should address the entire measurement loop. Maintenance engineers should simultaneously inspect the 3300 XL 8mm Proximitor® Sensor (driver/signal conditioner, typically mounted in the junction box) for output voltage drift, connector corrosion, or housing damage. The 330130 extension cable — which links the probe to the Proximitor — is a frequent failure point due to mechanical abrasion, vibration fatigue at the conduit entry, and moisture ingress at field-splice connectors; replace it as a matched set whenever probe replacement is performed.

At the monitor rack level, verify the 3500/42M Proximitor®/Seismic Monitor or equivalent 3500 series I/O module for correct channel configuration, OK relay status, and alarm setpoint integrity. If the machine has been running with a degraded probe, the monitor’s OK circuit may have masked the fault; a full channel functional test is mandatory after probe swap. Check the 3500/20 Rack Interface Module for communication health and confirm that Modbus or Ethernet/IP data is flowing correctly to the DCS or SCADA historian.

For installations where the probe feeds a 3500/15 Power Supply Module, inspect the −24 VDC rail voltage under load — a sagging supply rail is a common root cause of apparent probe sensitivity errors. Terminal blocks and field wiring in the junction box, including Phoenix Contact or Weidmüller screw-clamp terminal strips, should be torque-checked and inspected for oxidation, particularly in high-humidity or offshore environments. Where signal runs exceed 30 m, confirm that the signal isolation barrier or Zener barrier (for IS-rated installations) is within calibration and that its end-of-life date has not been exceeded.

If the machine is part of a turbine control system, coordinate the probe replacement outage with the Mark VIe or Ovation DCS engineering team to ensure that the vibration channel is placed in bypass mode before disconnection and re-enabled only after gap voltage is confirmed within the 10–90 mil linear range. Document the as-found and as-left gap voltage readings in the maintenance management system to support trend analysis and future predictive maintenance scheduling.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a confined-space or hot-work permit as applicable. Place the 3500 monitor channel in bypass via the front-panel keyswitch or software inhibit to prevent a spurious trip during probe removal.

Step 2 — As-Found Documentation: Record the existing probe gap voltage (target: −10.0 VDC ± 0.5 V at nominal gap), cable routing, and connector orientation. Photograph the installation before disassembly.

Step 3 — Probe Removal: Using the correct spanner, unthread the 10-32 UNF probe body from the bracket. Avoid bending the integral cable at the probe neck. Inspect the bracket bore for fretting wear or thread damage.

Step 4 — New Probe Installation: Apply a thin film of anti-seize compound to the probe threads. Thread the 330106-05-30-10-02-05 into the bracket and set the gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for 8 mm probes). Verify gap voltage at the Proximitor output: target −10.0 VDC ± 0.5 V.

Step 5 — Functional Verification: Remove the channel bypass. Confirm OK relay energizes, vibration reading is within baseline, and no alarms are active. Log as-left gap voltage and vibration amplitude in the CMMS.

Step 6 — Spare Parts Replenishment: Immediately initiate a purchase order for a replacement 330106-05-30-10-02-05 to restore your on-hand spare inventory. For critical machines, a minimum of two probes per measurement plane is recommended.

Spare Parts Support FAQ

Q1: Is the 330106-05-30-10-02-05 a direct drop-in replacement for older 3300 series probes?
The 330106-05-30-10-02-05 is designed for the 3300 XL 8mm system. Compatibility with earlier 3300 (non-XL) Proximitor sensors depends on the driver module version. Confirm the Proximitor part number before installation. If your site uses a legacy 3300 driver, contact our technical team for cross-reference verification prior to ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 330106-05-30-10-02-05 shipped from our inventory undergoes a functional output test: gap voltage linearity is verified across the full 10–90 mil range using a calibrated test rig with an AISI 4140 target. A test report is available upon request. All units are shipped in anti-static, moisture-barrier packaging with a 12-month warranty from the date of shipment.

Q3: How should I manage spare inventory for a fleet of rotating machines?
For a fleet of 10 or more machines using 3300 XL proximity systems, a recommended minimum stock level is one probe per critical measurement plane plus one Proximitor sensor per machine type. Probes should be stored in a climate-controlled environment (15–25 °C, <60% RH) and inspected annually for connector corrosion and cable jacket integrity. Rotate stock on a first-in, first-out basis and replace any unit approaching its 10-year storage life.

Q4: Can you support long-term or blanket purchase agreements for this part?
Yes. We support scheduled delivery agreements, consignment stock programs, and multi-year supply contracts for the 330106-05-30-10-02-05 and related 3300 XL system components. Contact our sales team to discuss volume pricing, lead-time guarantees, and vendor-managed inventory options tailored to your maintenance planning cycle.
