Bently Nevada 330106-05-30-50-12-CN Retrofit Proximity Probe

Bently Nevada 330106-05-30-50-12-CN Retrofit Proximity Probe for 3300 XL Control Systems

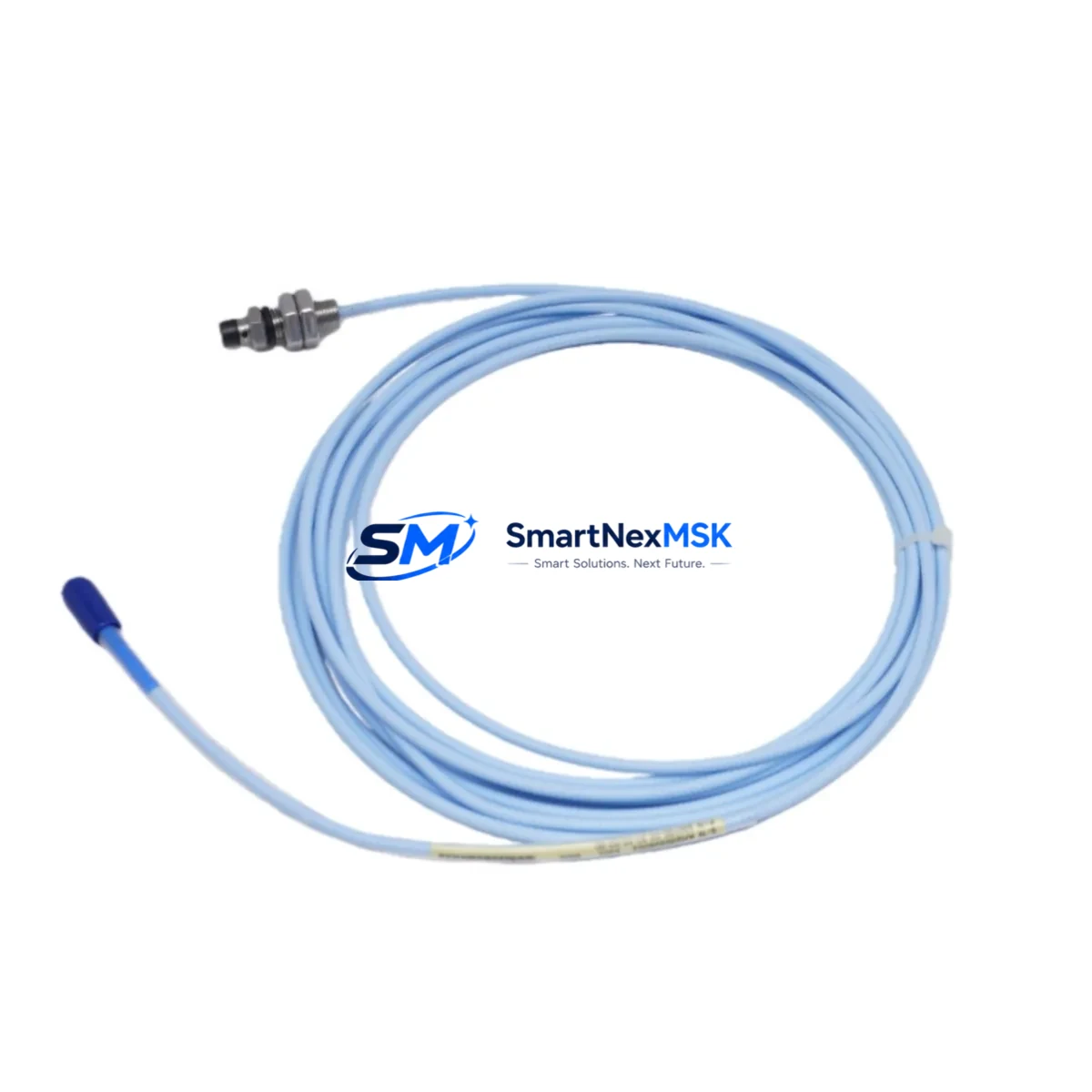

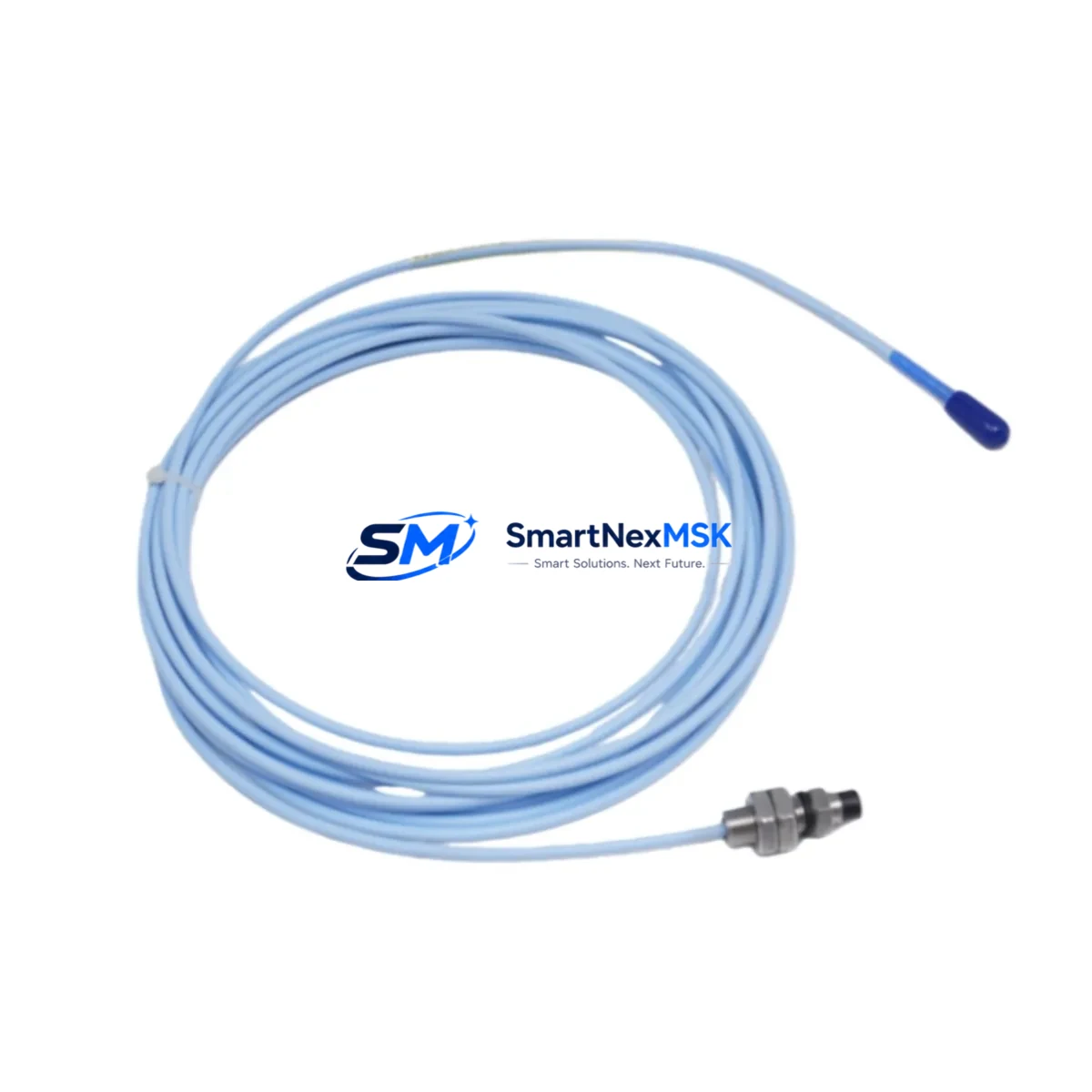

The Bently Nevada 330106-05-30-50-12-CN is a reverse mount eddy-current proximity probe engineered for the 3300 XL machinery protection platform. As legacy 3300 Series probes reach end-of-life and OEM support is discontinued, this retrofit-ready replacement enables maintenance teams to restore full vibration monitoring capability without redesigning the measurement chain or replacing the entire transducer system. Whether you are recovering from an unplanned probe failure, executing a planned outage upgrade, or modernizing an aging turbine protection loop, the 330106-05-30-50-12-CN delivers a verified drop-in fit with minimal field adjustment.

This probe features a 5 mm tip diameter, 30-inch armored cable, 50-mil linear range, and a standard -12 VDC bias voltage output compatible with the 3300 XL signal conditioning architecture. The reverse mount configuration is specifically designed for installations where the probe must be inserted from the back of the bearing housing, a common requirement in steam turbine, compressor, and pump applications where front-access is restricted by casing geometry or insulation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant requires careful coordination across the measurement chain. The 330106-05-30-50-12-CN does not operate in isolation — it forms part of a complete transducer loop that includes the extension cable, the proximitor module, and the vibration monitor card seated in the 3300 XL rack.

Begin by auditing the existing extension cable. In most 3300 XL installations, the probe connects to a 330130-080-00-00 or similar armored extension cable that routes from the bearing housing to the junction box. If the extension cable shows signs of insulation damage, connector corrosion, or impedance drift, it should be replaced simultaneously with the probe to avoid introducing a new fault into a repaired loop. Confirm that the combined probe-plus-extension cable length matches the proximitor’s calibrated range — mismatched lengths will shift the linear center point and require recalibration of the 3300 XL proximitor/seismic module.

At the rack level, verify that the 3300 XL monitor card assigned to this channel is configured for the correct probe type and gap voltage. The 3300/16-24-00-01 or 3300/20 monitor modules store channel configuration in non-volatile memory; a replacement probe with identical specifications should not require reprogramming, but the gap voltage should be confirmed at the terminal block using a calibrated voltmeter before returning the machine to service. If the rack also houses a 3300/55 temperature monitor or a 3300/46M speed monitor on adjacent channels, confirm that the backplane power budget is not exceeded after any card swaps performed during the same outage window.

For plants running a System 1 condition monitoring platform, the probe replacement will be transparent to the software layer as long as the channel tag, engineering unit scaling, and alarm setpoints remain unchanged in the System 1 database. If the outage also involves firmware updates to the 3300 XL rack controller or migration from an older 3300 Series rack to the current 3300 XL architecture, coordinate the probe swap with the software team to ensure that historical trend data is preserved and that the new channel configuration is validated against the existing alarm philosophy before the machine restarts.

In applications where the 330106-05-30-50-12-CN monitors a compressor or pump shaft, also verify the Keyphasor signal source. The Keyphasor transducer — typically a 330180 series probe mounted on the shaft reference mark — provides the phase reference for all vibration vectors displayed in System 1. A degraded Keyphasor signal will corrupt phase readings across all channels in the rack, so its condition should be confirmed as part of any planned probe replacement activity. Similarly, if the control cabinet includes a 3500 Series rack for overspeed protection or a 1900/65 general-purpose vibration transmitter for DCS integration, confirm that the analog output signals from the 3300 XL rack are still within the expected range after the probe is replaced and the gap is reset.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement requires pre-staging all components before the machine is taken offline. Order the 330106-05-30-50-12-CN and any associated extension cables in advance so that they are on-site and bench-tested before the outage window opens. Pre-test the replacement probe using a portable proximitor and a calibrated target block to confirm that the output voltage versus gap curve matches the published sensitivity specification of 200 mV/mil. Document the as-found gap voltage on the existing probe before removal so that the replacement can be set to the same nominal gap without requiring a full recalibration cycle.

During the outage, follow a structured sequence: isolate the channel at the 3300 XL monitor card, remove the existing probe and extension cable as an assembly, install the replacement probe, reconnect the extension cable, restore power to the channel, and verify the gap voltage at the terminal block before releasing the machine for restart. If the plant’s safety instrumented system requires a bypass to be logged during probe maintenance, ensure that the bypass is formally recorded and cleared before the machine is returned to automatic protection mode.

Keep the original probe as a spare until the replacement has accumulated sufficient runtime to confirm stable operation. This practice protects against infant-mortality failures and ensures that a fallback is available if the replacement probe exhibits unexpected behavior during the first operating cycle. All units supplied by SMARTNEXMSK are pre-tested prior to shipment and covered by a 12-month warranty from the date of delivery, reducing the risk associated with replacement parts sourced outside the original OEM supply chain.

Retrofit Support FAQ

Q: Is the 330106-05-30-50-12-CN a direct replacement for the original Bently Nevada part?
A: Yes. This unit is manufactured to the same dimensional, electrical, and sensitivity specifications as the original 330106-05-30-50-12-CN. It is a drop-in replacement for the same probe type in 3300 XL installations and does not require modification to the extension cable, proximitor module, or monitor card configuration.

Q: What gap voltage should I set after installing the replacement probe?
A: The nominal gap for a 5 mm, 50-mil range probe in a 3300 XL system is typically set to achieve a bias voltage of approximately -10 VDC at the midpoint of the linear range. Refer to the 3300 XL installation manual for the specific gap-versus-voltage table for your proximitor model, and confirm the final gap setting with a calibrated voltmeter at the monitor terminal block before restarting the machine.

Q: Does the probe come pre-tested before shipment?
A: Yes. Every unit is bench-tested against the published sensitivity and linearity specifications before shipment. A test report is available upon request. The probe is covered by a 12-month warranty from the date of delivery, covering defects in materials and workmanship under normal operating conditions.

Q: Can this probe be used with a 3500 Series rack instead of a 3300 XL rack?
A: The 330106-05-30-50-12-CN is calibrated and specified for use with the 3300 XL proximitor/seismic module. While the physical connector and cable are compatible with 3500 Series transducer inputs, the sensitivity calibration and linear range may differ from the 3500 Series channel configuration. Consult the 3500 Series channel configuration guide and verify the probe sensitivity against the monitor’s expected input range before using this probe in a 3500 Series application.
