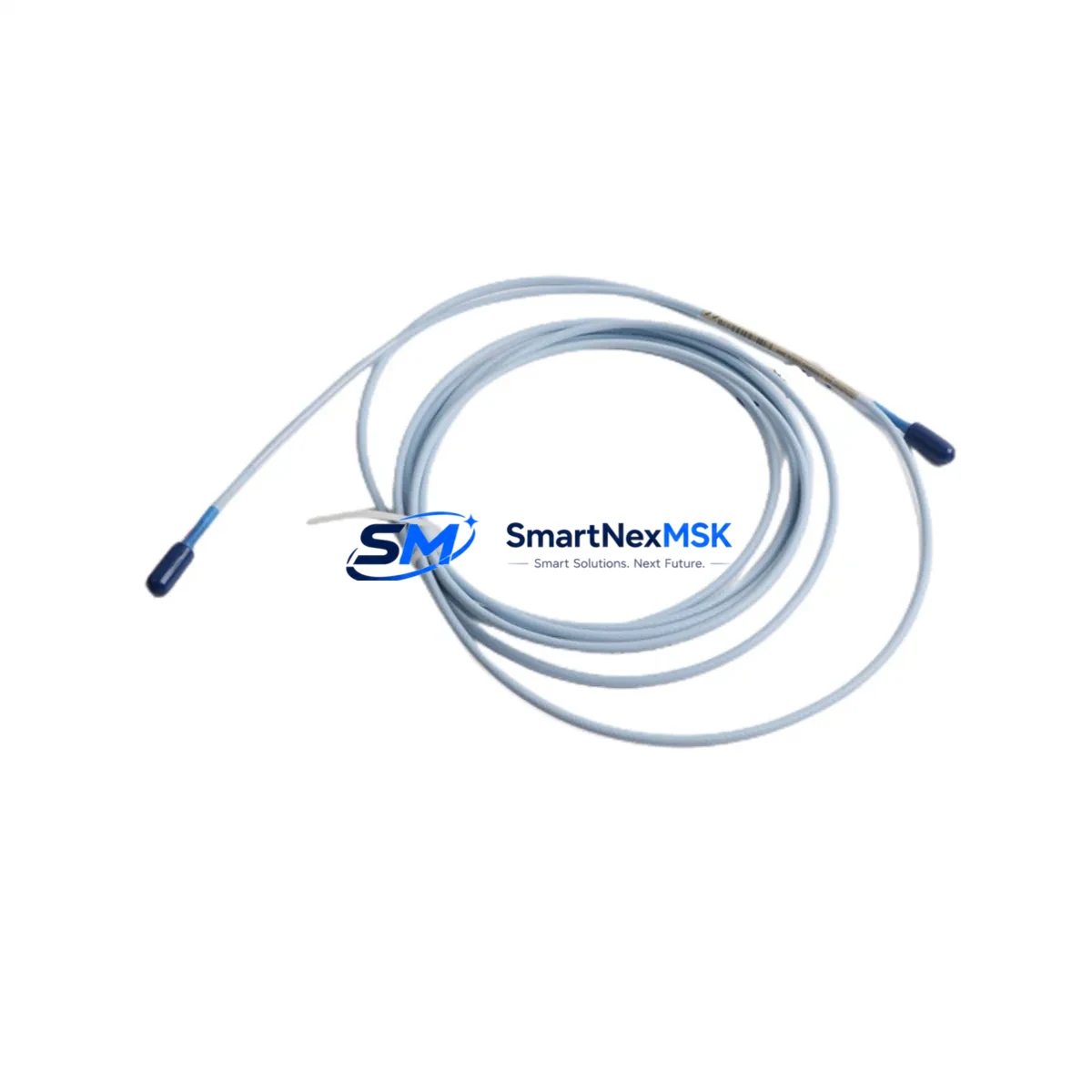

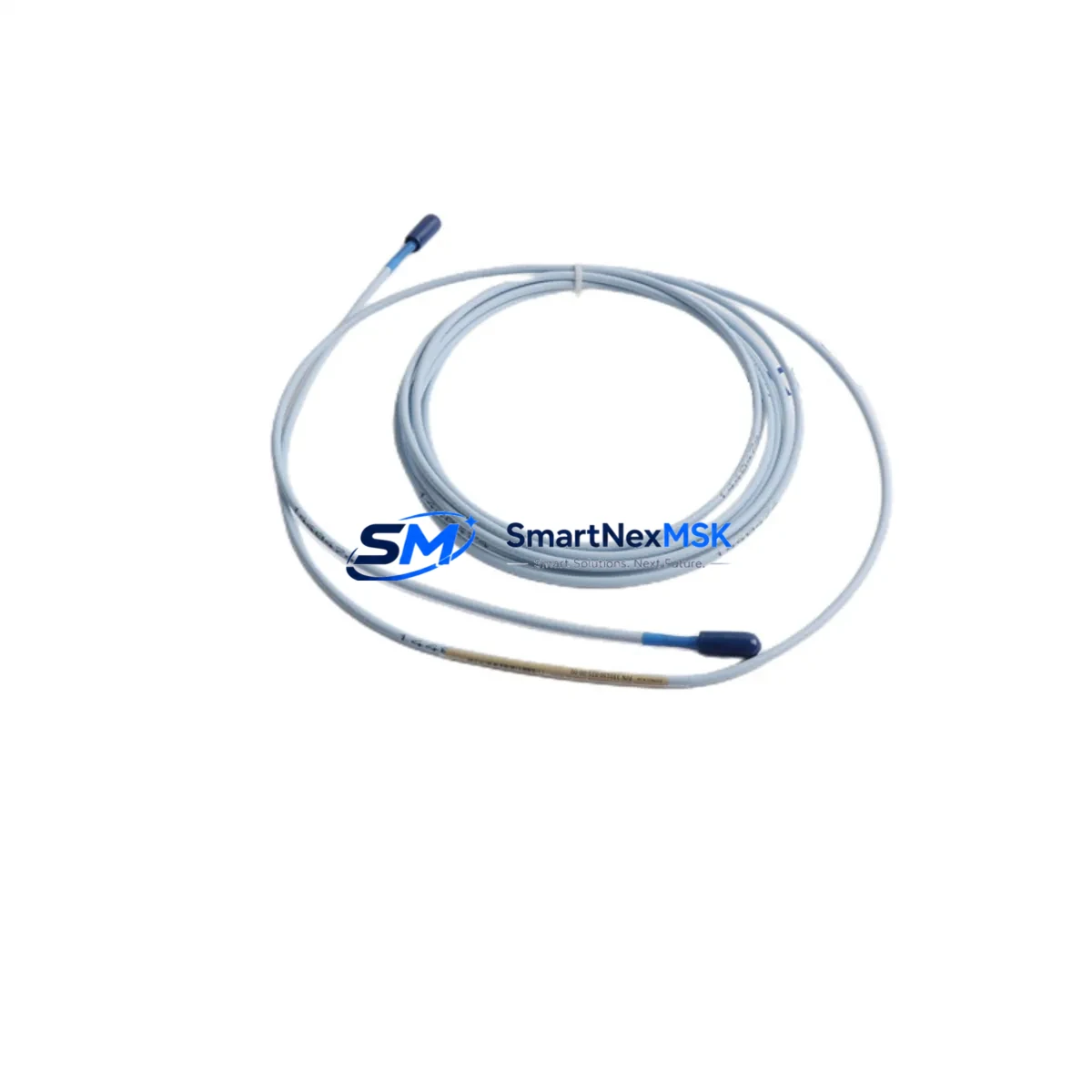

Bently Nevada 330130-035-00-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330130-035-00-00 is an 8mm proximity transducer engineered for seamless integration into Bently Nevada 3300 XL continuous machinery protection systems. As legacy vibration monitoring infrastructure ages across refineries, power generation facilities, and rotating equipment platforms, this transducer serves as a verified drop-in replacement for discontinued or end-of-life units within the 3300 XL series. Whether you are executing a planned control system upgrade, responding to an unplanned transducer failure, or modernizing a legacy monitoring rack, the 330130-035-00-00 delivers the signal fidelity and mechanical compatibility required to restore full system integrity with minimal downtime.
This unit operates within the standard Bently Nevada proximity system architecture, pairing directly with the 330180 extension cable and the 330130 proximitor/driver to form a complete eddy-current sensing chain. The transducer outputs a linear DC voltage proportional to the gap between the probe tip and the observed shaft surface, making it fully compatible with the 3300/16 and 3300/20 monitor cards installed in standard 3300 XL racks. Engineers replacing worn or damaged probes should verify the existing cable length and connector type before installation, as the 330130-035-00-00 ships with a 35mm armored housing suited for standard bearing housing installations.
Upgrade Compatibility Table
| Parameter | 330130-035-00-00 Specification | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8mm | Matches standard 3300 XL probe bore; no housing modification required |
| Cable / Extension | Pairs with 330180 extension cable | Verify existing cable length; replace if insulation is degraded |
| Proximitor Driver | Compatible with 330130 proximitor | Confirm driver calibration range matches new probe gap setting |
| Monitor Card Interface | 3300/16, 3300/20 monitor cards | No firmware change required; signal range unchanged |
| Output Signal | –24 VDC bias, linear gap response | Verify DCS input card accepts –24 VDC proximity signal |
| Installation Thread | M10 x 1.0 standard | Check bearing housing thread condition before installation |
| Communication Protocol | Analog (4–20 mA / DC voltage) | No protocol migration required; direct analog replacement |
| Replacement Scope | Drop-in for discontinued 3300 XL probes | Recalibrate gap after installation; target gap per OEM spec |
| Commissioning Requirement | Gap voltage verification at proximitor | Use calibrated gap tool; document OK voltage range |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330130-035-00-00 into an operating plant begins well before the transducer arrives on site. Retrofit engineers should first audit the existing 3300 XL rack configuration, confirming which monitor slots are occupied by 3300/16 radial vibration monitors or 3300/20 thrust position monitors, and whether the associated I/O terminal blocks are wired for single-ended or differential input. The 3500/42M proximity I/O module, commonly found in adjacent 3500 series racks on the same machinery train, uses a different connector pinout and should not be confused with the 3300 XL terminal block layout during rewiring.
Power supply integrity is a critical pre-installation checkpoint. The 3300 XL rack draws from a dedicated –24 VDC power supply module; confirm that the existing power supply has sufficient headroom to support the replacement transducer without voltage droop under full rack load. If the rack is also powering a 3300/55 keyphasor module or a 3300/25 temperature monitor, total current draw must be recalculated before adding or swapping any sensing element.
Extension cable routing deserves particular attention in retrofit scenarios. The 330180 extension cable connecting the 330130-035-00-00 probe to the proximitor driver must be routed away from high-voltage conduit and variable-frequency drive (VFD) output cables to prevent electromagnetic interference that would corrupt the proximity signal. Where cable trays are shared with power conductors, install the extension cable in a dedicated metallic conduit section and verify shield continuity at both ends.
For plants migrating from older Bently Nevada 7200 series probes to the 3300 XL platform, the transducer thread size and gap calibration constants differ. The 7200 series used a different sensitivity factor (200 mV/mil vs. the 3300 XL standard of 200 mV/mil nominal, but with different OK limits), so monitor card alarm setpoints must be reviewed and updated in the System 1 configuration database or the equivalent DCS historian tag. HMI faceplate displays tied to the vibration channel should also be updated to reflect the new OK voltage window, preventing nuisance alarms during the commissioning period.
Where the control system includes a Bently Nevada 3300/95 communication gateway or a 1900/65 machinery protection system feeding a DeltaV or Allen-Bradley ControlLogix PLC via Modbus TCP, verify that the channel address mapping in the gateway configuration still corresponds to the physical slot position of the replaced monitor card. A slot reassignment during rack maintenance can silently remap vibration data to the wrong historian tag, leading to incorrect trend data post-retrofit.
Downtime Control During System Migration
Minimizing production interruption during a proximity transducer replacement on a critical rotating machine requires a structured bypass and handoff procedure. Before isolating the affected channel, confirm with the control room that the machine can be placed in a reduced-protection mode or that a portable vibration analyzer is connected to the shaft to provide continuous monitoring during the swap window. Many sites use a Bently Nevada ADRE 408 DSPi portable data acquisition system as a temporary monitoring bridge while the permanent 3300 XL channel is offline.
The replacement sequence should follow a lock-out/tag-out (LOTO) procedure on the monitor rack power feed, not on the machine itself, unless the machine must be shut down for probe access. Once the old 330130 series probe is removed, inspect the bearing housing bore for thread damage and clean the probe tip contact area before installing the 330130-035-00-00. After mechanical installation, restore rack power and measure the proximitor output voltage at the OK relay terminals before reconnecting the monitor card input. A gap voltage outside the OK window will immediately trip the channel and must be corrected by adjusting the probe gap before the channel is returned to service.
Original PLC ladder logic or DCS function block programs do not require modification for a like-for-like transducer replacement, provided the signal range and OK limits remain within the previously configured alarm thresholds. Document the as-found and as-left gap voltages in the maintenance management system (CMMS) to establish a baseline for future condition monitoring trending. This record also supports the 12-month warranty claim process if a defect is identified within the coverage period.
Retrofit Support FAQ
Q1: Is the 330130-035-00-00 a direct replacement for all 8mm probes in the 3300 XL series?
A: The 330130-035-00-00 is compatible with standard 3300 XL 8mm proximity system configurations using the 330180 extension cable and 330130 proximitor. Confirm the existing probe part number suffix (cable length and connector type) before ordering to ensure the replacement matches your installed cable assembly length.
Q2: What commissioning steps are required after installation?
A: After mechanical installation, measure the proximitor output voltage with a calibrated DC voltmeter at the recommended gap distance specified in the Bently Nevada installation manual. Verify the OK relay is energized and that the vibration channel reads within the expected baseline range on the 3300/16 or 3300/20 monitor card before returning the machine to normal protection mode.
Q3: Can this transducer be used with a 3500 series rack?
A: The 330130-035-00-00 is designed for the 3300 XL platform. While the eddy-current sensing principle is the same, the 3500 series uses different proximitor models (e.g., 3500/42M) with different OK voltage windows and connector configurations. Cross-platform use requires engineering review and is not recommended without factory confirmation.
Q4: What does the 12-month warranty cover, and how is it claimed?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes a pre-shipment functional test. To initiate a warranty claim, contact our sales team with the order number, installation date, and a description of the observed fault. Units must not have been subjected to physical damage, incorrect installation, or operation outside the specified voltage and temperature range.
