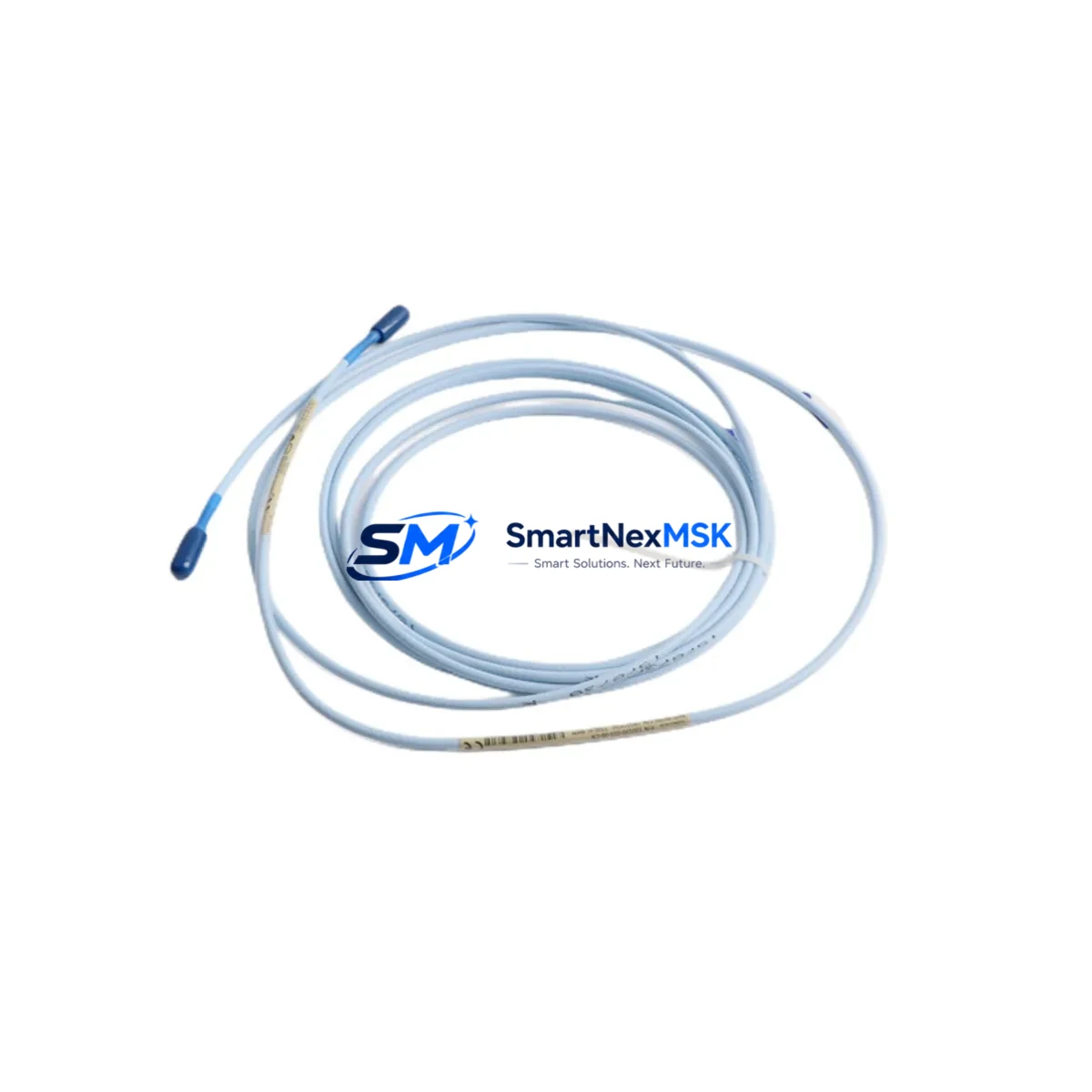

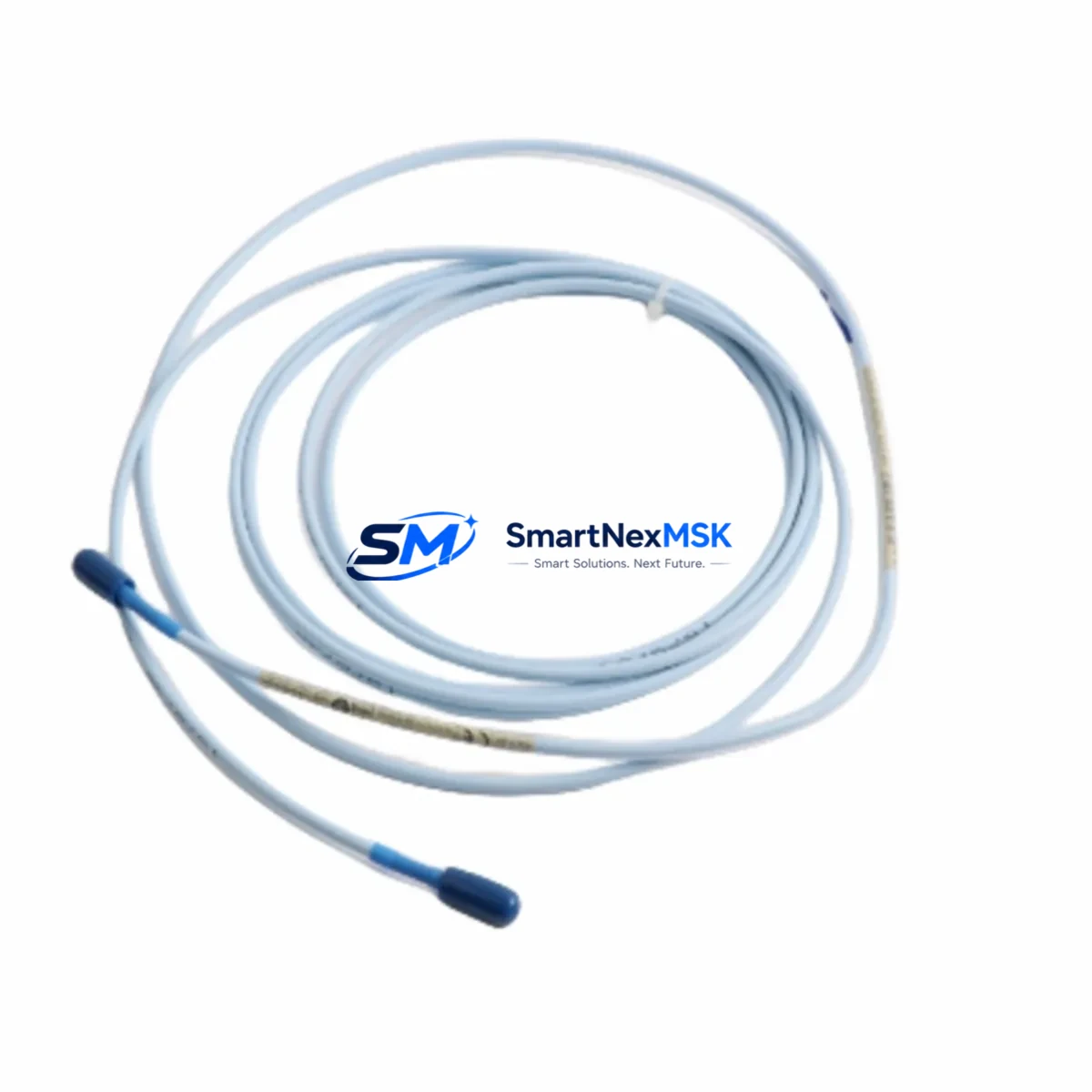

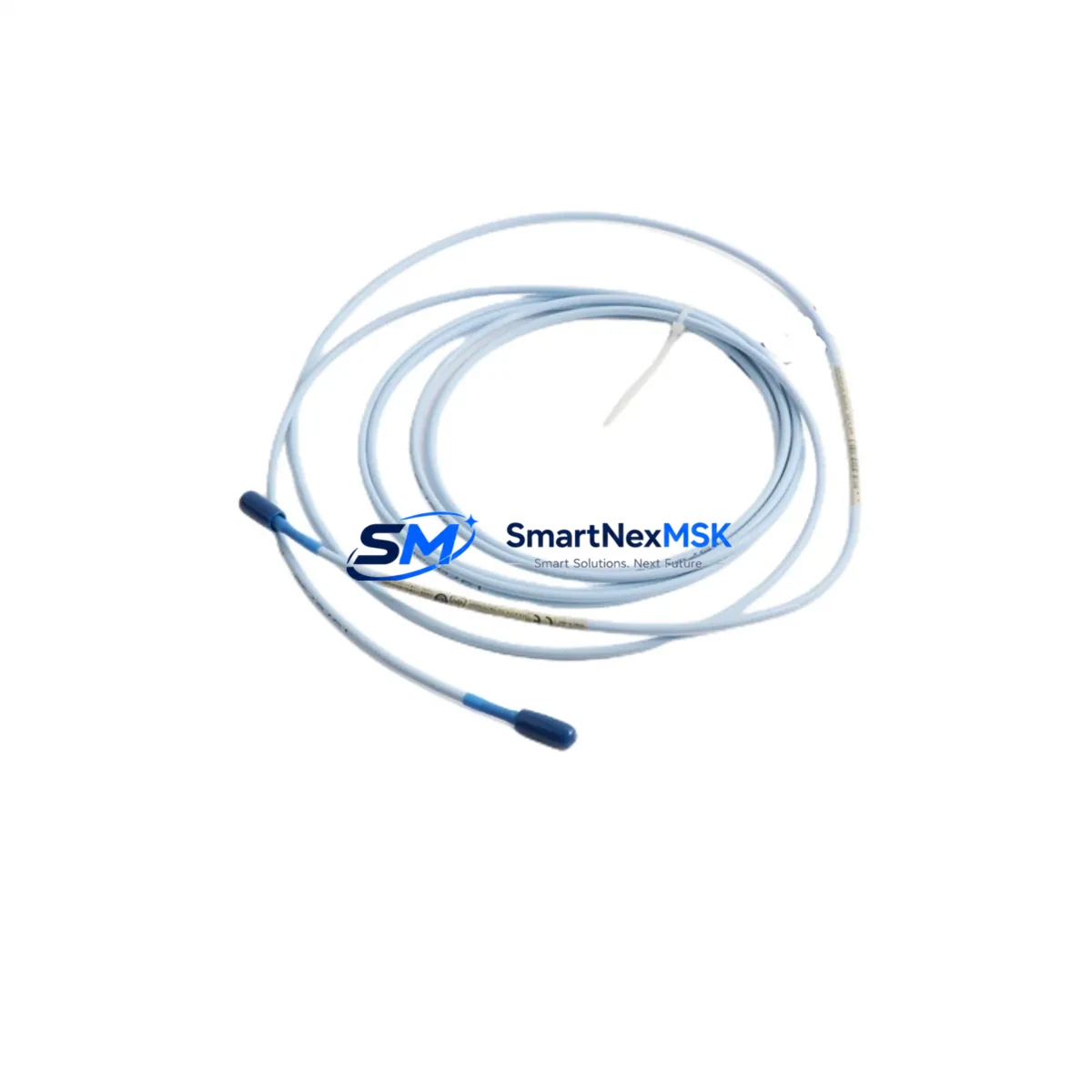

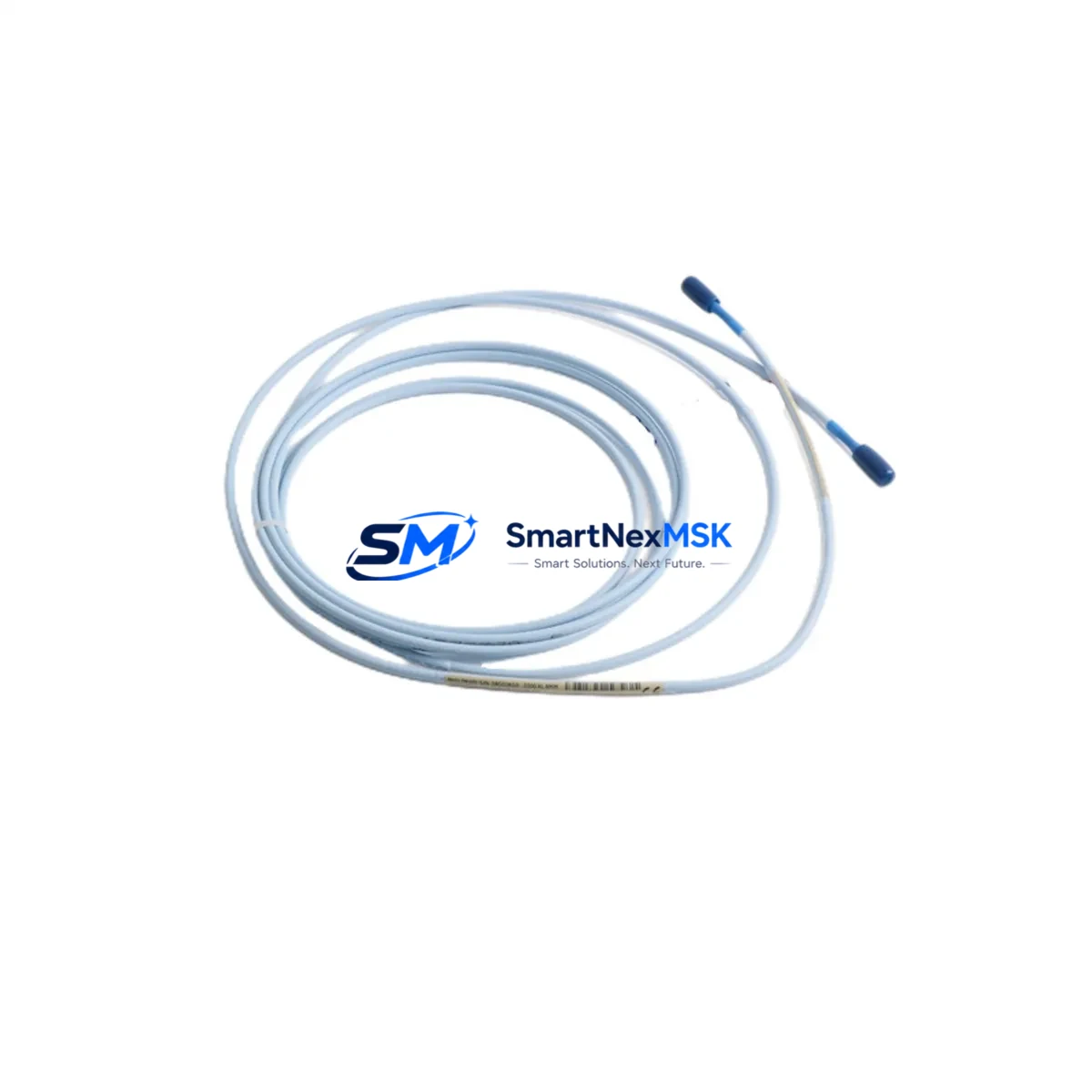

Bently Nevada 330130-035-00-CN Spare for 3300 XL Automation: Maintenance-Ready Proximity Probe for Industrial Downtime Control
The Bently Nevada 330130-035-00-CN is an 8 mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical spare inventory for a turbine, compressor, or pump train, this probe is a direct maintenance-ready replacement that restores system integrity without requiring recalibration of the full monitoring loop.
Sourced as an original Bently Nevada component and manufactured in China (CN) to full OEM specification, the 330130-035-00-CN is API 670 compliant and integrates directly with 3300 XL proximitor/extension cable assemblies. It is shipped after bench inspection and functional verification, backed by a 12-month warranty covering manufacturing defects and performance conformance.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330130-035-00-CN |
| Brand | Bently Nevada |
| Series | 3300 XL Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Cable Length | 3.5 m (integral cable) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm – 2.54 mm (10–100 mil) |
| Supply Voltage | −24 VDC (nominal) |
| Operating Temperature | −35°C to +177°C |
| Compliance | API 670, CE |
| Origin | CN (Original OEM) |
| Compatibility | 3300 XL Proximitor, 3300/16 Monitor, 3500/42 Module |
| Installation | Threaded tip, standard 3300 XL mounting bracket |
| Application | Turbines, compressors, pumps, rotating machinery |
| Maintenance Interval | Inspect every planned shutdown; replace on gap voltage drift |
| Warranty | 12 Months — manufacturing defects and performance conformance |
| Condition | New, bench-tested before dispatch |
Maintenance Planning for Continuous Operation
When replacing the 330130-035-00-CN in the field, maintenance engineers should treat the probe swap as part of a broader vibration monitoring loop inspection rather than an isolated component change. The 3300 XL system is a three-component transducer chain — probe, extension cable, and proximitor — and degradation in any one element affects the entire measurement. Before closing out the work order, verify the condition of the 330130-045-00-CN extension cable (3.5 m standard) and the 330180-X1-05 proximitor mounted in the junction box or field enclosure. A worn or kinked extension cable is a common secondary failure mode that goes undetected when only the probe is replaced.
At the monitor rack level, confirm that the 3300/16 dual-channel monitor card or the 3500/42M proximitor I/O module is reading within the expected gap voltage range (typically −10 VDC ± 1 V at the nominal air gap). If the gap voltage is out of range after probe installation, check the 3500/15 power supply module output and the 3500/20 rack interface module for any fault flags before concluding the new probe is defective.
For control cabinet inspections on turbine or compressor trains running 3300 XL or 3500 Series machinery protection, it is good practice to simultaneously inspect the 3500/22M transient data interface, terminal strip wiring integrity, and any signal isolators or Zener barriers in the intrinsically safe circuit. Corroded terminals or degraded barriers can introduce noise that mimics probe failure and leads to unnecessary replacements. Where the plant uses a 3500/32 four-channel relay module for trip logic, verify relay setpoints have not drifted following the probe replacement and system re-energization.
For aging systems where the 3300 XL platform is approaching end-of-support, the 330130-035-00-CN remains a cost-effective strategy for extending system life without migrating to the 3500 Series. Maintaining a minimum of two probe assemblies per critical machine train in your spare parts store is recommended by most reliability-centered maintenance programs, particularly for assets with no installed redundancy.
Site Replacement Workflow
Step 1 — Isolation and documentation: Record the existing gap voltage and vibration baseline from the DCS or historian before de-energizing the proximitor circuit. This provides a reference for post-installation verification.
Step 2 — Probe removal: Loosen the probe locknut and back the probe out carefully. Inspect the probe tip for impact damage or contamination. Note the thread engagement depth for reinstallation reference.
Step 3 — Extension cable inspection: Disconnect the 330130-045-00-CN extension cable at both the probe and proximitor ends. Inspect connector pins and cable jacket. Replace the extension cable if any intermittent continuity or insulation damage is found — do not reinstall a suspect cable with a new probe.
Step 4 — New probe installation: Thread the 330130-035-00-CN to the same engagement depth as the removed probe. Set the air gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for 8 mm probes). Tighten the locknut to the specified torque.
Step 5 — System verification: Re-energize the proximitor and confirm gap voltage is within the linear range. Compare the vibration reading to the pre-removal baseline. If readings are anomalous, check the extension cable and proximitor before concluding the probe is at fault.
Step 6 — Documentation and close-out: Record the new gap voltage, installation date, and part serial number in the CMMS. Update the spare parts inventory to trigger reorder of the consumed probe assembly.
Spare Parts Support FAQ
Q: Is the 330130-035-00-CN a direct drop-in replacement for earlier 3300 XL probe variants?
A: Yes. The 330130-035-00-CN is dimensionally and electrically compatible with the standard 3300 XL 8 mm probe family. It uses the same thread pitch, cable connector, and sensitivity specification, making it a direct replacement without system reconfiguration.
Q: What is the recommended spare inventory level for critical rotating equipment?
A: For API 670-protected machines (turbines, compressors, pumps), a minimum of two probe assemblies per monitored shaft position is standard practice. For plants with multiple identical trains, a pooled inventory of 4–6 assemblies per probe model is typical.
Q: How is the probe tested before shipment?
A: Each 330130-035-00-CN is bench-tested for gap voltage linearity, sensitivity conformance, and cable continuity prior to dispatch. A test report is available on request. The 12-month warranty covers performance deviations from OEM specification under normal operating conditions.
Q: Can this probe be used with third-party proximitor systems?
A: The 330130-035-00-CN is optimized for use with Bently Nevada 3300 XL and 3500 Series proximitors. Use with third-party signal conditioners is possible but requires verification of supply voltage, sensitivity matching, and linear range compatibility before installation.
