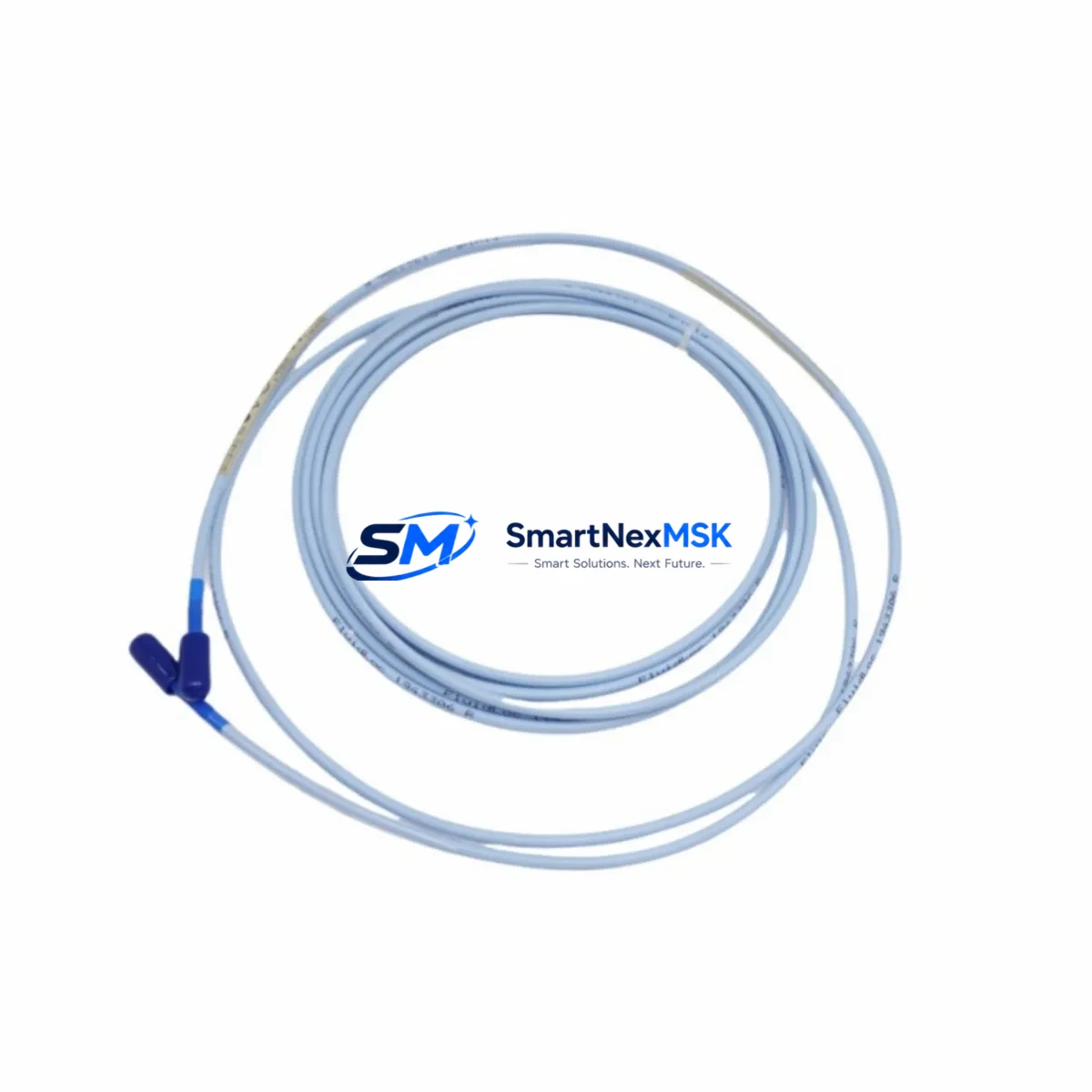

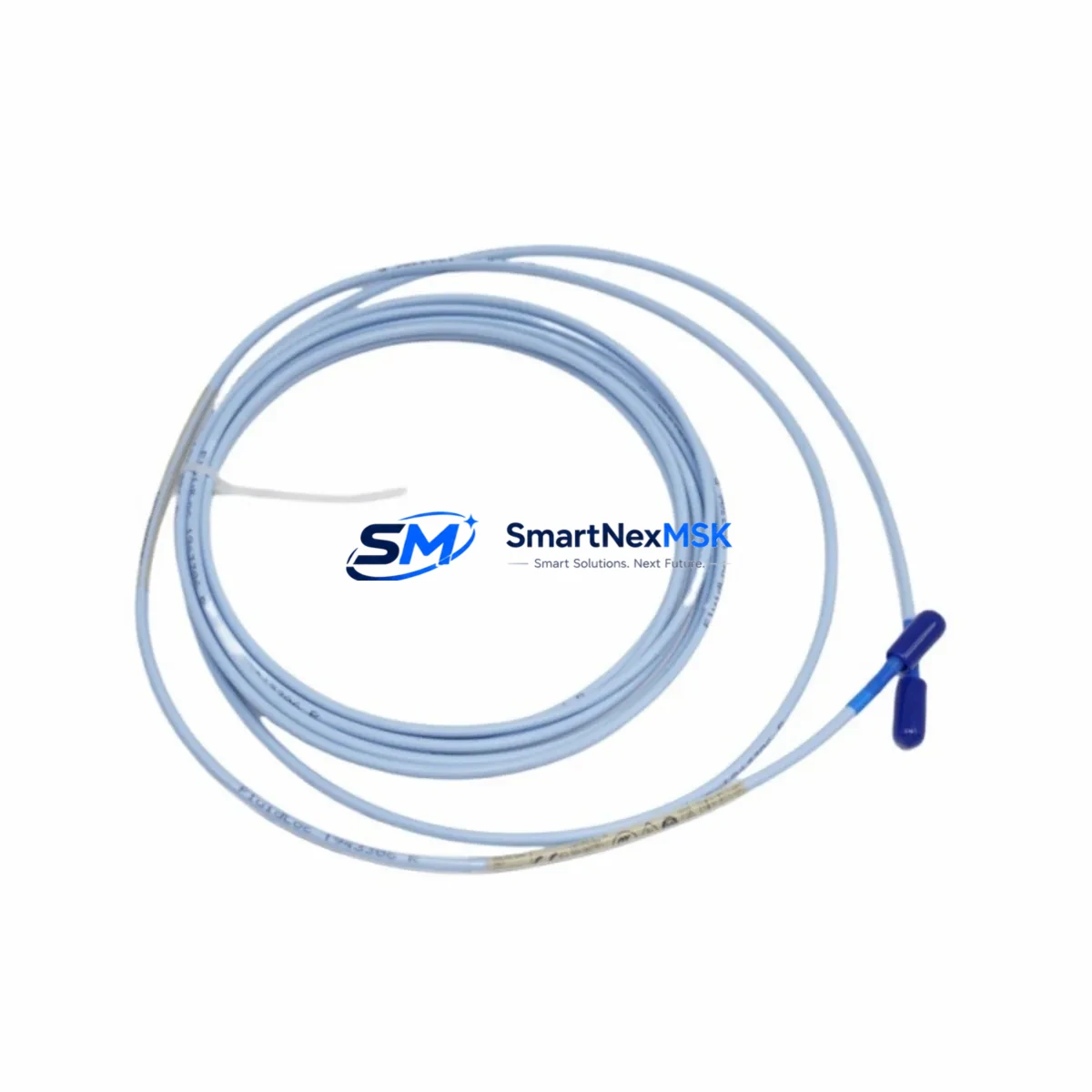

The Bently Nevada 330130-040-11-00 is an original proximity transducer designed for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. When this transducer reaches end-of-life or fails in service, unplanned downtime on critical rotating machinery such as compressors, turbines, pumps, and fans becomes an immediate operational risk. Sourcing a verified, original-specification replacement is the fastest path to restoring full monitoring coverage and returning equipment to safe, supervised operation.

This unit is a direct maintenance-ready spare for facilities running Bently Nevada 3300 XL monitor racks. It is compatible with standard 3300 XL proximitor/seismic monitors and integrates without reconfiguration into existing wiring and signal chains. The 330130-040-11-00 ships tested, inspected, and backed by a 12-month warranty, making it suitable for both emergency replacement and planned spare parts inventory programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-040-11-00 in a live machinery protection cabinet, maintenance engineers should treat the transducer replacement as a trigger for a broader inspection of the associated signal chain and monitoring rack. The proximitor module — typically a Bently Nevada 330180-X1-05 or 330185-X1-05 — should be checked for output voltage stability and gap voltage within the linear range (typically -10 VDC to -18 VDC). A drifting proximitor can cause false alarms or missed trips even after a new transducer is installed.

The 3300 XL monitor card in the rack should be verified for correct channel configuration, alert and danger setpoints, and OK relay status. If the monitor has been in service for more than five years, it is advisable to inspect the 3300/16 I/O module or equivalent termination board for corrosion on signal terminals and loose field wiring connections. Vibration signal cables — particularly the coaxial extension cable connecting the transducer to the proximitor — are a common failure point; inspect the 330130 series extension cable for jacket damage, connector wear, and continuity.

For facilities maintaining redundant monitoring on critical machines, the paired channel transducer should also be inspected and gap-set simultaneously to ensure both channels are within specification. Power supply modules feeding the 3300 XL rack, such as the Bently Nevada 3300/20 power supply, should be checked for output ripple and voltage regulation. A degraded power supply can introduce noise into the vibration signal and cause nuisance trips.

In control cabinets where the 3300 XL system interfaces with a DCS or safety system, the 4–20 mA output signal isolator and any associated Zener barrier or galvanic isolator in the hazardous-area circuit should be tested for correct signal transmission. Terminal blocks on the field wiring side should be torqued to specification and inspected for oxidation. If the machine is in a high-temperature or high-humidity environment, consider replacing the terminal block assembly and applying appropriate cable gland sealing.

For older systems approaching end-of-life, stocking a complete transducer kit — including the 330130-040-11-00 transducer, a spare proximitor, extension cable, and locknut set — reduces mean time to repair (MTTR) significantly. Procurement engineers should also consider stocking the Bently Nevada 330104 series 5 mm transducer as a complementary spare for smaller shaft diameter applications in the same facility.

Site Replacement Workflow

Replacing the 330130-040-11-00 on-site follows a structured procedure to minimize downtime and ensure system integrity:

1. Isolate the channel: Place the affected monitor channel in bypass mode at the 3300 XL rack to prevent a spurious trip during transducer removal.
2. Record gap voltage: Note the existing gap voltage reading before removal. This serves as a reference for setting the new transducer gap.
3. Remove the old transducer: Loosen the locknut and unthread the transducer from the bracket. Disconnect the extension cable at the proximitor end.
4. Install the new 330130-040-11-00: Thread the new transducer into the bracket and set the gap to the manufacturer-specified distance (typically 1.0–1.5 mm for 8 mm probes). Secure with locknut.
5. Reconnect and verify: Reconnect the extension cable to the proximitor. Confirm gap voltage is within the linear range (-10 to -18 VDC). Check OK relay status on the monitor.
6. Return to service: Remove the channel bypass. Verify vibration readings are stable and within normal operating range before releasing the machine to production.

This workflow is compatible with both hot-standby and single-channel monitoring configurations. The 330130-040-11-00 requires no firmware update or software reconfiguration — it is a direct physical replacement that restores monitoring capability immediately upon correct installation.

Spare Parts Support FAQ

Q: Is the 330130-040-11-00 compatible with all 3300 XL monitor configurations?
A: Yes. The 330130-040-11-00 is designed for use with the full 3300 XL Series monitor rack, including radial vibration, axial position, and differential expansion channels. It is compatible with 330180 and 330185 series proximitors. Always verify the gap voltage after installation to confirm the transducer is operating within the linear range for your specific application.

Q: What is the recommended spare parts inventory strategy for this transducer?
A: For facilities with multiple machines monitored by 3300 XL systems, we recommend maintaining a minimum of two 330130-040-11-00 units in stock per site. Pair each transducer spare with a matching extension cable and proximitor to enable complete channel replacement without waiting for additional parts. Annual inspection cycles should include a gap voltage check on all installed transducers to identify units approaching end of linear range.

Q: How is the unit tested before shipment?
A: Every 330130-040-11-00 unit is bench-tested prior to shipment. Testing includes output voltage verification, sensitivity check, and continuity of the integral cable and connector. Units that do not meet original specification are not shipped. A test report is available upon request for quality-critical applications.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified temperature and voltage range. Warranty claims are processed with a replacement unit dispatched upon confirmation of the defect.
