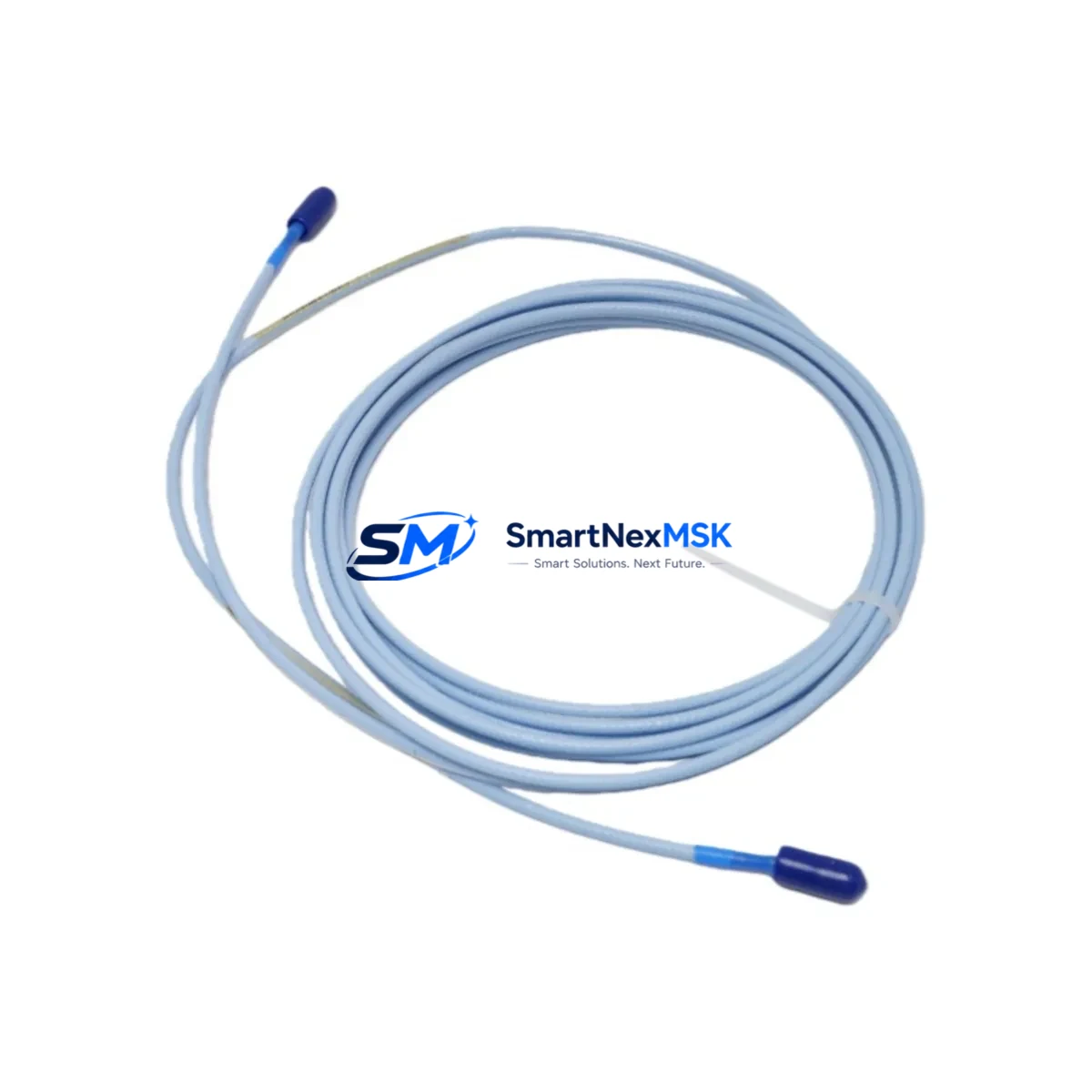

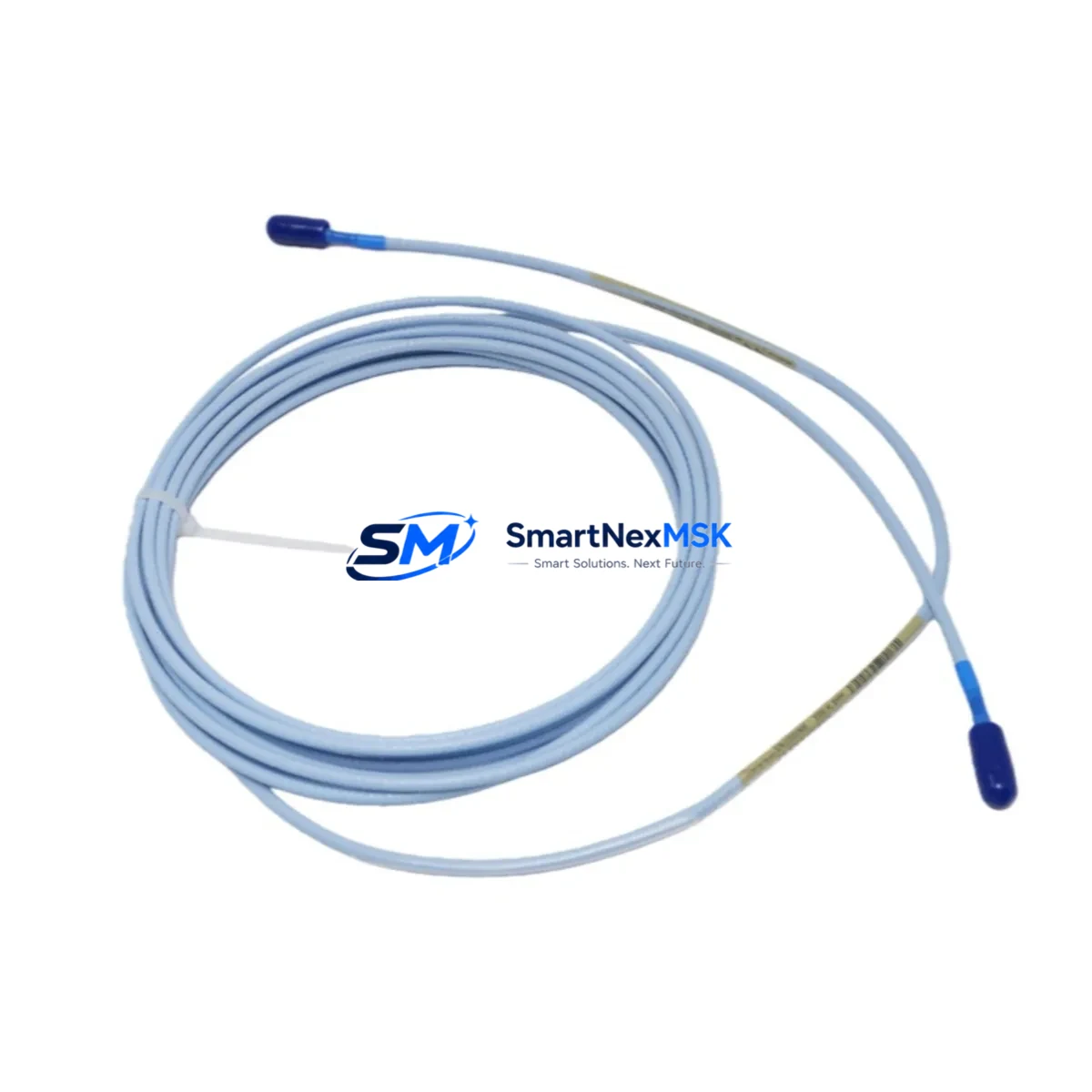

The Bently Nevada 330130-045-00-BR is an original OEM Proximitor extension cable designed for the 3300 XL Series vibration monitoring system. With a 4.5-metre armored cable assembly, this component bridges the 3300 XL 8mm Proximitor sensor and the field-mounted transducer, maintaining signal integrity in high-vibration, high-temperature industrial environments. For maintenance engineers managing rotating machinery protection systems — turbines, compressors, pumps, and gearboxes — having a verified spare of the 330130-045-00-BR on the shelf is a fundamental downtime-prevention strategy.

Unplanned cable failures in proximity transducer circuits are among the most common causes of false trips and nuisance shutdowns in continuous-process plants. A degraded or open-circuit extension cable can trigger a full machine trip, forcing an unplanned outage that costs far more than the cable itself. Stocking the 330130-045-00-BR as a maintenance-ready spare eliminates this risk and supports rapid fault isolation during scheduled or emergency maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the 330130-045-00-BR as a replacement requirement, the scope of inspection should extend beyond the cable itself. The 3300 XL proximity measurement loop is a system — and a single degraded component can mask or mimic faults in adjacent parts of the circuit.

Begin with the 3300 XL 8mm Proximitor Sensor (330180-91-00) mounted at the bearing housing. Inspect the probe tip for mechanical damage, contamination, or gap drift. If the extension cable is being replaced due to signal anomalies, the probe should be re-gapped and its output voltage verified against the calibration curve before the system is returned to service. Next, check the 330130 series armored conduit routing from the probe to the junction box — cable routing damage is frequently the root cause of intermittent signal faults.

At the monitor rack, verify the 3300/16 or 3300/20 Dual Vibration Monitor input channel for correct gap voltage (typically -10.0 VDC ±0.5 VDC at nominal gap). If the monitor card shows a fault LED or alarm relay activation, inspect the 3300/55 Keyphasor Module as well — a missing or erratic Keyphasor signal can cause false vibration readings across all channels on the same rack. The 3300 XL I/O Module and its terminal block connections should be torque-checked and inspected for corrosion, particularly in humid or coastal environments.

For plants running extended maintenance intervals, consider simultaneously auditing the 3300 XL Power Supply Module that feeds the Proximitor bias voltage. A sagging -24 VDC rail will shift the gap voltage baseline across all connected probes and cables, producing systematic measurement errors that are difficult to diagnose without a known-good reference. The 3300 XL Rack Interface Module (RIM) and its communication link to the plant DCS or safety system should also be verified — a communication fault at this level can prevent alarm annunciation even when the vibration measurement itself is correct.

In control cabinets housing the 3300 XL rack, inspect terminal strips, cable shields, and grounding connections. Improper shield grounding on the extension cable is a common source of electrical noise that manifests as elevated broadband vibration readings. If the plant uses a System 1 Evolution or System 1 Condition Monitoring Software platform, confirm that the channel configuration and alert setpoints are correctly mapped after any hardware replacement.

For older installations where the 3300 XL system is approaching end-of-life, procurement engineers should consider building a consolidated spare parts kit that includes the 330130-045-00-BR extension cable alongside the Proximitor sensor, monitor card, and power supply module — ensuring that any single-point failure can be resolved within one maintenance shift without waiting for emergency procurement.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the affected measurement channel at the 3300 XL monitor. Do not de-energize the full rack unless required — most 3300 XL monitors support channel bypass or inhibit mode to allow hot-swap maintenance without triggering a machine trip.

Step 2 — Cable Removal: Disconnect the 330130-045-00-BR at both the Proximitor sensor end and the monitor I/O terminal. Note the cable routing, conduit entry points, and any tie-wrap or clamp positions for reinstallation reference.

Step 3 — Inspection of Adjacent Components: Before installing the replacement cable, inspect the probe tip gap, connector pins, and junction box terminals. Clean all mating surfaces and verify that the conduit seal is intact to prevent moisture ingress.

Step 4 — Installation & Termination: Route the new 330130-045-00-BR following the original cable path. Maintain minimum bend radius per Bently Nevada installation guidelines. Terminate connectors and verify shield continuity and isolation resistance (>1 MΩ) before energizing.

Step 5 — Verification & Commissioning: Re-energize the channel and verify gap voltage at the monitor input. Confirm that the vibration reading returns to the historical baseline within ±5% before releasing the machine to operations. Document the replacement in the plant CMMS with the new cable serial number and installation date.

This workflow minimizes downtime, preserves system compatibility, and ensures that the replacement is fully verified before the machine returns to service — consistent with best practices for rotating machinery protection in continuous-process industries.

Spare Parts Support FAQ

Q1: Is the 330130-045-00-BR compatible with older 3300 Series monitors, or only the 3300 XL?
The 330130-045-00-BR is designed and specified for the 3300 XL 8mm measurement system. While the physical connectors may be similar to earlier 3300 Series cables, Bently Nevada specifies the XL-series cables for use with XL-series Proximitor sensors and monitors to ensure calibrated performance. If your installation uses pre-XL 3300 Series hardware, please confirm the exact monitor and sensor model numbers before ordering.

Q2: How should I verify the replacement cable before installing it on a live machine?
All units shipped from our inventory are factory-tested and inspected prior to dispatch. Upon receipt, perform a bench check: measure insulation resistance (>1 MΩ at 500 VDC), verify connector pin continuity, and inspect the cable jacket for any transit damage. If a Proximitor test kit is available, simulate the full measurement loop on the bench before field installation.

Q3: What is the recommended spare parts stocking strategy for the 3300 XL system?
For critical rotating machinery (turbines, compressors, boiler feed pumps), industry best practice recommends holding at least one spare extension cable per monitored machine, plus one spare Proximitor sensor per bearing type in service. For plants with 10 or more 3300 XL channels, a consolidated spare kit covering the extension cable, Proximitor sensor, and monitor card provides the fastest mean-time-to-repair in the event of a multi-component failure.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical abuse. If a warranty claim is required, contact our support team with the order number and a description of the fault. We will arrange return shipping and either repair or replace the unit within the agreed lead time. All warranty replacements are tested before dispatch.
