Bently Nevada 330130-070-00-00 Spare for 3300 XL Automation

Bently Nevada 330130-070-00-00 Spare for 3300 XL Automation

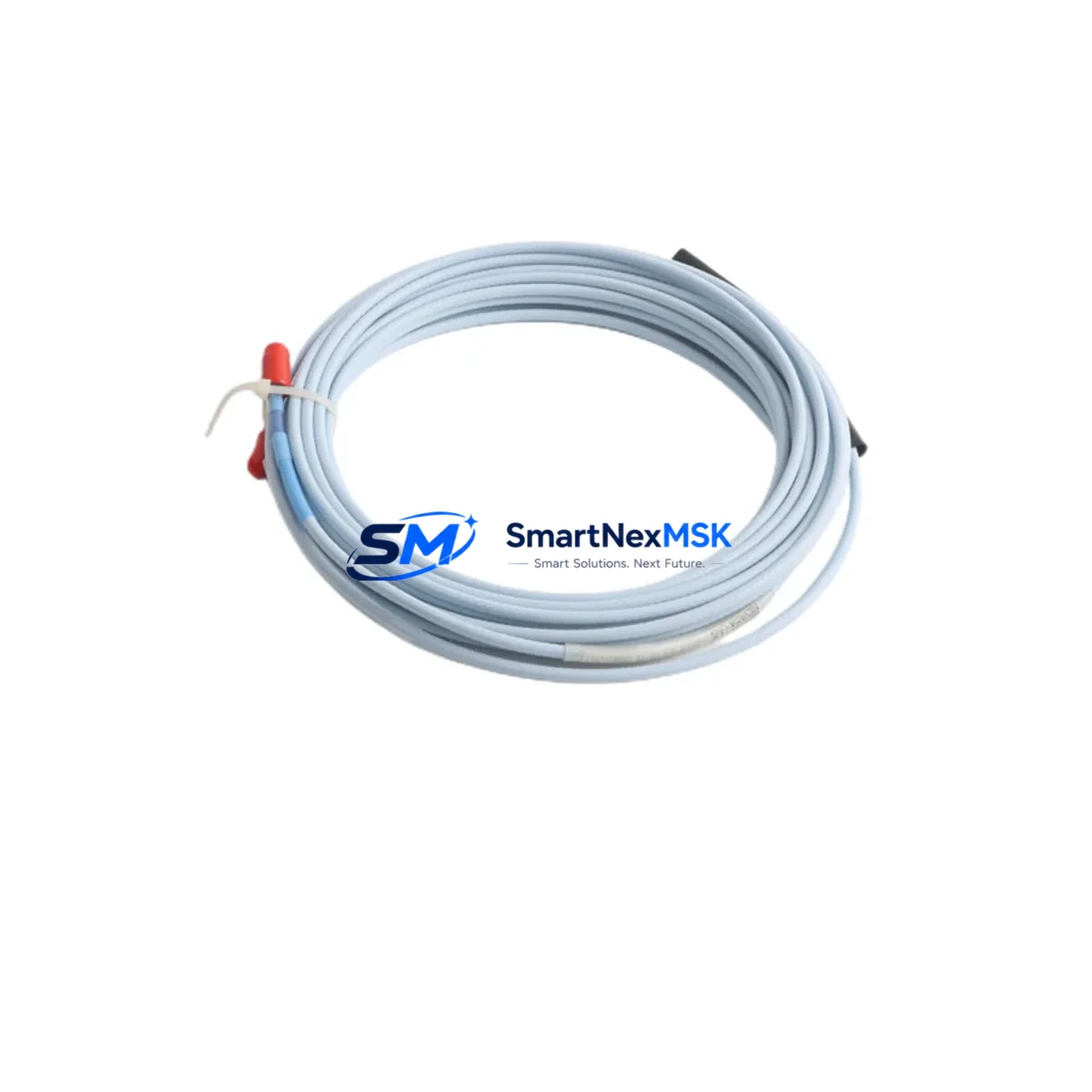

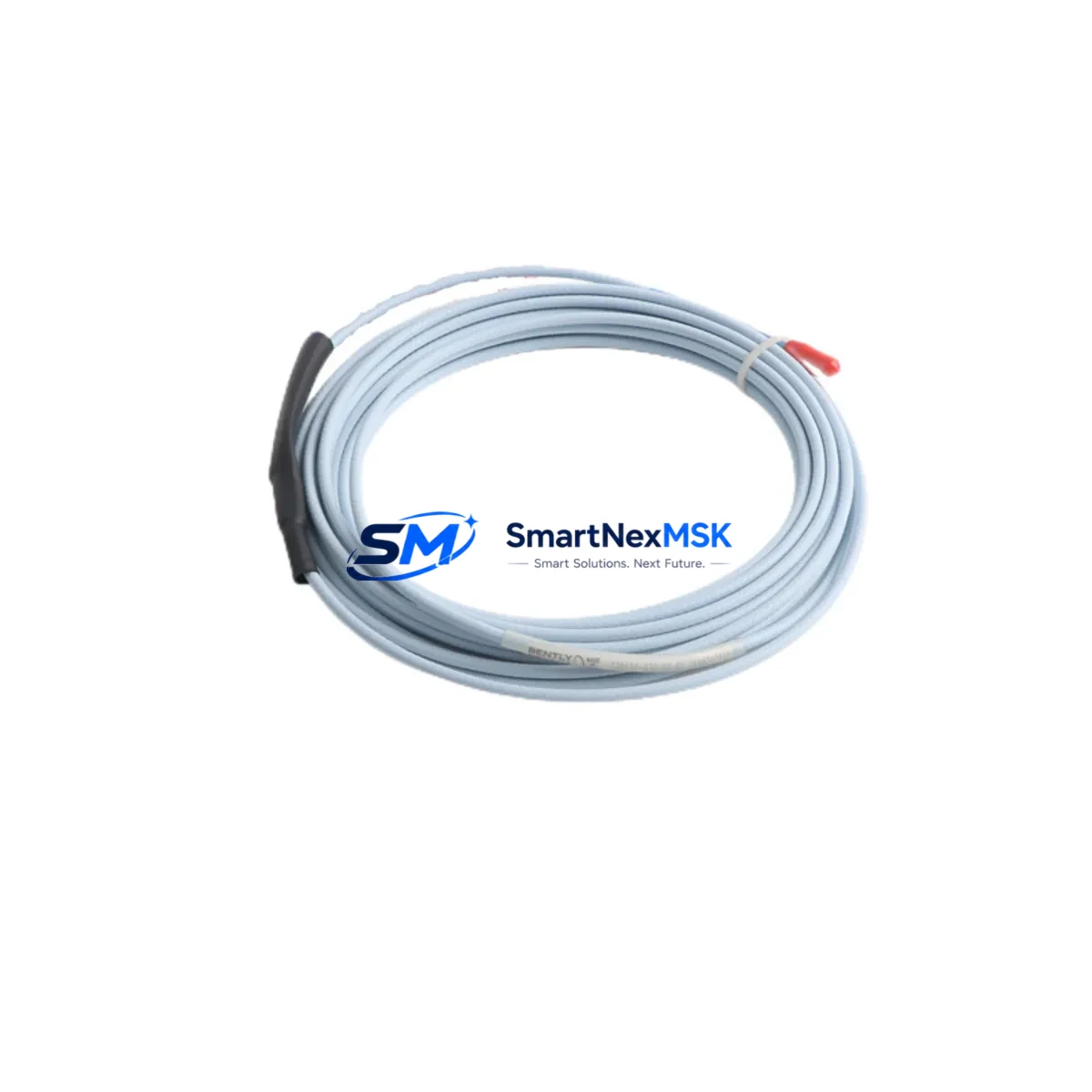

The Bently Nevada 330130-070-00-00 is a 7-metre extension cable engineered for the 3300 XL Series continuous machinery protection system. As a maintenance-ready original spare, it bridges the proximity transducer probe to the proximitor/driver module, maintaining signal integrity in high-vibration, high-temperature industrial environments. Unplanned downtime caused by a degraded or failed extension cable can cascade into full machinery protection loss — making this component a critical line item in any rotating equipment maintenance programme. Stocking a verified replacement ensures that vibration monitoring is restored within minutes rather than days, protecting turbines, compressors, pumps, and gearboxes from undetected shaft displacement events.

From the perspective of a maintenance engineer, the 330130-070-00-00 is not an isolated component — it is one link in a calibrated measurement chain. When this cable is replaced, the entire signal path from probe tip to monitor rack must be validated. Procurement engineers sourcing this spare should simultaneously review the availability of the companion 330130 series probe (e.g. 330130-040-00-00 or 330130-080-00-00 for alternate lengths), the 3300 XL proximitor/driver module, and the 3300/16 or 3300/20 monitor cards seated in the rack. A replacement cable that arrives without a verified proximitor or a functional monitor card does not restore protection — it only shifts the failure point.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3300 XL-based machinery protection system requires treating the extension cable as part of a broader spare parts strategy. During scheduled outages or control cabinet inspections, maintenance teams should assess the condition of the full measurement chain simultaneously. The 330130-070-00-00 extension cable connects directly to the proximity probe at one end and the proximitor driver at the other — both of which are subject to wear, contamination, and connector oxidation over time.

When replacing this cable, engineers should also inspect and, where necessary, stock replacements for the following components within the same control loop and cabinet:

• 330130 Series Proximity Probe — the transducer at the machine end; check for tip damage, thread wear, and cable jacket integrity.
• 3300 XL Proximitor / Driver Module — the signal conditioning unit; verify output voltage and gap voltage within specification after cable swap.
• 3300/16 or 3300/20 Monitor Cards — rack-mounted monitors that process the proximitor signal; inspect for alarm relay function and display accuracy.
• 3500/42M Proximitor / Seismic Monitor — if the system has been partially upgraded to the 3500 platform, confirm cross-compatibility of the extension cable with the new monitor architecture.
• Power Supply Module (3300 XL rack PSU) — a marginal power supply can introduce noise into the measurement chain; measure output voltage under load during the same maintenance window.
• Terminal Blocks and Field Wiring — inspect all I/O terminations in the junction box for corrosion, loose ferrules, and correct torque; re-terminate as needed.
• Signal Isolators / Barriers — where intrinsic safety barriers or galvanic isolators are installed between the proximitor and the DCS/PLC input card, verify isolation resistance and signal pass-through accuracy.
• Fuse Holders and Protection Fuses — check the 24 VDC supply fuse for the proximitor circuit; a blown fuse is a common root cause of apparent cable or probe failure.
• Keyphasor Module (3300 XL) — if the machine uses a Keyphasor reference signal for phase and speed measurement, inspect the Keyphasor probe and its dedicated extension cable at the same time.
• DCS / PLC Analogue Input Cards — confirm that the 4–20 mA or voltage output from the monitor is being received correctly at the control system input; a failed analogue input card can mask a restored measurement chain.

Maintaining a minimum of one spare 330130-070-00-00 cable per critical machine train — alongside a spare proximitor module and probe — is the industry-standard approach for rotating equipment protection in petrochemical, power generation, and heavy manufacturing facilities.

Site Replacement Workflow

Replacing the 330130-070-00-00 extension cable on-site is a straightforward procedure when the correct spare is pre-staged and the measurement chain has been documented. The following workflow minimises downtime and ensures system compatibility is maintained throughout the replacement:

1. Isolate and document: Record the current gap voltage and vibration readings from the 3300 XL monitor before disconnecting the cable. This baseline is essential for post-replacement verification.
2. Disconnect and inspect: Remove the existing extension cable from both the probe and the proximitor. Inspect the connectors on both mating components for damage or contamination before installing the new cable.
3. Install the 330130-070-00-00: Route the new cable following the original cable path, avoiding sharp bends and heat sources. Secure with the original cable clamps or equivalent stainless-steel ties.
4. Reconnect and verify gap voltage: With the machine at rest, confirm that the proximitor gap voltage falls within the specified linear range (typically −10 VDC ± 1 VDC for a standard 1 mm gap). Adjust probe position if required.
5. Restore monitoring and confirm alarms: Return the monitor to normal operation, verify that alert and danger setpoints are active, and confirm that the DCS or PLC is receiving a valid signal.
6. Update maintenance records: Log the replacement date, cable serial number, and post-installation gap voltage in the equipment maintenance management system (CMMS).

This cable is a direct replacement for legacy 330130-070-00-00 units and is fully compatible with existing 3300 XL system wiring without modification. No firmware changes or system reconfiguration are required.

Spare Parts Support FAQ

Q1: What is the shelf life of the 330130-070-00-00 extension cable, and how should it be stored?
When stored in a dry, temperature-controlled environment (0 °C to 40 °C) away from direct sunlight and chemical exposure, the 330130-070-00-00 has an indefinite shelf life. The coaxial cable and connectors are factory-sealed; keep the protective end caps in place until installation. Annual visual inspection of stored spares is recommended as part of a spare parts lifecycle programme.

Q2: How do I confirm compatibility before installation?
Compatibility is confirmed by matching the part number to the 3300 XL system documentation and verifying that the cable length (7 m) matches the physical distance between the probe and the proximitor mounting location. The 330130-070-00-00 is designed exclusively for use with 330130 Series proximity probes and 3300 XL proximitor/driver modules. If your system uses a different probe series (e.g. 330900 or 330780), a different extension cable part number is required.

Q3: What pre-shipment testing is performed on this spare?
Each 330130-070-00-00 unit is electrically tested for continuity, insulation resistance, and connector integrity before shipment. A test report is available upon request. Units are shipped with protective end caps and packaged to prevent mechanical damage during transit.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector failure, and cable insulation breakdown under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical abuse, or use outside the specified environmental ratings. Warranty claims are supported with a return merchandise authorisation (RMA) process; contact our technical team with the shipment date and installation details to initiate a claim.
