Bently Nevada 330130-075-02-05 Maintenance-Ready Spare 3300 XL Automation

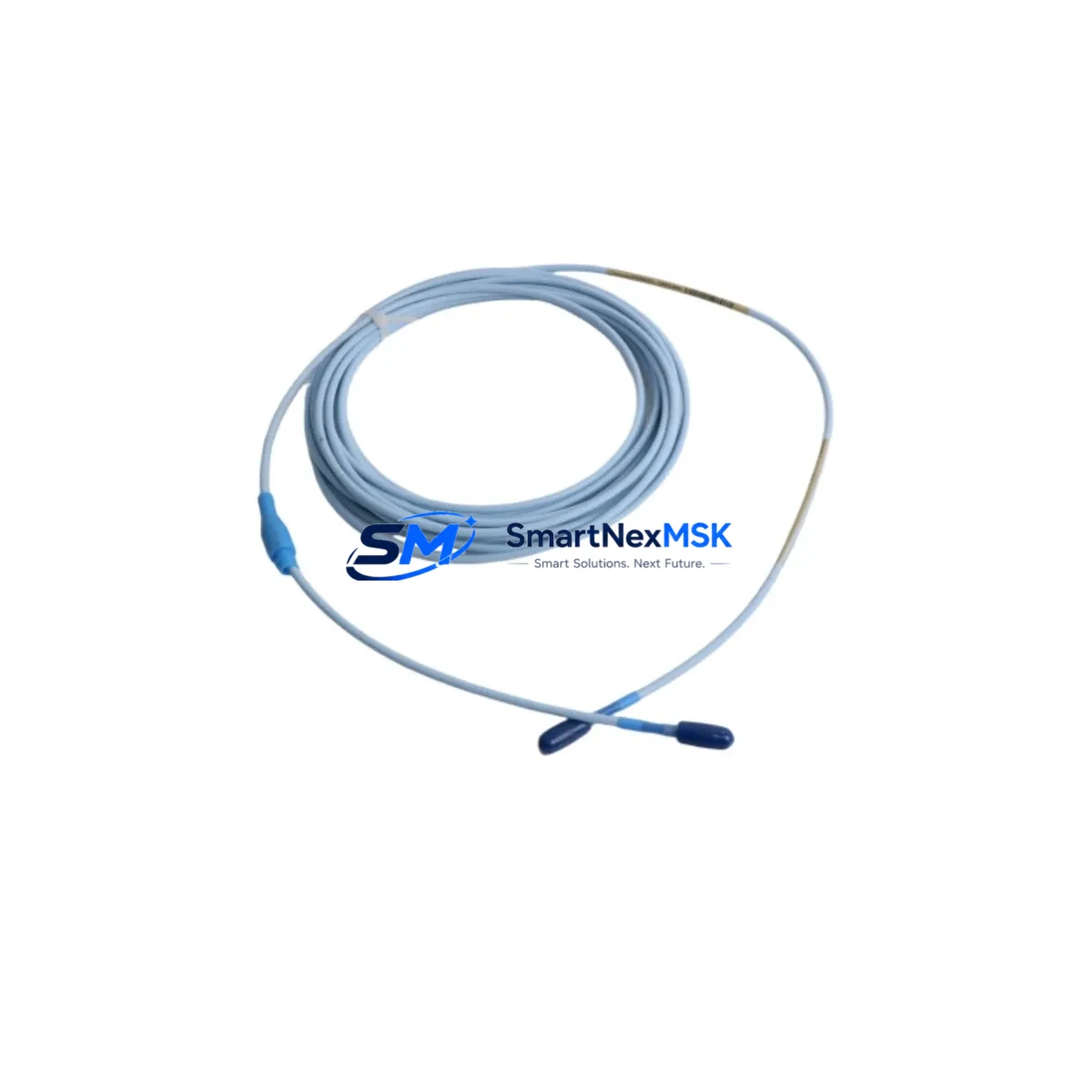

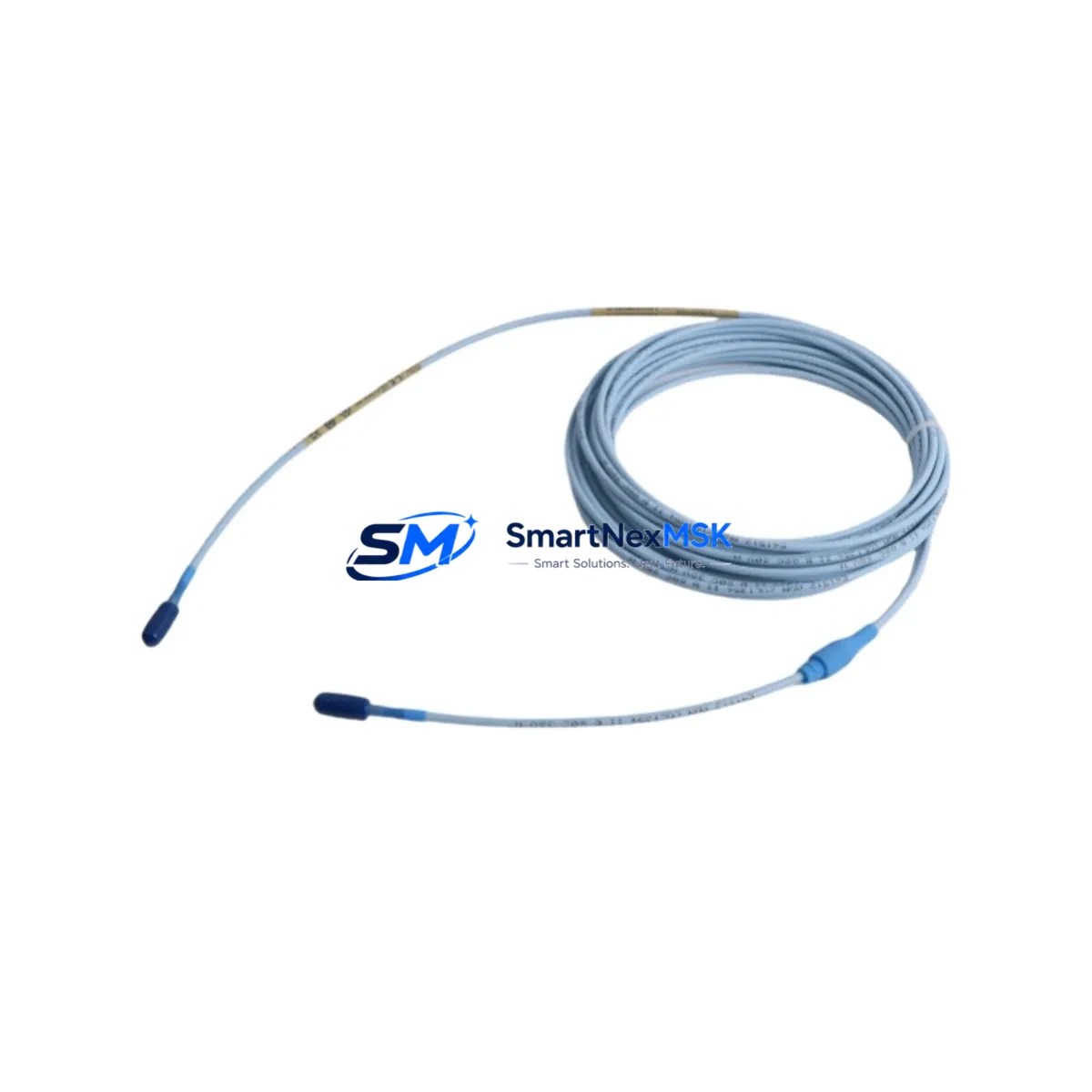

The Bently Nevada 330130-075-02-05 is an original proximity extension cable engineered for the 3300 XL continuous vibration monitoring system. With a cable length of 7.62 m (25 ft) and full compatibility with the 3300 XL proximitor/seismic monitor series, this spare part is a critical component in any rotating machinery protection strategy. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process plants, having a verified replacement on the shelf is the single most effective way to minimize unplanned downtime.
This cable serves as the signal transmission link between the 3300 XL eddy-current proximity probe and the proximitor module mounted in the monitor rack. Signal integrity across this cable directly determines the accuracy of gap voltage, vibration amplitude, and phase readings fed into the protection system. A degraded or open-circuit extension cable is one of the most common root causes of spurious trips and false high-vibration alarms in rotating equipment monitoring loops. Stocking the 330130-075-02-05 as a ready-to-install spare eliminates the diagnostic ambiguity and the multi-day lead time that can accompany an unplanned cable failure.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330130-075-02-05 |
| Brand | Bently Nevada |
| Series | 3300 XL Vibration Monitoring System |
| Product Type | Proximity Extension Cable |
| Cable Length | 7.62 m (25 ft) |
| Compatible Probe Series | 3300 XL Proximity Probe (330130 series) |
| Compatible Proximitor | 3300 XL Proximitor / Seismic Monitor |
| Connector Type | MIL-C-5015 style, coaxial, armored jacket |
| Operating Temperature | -35 °C to +85 °C |
| Installation Environment | Industrial — turbine halls, compressor skids, pump stations |
| Maintenance Recommendation | Inspect connectors and jacket annually; replace at first sign of insulation damage or impedance drift |
| Origin | USA |
| Warranty | 12 Months — tested and verified before shipment |
Maintenance Planning for Continuous Operation
When a 330130-075-02-05 extension cable is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers treat the event as a trigger for a broader loop inspection. The extension cable is only one element in a three-component Bently Nevada proximity transducer system. The companion 330130 series proximity probe and the 3300 XL proximitor module should both be inspected for connector corrosion, mechanical damage, and calibration drift before the system is returned to service. A cable swap that leaves a marginal probe or a drifting proximitor in place simply defers the next trip event.
Beyond the transducer loop itself, the surrounding monitor rack infrastructure warrants attention. The 3300 XL monitor card installed in the rack — whether a dual-channel vibration monitor, a thrust position monitor, or a speed monitor — should be checked for secure seating, front-panel LED status, and correct gap voltage reading after the cable is replaced. If the rack houses a 3500 series monitor alongside legacy 3300 XL cards, verify that the backplane power distribution is stable; a failing rack power supply can mask cable-related faults or generate misleading channel alarms across multiple monitor slots.
Terminal blocks and field junction boxes in the cable routing path are frequent sources of intermittent faults that mimic cable failures. Inspect all intermediate terminations for loose screws, moisture ingress, and corrosion, particularly in outdoor or wash-down environments. Signal isolators or barriers installed between the proximitor output and the DCS analog input card should also be verified for correct output range and loop continuity. Where the vibration signal feeds a safety instrumented system, confirm that the SIS input module is receiving a valid 4–20 mA or voltage signal within the expected window after the cable replacement is complete.
For plants running extended turnaround cycles of three to five years, a recommended minimum spare holding includes at least two 330130-075-02-05 cables per critical machine train, one spare proximitor module per monitor type in service, and a matched set of probe tips for the most common gap settings. Pairing this cable with a calibrated gap-setting tool and a portable oscilloscope or Bently Nevada ADRE data collector allows field technicians to perform a full loop verification without pulling the machine back to the shop.
Site Replacement Workflow
Replacing the 330130-075-02-05 in the field follows a straightforward sequence that, when executed correctly, keeps total downtime to under two hours for a single-channel loop. Begin by isolating the monitor channel at the rack — most 3300 XL monitors support channel bypass or inhibit functions that suppress trip outputs during maintenance without requiring a full rack power-down. Document the existing gap voltage reading before disconnecting the old cable; this baseline is essential for verifying that the new cable has not introduced impedance mismatch or connector resistance that shifts the static gap reading.
Disconnect the old cable at both the probe end and the proximitor end, taking care to protect the connector threads and center-pin contacts on the new cable during installation. Route the replacement cable along the existing cable tray or conduit, avoiding sharp bends tighter than the manufacturer’s minimum bend radius. Reconnect at the proximitor first, then at the probe, and torque connectors to the specified value to ensure consistent contact resistance. Re-enable the monitor channel, confirm that the gap voltage returns to within ±0.5 VDC of the pre-maintenance baseline, and verify that vibration amplitude and phase readings are stable before releasing the machine to operations.
For older installations where the 330130-075-02-05 is replacing a non-XL legacy cable, confirm that the proximitor module in the rack is also the 3300 XL variant. Mixing legacy 3300 series cables with 3300 XL proximitors — or vice versa — can produce calibration offsets that are not immediately obvious during a static gap check but will cause measurement errors under dynamic conditions. If a system upgrade from legacy 3300 to 3300 XL is underway, replace the probe, extension cable, and proximitor as a matched set to ensure full system compatibility and to qualify for the 12-month warranty coverage on all three components.
Spare Parts Support FAQ
Q: Is the 330130-075-02-05 compatible with both the 3300 XL and the legacy 3300 series proximitors?
A: The 330130-075-02-05 is designed and calibrated for the 3300 XL system. While physical connectors may mate with some legacy 3300 series components, Bently Nevada specifies matched probe-cable-proximitor sets for calibrated accuracy. We recommend using this cable exclusively with 3300 XL proximitor modules to ensure measurement integrity and warranty validity.
Q: What pre-shipment testing is performed on this cable?
A: Every 330130-075-02-05 shipped from our inventory undergoes continuity testing, insulation resistance verification, and connector integrity inspection before dispatch. A test report is available upon request. The 12-month warranty covers defects in materials and workmanship from the date of shipment.
Q: How many units should a maintenance department stock for a typical rotating machinery installation?
A: Industry best practice for critical machine trains — compressors, turbines, and large pumps — is a minimum of two extension cables per monitored shaft, held as on-site ready spares. For plants with five or more monitored machines of the same type, a centralized stores holding of four to six cables reduces per-unit cost and ensures availability across multiple simultaneous maintenance events.
Q: What is the lead time for repeat or bulk orders?
A: Standard orders ship within 3–5 business days from confirmed stock. For blanket purchase orders or annual supply agreements covering multiple SKUs in the 3300 XL system, contact our sales team to discuss reserved inventory allocation and priority dispatch arrangements.
