Bently Nevada 330130-080-00-00 Maintenance-Ready Spare for 3300 XL Automation

Bently Nevada 330130-080-00-00 Maintenance-Ready Spare for 3300 XL Automation

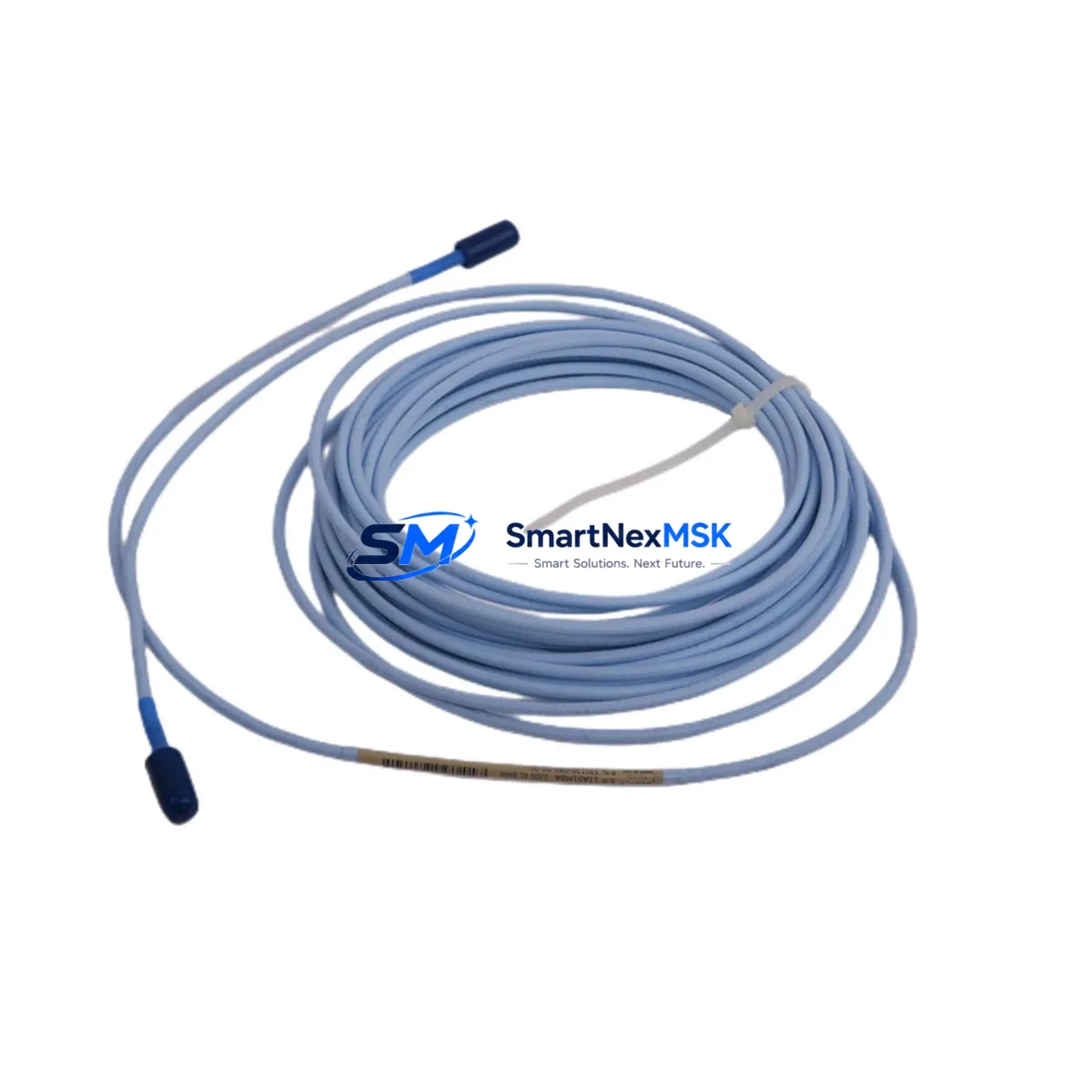

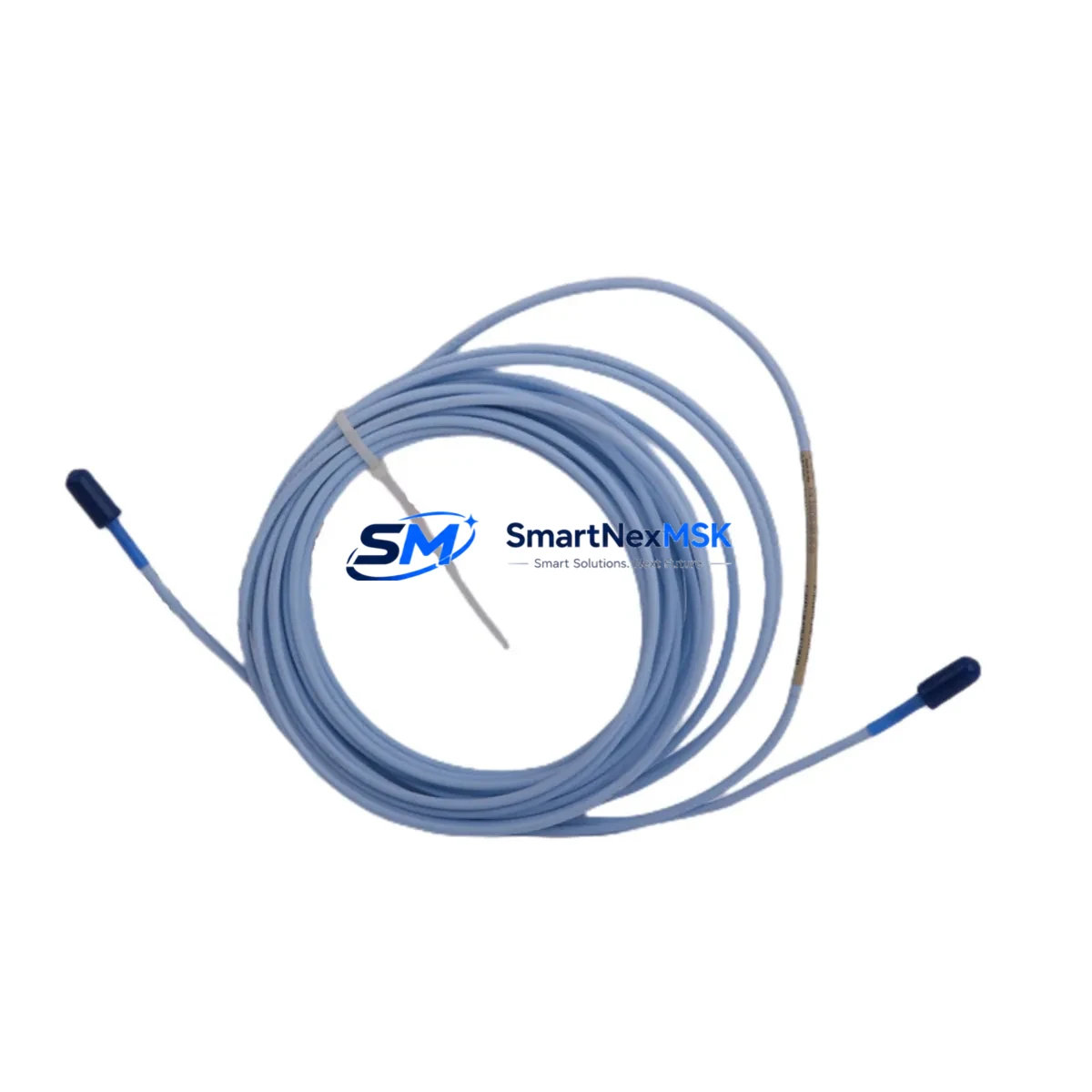

The Bently Nevada 330130-080-00-00 is a factory-original 5-metre extension cable engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this cable is a critical link in the signal chain between the proximity probe and the Bently Nevada 3300 XL proximitor/driver. Any degradation in this cable directly compromises vibration measurement accuracy, triggering nuisance trips or — more dangerously — masking real machinery faults. Stocking a verified original spare eliminates that risk and restores system integrity within minutes of a fault diagnosis.

At SMARTNEXMSK, every 330130-080-00-00 unit is sourced from authorised supply channels, individually inspected, and function-tested prior to dispatch. We maintain ready inventory to support both planned maintenance windows and emergency breakdown recovery, with same-day or next-business-day shipping available for in-stock units. A 12-month warranty covers all supplied parts against manufacturing defects and signal integrity failures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330130-080-00-00 extension cable is flagged during a routine control cabinet inspection or vibration channel audit, experienced maintenance engineers know that the cable itself is rarely the only component requiring attention. A thorough site assessment should encompass the full signal path and associated protection circuitry.

Begin with the 3300 XL Proximity Probe (typically a 330101-00-06-10-02-00 or 330103 series 8mm probe) at the measurement point. Probe tip damage, contamination, or gap drift will produce the same erratic output as a faulty extension cable, so both must be verified together. Next, inspect the 3300 XL Proximitor Sensor / Driver (330180-X1-05 or 330185 series) mounted in the field junction box or control cabinet — check the output voltage at the OK terminal and confirm the gap voltage sits within the –10 to –18 VDC linear range.

Within the control cabinet, verify the –24 VDC power supply rail feeding the proximitor. A sagging or noisy supply is a common root cause of intermittent channel faults that are incorrectly attributed to cable failure. If the site uses a Bently Nevada 3500 Rack System for machinery protection, confirm that the associated 3500/42M Proximitor I/O Module or 3500/40M Proximitor Monitor is reading correctly after cable replacement and that the OK relay output is healthy.

For plants running parallel condition monitoring, check the signal conditioning terminal blocks and any signal isolators in the loop — particularly where the proximity signal is shared between the protection rack and a DCS historian input. Faulty isolators can introduce ground loops that mimic cable faults. Inspect field junction box terminal strips for corrosion, loose ferrules, and moisture ingress, especially in outdoor or high-humidity installations.

If the machinery protection system feeds a Bently Nevada 3500/22M Transient Data Interface or a System 1 Condition Monitoring software node, confirm that the channel data resumes correctly after the cable swap and that no latched alarms remain in the rack. Finally, review the 3300 XL system documentation and update the site maintenance log with the replacement date, cable serial number, and post-installation gap voltage reading — this record is essential for warranty validation and future predictive maintenance scheduling.

Site Replacement Workflow

Step 1 — Isolate and document. Before disconnecting the existing 330130-080-00-00, record the proximitor output voltage and gap voltage from the monitor display or DCS faceplate. This baseline confirms whether the cable is the fault source or a symptom of a wider issue.

Step 2 — Disconnect safely. De-energise the –24 VDC supply to the proximitor at the field junction box. Disconnect the extension cable at both the probe armour connector and the proximitor input. Inspect both connectors for corrosion, bent pins, or moisture — these findings should be logged even if the connectors appear serviceable.

Step 3 — Install the replacement. Route the new 330130-080-00-00 along the original cable path, maintaining the same bend radius and avoiding proximity to high-voltage power cables or VFD output conductors that could induce interference. Secure with the original cable clamps or replace with stainless-steel ties rated for the operating temperature.

Step 4 — Re-energise and verify. Restore the –24 VDC supply and confirm the proximitor OK LED illuminates. Measure the gap voltage at the monitor — it should fall within the system’s configured linear range (typically –10 to –18 VDC for 8mm probes). If the reading has shifted, re-check probe gap and re-adjust if necessary. No firmware changes or rack reconfiguration are required for a direct like-for-like cable replacement.

Step 5 — Clear alarms and return to service. Reset any latched alarms in the 3500 rack or DCS, confirm the channel is healthy in System 1 or the site SCADA, and update the maintenance management system (CMMS) with the completed work order. The replaced cable should be retained for failure analysis if root cause investigation is required.

This workflow minimises downtime to under 30 minutes for a prepared maintenance team with the spare on hand — compared to multi-day delays when waiting for emergency procurement. Maintaining at least one 330130-080-00-00 in the site spare parts store is strongly recommended for any facility operating Bently Nevada 3300 XL systems on critical rotating machinery.

Spare Parts Support FAQ

Q1: Is the 330130-080-00-00 a direct replacement for older 330130 series cables?
Yes. The 330130-080-00-00 is backward-compatible with earlier 3300 XL proximity transducer system configurations. It uses the same coaxial construction, connector termination, and impedance characteristics as previous revisions. No system reconfiguration or re-calibration is required when replacing a like-for-like cable in an existing installation. Always verify the cable length suffix matches your installed system layout before ordering.

Q2: How do I verify compatibility before installation?
Confirm that your proximity probe is an 8mm Bently Nevada 3300 XL series probe (330101 or 330103 family) and that your proximitor/driver is a 330180 or 330185 series unit. The extension cable must complete a matched system — probe, extension cable, and proximitor must all be from the same 3300 XL series and configured for the same gap range. If you are unsure, contact our technical team with your existing part numbers and we will confirm compatibility before dispatch.

Q3: What does the 12-month warranty cover and how is it claimed?
The 12-month warranty covers manufacturing defects, connector integrity failures, and signal continuity faults under normal operating conditions. It does not cover physical damage caused by incorrect installation, over-bending, chemical exposure, or mechanical impact. To make a warranty claim, contact sales@smartnexmsk.com with your order number, installation date, and a description of the fault. We will arrange a replacement or credit within 5 business days of receiving the returned item.

Q4: What is your recommended spare parts stocking strategy for 3300 XL systems?
For facilities with four or more 3300 XL channels on critical machinery, we recommend holding a minimum of two 330130-080-00-00 extension cables per cable length variant in use on site. Pair this with at least one spare proximitor sensor and one spare 8mm probe per critical machine train. Review and rotate spare stock every 36 months to prevent connector oxidation in storage. For plants with long procurement lead times or remote locations, consider a consignment stock arrangement — contact us to discuss options tailored to your maintenance strategy.
