Bently Nevada 330130-080-12-RU Spare for 3300 XL Automation

Bently Nevada 330130-080-12-RU Spare for 3300 XL Automation: Spare Replacement & Industrial Downtime Risk Control

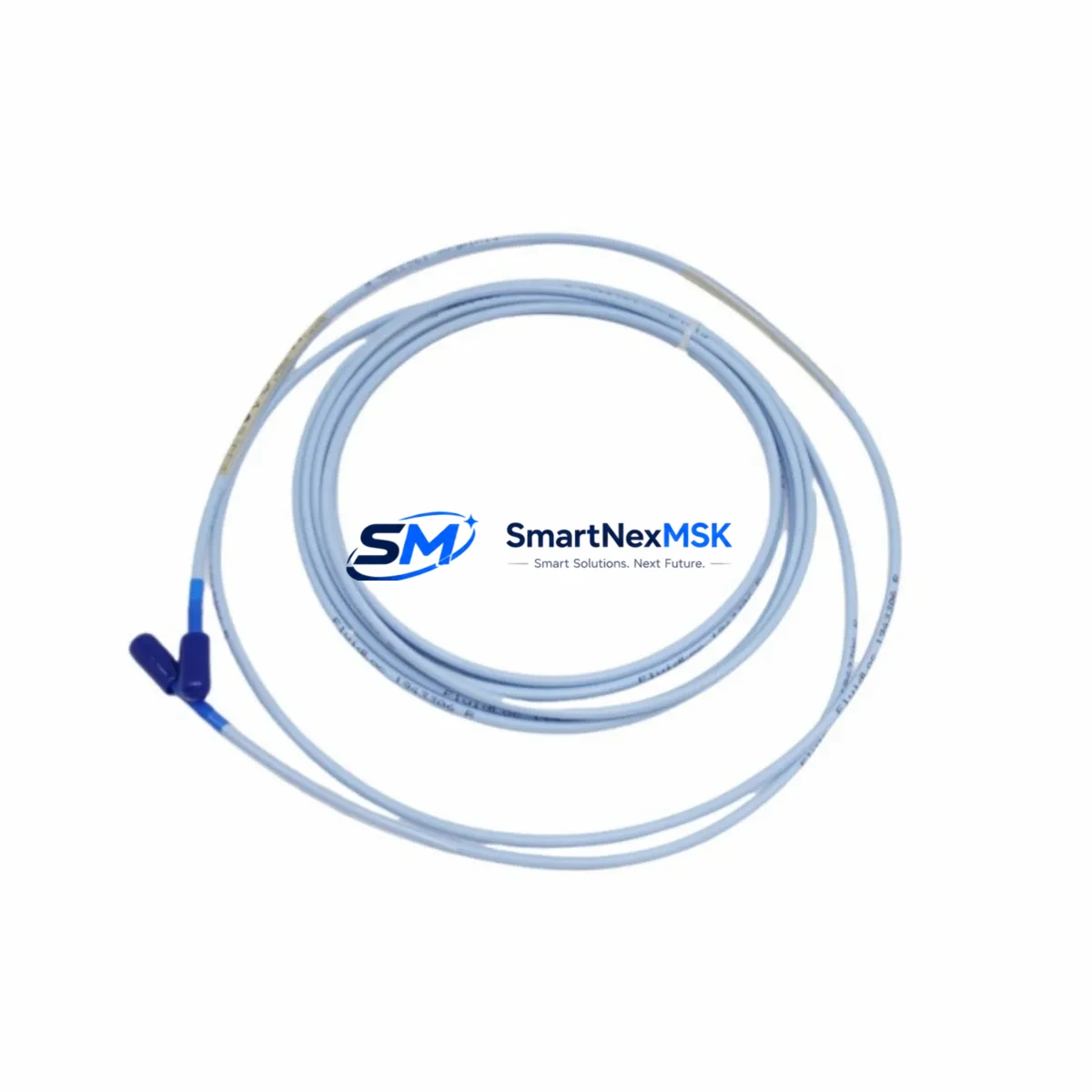

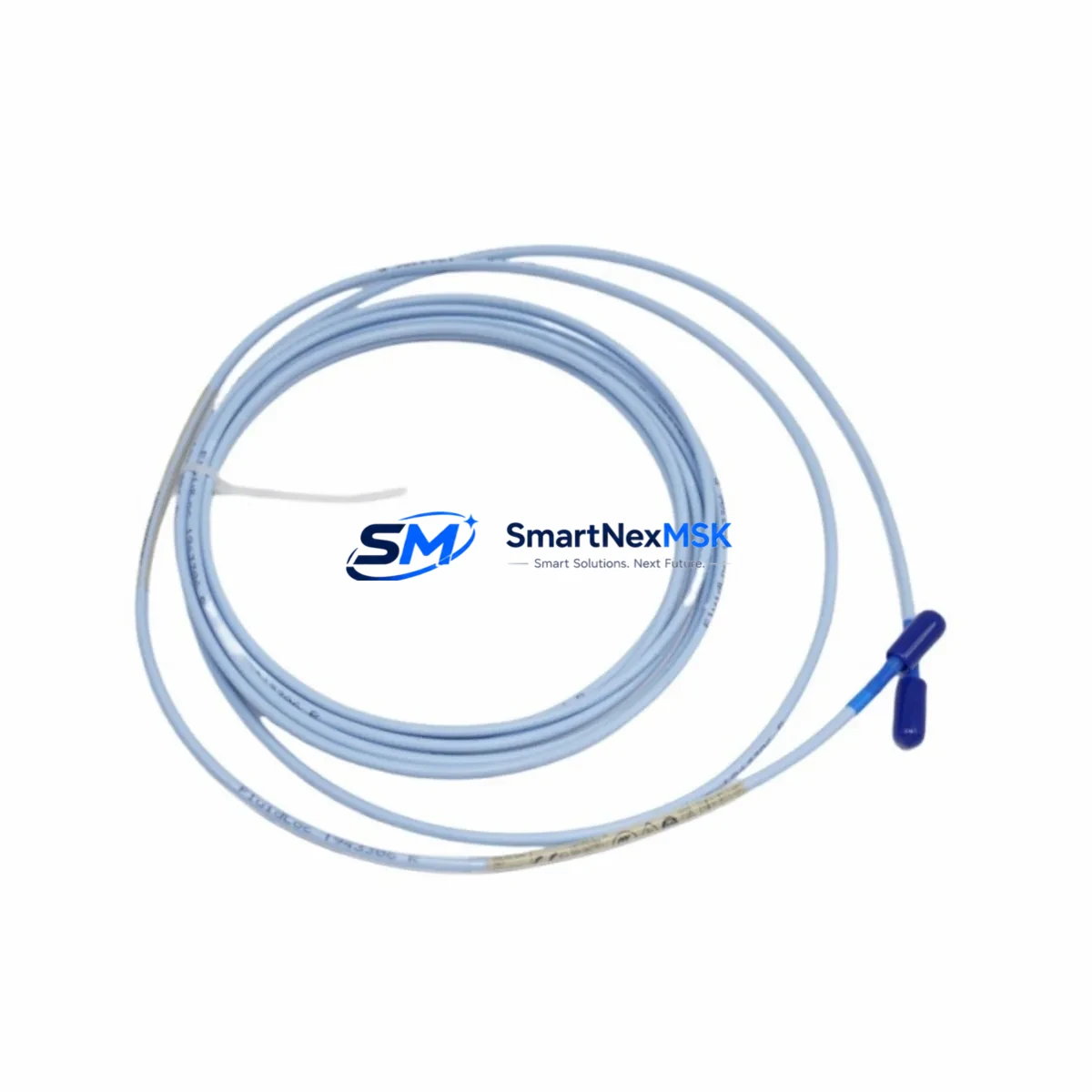

The Bently Nevada 330130-080-12-RU is an 8mm proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed for radial vibration, axial position, and speed measurement on rotating equipment — including turbines, compressors, pumps, and motors — this transducer is a critical front-line component in any predictive maintenance or condition monitoring program. When this part fails or degrades, the entire vibration monitoring loop is compromised, leaving rotating assets unprotected and exposing the facility to unplanned shutdown risk.

Sourced as an original spare, each 330130-080-12-RU unit is pre-tested prior to dispatch and backed by a 12-month warranty. Stocking this transducer as a ready-to-install spare is the most effective way to minimize mean time to repair (MTTR) and maintain continuous protection on critical rotating machinery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing 3300 XL-based condition monitoring systems, the 330130-080-12-RU transducer should never be treated as a standalone component. Its performance is directly dependent on the integrity of the complete measurement chain. When scheduling a transducer replacement — whether during planned shutdown, corrective maintenance, or emergency recovery — the following associated components must be inspected or replaced concurrently to ensure system accuracy and avoid repeat failures.

The 3300 XL Extension Cable (typically 330130-series matched cable) is the first item to verify. Cable damage, connector corrosion, or impedance mismatch will cause erratic gap voltage readings even with a new transducer installed. Inspect the full cable run from probe tip to proximitor input for abrasion, pinch points, and connector seating. Alongside this, the 3300 XL Proximitor / Driver Module (such as the 330180 or 330190 series) must be confirmed functional — a degraded driver will produce incorrect output regardless of transducer condition.

At the rack level, inspect the 3300 XL Rack Monitor Card (e.g., 3300/16 or 3300/20 series) for alarm relay status, channel configuration, and any latched fault indicators. The 3300 XL Power Supply Module supplying -24 VDC to the transducer loop should be load-tested; a sagging supply rail is a common root cause of false vibration alarms. If the system uses a Keyphasor Module for phase reference, verify its gap voltage and signal quality simultaneously — a degraded Keyphasor signal will corrupt all phase-referenced vibration data across the rack.

For facilities running integrated control architectures, confirm that the 4–20 mA output signal from the monitor card is correctly received at the DCS or PLC I/O module. Loose terminal block connections on the DIN rail terminal strip between the monitor rack and the control system are a frequent source of intermittent signal loss. Where signal isolation is required between the monitoring rack and the control system, inspect any installed signal isolator or barrier module for correct loop power and output calibration.

Finally, if the facility uses a System 1 Evolution or similar condition monitoring software platform connected to the 3300 XL rack via Ethernet or serial communication, verify that the communication module and network path are intact after any rack-level maintenance. A transducer replacement that is not followed by a system-level functional test and data validation is an incomplete maintenance action.

Site Replacement Workflow

Replacing the 330130-080-12-RU in the field follows a structured sequence to minimize downtime and ensure measurement accuracy is restored before the machine is returned to service.

Step 1 — Isolation & Documentation: De-energize the transducer loop at the proximitor. Record the existing gap voltage (typically -10.0 to -11.0 VDC for a correctly gapped 8mm probe) and note any active alarms on the monitor card. Photograph the cable routing and connector orientation before disconnection.

Step 2 — Probe Removal: Loosen the probe locknut and back the transducer out carefully. Inspect the probe tip for impact damage or contamination. Inspect the target area on the shaft for scoring, runout irregularities, or surface contamination that may have contributed to the original fault.

Step 3 — New Transducer Installation: Thread the 330130-080-12-RU into the bracket and set the gap per the Bently Nevada installation datasheet (typically 1.0–1.5 mm for an 8mm probe on a steel target). Tighten the locknut to the specified torque. Reconnect the extension cable, ensuring the connector is fully seated and the locking collar is engaged.

Step 4 — Energize & Verify: Re-energize the proximitor supply. Measure the DC gap voltage at the proximitor output — it must fall within the linear range specified for the target material. Confirm the monitor card clears any latched gap alarms and that the vibration channel returns to a valid reading.

Step 5 — Functional Test & Return to Service: With the machine at operating speed, verify that vibration readings are within expected baseline values. Confirm alarm setpoints are active and that the data is correctly received at the DCS or monitoring software. Document the replacement in the maintenance management system (CMMS) and update the spare parts inventory.

This workflow applies equally to corrective replacements on failed units and to proactive replacements during planned outages on aging 3300 XL systems where transducer service life has been exceeded.

Spare Parts Support FAQ

Q1: Is the 330130-080-12-RU a direct drop-in replacement for older 330130-series transducers?
The 330130-080-12-RU is designed for the 3300 XL system and is compatible with the standard 3300 XL extension cables and proximitor drivers. For installations using earlier 3300/05 or 3300/16 series hardware, verify the proximitor model and cable impedance specifications before installation. When in doubt, replace the transducer, extension cable, and proximitor as a matched set to ensure system accuracy.

Q2: What pre-shipment testing is performed on each unit?
Each 330130-080-12-RU is functionally tested for output linearity, gap voltage response, and connector integrity before dispatch. Units are shipped with protective end caps and anti-static packaging. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How should this transducer be stored as a long-term spare?
Store in original packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH non-condensing). Avoid storage near strong magnetic fields or sources of mechanical vibration. Inspect connector pins and probe tip annually. Recommended maximum shelf storage before installation verification: 3 years.

Q4: Can you supply matched sets of transducer, extension cable, and proximitor for a full channel replacement?
Yes. For planned maintenance or emergency recovery, matched sets covering the complete 3300 XL measurement chain — transducer, extension cable, and proximitor driver — can be supplied and dispatched together. Contact our team with your rack configuration and channel count for a consolidated spare parts quotation.
