Bently Nevada 330130-085-00-00 Retrofit-Ready Extension Cable for 3300 XL Control Systems

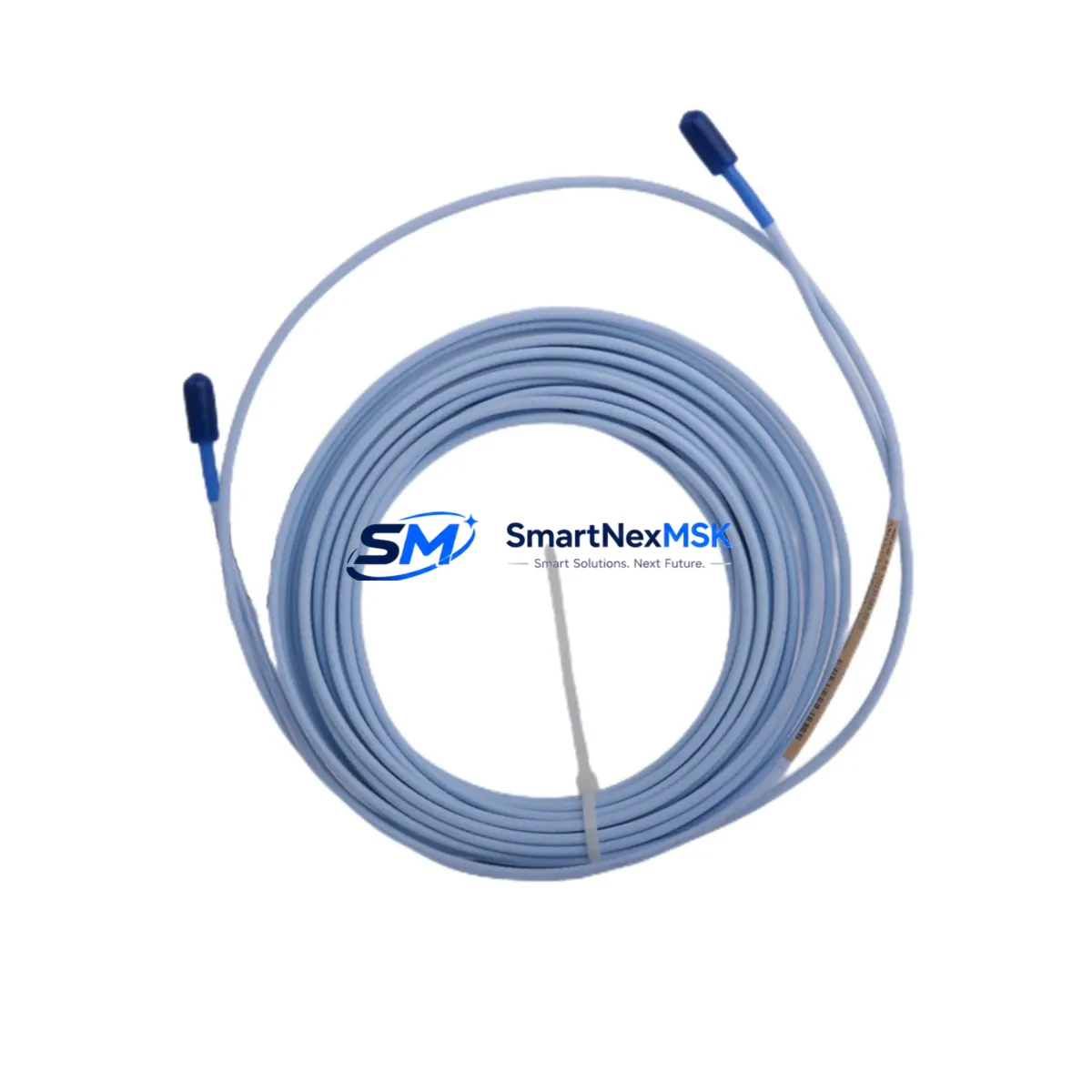

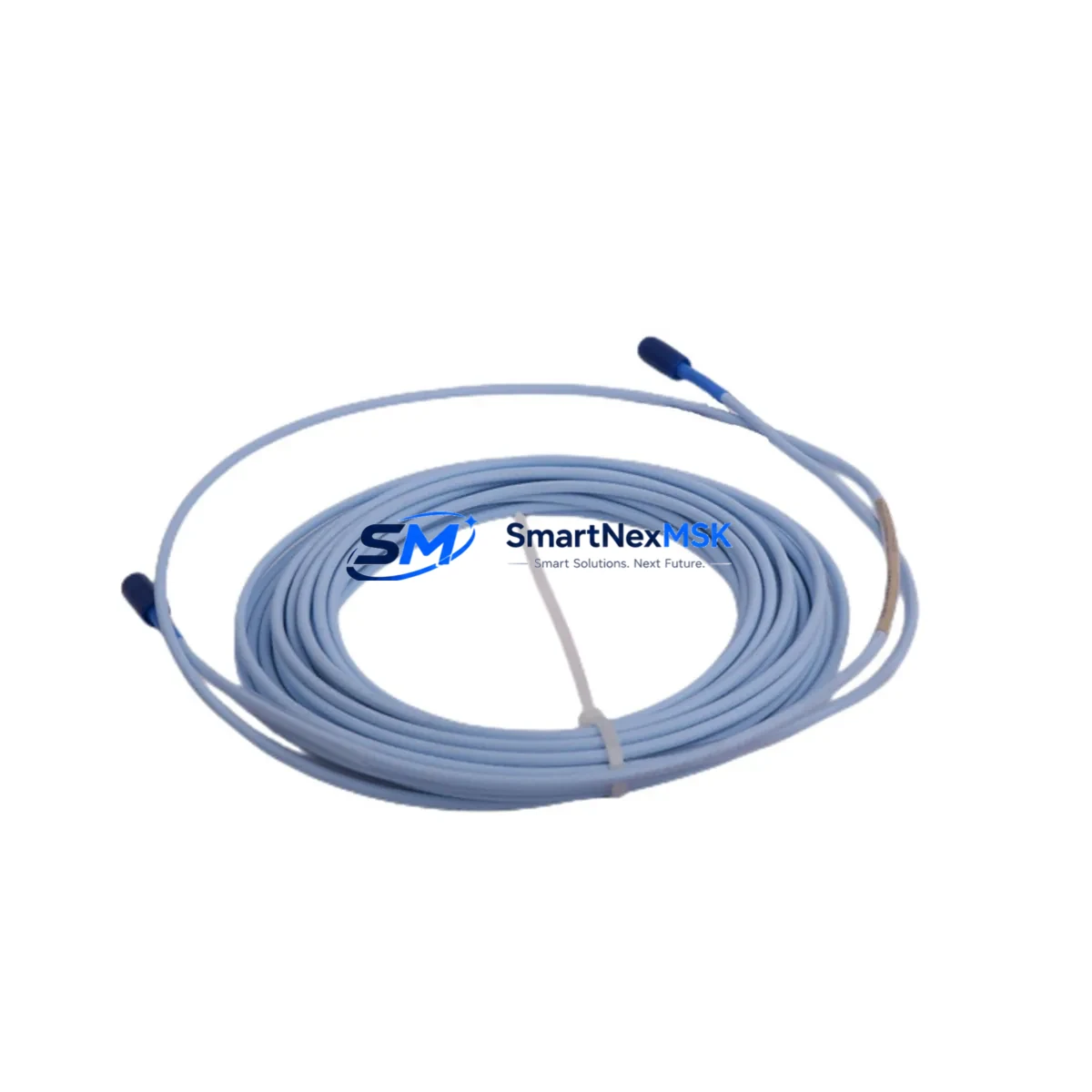

The Bently Nevada 330130-085-00-00 is an 8.5-meter (28-foot) proximity probe extension cable engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems age and OEM support windows close, this cable remains one of the most frequently replaced components in rotating equipment monitoring loops. Whether you are restoring a tripped channel, upgrading a worn cable run, or migrating an entire rack from an older 3300 Series to the current 3300 XL architecture, the 330130-085-00-00 provides a verified drop-in solution with no firmware changes, no re-ranging, and no recalibration of the Proximitor sensor required.
Industrial facilities running gas turbines, steam turbines, compressors, pumps, and gearboxes rely on continuous shaft vibration and position data to protect critical assets. A degraded or open-circuit extension cable is one of the most common causes of a Not OK channel alarm in a 3300 XL rack. Replacing the 330130-085-00-00 restores the signal path between the 3300 XL 8-mm Proximity Probe (such as the 330101-00-06-10-02-00 or 330104-00-06-10-02-00) and the 3300 XL Proximitor Sensor (such as the 330180-91-00 or 330180-X1-00), ensuring the full 200 mV/mil sensitivity specification is maintained across the complete transducer system.
When planning a retrofit or cable replacement, engineers must verify several parameters before committing to a work order. The total cable length budget — probe, extension, and Proximitor input — must match the gap voltage calibration stored in the monitor module. The 330130-085-00-00 is rated for an 8.5-meter extension run, which pairs with standard 5-meter probe assemblies to reach the Proximitor mounted in a 3300 XL Rack or a 3500 Rack in mixed-generation installations. Confirm that the existing 3300 XL Monitor (for example, a 3300/16 or 3300/20 dual-channel monitor card) is configured for the correct probe-plus-extension combination before installation.
Terminal wiring follows the standard three-conductor shielded arrangement: center conductor (signal), shield (return), and outer jacket. When replacing a failed cable in a live panel, technicians should document the existing terminal assignments on the 3300 XL I/O Module or field junction box before disconnecting. Backplane interface compatibility is maintained across all standard 3300 XL rack configurations, including the 3300/05 Power Supply and associated rack backplane, so no hardware modifications to the rack are required.
For facilities transitioning from the older Bently Nevada 3300 Series (non-XL) to the 3300 XL platform, the 330130-085-00-00 is fully compatible with the updated Proximitor electronics and does not require replacement of the field-mounted probe assembly, provided the probe model is within the supported 8-mm family. This makes it an efficient component in a phased migration strategy where the rack and monitors are upgraded first while probe and cable infrastructure is retained. In such projects, the 3300 XL Keyphasor Module and 3300 XL Tachometer Module are typically upgraded in the same outage window to maintain system-wide compatibility.
Communication and configuration links in a 3300 XL system — including the System 1 Evolution software interface and any Modbus or Ethernet gateway modules installed in the rack — are unaffected by an extension cable swap. No changes to the HMI trend displays, alarm setpoints, or historian tags are required after a like-for-like cable replacement. This significantly reduces the scope of management-of-change documentation and allows the work to be completed during a short planned outage or, in some cases, during a hot-standby channel swap if the system architecture supports it.
All units supplied by SMARTNEXMSK are function-tested prior to shipment, with continuity and insulation resistance verified. Each 330130-085-00-00 ships with a 12-month warranty covering manufacturing defects and electrical performance. Stock is maintained for immediate dispatch, supporting both emergency breakdown replacements and scheduled maintenance programs.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330130-085-00-00 |
| Brand / OEM | Bently Nevada |
| Series Compatibility | 3300 XL Series; compatible with 3500 Series racks in mixed installations |
| Cable Length | 8.5 meters (28 feet) |
| Connector Interface | Standard 3-conductor shielded coaxial; mates with 3300 XL Proximitor Sensor input |
| Probe Compatibility | 8-mm proximity probe family (e.g., 330101, 330104 series) |
| Installation Requirement | No rack modification; direct terminal replacement on I/O module or junction box |
| Communication Impact | None — System 1, Modbus, and Ethernet gateway links unaffected |
| Replacement Recommendation | Drop-in for any failed or degraded 330130-085-00-00 in 3300 XL loops |
| Commissioning Note | Verify gap voltage and total cable length budget post-installation |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins with a complete loop audit. Before ordering, confirm the probe model installed at the machine — typically a 330101-00-06-10-02-00 or equivalent 8-mm probe — and record the existing gap voltage at the Proximitor output. The 330130-085-00-00 extension cable connects the probe to the 3300 XL Proximitor Sensor, which in turn feeds the monitor card in the rack. In a standard 3300 XL installation, the rack will also house a 3300/05 Power Supply Module, one or more 3300/16 or 3300/20 Dual-Channel Monitor Modules, and potentially a 3300 XL Keyphasor Module for phase reference. All of these components share the rack backplane and are unaffected by an extension cable replacement.
For older installations where the original cable has been in service for more than ten years, it is advisable to inspect the 3300 XL I/O Module terminal blocks for corrosion or loose terminations at the same time. In some legacy panel layouts, the extension cable routes through a field junction box before entering the control cabinet; in these cases, verify that the junction box connectors are also in serviceable condition. If the facility is simultaneously upgrading from a non-XL 3300 rack, the 3300 XL Tachometer Module and any associated programming cables (such as the Bently Nevada 330130 series communication cables) should be included in the bill of materials for the outage.
For I/O expansion projects where additional measurement points are being added to an existing 3300 XL rack, the 330130-085-00-00 is the standard extension cable for each new probe loop. Pair each cable with a matched probe assembly and a correctly ranged Proximitor sensor to ensure the gap voltage falls within the linear range of the monitor module. Document the module address and channel assignment in the System 1 configuration database before energizing the new loop.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary driver for maintaining a spare 330130-085-00-00 in the site stores. When a channel goes Not OK due to a cable fault, the monitor module will typically generate a relay output that can trip the machine or initiate an alarm sequence. Having a pre-tested replacement cable on hand allows the maintenance team to restore the channel within a single shift, avoiding extended outage exposure.
For planned migrations, the recommended approach is to pre-stage the new 330130-085-00-00 alongside the replacement Proximitor sensor and verify continuity and insulation resistance before the outage window opens. During the outage, the existing program logic in the 3300 XL Monitor does not need to be modified for a like-for-like cable replacement — alarm setpoints, danger setpoints, and time-delay settings are stored in the monitor module and are preserved through a cable swap. HMI trend screens in System 1 Evolution will resume normal data acquisition as soon as the channel returns to OK status after the gap voltage is confirmed within specification.
For facilities using a hot-standby or dual-voting architecture, it may be possible to replace the extension cable on one channel while the redundant channel maintains machine protection, further reducing operational risk. Confirm the voting logic configuration in the rack before proceeding with a live-channel replacement. After installation, perform a full loop check — including gap voltage measurement, sensitivity verification, and alarm function test — before returning the channel to service and closing the work order.
Retrofit Support FAQ
Q1: Is the 330130-085-00-00 a direct replacement for the original Bently Nevada part, or are there wiring differences?
A: The 330130-085-00-00 is a direct, like-for-like replacement. The connector pinout, cable impedance, and jacket dimensions are identical to the original OEM specification. No wiring modifications are required at the Proximitor sensor or the I/O module terminal block.
Q2: Do I need to recalibrate the 3300 XL monitor after replacing the extension cable?
A: If you are replacing a failed 330130-085-00-00 with an identical 8.5-meter cable and the probe model has not changed, recalibration is not required. You should verify the gap voltage at the Proximitor output falls within the specified linear range (typically −10 VDC ± 2 VDC for an 8-mm probe at nominal gap) and confirm the channel returns to OK status. If the cable length or probe model has changed, a full loop calibration is required.
Q3: What commissioning checks should be performed after installation?
A: Perform a continuity check on the new cable before connection, then measure the Proximitor output gap voltage with the probe installed at the correct mechanical gap. Verify the monitor channel status returns to OK, confirm alarm and danger setpoints are active, and perform a functional test of the relay output if site procedures require it. Log the as-found and as-left gap voltages in the maintenance record.
Q4: What does the 12-month warranty cover, and how is a claim initiated?
A: The 12-month warranty covers manufacturing defects and verified electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical abuse, or operation outside the specified environmental ratings. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order number, installation date, and a description of the failure. Replacement units are dispatched from stock upon claim approval.
