Bently Nevada 330130-085-00-CN 3300 XL Extension Cable Spare

Bently Nevada 330130-085-00-CN 3300 XL Extension Cable Spare: Spare Replacement & Industrial Downtime Risk Control

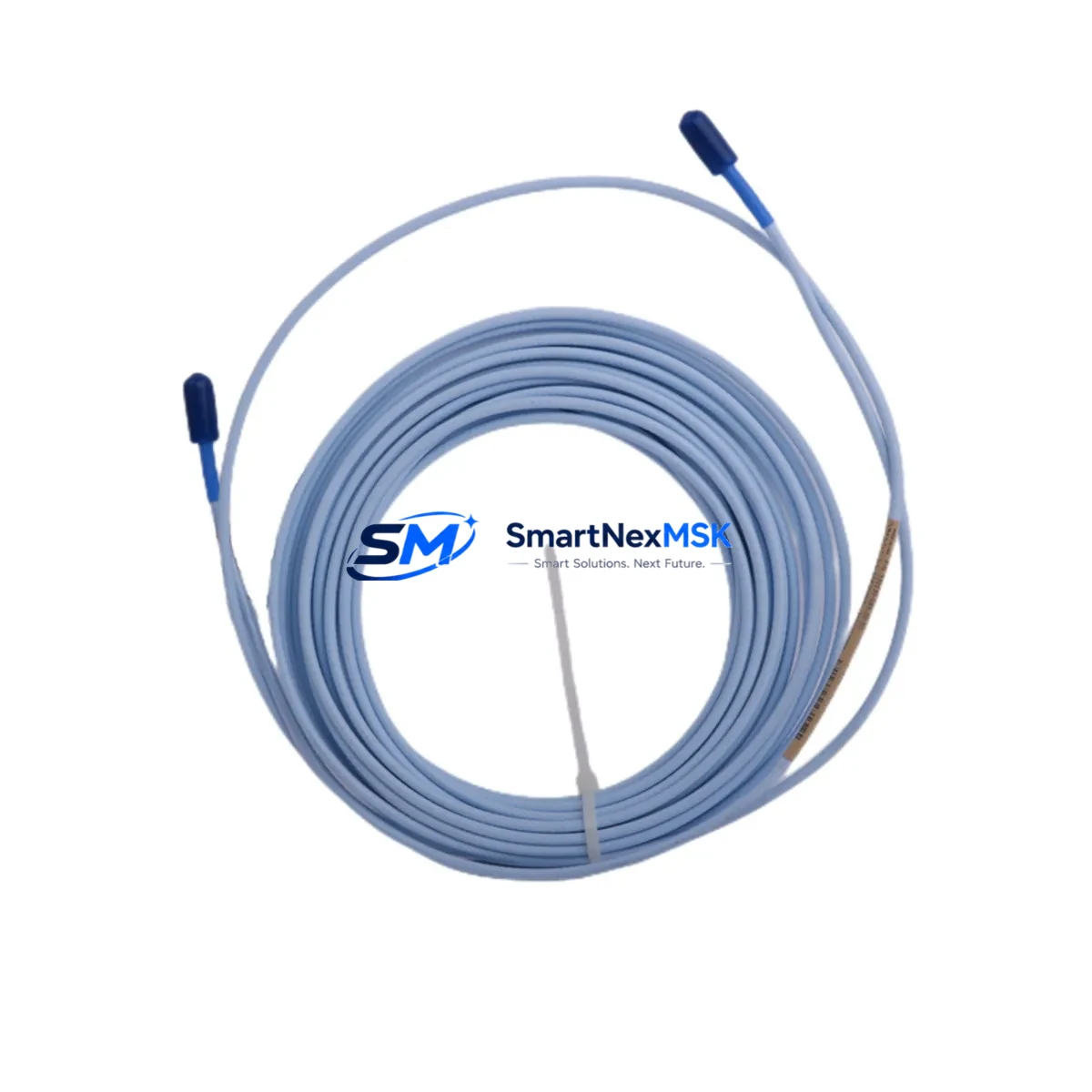

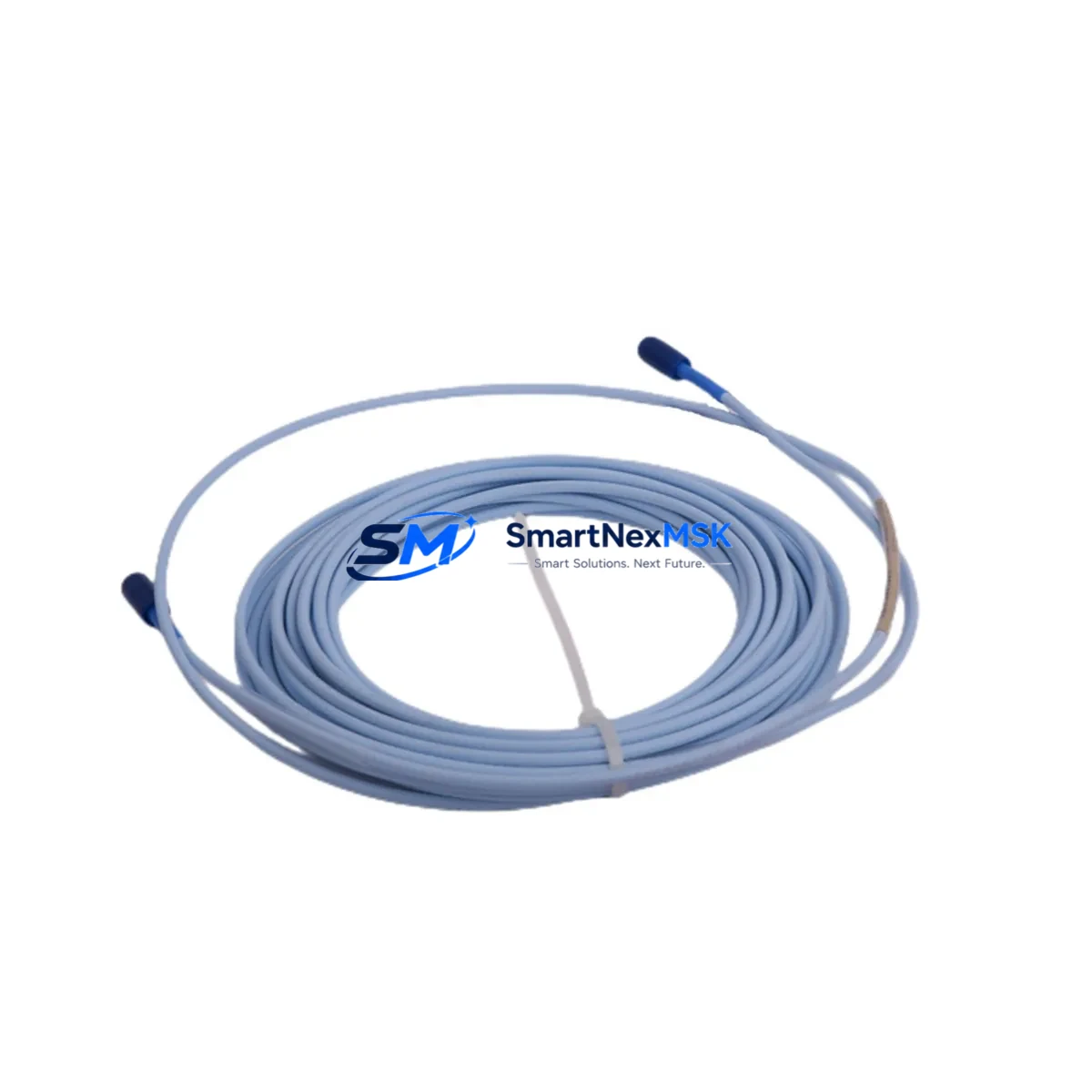

The Bently Nevada 330130-085-00-CN is an 8.5-metre extension cable engineered for the 3300 XL proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery protection worldwide. When this cable degrades or fails, the entire measurement loop is compromised: the proximitor/driver loses its calibrated signal path, vibration and position data become unreliable, and machinery protection systems may trip or, worse, fail to trip when needed. Stocking a verified replacement is not optional maintenance — it is a fundamental risk-control measure for any facility running turbines, compressors, pumps, or gearboxes under continuous monitoring.

This listing supplies the 330130-085-00-CN as a maintenance-ready spare, pre-tested for electrical continuity, impedance, and connector integrity before shipment. Each unit ships with a 12-month warranty covering manufacturing defects and is packaged to prevent connector damage in transit. Lead time from confirmed order to dispatch is typically 1–3 business days from available stock.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330130-085-00-CN extension cable is rarely an isolated task. In a well-structured planned maintenance or fault-isolation workflow, the cable is one node in a complete measurement chain that must be evaluated as a system. Maintenance engineers and procurement engineers should treat a cable replacement as the trigger for a broader loop audit.

Begin at the probe end: the 330100 or 330105 series eddy-current probe should be inspected for tip damage, thread condition, and gap voltage. A degraded probe will produce erratic output even with a new cable installed. Move along the signal path to the 330180 or 330185 proximitor/driver — check the output voltage at the OK terminal and verify the gap voltage is within the linear range (typically –10 VDC ± 2 V for a standard 5 mm probe). If the proximitor is mounted in a 3300 XL field-mount enclosure, inspect the enclosure for moisture ingress, corrosion on terminal blocks, and secure cable routing.

At the rack end, confirm that the 3500/40M or 3500/42M monitor module is receiving a valid signal. A common oversight is replacing the cable without verifying that the monitor’s OK relay and alarm setpoints are correctly configured — particularly after a forced outage where parameters may have been temporarily overridden. Check the 3500 rack power supply module (typically a 3500/15 or 3500/05) for stable DC output; a marginal power supply can introduce noise that mimics cable degradation.

For installations using Zener barriers or galvanic isolators in intrinsically safe loops, verify that the barrier’s resistance and voltage-clamp values are within specification — a worn barrier can attenuate the proximitor signal and cause false OK failures. Similarly, inspect terminal blocks and field junction boxes for loose terminations, oxidized contacts, or water ingress, all of which are common root causes of intermittent signal loss that gets misdiagnosed as cable failure.

If the machine is also equipped with a 3300 XL seismic or velocity transducer on the same monitor rack, use the cable replacement outage to inspect those signal cables as well — bundled cable runs age at similar rates. For facilities running System 1 or System 1 Evolution condition monitoring software, confirm that the channel is re-zeroed and the gap voltage is logged after the new cable is installed, so the baseline is updated in the historian.

Procurement engineers building a spare parts kit for a 3300 XL monitoring loop should consider stocking the 330130-085-00-CN alongside a matched probe, a spare proximitor, and a set of connector savers — the connectors on extension cables are the highest-wear consumable in the measurement chain and should be treated as a scheduled replacement item at major overhaul intervals.

Site Replacement Workflow

Step 1 — Permit and isolation: Obtain a work permit and confirm with the control room that the monitoring channel can be bypassed or that the machine is in a safe state. Do not disconnect the cable on a running machine without bypass confirmation from the DCS or safety system operator.

Step 2 — Document the existing installation: Record the current gap voltage (from the proximitor OK terminal or the 3500 monitor display), the cable routing path, and any cable tie or conduit reference points. Photograph connector orientations before disconnection.

Step 3 — Disconnect and inspect: Remove the 330130-085-00-CN from both the probe and the proximitor. Inspect both mating connectors for bent pins, corrosion, or damaged threads. Clean with contact cleaner if required.

Step 4 — Install the replacement cable: Route the new 330130-085-00-CN along the same path, avoiding sharp bends at the connector ends. Torque connectors finger-tight plus one-quarter turn — do not over-torque. Secure cable at the same tie points to prevent vibration-induced fretting.

Step 5 — Verify gap voltage and signal: With the machine at rest (or at operating speed if a running check is permitted), confirm the gap voltage is within the linear range. Check the 3500 monitor for a valid OK status and no active alarms. Log the new gap voltage as the post-maintenance baseline.

Step 6 — Release and document: Clear the bypass, confirm the channel is active in the monitoring system, and update the maintenance record with the part number, installation date, and gap voltage reading. This documentation is critical for warranty claims and future fault isolation.

This workflow applies equally when upgrading from an older 330130 cable variant to the 330130-085-00-CN, ensuring system compatibility is maintained without requiring re-calibration of the full monitoring loop.

Spare Parts Support FAQ

Q1: Is the 330130-085-00-CN compatible with both the 3300 XL and 3500 series monitoring systems?
The 330130-085-00-CN is designed for the 3300 XL proximity transducer system. It is mechanically and electrically compatible with 3500 series monitors when used with the correct probe and proximitor combination, but full loop calibration verification is required after installation. Always confirm the gap voltage and OK status on the 3500 monitor before returning the channel to service.

Q2: What is the recommended spare parts inventory strategy for this cable?
For facilities with 4 or more 3300 XL measurement loops, we recommend stocking a minimum of 2 extension cables per cable length variant in use. Extension cables are the highest-wear consumable in the proximity measurement chain and should be replaced at every major overhaul or at the first sign of intermittent OK failures. Cables stored in original packaging in a climate-controlled environment have a shelf life of 5+ years.

Q3: How is each unit tested before shipment?
Every 330130-085-00-CN unit undergoes pre-shipment inspection covering electrical continuity across the full cable length, impedance verification, and physical inspection of both connectors for pin alignment, thread integrity, and seating. Units that do not pass inspection are not shipped. A test record is available on request for quality-critical applications.

Q4: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects, connector failures, and cable integrity issues under normal installation and operating conditions. It does not cover damage from incorrect installation, over-torqued connectors, chemical exposure, or mechanical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the failure. Replacement units are dispatched within 3 business days of claim approval.
