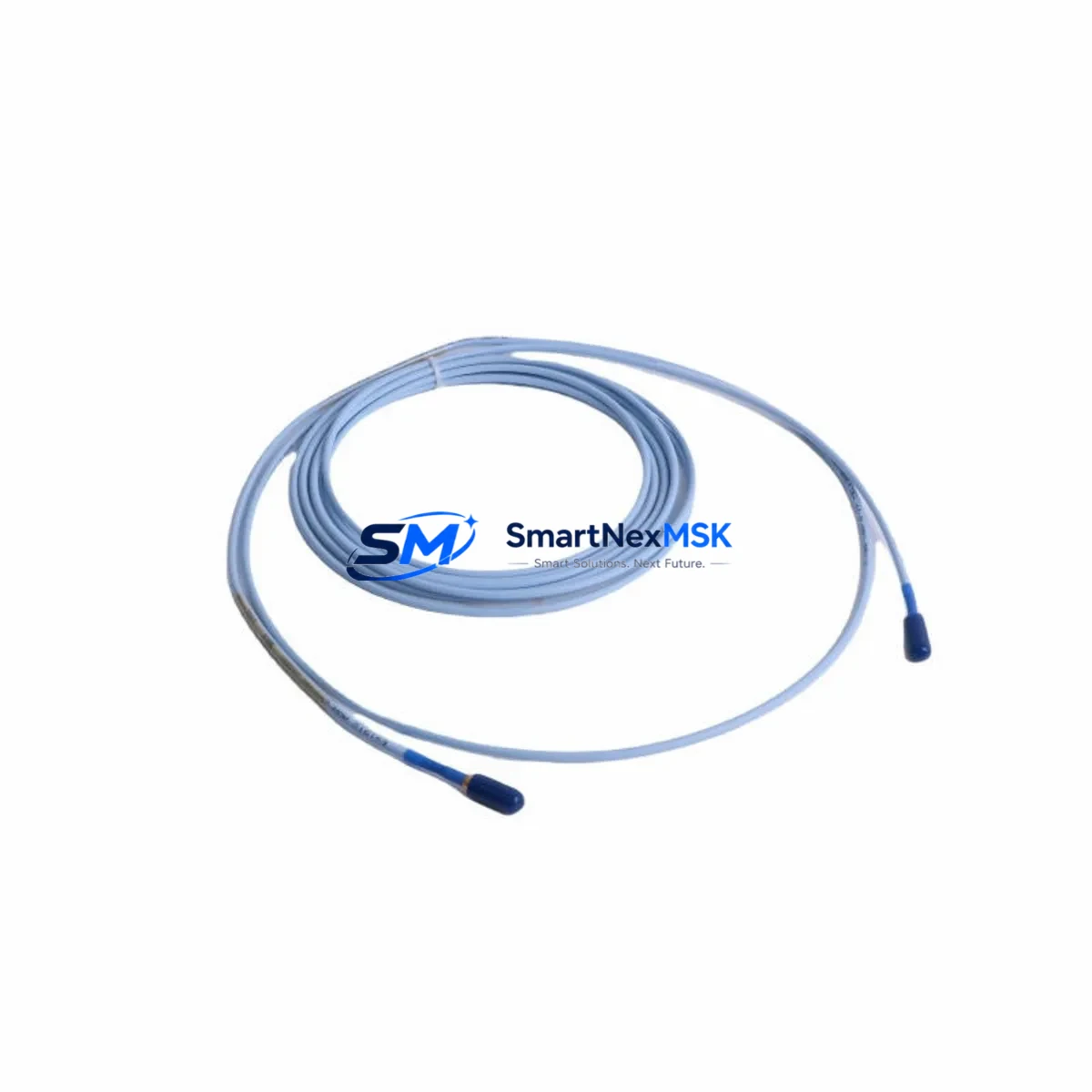

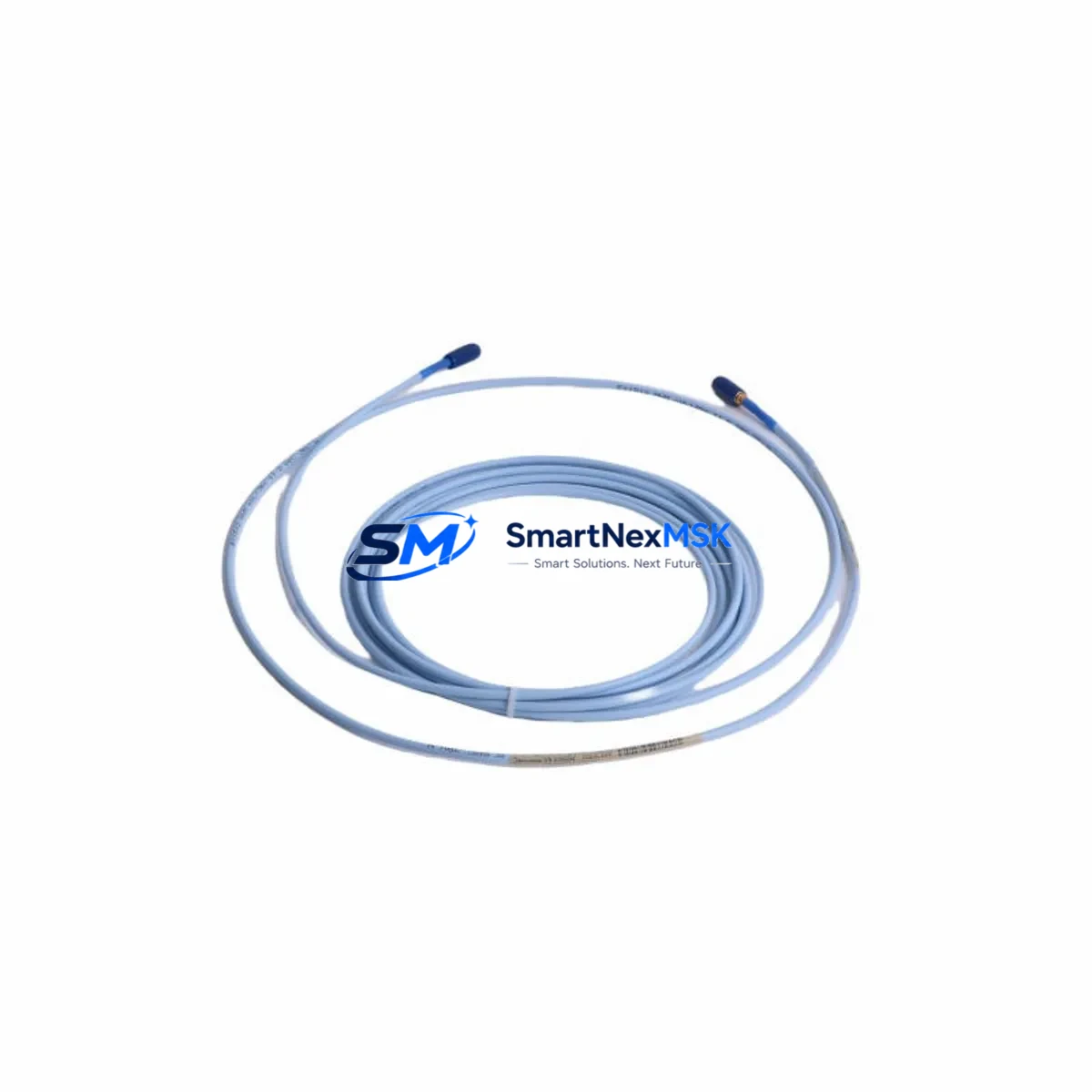

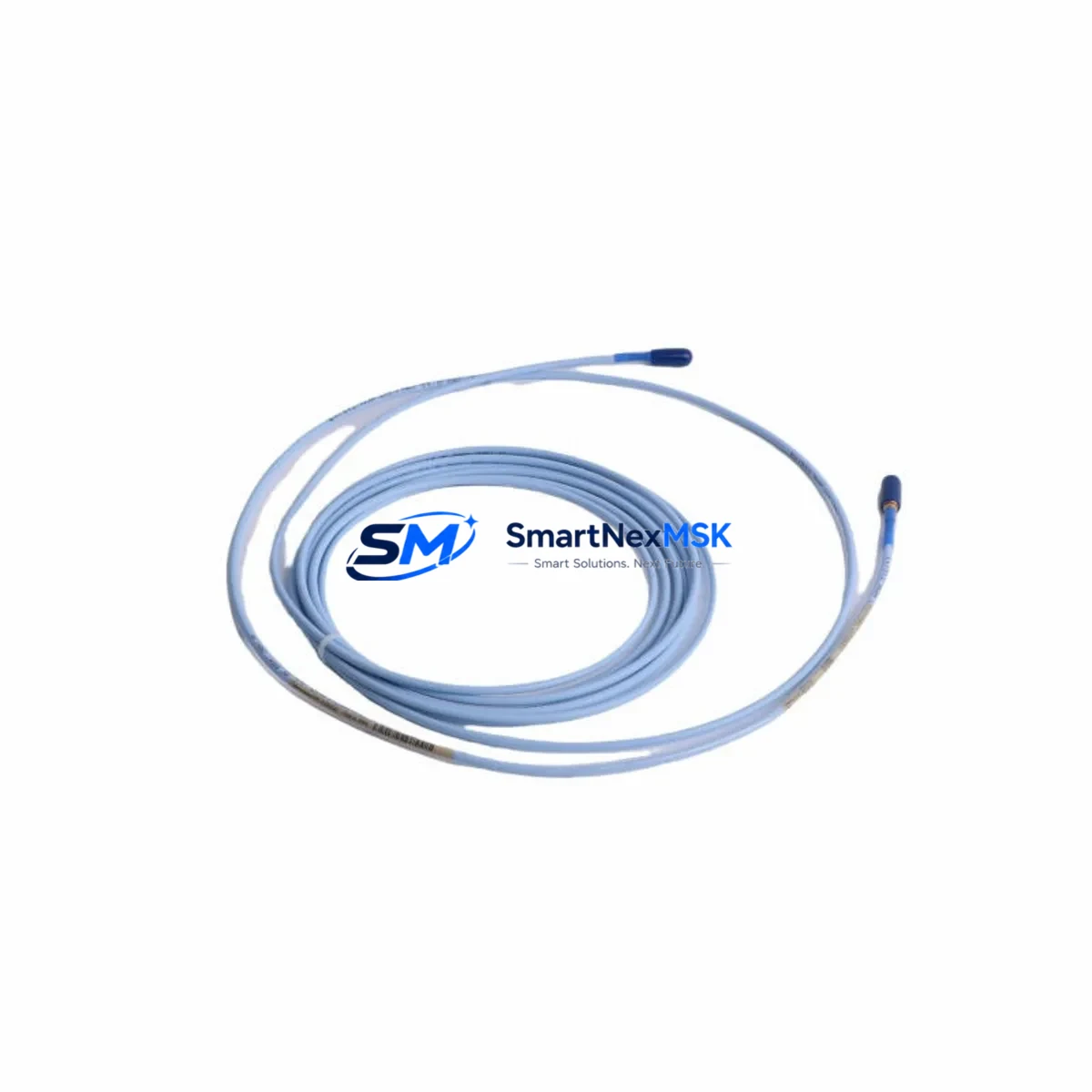

Bently Nevada 330130-085-13-CN Retrofit-Ready Proximity Transducer

Bently Nevada 330130-085-13-CN Retrofit-Ready Proximity Transducer for 3300 XL NSv Control Systems

The Bently Nevada 330130-085-13-CN is an 8mm proximity transducer engineered for seamless integration into legacy 3300 XL NSv vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of existing machinery protection infrastructure while managing capital expenditure, this transducer delivers a verified drop-in replacement path for discontinued or end-of-life sensing components. Whether you are executing a planned control system upgrade, recovering from an unplanned failure, or consolidating spare parts inventory, the 330130-085-13-CN provides the dimensional, electrical, and signal compatibility required to restore full system functionality with minimal engineering intervention.

This transducer is part of the Bently Nevada 3300 XL series ecosystem, which remains one of the most widely deployed machinery protection platforms in rotating equipment applications including steam turbines, gas compressors, centrifugal pumps, and large induction motors. The 330130-085-13-CN ships with a 5-metre integral cable and is designed to interface directly with the 3300 XL NSv signal conditioner without requiring recalibration of the monitoring rack. The output sensitivity, gap voltage range, and frequency response characteristics are factory-verified to match the original OEM specification, ensuring that existing alarm and danger setpoints remain valid after replacement.

When planning a retrofit or emergency replacement, engineers must verify several critical parameters before commissioning the new transducer. Power supply capacity at the 3300 XL rack should be confirmed — the system typically operates on a ±24 VDC bus, and adding or replacing transducers on a shared power rail requires checking the total current draw against the 3300 XL power supply module rating. Terminal wiring at the junction box must be inspected for correct polarity and shield grounding, as improper grounding is a leading cause of noise-induced false trips during commissioning. The transducer mounting thread (M10 × 1.0) and probe tip gap — nominally set between 1.0 mm and 2.5 mm — must be re-established using a calibrated gap tool referenced to the driver output voltage curve.

For facilities running the Bently Nevada 3500 series as a parallel or upgraded monitoring platform, the 330130-085-13-CN can also serve as a bridging component during phased migration. In such scenarios, the transducer output is compatible with 3500/42M and 3500/40M proximity monitor cards when the correct scale factor is selected in the rack configuration software. This eliminates the need to replace the entire sensor chain during an incremental platform upgrade, reducing both cost and downtime exposure.

Backplane and rack compatibility should be confirmed when the transducer is being installed into a mixed-generation monitoring cabinet. The 3300 XL NSv monitor occupies a standard 3300 series rack slot and communicates over the internal rack bus; no additional communication modules are required for basic vibration and position monitoring. However, if the facility is migrating to a networked condition monitoring architecture using System 1 software, the rack must include a compatible TDI (Transient Data Interface) module to enable waveform capture and spectrum analysis. Confirming the TDI firmware version before replacement ensures that newly installed transducers are recognized correctly by the data acquisition layer.

HMI screen updates are frequently overlooked during transducer replacement projects. If the facility uses a DCS-integrated or standalone HMI displaying real-time vibration trends, the engineering team should verify that tag names, engineering unit scaling, and alarm threshold displays remain consistent after the replacement. In systems where the 3300 XL NSv outputs a 4–20 mA retransmission signal to a DCS I/O card, the loop calibration should be re-verified to confirm that the full-scale output corresponds to the correct vibration amplitude in the DCS historian.

All units are subject to pre-shipment functional testing including output linearity verification, insulation resistance check, and cable continuity confirmation. Each 330130-085-13-CN is supplied with a test report and is covered by a 12-month warranty against manufacturing defects. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and emergency breakdown recovery scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill-of-materials audit of the existing monitoring cabinet. For a typical 3300 XL NSv installation, this includes the 3300 XL NSv monitor module, the 3300 XL power supply, one or more 3300 XL relay modules for alarm output, and the 3300 XL rack itself. The 330130-085-13-CN transducer connects to the monitor via a 3300 XL extension cable — commonly the 330130 series armoured extension — which should be inspected for jacket integrity and connector pin condition before reuse.

In installations where the original transducer was paired with a 330180 series driver or a 330100 series proximitor, the replacement path using the 330130-085-13-CN is straightforward provided the driver remains serviceable. If the driver is also being replaced, the complete probe-driver-extension assembly must be re-gapped and the output voltage curve verified against the monitor’s input range. Facilities that have already migrated part of their monitoring infrastructure to the Bently Nevada 3500/42M proximity monitor will find that the 330130-085-13-CN integrates without hardware modification, requiring only a software scale factor adjustment in the rack configuration utility.

For control cabinets that include a Bently Nevada 3500/20 rack interface module for Modbus or Ethernet/IP communication to a plant DCS or SCADA system, the transducer replacement does not affect the communication link. However, the I/O mapping in the DCS should be reviewed to confirm that the vibration channel tag remains correctly associated with the physical rack slot after any rack reconfiguration. If the facility uses a Rockwell Automation ControlLogix or Siemens S7-300/S7-400 PLC as the primary safety interlock controller, the vibration trip signal wired from the 3300 XL relay module to the PLC digital input card should be tested end-to-end after replacement to confirm relay output continuity and PLC input recognition.

Where I/O expansion is part of the upgrade scope, additional 3300 XL NSv monitor modules can be added to the existing rack to cover additional measurement points — axial position, differential expansion, or eccentricity — without requiring a new rack or power supply, provided the existing power supply capacity is sufficient. This modular expansion capability is a key advantage of the 3300 XL platform for phased retrofit projects.

Downtime Control During System Migration

Minimising unplanned downtime during a transducer replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330130-085-13-CN should be bench-tested using a portable driver/monitor simulator to confirm output linearity and cable integrity. The existing monitor’s current alarm and danger setpoints, OK relay status, and any active inhibit states should be documented from the 3300 XL NSv front panel or from the System 1 configuration database.

During the outage, the sequence should follow: inhibit the affected channel at the monitor to prevent spurious trips during disconnection, remove the failed transducer, install the 330130-085-13-CN and set the probe gap to the specified nominal value, reconnect the extension cable and verify shield grounding at the junction box, then restore the channel inhibit and confirm the OK LED status at the monitor. If the monitor is integrated with a DCS alarm management system, the channel should be placed in maintenance mode in the DCS before the inhibit is removed to prevent nuisance alarms from propagating to the control room during the gap-setting procedure.

For facilities with redundant transducer configurations — where two probes monitor the same shaft at 90° — the replacement can often be performed on one channel while the second channel remains active, maintaining continuous shaft vibration monitoring throughout the maintenance window. This approach preserves the protective function of the monitoring system and eliminates the need for a full machinery shutdown in many cases, provided the single-channel monitoring mode is accepted by the facility’s safety management system.

Post-replacement, a 30-minute observation period at normal operating speed is recommended to confirm stable gap voltage, absence of electrical noise on the vibration waveform, and correct alarm threshold behaviour before returning the channel to fully automatic protection mode.

Retrofit Support FAQ

Q1: Is the 330130-085-13-CN a direct drop-in replacement for the original Bently Nevada 330130-085-13-CN, and will existing alarm setpoints remain valid?
Yes. The 330130-085-13-CN is manufactured to the original OEM specification. Output sensitivity (7.87 V/mm), gap voltage range, and frequency response are identical to the original part. Existing alarm and danger setpoints configured in the 3300 XL NSv monitor do not require adjustment after replacement, provided the probe gap is correctly re-established at the nominal value.

Q2: What wiring checks are required before commissioning the replacement transducer?
Verify terminal polarity at the junction box (signal, return, and shield), confirm that the cable shield is grounded at one end only (typically at the monitor end), and check that the extension cable connector pins are clean and fully seated. Measure the supply voltage at the transducer connector to confirm −24 VDC ± 1 V before applying power. Incorrect shield grounding is the most common cause of high-frequency noise on the vibration signal after replacement.

Q3: Can this transducer be used with the Bently Nevada 3500 series monitoring platform?
Yes, with configuration. The 330130-085-13-CN is compatible with 3500/42M and 3500/40M proximity monitor cards. The scale factor in the rack configuration software must be set to 200 mV/mil (7.87 V/mm) to match the transducer’s output sensitivity. No hardware modification is required. This makes the 330130-085-13-CN suitable for facilities running mixed 3300 XL and 3500 series racks during a phased platform migration.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Each unit undergoes pre-shipment functional testing including output linearity verification across the full gap range, insulation resistance measurement (≥100 MΩ at 500 VDC), and cable continuity and shield integrity confirmation. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, improper gap setting, or operation outside the specified supply voltage range. A test report is included with each shipment.
