Bently Nevada 330171-00-12-05-02-CN 3300 XL Spare

Bently Nevada 330171-00-12-05-02-CN 3300 XL Maintenance-Ready Spare

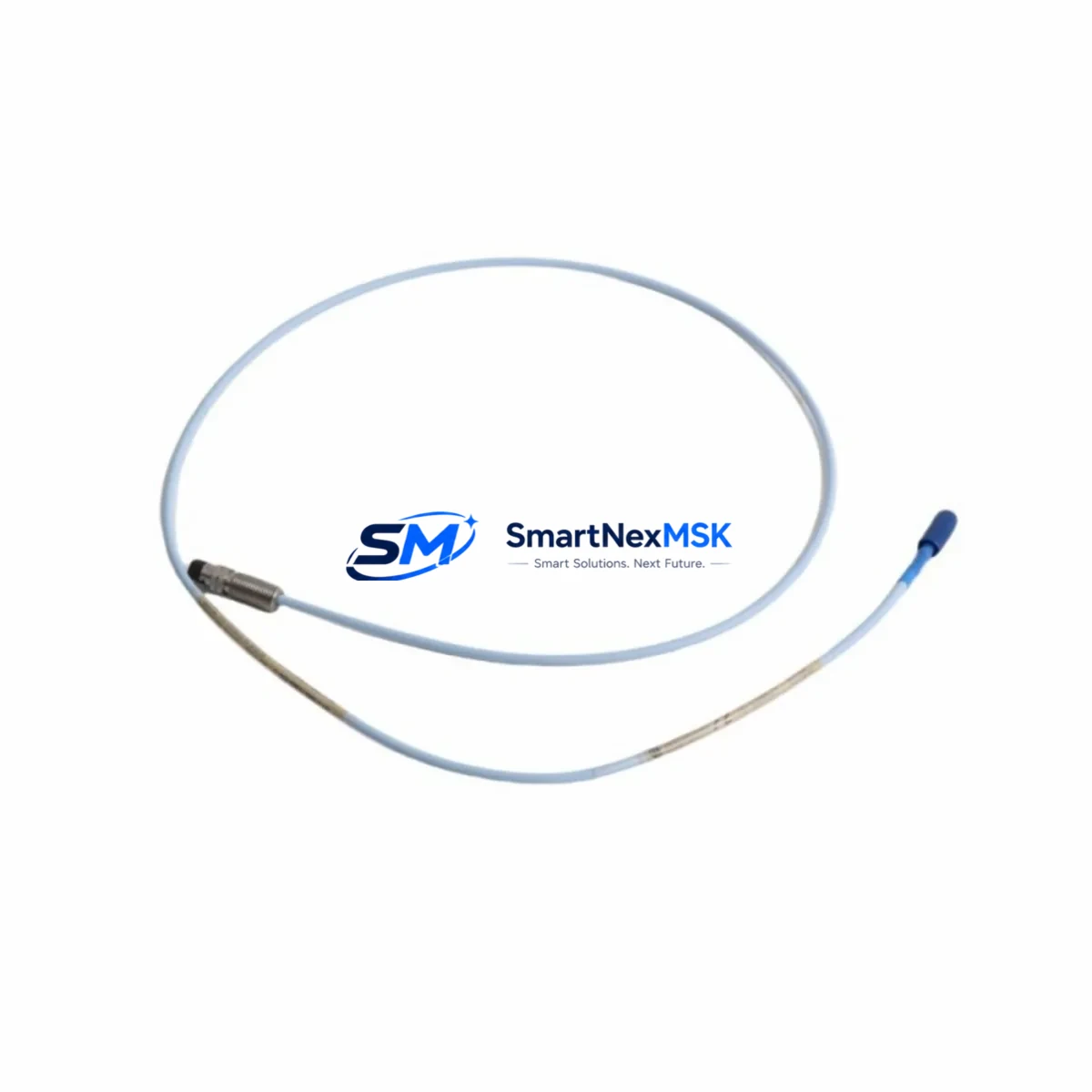

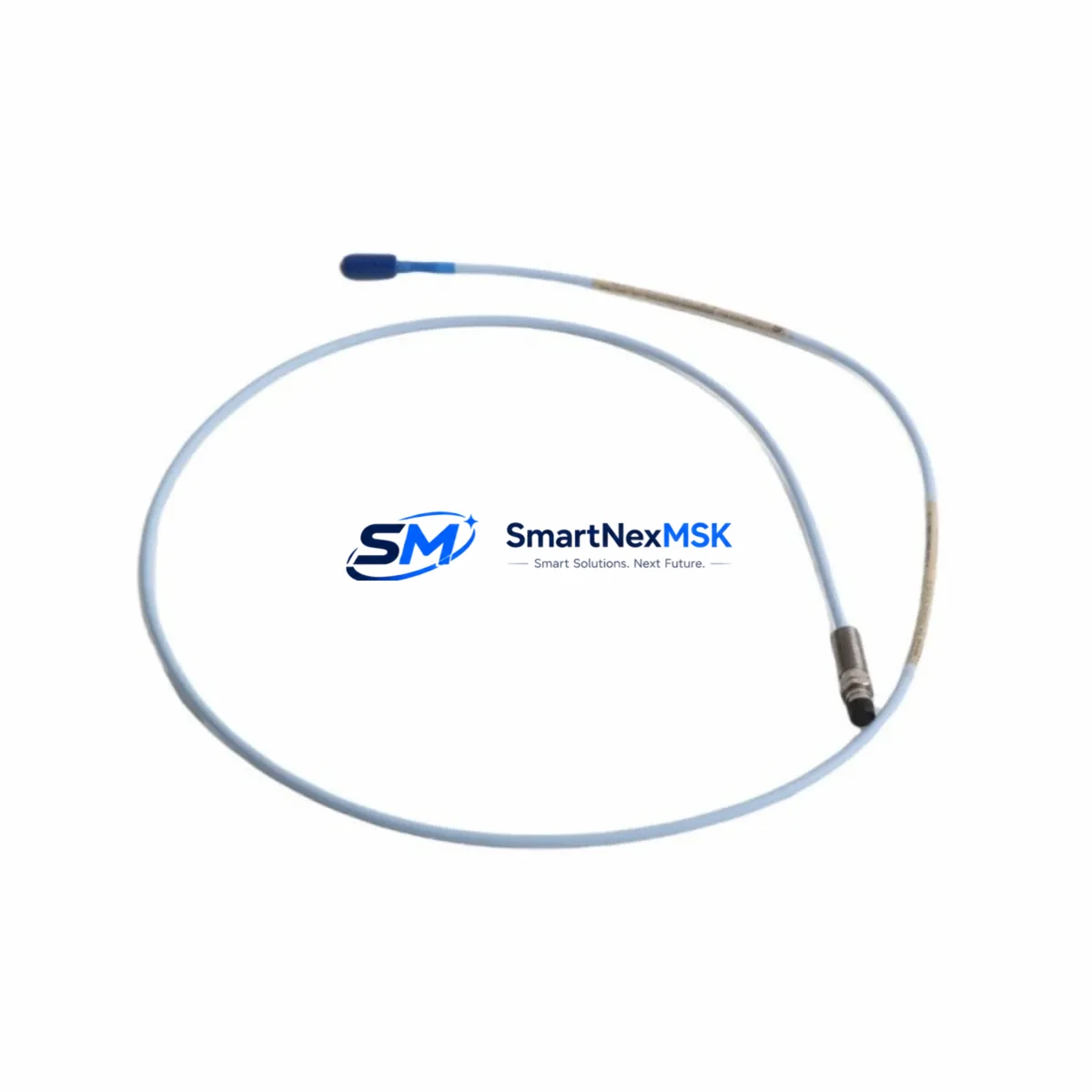

The Bently Nevada 330171-00-12-05-02-CN is an original 8mm Proximitor® Sensor from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications including turbines, compressors, pumps, and motors. As a maintenance-ready spare, this unit is verified against OEM specifications, individually tested prior to shipment, and backed by a 12-month warranty — making it a reliable choice for both planned maintenance programs and emergency downtime recovery.

For maintenance engineers managing critical rotating assets, the 330171-00-12-05-02-CN represents a direct, drop-in replacement for aging or failed Proximitor sensors in existing 3300 XL monitoring systems. Its standardized 8mm tip diameter, 5-metre integral cable, and -18 VDC supply compatibility ensure seamless integration without system reconfiguration. Procurement engineers can source this unit with confidence: each shipment includes a test report, and long-term supply continuity is supported through our established inventory program.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330171-00-12-05-02-CN in the field, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure measurement accuracy. Begin by checking the 3300 XL Extension Cable (typically the 330130 series) for insulation damage, connector corrosion, or impedance drift — a degraded cable is a common root cause of sensor faults that goes undetected until the next shutdown.

Inspect the 3300 XL Monitor (such as the 3300/16 or 3300/20 rack-mount unit) for alarm setpoint integrity and channel calibration. If the monitor has been in service for more than five years, consider scheduling a calibration verification alongside the sensor swap. The 3300 XL Power Supply should also be checked: confirm the -18 VDC rail is within tolerance, as supply voltage deviation directly affects sensor output linearity.

For systems integrated into a 3500 Series Machinery Protection System, verify that the transducer interface module (TIM) is correctly configured for 8mm probe characteristics. If the installation uses a Bently Nevada 3500/42M or 3500/40M monitor module, confirm channel pairing and gap voltage settings match the replacement sensor’s calibration data.

During cabinet inspection, also evaluate the condition of terminal blocks and field wiring in the junction box. Loose terminations or moisture ingress at the probe connector are frequent contributors to intermittent vibration signal faults. Where signal integrity is critical, consider installing a signal isolator or conditioner on the output loop to protect the monitor input from ground loops or EMI from adjacent VFD-driven equipment.

For facilities running legacy 3300 Series (non-XL) systems, the 330171-00-12-05-02-CN may serve as a functional upgrade path — consult the system compatibility matrix and verify gap voltage and sensitivity alignment before commissioning. Maintaining a minimum of two spare Proximitor sensors per critical machine train is recommended practice for ISO 55000-aligned asset management programs.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement unit’s part number, cable length, and sensitivity match the installed sensor. Cross-reference the machine’s vibration monitoring datasheet or the original commissioning report.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. Disconnect the extension cable at the junction box before removing the probe from its bracket. Avoid rotating the probe body while the machine is live to prevent tip damage.

Step 3 — Physical installation: Thread the replacement 330171-00-12-05-02-CN into the bracket to the correct gap distance (typically 1.0–1.27 mm / 40–50 mil for most shaft applications). Use a non-conductive gap-setting tool and verify with a DC voltmeter at the monitor input — target gap voltage should be approximately -10 VDC ± 0.5 V.

Step 4 — System verification: Restore power and confirm the monitor channel reads within the expected gap voltage range. Check for alarm inhibit status and clear any latched alerts. Run a brief coast-down or bump test if operationally feasible to verify dynamic response.

Step 5 — Documentation: Record the replacement date, gap voltage as-found and as-left, and the new unit’s serial number in the CMMS. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for critical assets.

This workflow minimizes unplanned downtime, preserves system calibration integrity, and supports audit-ready maintenance records — key requirements for facilities operating under API 670 or IEC 61511 standards.

Spare Parts Support FAQ

Q1: Is the 330171-00-12-05-02-CN compatible with both 3300 XL and 3500 Series monitors?
The 330171-00-12-05-02-CN is natively designed for the 3300 XL monitoring system. Compatibility with the 3500 Series depends on the specific monitor module and transducer interface configuration. In many installations, the 8mm probe can be used with 3500 Series monitors when the channel is configured for the correct sensitivity (7.87 V/mm) and gap voltage range. Always verify against the monitor’s configuration documentation before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 330171-00-12-05-02-CN shipped from our inventory undergoes functional verification including output voltage linearity check, cable continuity test, and connector integrity inspection. A test report is available upon request. Units that do not meet OEM specification thresholds are not dispatched.

Q3: How should I manage spare inventory for this sensor in a multi-machine facility?
For facilities with three or more machines monitored by 3300 XL or 3500 Series systems, we recommend maintaining a minimum of two 330171-00-12-05-02-CN units on-site. Given typical lead times for OEM procurement, holding a local buffer stock significantly reduces MTTR (Mean Time to Repair) for vibration-related shutdowns. Our long-term supply program supports scheduled replenishment orders.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, calibration failures, and functional non-conformance under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified temperature and environmental range. Warranty claims are processed with return shipment support and priority replacement dispatch.
