Bently Nevada 330180-10-05 Spare for 3300 XL: Precision Replacement for Industrial Uptime

The Bently Nevada 330180-10-05 is an original eddy-current proximity sensor engineered for the 3300 XL Series vibration monitoring system. Designed for continuous shaft displacement and radial vibration measurement in rotating machinery, this sensor is a critical component in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, and petrochemical facilities. Maintaining a verified spare of the 330180-10-05 in your parts inventory is a fundamental strategy for minimizing unplanned downtime and protecting high-value rotating assets.

For maintenance engineers managing aging 3300 XL installations, the 330180-10-05 represents a direct, drop-in replacement that preserves system calibration and signal integrity without requiring reconfiguration of the monitoring rack. Procurement engineers can rely on our tested, serialized stock with full 12-month warranty coverage and documented pre-shipment inspection records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330180-10-05 proximity sensor is flagged during routine vibration signature analysis or a scheduled outage inspection, the replacement workflow should extend beyond the sensor itself. A complete maintenance review of the associated signal chain is essential to prevent repeat failures and ensure measurement accuracy after reinstallation.

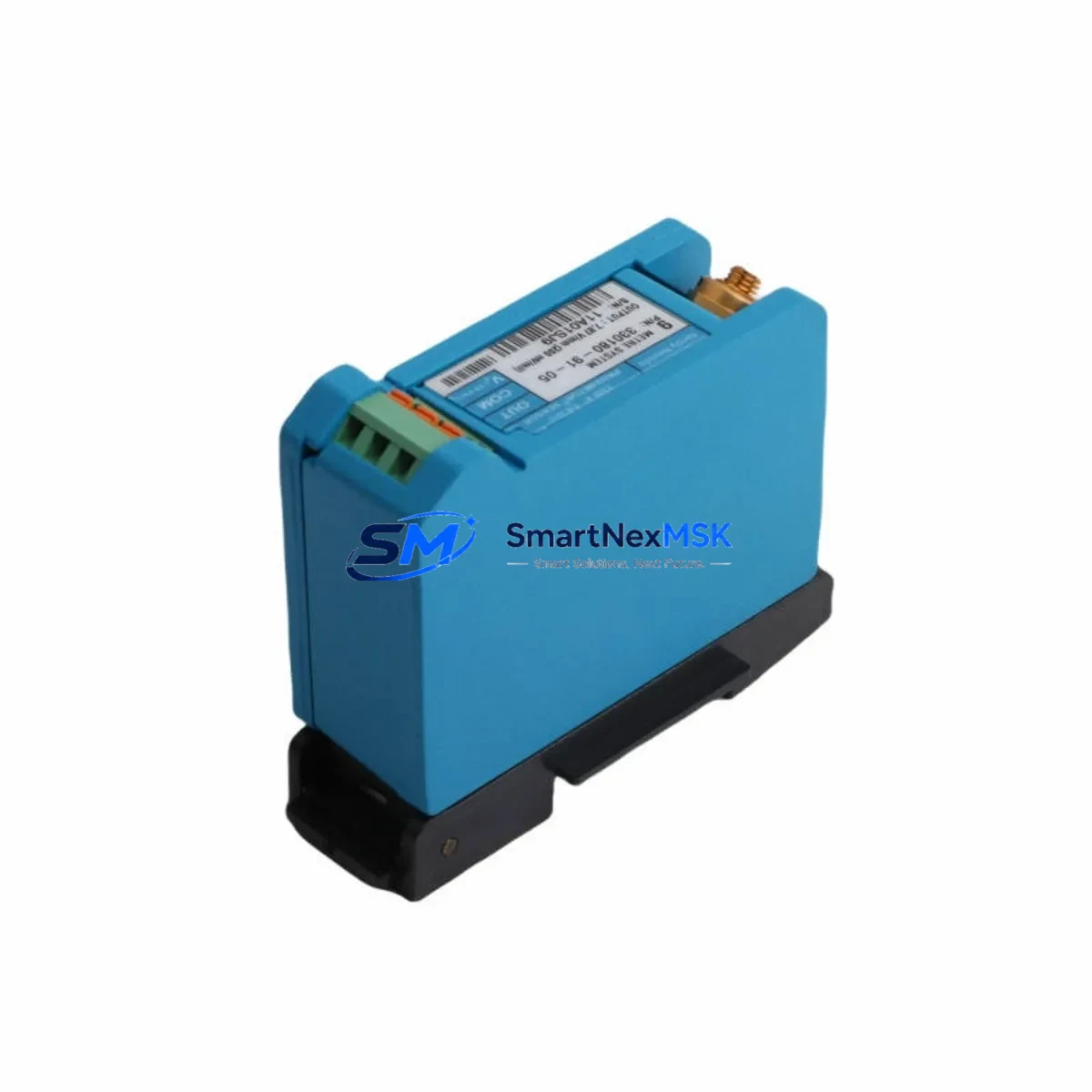

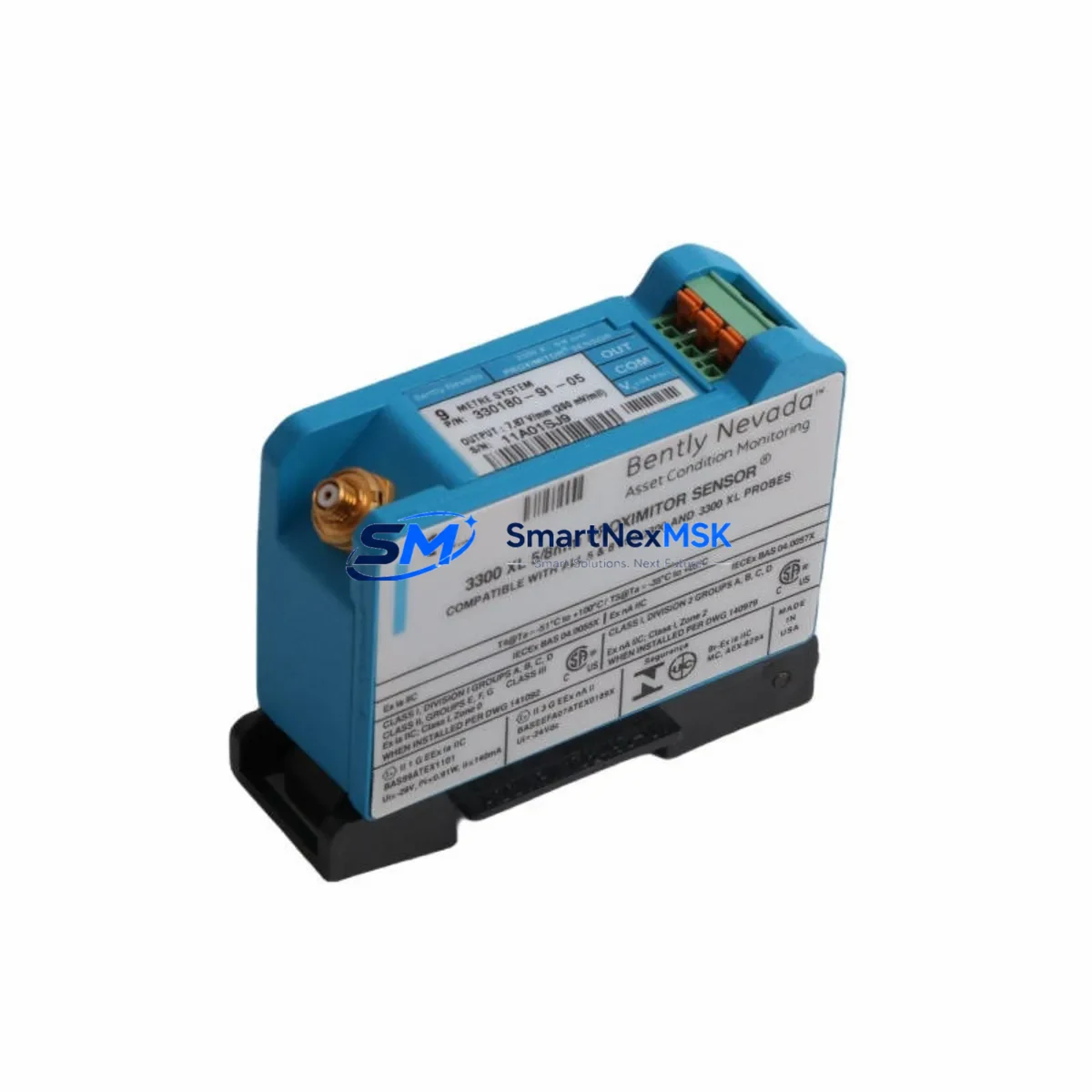

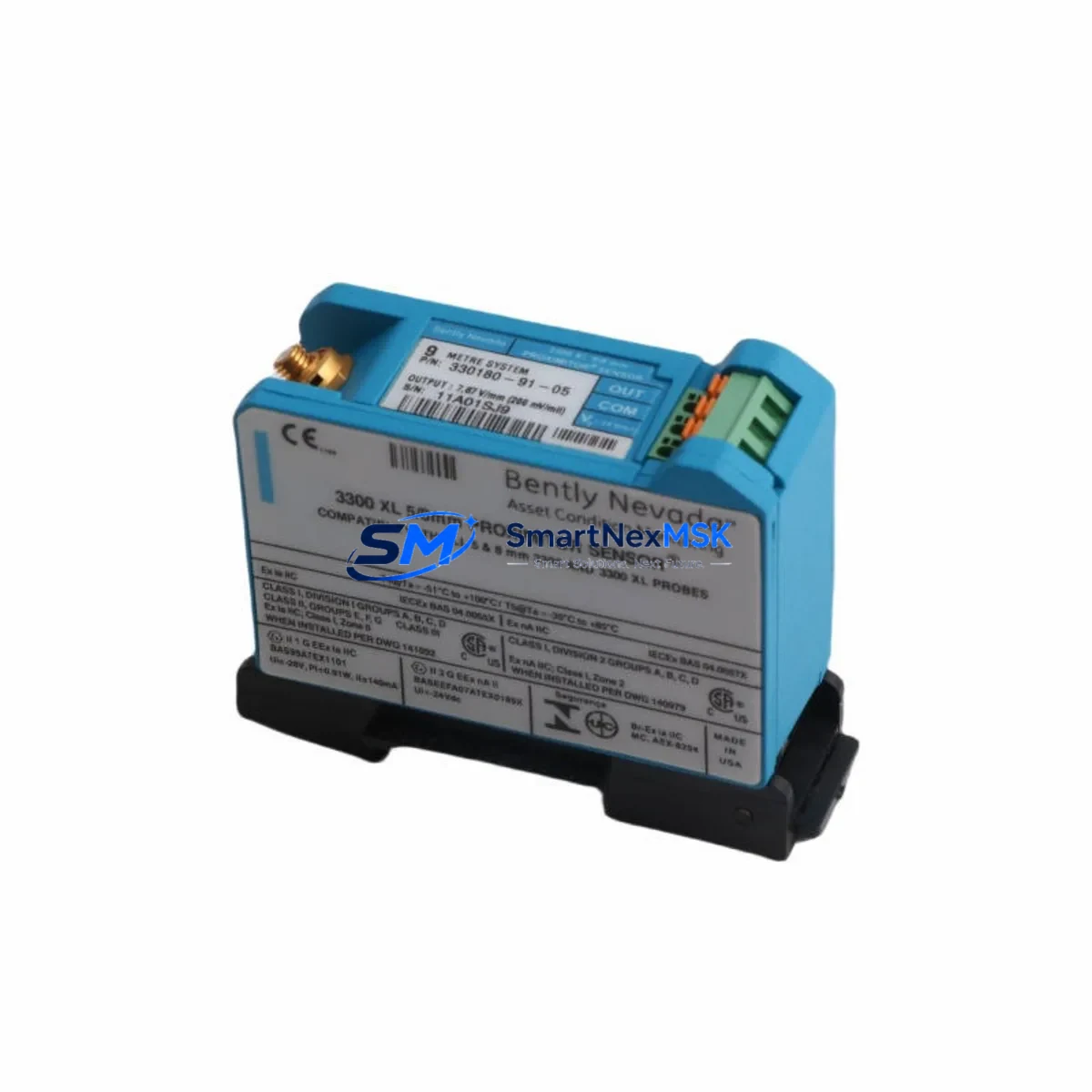

Begin by inspecting the 330130-080-01-00 extension cable that connects the probe to the Proximitor. Cable jacket abrasion, connector corrosion, or impedance drift are common causes of false alarms that are misattributed to the sensor. Simultaneously, verify the condition of the 330180-51-05 Proximitor/Seismic Monitor — the driver electronics that power the probe and convert gap voltage to a usable signal. A degraded Proximitor can mask a healthy sensor or damage a new replacement.

At the terminal block level, inspect the 3300 XL I/O module and associated wiring for loose terminations, moisture ingress, or insulation breakdown. If the machine is part of a larger DCS or safety instrumented system, cross-check the 3500 Monitoring System rack for any latched alerts or configuration drift that may have been triggered by the sensor fault. The 3500/20 Power Supply module should be verified for stable -24 VDC output, as voltage sag is a known cause of proximity sensor erratic behavior.

For facilities running legacy installations, consider stocking the 330105-02-12-10-02-00 proximity probe as a complementary spare alongside the 330180-10-05, particularly where both 5mm and 8mm tip configurations are deployed across the same machinery train. Signal isolators and barriers in the intrinsically safe circuit — such as those used in Zone 1 hazardous area installations — should also be tested for drift during any planned outage. HMI display modules connected to the 3500 rack should be checked for alarm setpoint integrity after any sensor swap to confirm that trip thresholds remain correctly configured.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 330180-10-05 matches the installed tip diameter (8 mm), cable length (1.0 m), and connector type. Cross-reference the system’s calibration record to verify the expected gap voltage at the nominal operating clearance.

Step 2 — Safe Isolation: Follow site LOTO procedures. De-energize the Proximitor channel at the 3500 rack or local junction box. Do not disconnect the extension cable under live conditions.

Step 3 — Sensor Removal and Inspection: Remove the 330180-10-05 from the bearing housing bracket. Inspect the probe tip for mechanical damage, contamination, or thread wear. Inspect the mounting bracket and locknut for corrosion or deformation.

Step 4 — Installation: Install the replacement sensor to the manufacturer’s specified gap (typically 1.0 – 1.5 mm from the shaft surface for 8 mm probes). Torque the locknut to specification. Reconnect the extension cable and verify connector seating.

Step 5 — Functional Verification: Re-energize the Proximitor channel. Measure the DC gap voltage at the monitor input — it should fall within the linear range (nominally -10 VDC at 1.0 mm gap). Confirm the 3500 rack clears all latched alerts and that vibration readings are stable and within baseline.

Step 6 — Documentation: Record the replacement date, new sensor serial number, measured gap voltage, and technician sign-off in the equipment maintenance log. Update the spare parts inventory to trigger reorder of the consumed 330180-10-05 unit.

Spare Parts Support FAQ

Q: Is the 330180-10-05 compatible with both the 3300 XL and 3500 Series monitoring systems?
A: Yes. The 330180-10-05 is designed for the 3300 XL Series and is also compatible with 3500/40M and 3500/42M monitor modules when used with the appropriate Proximitor and extension cable. Always verify the system’s calibration documentation before installation.

Q: What pre-shipment testing is performed on each unit?
A: Every 330180-10-05 unit undergoes electrical continuity verification, coil impedance measurement, and gap voltage linearity testing prior to shipment. A test report is available upon request. Units are individually serialized and packaged to prevent transit damage.

Q: How should I manage 330180-10-05 inventory for a multi-machine facility?
A: For facilities with 4 or more monitored machine trains using 8 mm proximity probes, we recommend maintaining a minimum of 2 spare units on-site. For critical assets such as main steam turbines or high-pressure compressors, a dedicated hot-spare strategy with quarterly inspection of stored units is advisable.

Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects, coil failure, connector integrity, and calibration accuracy under normal operating conditions. It does not cover mechanical damage from improper installation, chemical contamination, or operation outside the specified temperature and voltage range. Warranty claims are processed within 5 business days of receipt of the returned unit.
