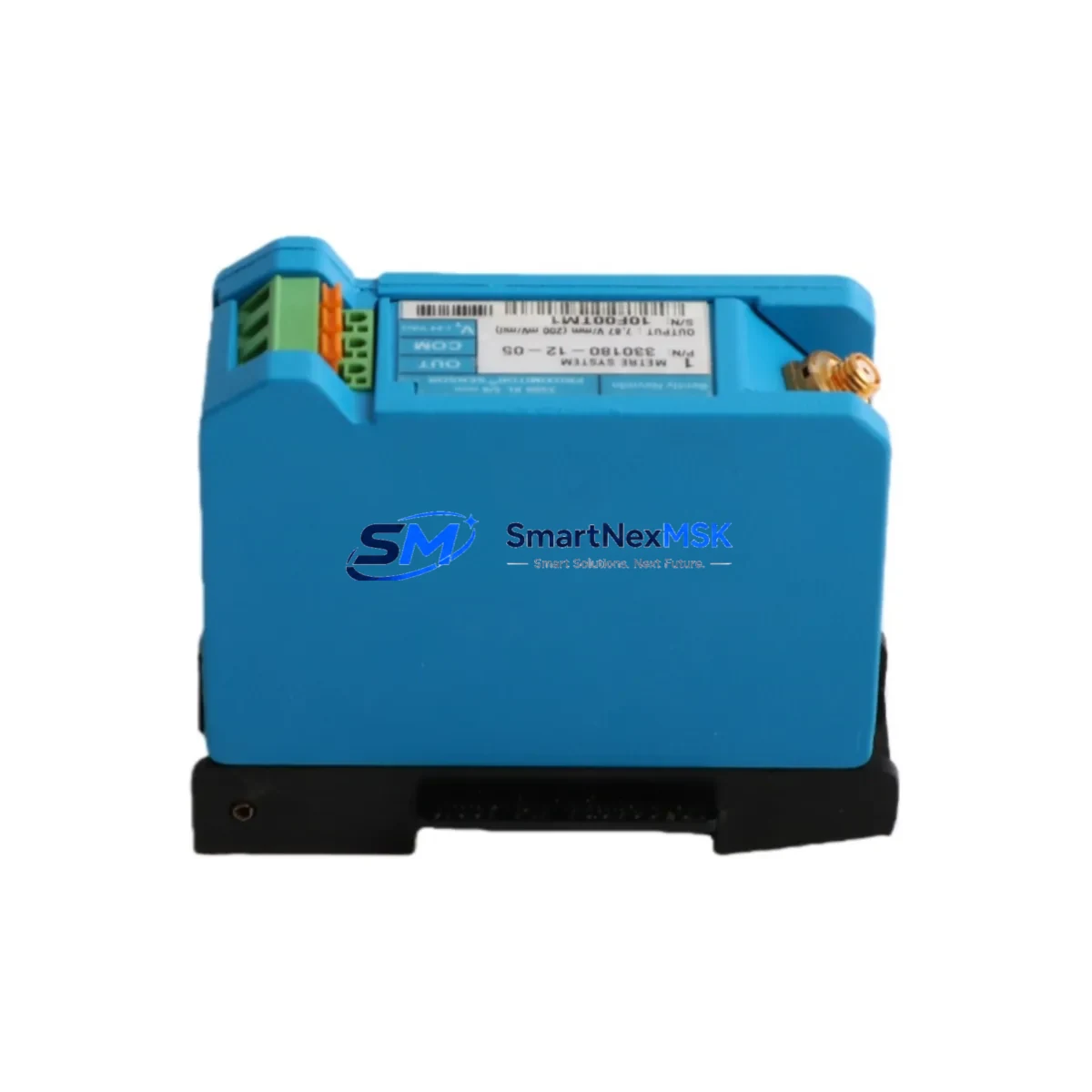

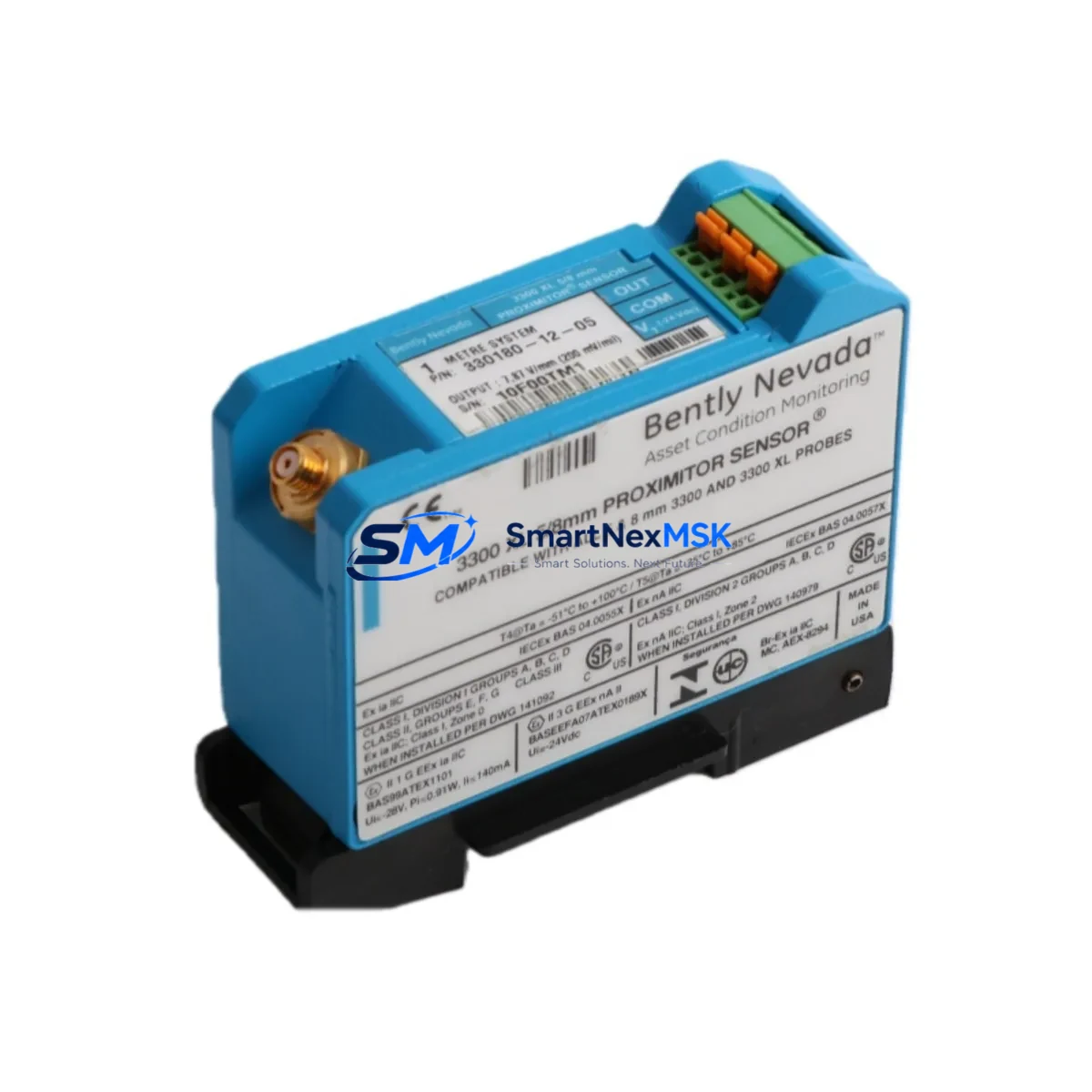

Bently Nevada 330180-12-BR Retrofit-Ready Proximitor Sensor for 3300 XL Control Systems
The Bently Nevada 330180-12-BR is an 8mm eddy-current Proximitor Sensor designed for seamless integration into Bently Nevada 3300 XL vibration monitoring systems. As legacy 3300 Series installations reach end-of-service milestones, the 330180-12-BR has become a critical retrofit component for engineers tasked with modernizing rotating machinery protection systems — including steam turbines, compressors, pumps, and gearboxes — without replacing the entire monitoring rack.
SMARTNEXMSK maintains verified in-stock inventory of the 330180-12-BR, sourced through authorized industrial supply channels, with each unit subject to pre-shipment functional testing and covered by a 12-month warranty. Fast global dispatch is available from our warehouse, with typical lead times of 3–7 business days for international orders.
Upgrade Compatibility Table
| Parameter | 330180-12-BR Specification | Retrofit Notes |
|---|---|---|
| Sensor Type | 8mm Eddy-Current Proximitor | Direct replacement for 330180-12-00 and 330180-12-CN variants |
| Output Signal | –24 VDC bias, 200 mV/mil sensitivity | Compatible with 3300 XL monitor inputs; verify cable length suffix |
| Power Supply | –24 VDC (from monitor or external) | Confirm rack PSU capacity before installation; 3300 XL PSU modules rated at 5A |
| Connector / Termination | Integral cable, MIL-spec connector | Match existing conduit routing; extension cable 330130-080-00-00 may be required |
| Mounting | M8 threaded body, 25mm thread length | No bracket modification required for standard 3300 XL probe holders |
| Communication | Analog (4–20 mA / voltage) | No protocol migration needed; signal feeds directly into 3300 XL monitor card |
| Replacement Compatibility | 3300 XL, 3300/16, 3300/20 monitors | Verify monitor firmware version ≥ 3.x for full diagnostic support |
| Commissioning Requirement | Gap voltage calibration (–10 to –18 VDC) | Use Bently Nevada calibration tool or equivalent oscilloscope procedure |
| Warranty | 12 months from date of shipment — covers manufacturing defects and functional failure under normal operating conditions | |
Retrofit Planning for Existing Automation Systems
Replacing the 330180-12-BR in an operating plant requires careful coordination across multiple system layers. The sensor interfaces directly with the Bently Nevada 3300 XL Monitor (typically a 3300/16 or 3300/20 card), which in turn feeds vibration data to the plant DCS or safety system via a 3300 XL I/O Module. Before pulling the old sensor, engineers should document the existing gap voltage reading — typically between –10 VDC and –18 VDC — as this baseline is essential for post-installation calibration verification.
In many retrofit scenarios, the 330130-080-00-00 extension cable must also be inspected or replaced alongside the Proximitor, particularly in high-temperature or high-vibration environments where cable insulation degrades over time. The 3300 XL Rack (19-inch or 3U format) should be checked for available slot capacity if additional I/O channels are being added as part of a broader upgrade. If the plant is simultaneously migrating from a legacy Bently Nevada 3500 Series rack to the 3300 XL platform, note that the two systems use different monitor card form factors and are not backplane-compatible — a full rack swap is required.
For installations where the vibration data feeds into a Rockwell Automation ControlLogix or Siemens S7-300/S7-400 PLC via a 4–20 mA analog input card, no signal conditioning changes are needed when swapping the 330180-12-BR on a like-for-like basis. However, if the upgrade involves adding a Bently Nevada 3300 XL Keyphasor Module for phase-referenced vibration analysis, the PLC program logic and HMI tag mapping must be updated to accommodate the new channel assignments. HMI screens built on Wonderware InTouch or FactoryTalk View SE should be reviewed to confirm that trend displays and alarm setpoints reference the correct I/O addresses after any rack reconfiguration.
Where the plant uses a Bently Nevada TDXnet or System 1 condition monitoring platform, the 330180-12-BR replacement is transparent to the software layer — System 1 reads vibration data from the monitor card, not directly from the sensor. No database reconfiguration is required unless the channel number or rack slot assignment changes during the retrofit.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any rotating machinery protection retrofit. When replacing the 330180-12-BR on a live machine train, the recommended approach is to schedule the swap during a planned maintenance window and use a bypass jumper on the 3300 XL monitor card to suppress the vibration alarm channel during the changeover period — typically 15 to 30 minutes for an experienced technician.
Before removing the old sensor, export the current monitor configuration using the Bently Nevada System 1 Configuration Manager or the monitor’s front-panel interface. This preserves alarm setpoints, danger thresholds, and OK relay logic, which can be reloaded immediately after the new 330180-12-BR is installed and gap-calibrated. If the monitor card itself is also being replaced as part of the upgrade — for example, swapping a legacy 3300/16 Dual Vibration Monitor for a newer 3300/20 Dual Vibration Monitor — the configuration export becomes even more critical, as card-level settings are not automatically transferred between hardware revisions.
For critical machinery where continuous protection is mandatory, a hot-standby bypass relay panel can be used to route the vibration signal through a temporary analog path while the primary sensor is being replaced. This approach is common in refineries and power generation facilities where trip system bypass requires a formal Management of Change (MOC) procedure. SMARTNEXMSK can provide pre-shipment functional test reports for the 330180-12-BR upon request, supporting your MOC documentation package.
Retrofit Support FAQ
Q1: Is the 330180-12-BR a direct drop-in replacement for the 330180-12-00?
A: Yes. The -BR suffix denotes a Brazilian market variant with identical electrical and mechanical specifications to the -00 standard version. Both units share the same 8mm probe body, –24 VDC supply requirement, 200 mV/mil sensitivity, and MIL-spec connector. No wiring or bracket modifications are required for a like-for-like swap.
Q2: What gap voltage should I set after installing the 330180-12-BR?
A: The standard gap voltage for an 8mm Bently Nevada Proximitor at the nominal air gap (1.0 mm / 40 mil) is approximately –10.0 VDC to –10.5 VDC. Adjust the probe position until the gap voltage falls within the linear range specified on the 3300 XL monitor card datasheet, typically –10 VDC to –18 VDC. Always verify against the original installation record for your specific machine.
Q3: Does SMARTNEXMSK test units before shipment?
A: Yes. Every 330180-12-BR unit is functionally tested prior to dispatch, verifying output linearity, bias voltage, and connector integrity. A test report is available upon request and can be included with the shipment documentation to support your incoming inspection and MOC records.
Q4: What warranty coverage is provided?
A: All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed within 5 business days of receiving the returned unit.
