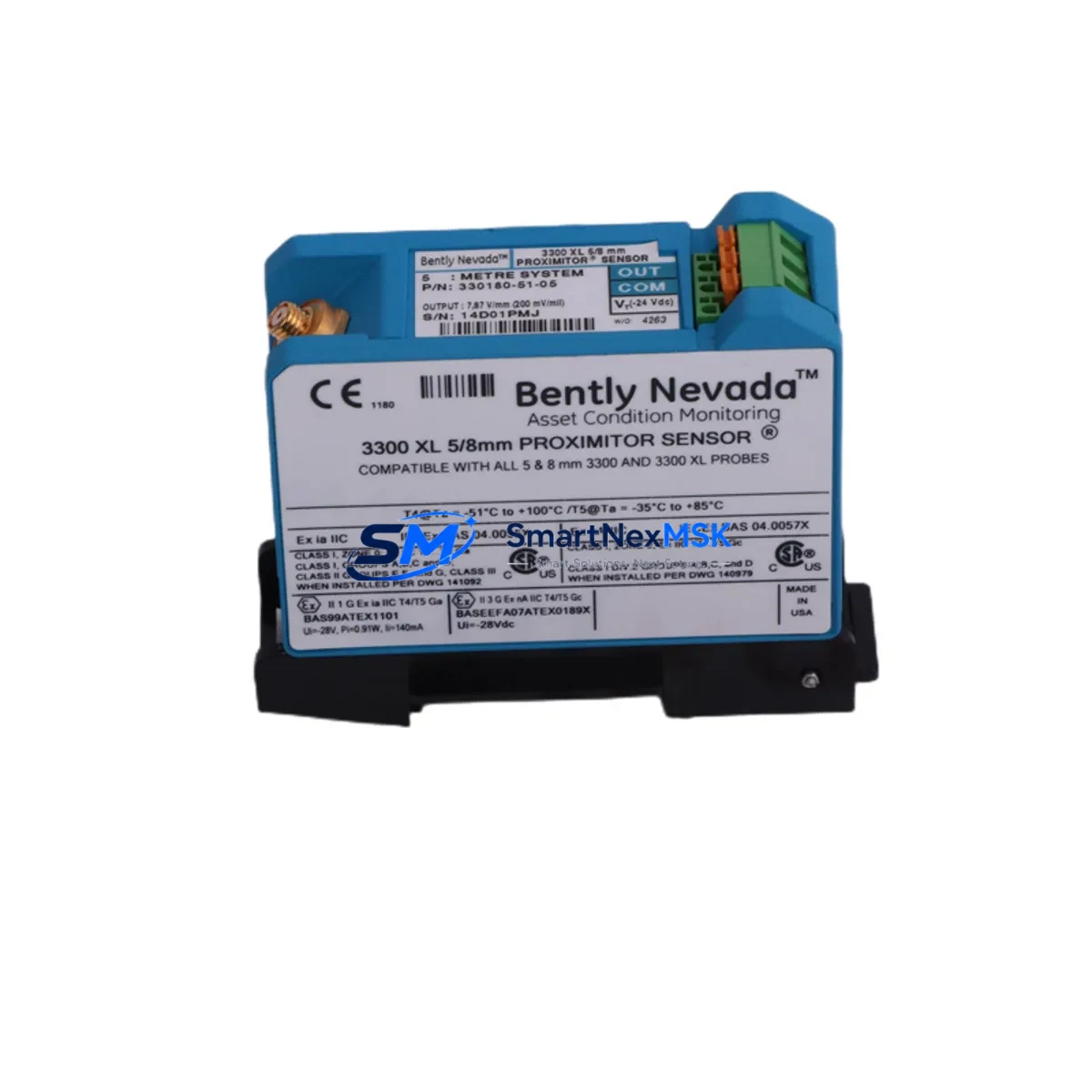

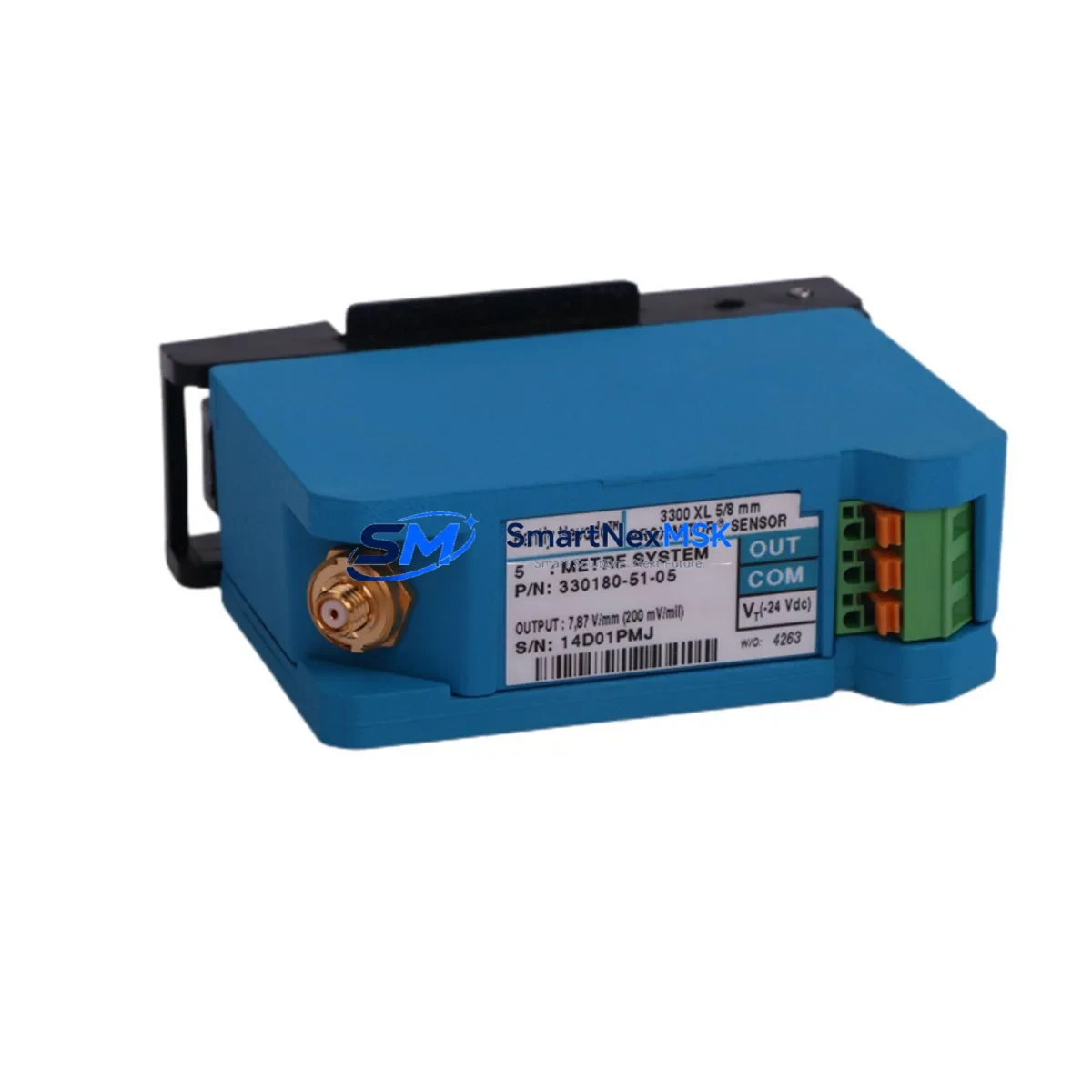

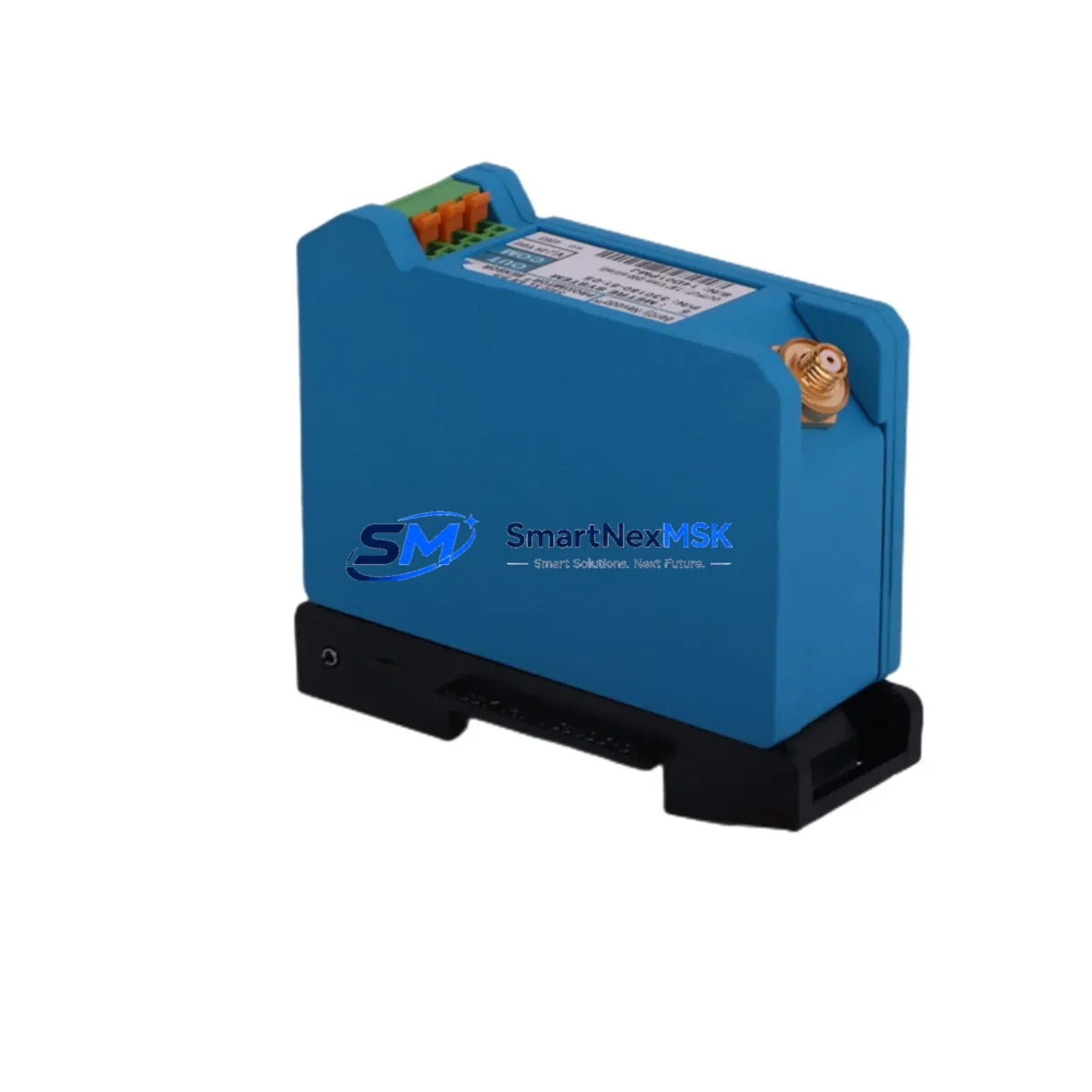

Bently Nevada 330180-51-05 Retrofit-Ready Proximitor Sensor for 3300 XL Series Control Systems
The Bently Nevada 330180-51-05 is a retrofit-ready Proximitor Sensor engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. As legacy Bently Nevada installations age and original spare parts become increasingly difficult to source, the 330180-51-05 serves as a verified drop-in replacement that preserves signal integrity, maintains system calibration, and eliminates the need for costly full-system overhauls. Whether you are managing a planned upgrade cycle or responding to an unplanned failure, this module is stocked and ready for immediate dispatch with a 12-month warranty.
Industrial facilities running continuous rotating machinery — including turbines, compressors, pumps, and motors — depend on the 3300 XL platform for real-time shaft vibration, axial position, and eccentricity monitoring. When a Proximitor Sensor fails or reaches end-of-life, the entire monitoring loop is compromised. The 330180-51-05 restores full loop functionality without requiring changes to the existing 3300 XL rack, field wiring, or DCS configuration. Its eddy-current sensing principle and output signal characteristics are fully compatible with the original Bently Nevada specification, ensuring that your ADRE 408 DSPi or System 1 software continues to receive accurate vibration data without recalibration.
Retrofit planning for this sensor should begin with a review of the existing installation. Confirm the probe gap voltage at the 3300 XL Proximitor/Velomitor input card, verify the cable length and extension cable type (typically the 330130 or 330140 series extension cables), and check that the field-side connector pinout matches the replacement unit. The 330180-51-05 uses a standard Bently Nevada coaxial connector and is compatible with the full range of 7200 Series and 3300 Series probes. No firmware changes are required at the monitor card level.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Replaced Model | Bently Nevada 330180-51-05 (OEM equivalent) |
| Compatible Series | 3300 XL Series, 3300 Series (legacy) |
| Probe Compatibility | 7200 Series, 3300 Series eddy-current probes |
| Extension Cable | 330130 / 330140 Series (standard coaxial) |
| Output Signal | -18 VDC nominal (standard Bently Nevada Proximitor output) |
| Installation Type | Drop-in replacement, no rack modification required |
| Communication Compatibility | Compatible with System 1, ADRE 408 DSPi data acquisition |
| Retrofit Recommendation | Replace probe, extension cable, and Proximitor as a matched set for best accuracy |
| Commissioning Notes | Verify gap voltage (typically -10 VDC ±0.5 V), check OK relay output, confirm alarm setpoints in monitor card |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the Bently Nevada 330180-51-05 requires coordinated planning across the mechanical, electrical, and software layers of your vibration monitoring system. Begin by auditing the full sensor loop: the eddy-current probe (commonly a 330101 or 330103 Series probe), the extension cable, and the Proximitor itself form a matched system. Replacing only the Proximitor while retaining a worn or damaged probe can introduce measurement error that is difficult to diagnose after commissioning.
At the rack level, confirm that the 3300 XL monitor card — such as the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor — is configured for the correct transducer type and sensitivity. The monitor card’s internal jumper settings and software configuration in System 1 must match the replacement Proximitor’s output characteristics. If your facility uses a 3500 Series rack alongside legacy 3300 XL hardware, note that the 3500 platform uses a different Proximitor interface and the 330180-51-05 is not directly interchangeable with 3500-series components without an adapter or reconfiguration.
For facilities integrating vibration data into a broader DCS environment — such as a Honeywell Experion PKS, ABB 800xA, or Emerson DeltaV platform — verify that the 4–20 mA or relay output signals from the 3300 XL monitor card remain within the expected range after sensor replacement. Any drift in the Proximitor output will propagate to the DCS historian and may trigger spurious alarms. It is advisable to perform a loop check and update the DCS tag documentation to reflect the replacement date and new component serial number.
Power supply integrity is a critical but often overlooked factor. The 330180-51-05 requires a stable -24 VDC supply from the rack power module. Inspect the 3300 XL Power Supply module for output voltage stability before installing the replacement sensor. A degraded power supply can cause intermittent OK relay dropouts that mimic sensor failure. If the power supply is approaching end-of-life, plan its replacement concurrently to avoid a repeat outage.
Field wiring should be inspected for continuity, insulation resistance, and shield integrity. Coaxial cable runs exposed to high-temperature environments or mechanical vibration are prone to intermittent faults that become apparent only under operating conditions. Use a cable tester to verify the full extension cable run before closing the junction box. Label all terminals clearly and update the as-built wiring diagram to reflect the new component references.
Downtime Control During System Migration
Minimizing downtime during a Proximitor replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, stage all replacement components — the 330180-51-05 Proximitor, the matched probe, and the extension cable — at the work site. Verify that the replacement unit has been bench-tested and that the OK relay output is confirmed active at the correct gap voltage. Pre-configure any System 1 or ADRE software parameters offline so that the commissioning step is limited to a live gap voltage check and alarm verification.
During the outage, follow a defined sequence: isolate the monitor channel, remove the field wiring from the old Proximitor, install the replacement, reconnect the coaxial cable and power leads, and restore the channel. Use a portable oscilloscope or the built-in diagnostic display of the 3300 XL monitor card to confirm the gap voltage before re-enabling the OK relay. This sequence typically takes 20–40 minutes per sensor loop when components are pre-staged, keeping total downtime well within a standard maintenance window.
To protect the original program logic and HMI displays, do not modify any DCS or PLC tag assignments during the sensor swap. The 330180-51-05 is a direct electrical replacement, so no changes to the Modbus or OPC-DA communication mapping are required. After restoration, monitor the first 30 minutes of operation closely to confirm that vibration trend data in System 1 or the DCS historian is tracking normally and that no spurious alarms are generated. Document the replacement in the plant maintenance management system (CMMS) and update the spare parts inventory to reflect the consumed stock.
Retrofit Support FAQ
Q1: Is the 330180-51-05 a direct drop-in replacement for the original Bently Nevada part?
Yes. The 330180-51-05 is manufactured to the original Bently Nevada specification and is a direct electrical and mechanical replacement. No modifications to the rack, wiring, or monitor card configuration are required. It is compatible with the full 3300 XL Series platform and with 7200 Series and 3300 Series eddy-current probes.
Q2: What commissioning checks are required after installation?
After installation, verify the gap voltage at the Proximitor output (typically -10 VDC ±0.5 V for a standard 1 mm gap), confirm the OK relay is energized, and check that the vibration signal displayed on the 3300 XL monitor card or in System 1 is within the expected baseline range. If the gap voltage is outside tolerance, adjust the probe gap mechanically until the correct voltage is achieved.
Q3: Can this unit be used with a 3500 Series rack?
No. The 330180-51-05 is designed for the 3300 XL and legacy 3300 Series platforms. The 3500 Series uses a different Proximitor interface and power supply architecture. If you are migrating from a 3300 XL to a 3500 Series rack, a full sensor loop replacement with 3500-compatible components is required.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing to verify output signal, OK relay operation, and power consumption. Warranty claims are processed promptly with advance replacement available for critical applications to minimize plant downtime.
