Bently Nevada 330180-90-05 Retrofit-Ready Proximitor for 3300 XL

Bently Nevada 330180-90-05 Retrofit-Ready Proximitor Sensor for 3300 XL Control Systems

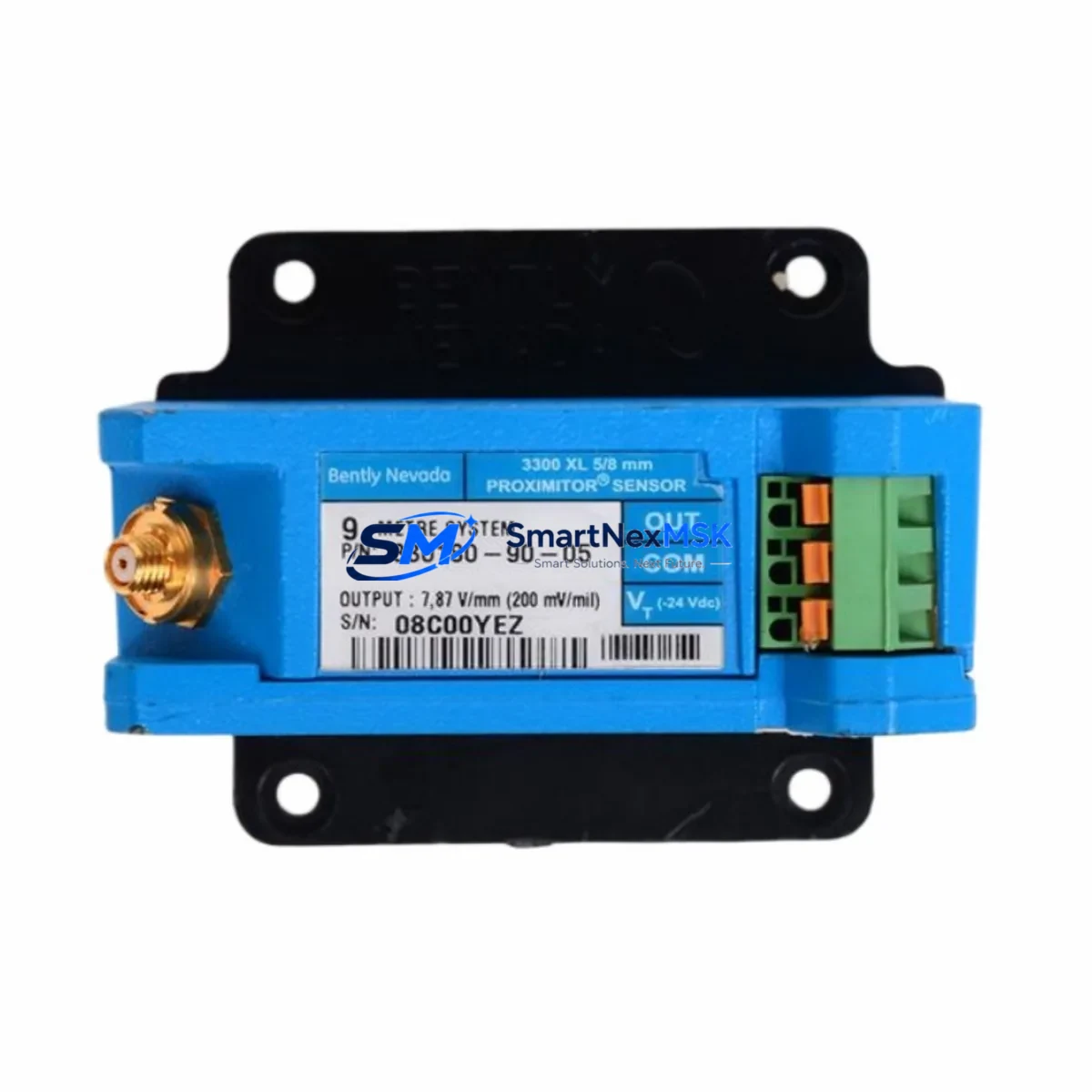

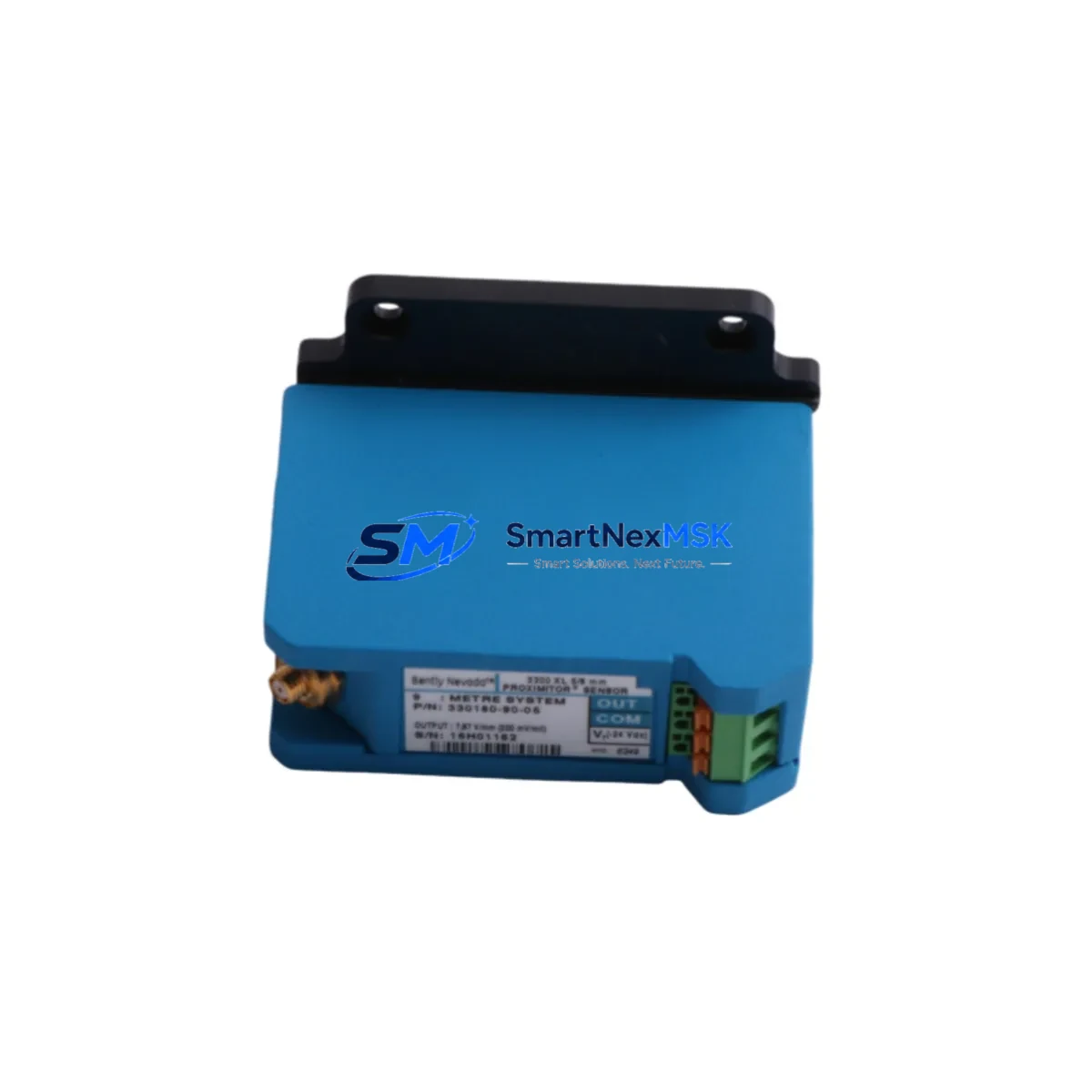

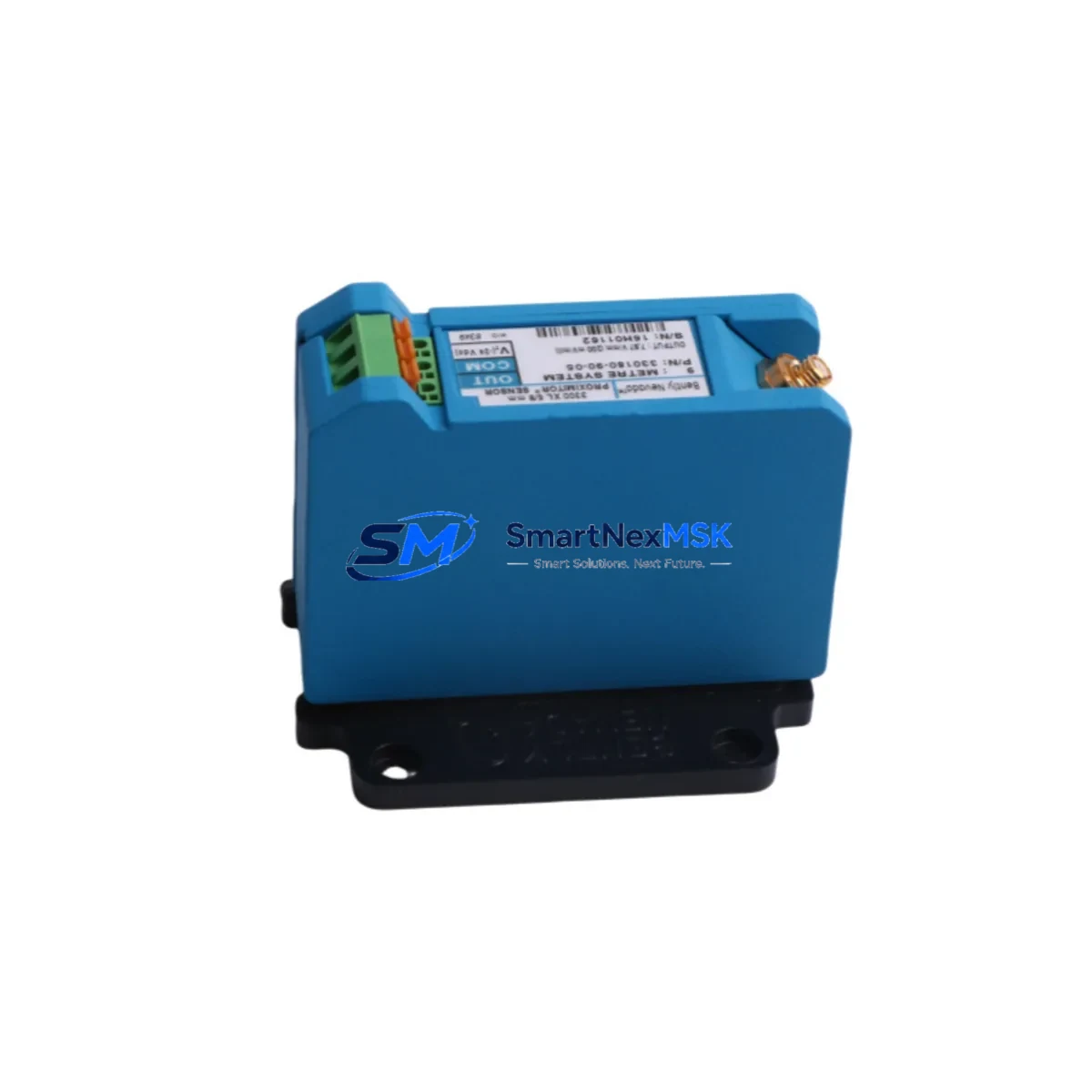

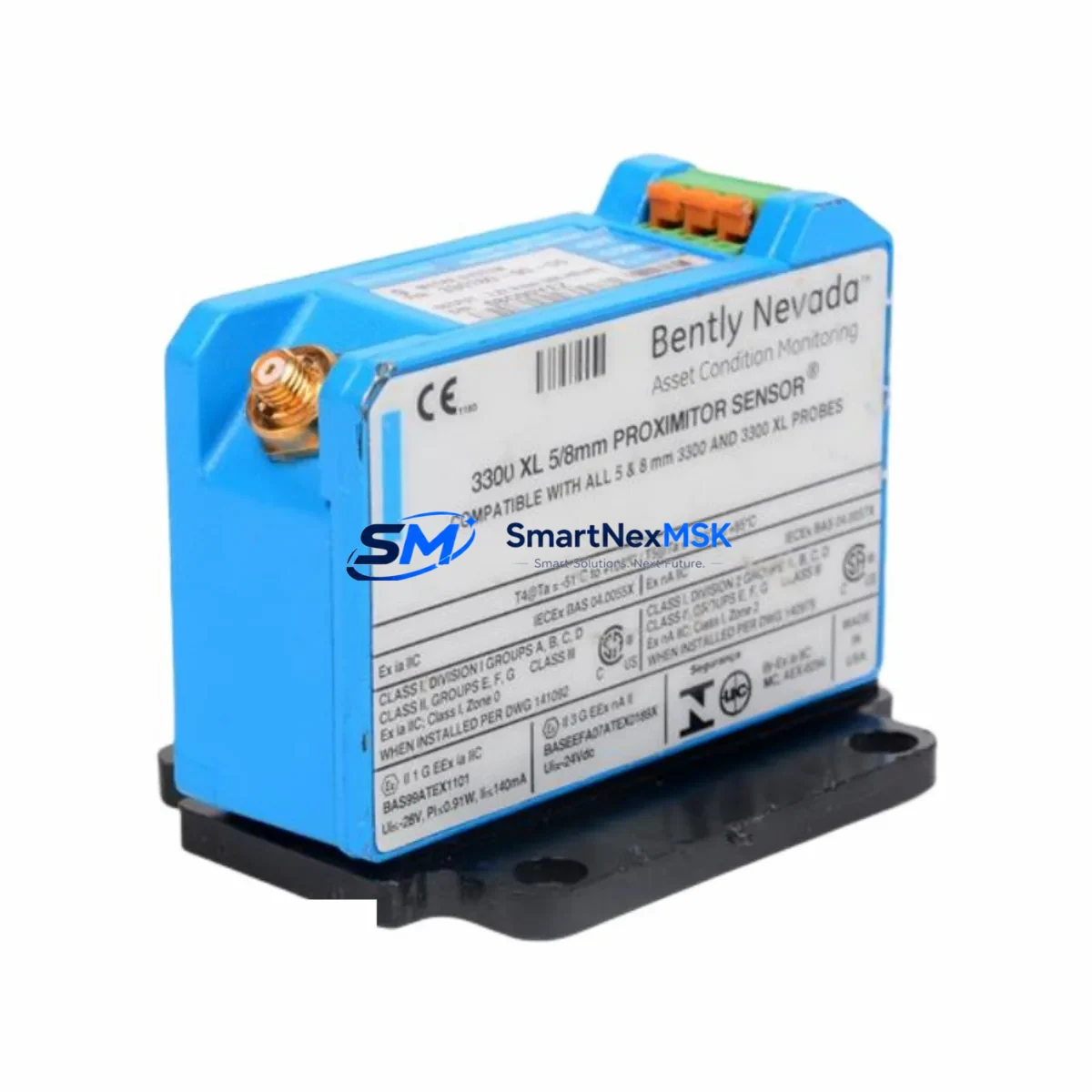

The Bently Nevada 330180-90-05 is a high-precision eddy-current Proximitor Sensor engineered for the 3300 XL vibration monitoring platform. As legacy 3300 Series installations reach end-of-support milestones, plant engineers and reliability teams increasingly rely on this module as a direct retrofit solution — preserving existing probe cabling, extension cable runs, and monitor rack wiring while delivering the measurement accuracy demanded by API 670-compliant machinery protection systems.

Whether you are replacing a failed unit on a critical compressor train, upgrading a turbine control cabinet, or executing a planned outage to modernize a legacy DCS-integrated monitoring loop, the 330180-90-05 is designed to minimize engineering rework and commissioning time. Its 5-metre (standard) or 9-metre extension cable compatibility aligns with the 3300 XL system’s existing field wiring infrastructure, and its -24 VDC bias voltage output is directly compatible with 3300 XL monitor inputs such as the 3300/16 and 3300/20 series rack-mounted monitors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330180-90-05 retrofit begins well before the maintenance window opens. Start by auditing the existing 3300 XL rack assembly: confirm the rack model (typically a 3300/05 or 3300/10 rack), identify the installed power supply module (3300 Power Supply, -24 VDC output), and document the terminal block wiring for each Proximitor channel. In multi-channel cabinets, it is common to find a mix of 3300/16 Dual Vibration Monitors and 3300/20 Thrust Position Monitors sharing the same rack backplane — each with its own Proximitor input pair.

Before removing the failed or obsolete Proximitor, record the gap voltage displayed on the monitor front panel (or via the 3500 rack’s communication gateway if the system has been partially upgraded to a 3500 Series platform). This baseline reading confirms probe-to-target gap and serves as the acceptance criterion after the new 330180-90-05 is installed.

For plants that have begun migrating from 3300 Series to 3500 Series machinery protection, the 330180-90-05 remains compatible with 3500/40M Proximitor/Seismic Monitor inputs, allowing a phased upgrade strategy where field sensors are retained while rack electronics are modernized. This approach avoids the cost and downtime of replacing probe and extension cable assemblies — particularly valuable in confined spaces such as compressor pedestals or turbine bearing housings where re-cabling is labour-intensive.

During the retrofit, pay close attention to the junction box terminations. The 330180-90-05 uses a standard Bently Nevada coaxial connector at the Proximitor body and a terminal strip at the monitor end. Inspect the 330130-series extension cable connectors for corrosion or mechanical damage; a degraded connector is a common source of intermittent gap voltage drift that is often misdiagnosed as a failed Proximitor. If the extension cable is being replaced simultaneously, ensure the new cable length matches the original to maintain the system’s calibrated scale factor.

For facilities running a Honeywell Experion PKS or Emerson DeltaV DCS with a 3300 XL interface, verify that the analogue input card receiving the Proximitor’s 4–20 mA or voltage output is correctly scaled in the DCS configuration. A mismatch between the Proximitor’s output scale factor and the DCS input range will produce erroneous vibration readings without triggering a hardware fault — a subtle but critical commissioning check. Similarly, if the plant uses a GE Mark VIe or Rockwell Automation ControlLogix-based safety system with hardwired trip inputs from the 3300 XL monitor, confirm that the trip setpoints and time delays are re-validated after the Proximitor swap.

Where HMI screens (typically running on a Wonderware InTouch or FactoryTalk View platform) display real-time vibration trends from the 3300 XL system, no HMI reconfiguration is required for a like-for-like 330180-90-05 replacement. However, if the retrofit is part of a broader upgrade that includes replacing 3300/16 monitors with 3500/40M units and adding Modbus TCP or OPC-UA communication via a 3500/92 Communication Gateway, the HMI data source tags will need to be remapped accordingly.

Downtime Control During System Migration

Minimising unplanned downtime is the primary driver behind stocking the 330180-90-05 as a ready-to-ship spare. The module’s direct compatibility with existing 3300 XL probe and extension cable assemblies means that a trained technician can complete a channel swap — from isolation to re-commissioning — in under two hours on a well-documented system.

To protect original programme logic and control continuity during the swap, follow this sequence: (1) Place the affected monitor channel in bypass mode via the 3300 XL monitor front-panel keypad or the 3500 rack’s software bypass function to suppress spurious trips during the changeover. (2) Isolate the -24 VDC supply to the Proximitor terminal block — do not de-energise the entire rack, as adjacent channels must remain active for continuous machinery protection. (3) Disconnect the extension cable from the failed Proximitor, install the 330180-90-05, and reconnect. (4) Verify gap voltage at the monitor display; adjust probe position if the reading falls outside the 10–12 VDC nominal range. (5) Remove the bypass and confirm alarm and trip relay operation with a simulated gap change before returning the machine to service.

For critical assets where even a brief bypass is unacceptable, a hot-standby approach using a redundant 3300 XL channel (where rack space permits) allows the replacement to proceed without interrupting protection coverage. Document all steps in the plant’s management-of-change (MOC) system and retain the pre-shipment functional test report supplied with the 330180-90-05 as part of the maintenance record.

Retrofit Support FAQ

Q1: Is the 330180-90-05 a direct drop-in replacement for earlier 330180 series Proximitors?
Yes. The 330180-90-05 is backward-compatible with all 3300 XL 8mm probe and extension cable assemblies. No mechanical or electrical modifications are required for a like-for-like swap. Confirm the extension cable suffix (-05 denotes 5-metre cable) matches your existing field installation.

Q2: What commissioning checks are required after installation?
Verify the gap voltage at the monitor front panel (nominal: -10 to -12 VDC for a 1.0–1.5 mm probe gap on steel targets). Confirm the output scale factor (7.87 V/mm) matches the monitor channel configuration. Check alarm and trip relay operation by simulating a gap change. Retain the pre-shipment test report for your maintenance records.

Q3: Can this Proximitor be used with a 3500 Series monitor rack?
Yes. The 330180-90-05 is compatible with 3500/40M Proximitor/Seismic Monitor inputs, making it suitable for phased migration projects where field sensors are retained while the rack electronics are upgraded from 3300 to 3500 Series.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes a pre-shipment functional test — gap voltage output, scale factor verification, and connector integrity — and a test report is included with delivery. Warranty claims are processed via sales@smartnexmsk.com with the original order reference and test report.
