Bently Nevada 330180-90-CN Spare for 3300 XL Automation: Precision Spare Replacement for Industrial Downtime Control

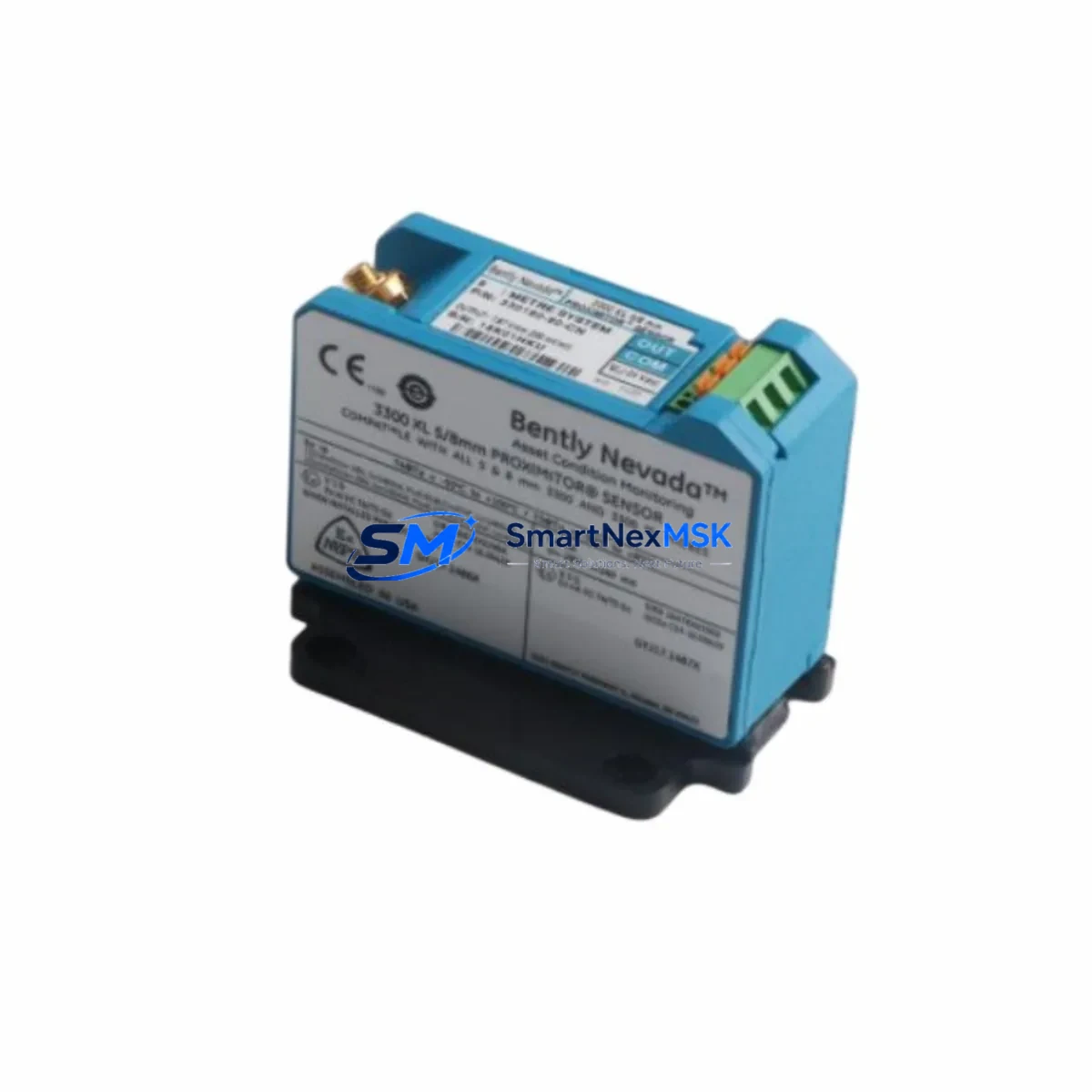

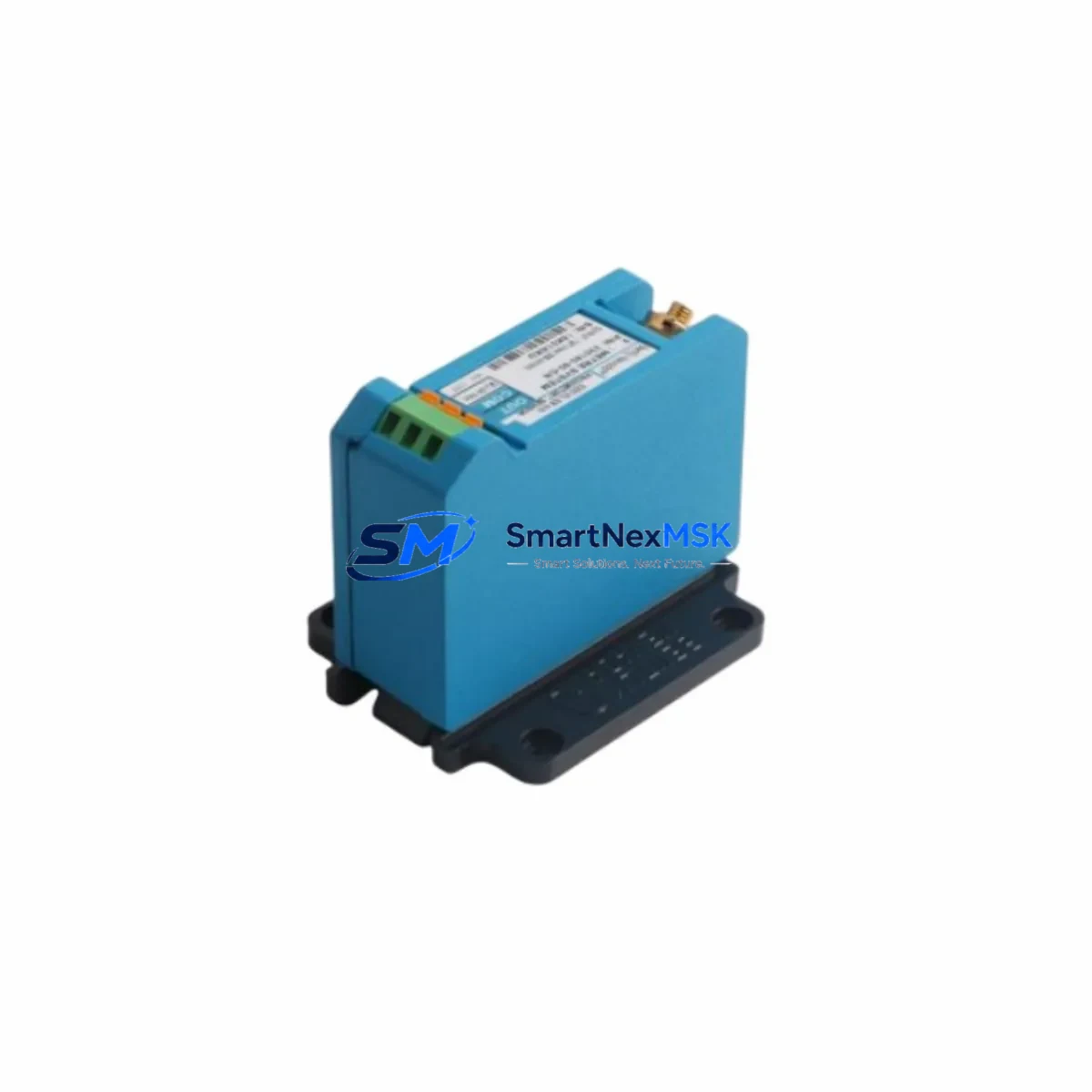

The Bently Nevada 330180-90-CN is an original-specification Proximitor Sensor engineered for the 3300 XL Series machinery protection system — one of the most widely deployed vibration monitoring platforms in rotating equipment environments worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, the 330180-90-CN delivers the dimensional accuracy, signal integrity, and OEM-grade reliability that maintenance and procurement engineers demand.

Rotating machinery protection systems depend on continuous, accurate proximity measurements to detect shaft vibration, axial position, and eccentricity. A failed or degraded Proximitor Sensor can trigger false trips, mask real faults, or — in the worst case — allow a damaging event to go undetected. Stocking a verified replacement 330180-90-CN eliminates that risk and ensures your 3300 XL system can be restored to full protective function within the shortest possible maintenance window.

Every unit supplied by SMARTNEXMSK is functionally tested prior to dispatch, shipped with full traceability documentation, and backed by a 12-month warranty covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330180-90-CN Proximitor Sensor is flagged for replacement during a routine inspection or post-trip investigation, experienced maintenance engineers know that the sensor itself is rarely the only component that warrants attention. A comprehensive inspection of the associated measurement chain and control cabinet is essential to prevent repeat failures and ensure the protection system is fully restored.

Begin by verifying the 3300 XL extension cable (typically the 330130 series) that connects the sensor to the Proximitor driver. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — particularly in high-vibration or high-temperature zones. A degraded cable will introduce signal noise that mimics a failing sensor, so both components should be inspected together.

Next, confirm the condition of the 3300 XL Proximitor driver module (such as the 330180 series driver or the integrated driver within the 3300/16 monitor card). The driver provides the –24 VDC excitation voltage and converts the sensor’s impedance change into a calibrated output signal. If the driver’s output voltage is outside the –18 to –26 VDC window, the replacement sensor will not perform to specification regardless of its own condition.

The 3300 XL monitor card (e.g., 3300/16 Dual Vibration Monitor or 3300/20 Radial Vibration Monitor) should be inspected for alarm setpoint integrity, OK relay status, and any latched fault conditions. A monitor card with a degraded OK relay or corrupted setpoint configuration will generate nuisance trips even after a sensor replacement. Confirm that the monitor’s Bently Nevada 3300 XL power supply module is delivering stable –24 VDC to the measurement loop — power supply ripple is a common root cause of intermittent proximity measurement errors.

In the control cabinet, inspect the terminal blocks and field wiring connecting the Proximitor output to the DCS or safety system input card. Loose terminations, corroded lugs, or undersized conductors introduce resistance that shifts the DC bias voltage and corrupts the vibration signal. If the plant uses a signal isolator or signal conditioner between the Proximitor output and the DCS analog input, verify that the isolator’s input impedance is compatible with the 330180-90-CN output characteristics.

For systems integrated with a Bently Nevada 3500 Series rack via a 3500/42M Proximitor/Seismic Monitor, confirm that the interface adapter and the 3500 rack’s power supply (3500/15) are within specification. The 3500 rack’s communication gateway module (3500/92) — used for Modbus or Ethernet/IP integration with the plant DCS — should also be verified for firmware currency and communication health, as a gateway fault can mask real-time vibration data from the control room.

Finally, review the proximity probe holder and mounting bracket for mechanical integrity. A loose or cracked bracket changes the probe gap, directly affecting the sensor’s DC output voltage and the accuracy of the vibration measurement. Confirm the gap is set to the manufacturer’s recommended value (typically 1.0–1.5 mm for standard 3300 XL applications) using a calibrated gap-setting tool before returning the system to service.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the measurement loop at the 3300 XL monitor card. Place the monitor in bypass mode to prevent a spurious trip during sensor removal. Document the existing gap voltage reading before disconnecting the sensor.

Step 2 — Sensor Removal: Disconnect the extension cable at the sensor connector. Unthread the 330180-90-CN from the probe holder using the correct spanner. Inspect the probe holder threads and the shaft surface for damage or contamination.

Step 3 — Replacement Installation: Thread the new 330180-90-CN into the probe holder finger-tight, then adjust to achieve the target gap voltage (typically –10.0 to –11.0 VDC for a 1.0 mm gap on AISI 4140 steel). Lock the sensor in position with the locknut. Reconnect the extension cable and verify connector seating.

Step 4 — Loop Verification: With the monitor still in bypass, apply power and measure the Proximitor output voltage at the monitor card terminal. Confirm the gap voltage is within the monitor’s OK window. Verify that the signal noise floor is within acceptable limits using a portable oscilloscope or the monitor’s built-in diagnostics.

Step 5 — Return to Service: Remove the bypass, confirm the monitor’s OK relay energizes, and verify that the vibration reading is consistent with the machine’s baseline. Update the maintenance record with the replacement date, gap voltage, and technician sign-off.

This workflow minimizes downtime, eliminates re-work caused by incorrect gap settings, and ensures the 3300 XL system is returned to full protective function before the machine is restarted.

Spare Parts Support FAQ

Q1: Is the 330180-90-CN a direct drop-in replacement for older 330180 series sensors?
Yes. The 330180-90-CN is dimensionally and electrically compatible with earlier 330180 series Proximitor Sensors used in 3300 XL and 3300/16 monitor applications. The “-CN” suffix denotes the cable length variant (90 cm). Confirm your existing extension cable length to ensure the total probe-to-driver distance matches the system’s calibrated range. No monitor reconfiguration is required for a like-for-like replacement.

Q2: What pre-shipment testing is performed on each unit?
Every 330180-90-CN supplied by SMARTNEXMSK undergoes a functional output test (gap voltage measurement at a calibrated target distance), insulation resistance check, and connector integrity verification before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with individual serial number traceability.

Q3: How should the 330180-90-CN be stored as a long-term spare?
Store in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Keep in original anti-static packaging. Avoid storage near strong magnetic fields or high-vibration areas. Inspect the connector and cable jacket annually. Recommended maximum storage period before installation is 5 years; perform a functional check before installing a unit stored beyond 3 years.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, performance non-conformance to published specifications, and premature failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental limits. Warranty claims are processed with return of the defective unit and a completed failure report. Replacement units are dispatched within 5 business days of claim approval.
