Bently Nevada 330180-91-00 Spare for 3300 XL Automation

Bently Nevada 330180-91-00 Maintenance-Ready Spare for 3300 XL Automation

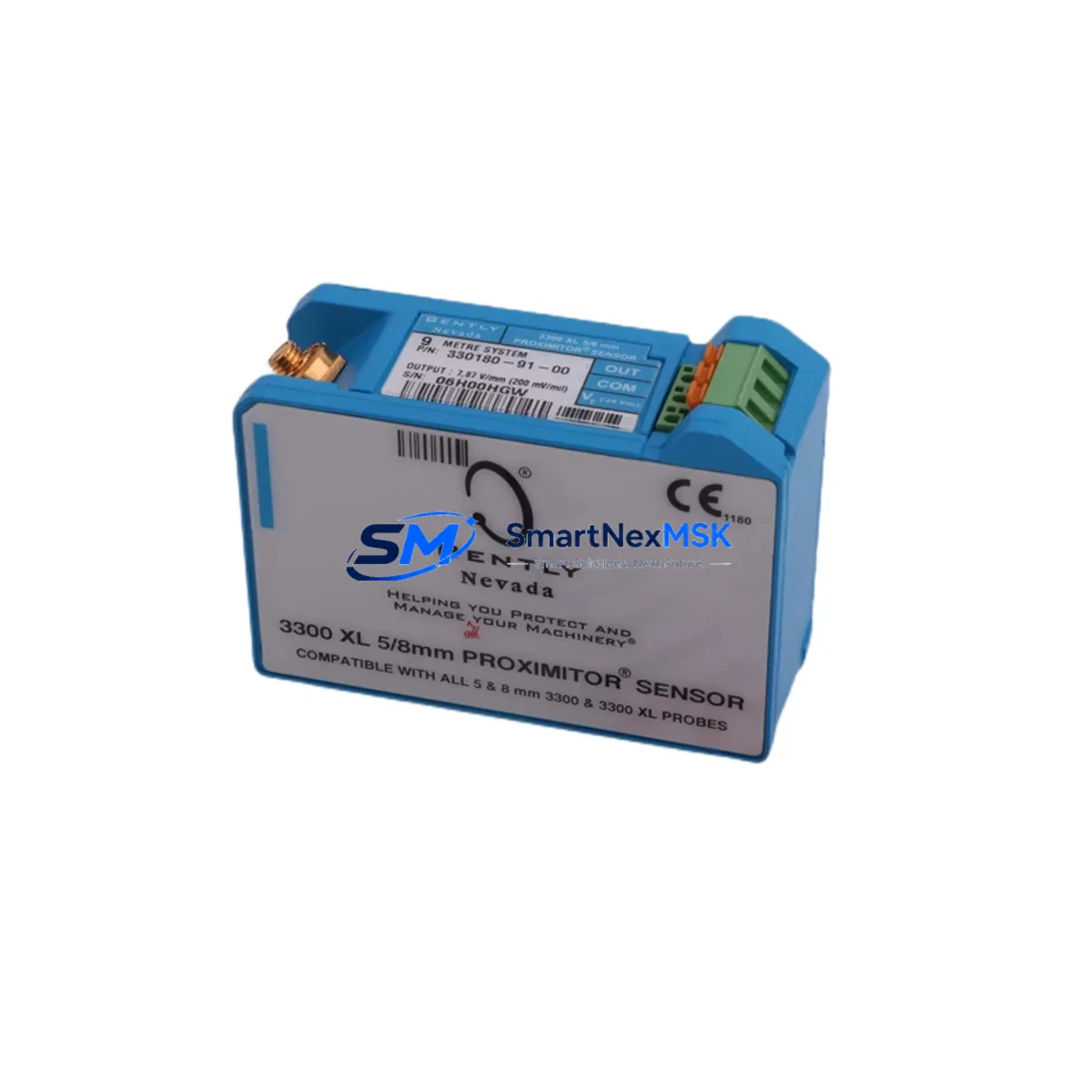

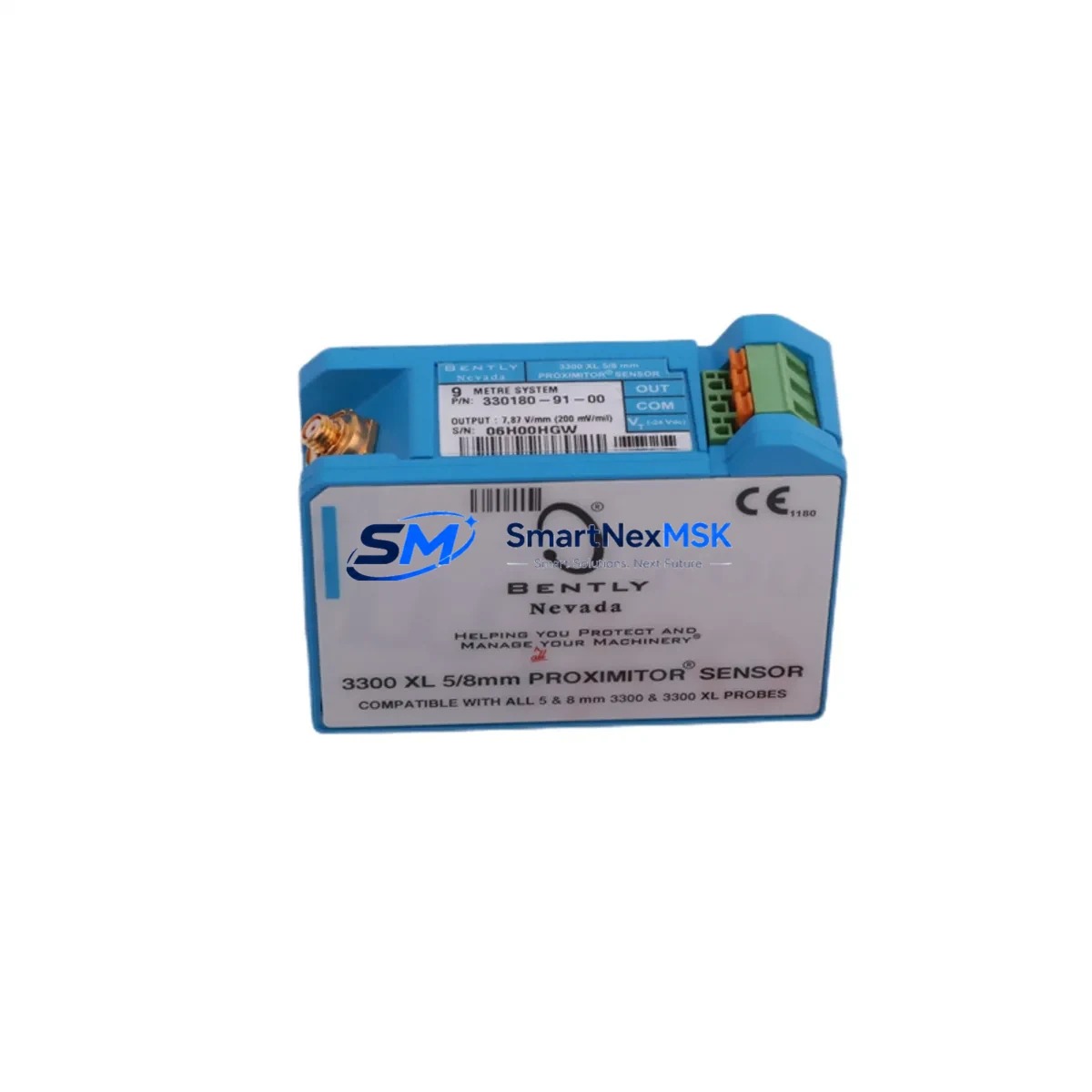

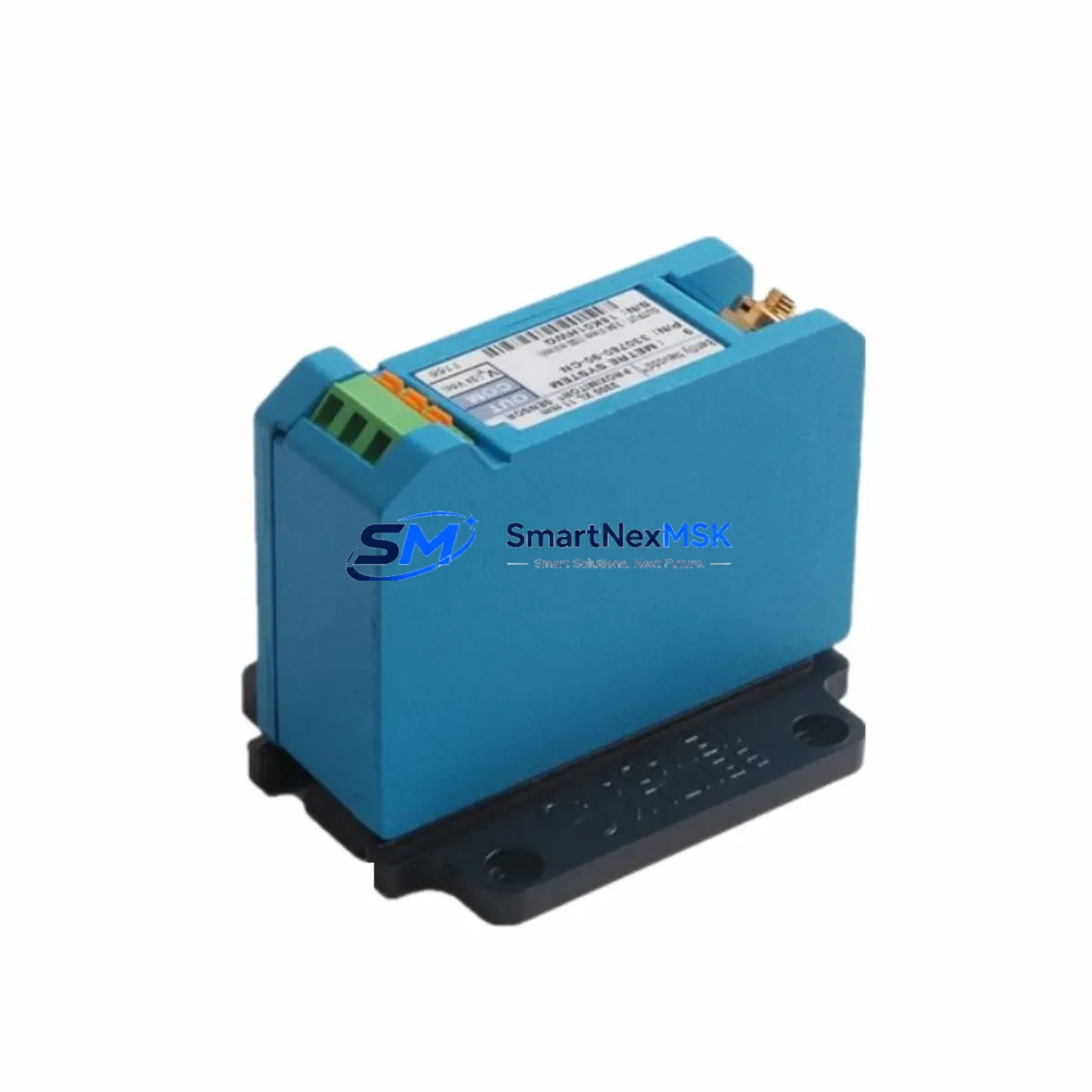

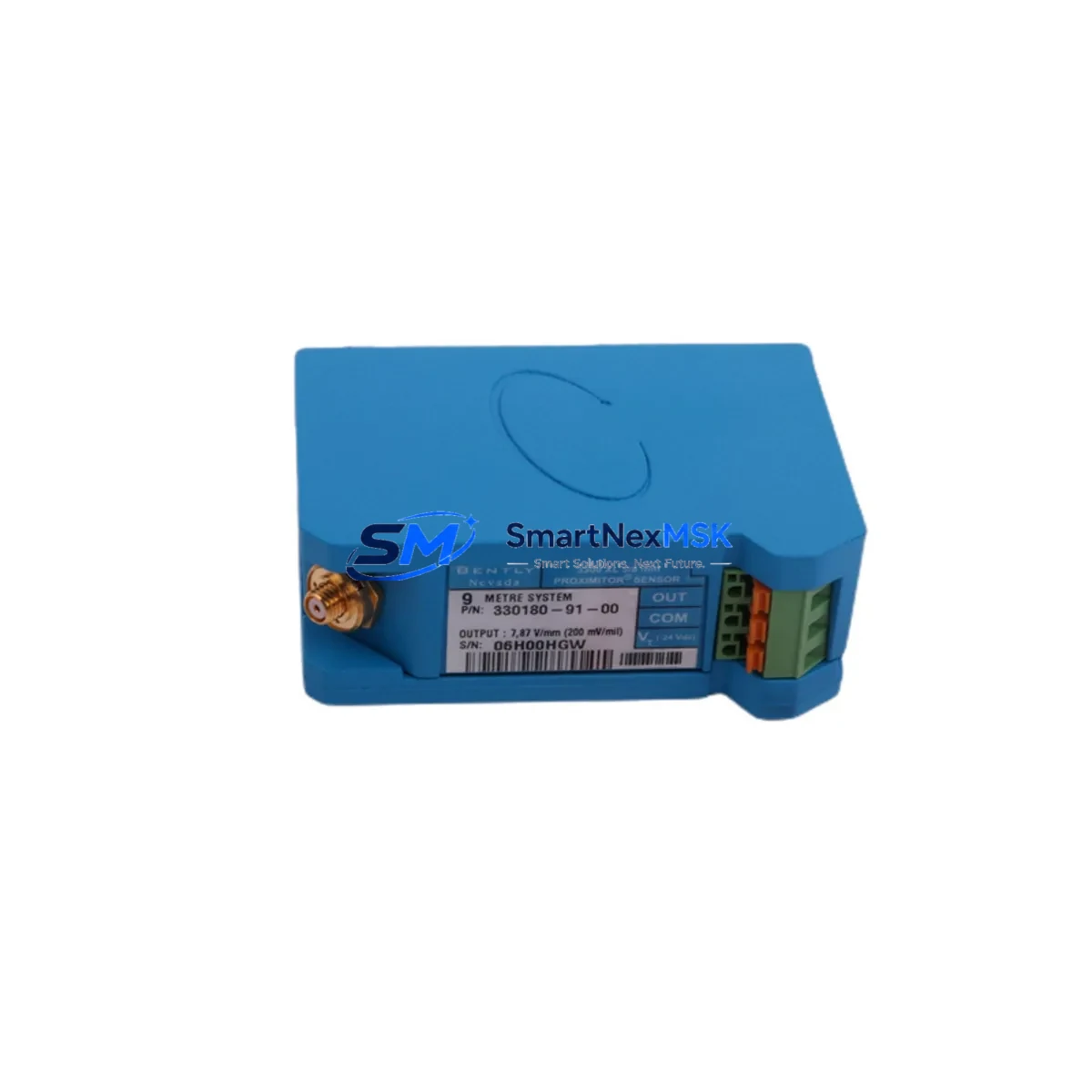

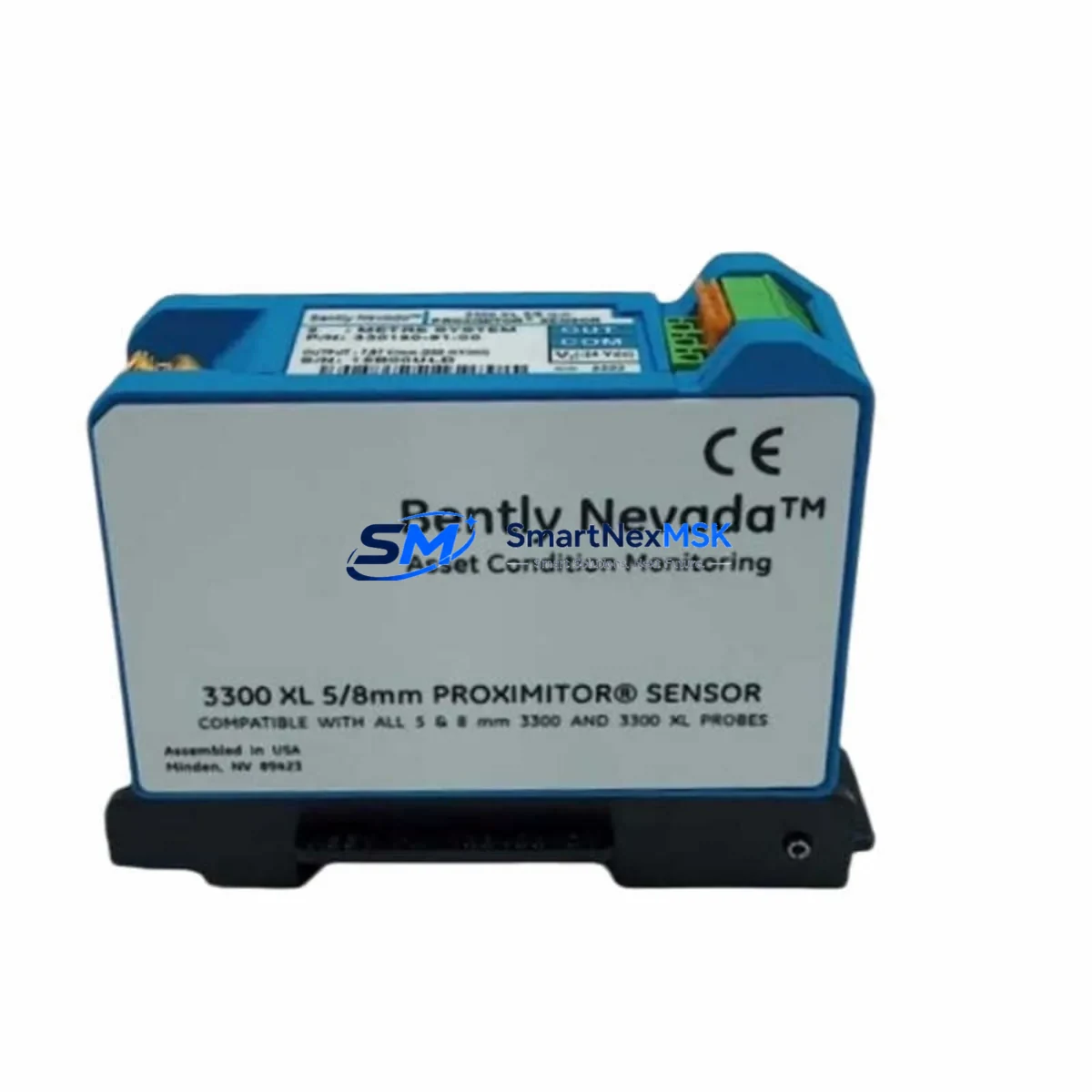

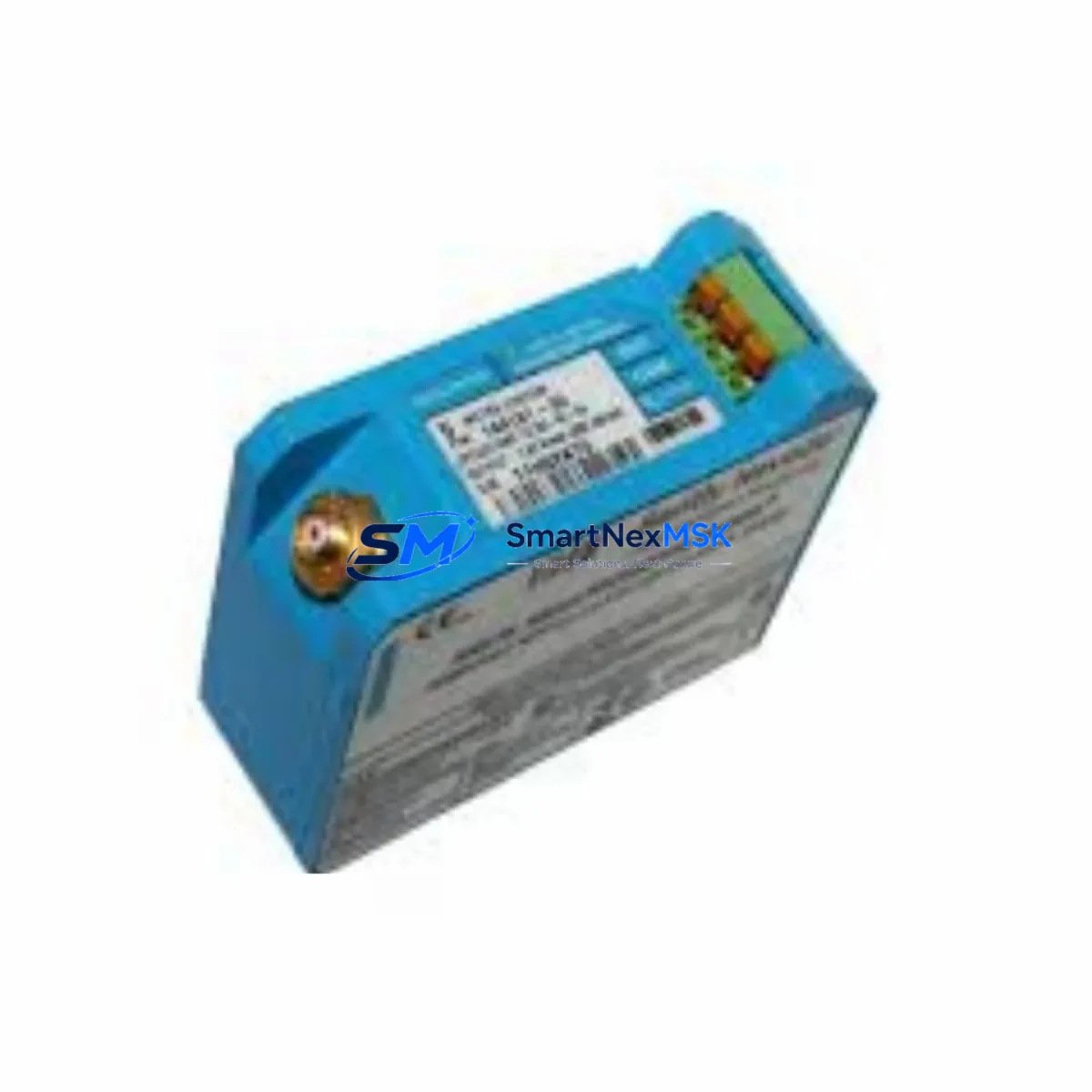

The Bently Nevada 330180-91-00 is an 8mm proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection applications — turbines, compressors, pumps, and gearboxes — this transducer serves as the primary sensing element for radial shaft vibration, axial position, and differential expansion measurement. When a transducer fails or drifts out of calibration tolerance, the entire protection loop is compromised, placing critical assets at risk of undetected mechanical fault progression. Holding a verified replacement unit in your spare parts inventory is the single most effective measure to eliminate unplanned downtime caused by transducer degradation.

This listing supplies an original Bently Nevada 330180-91-00 proximity transducer, sourced from authorized channels, individually tested prior to shipment, and backed by a 12-month warranty. Each unit is verified for output sensitivity (200 mV/mil nominal), gap voltage linearity, and connector integrity before dispatch. Packaging meets OEM anti-static and mechanical protection standards to ensure the transducer arrives in field-ready condition.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity transducer replacement is rarely an isolated event. When a 330180-91-00 is removed from service — whether due to tip damage, cable fatigue, or sensitivity drift — the maintenance window should be used to inspect and verify the condition of every component in the same measurement loop and control cabinet.

Begin with the 3300 XL 8mm Proximitor® driver (typically a 330180-series driver module). The Proximitor converts the transducer’s oscillator signal into a DC voltage proportional to gap distance; a worn or contaminated driver will produce erroneous readings even with a new transducer installed. Inspect the driver’s output voltage at the nominal 1.27 mm (50 mil) gap and confirm it falls within the ±0.5 V tolerance band.

Next, examine the 330130-series extension cable that links the transducer to the Proximitor. Extension cables are a frequent failure point in high-vibration environments: the coaxial shield can develop micro-fractures that introduce noise into the signal chain. Replace the cable if the outer jacket shows cracking, kinking, or abrasion damage near the conduit entry points.

Within the 3500 Series monitoring rack, verify the condition of the 3500/42 or 3500/42M Proximitor I/O module that receives the transducer signal. Check terminal block torque values and inspect for corrosion on the I/O connector pins. If the rack also monitors thrust position, the 3500/45 Position Monitor card should be inspected simultaneously, as it shares the same backplane power bus.

Review the 3500 rack power supply module — typically a 3500/15 or 3500/15E — for output voltage stability. An unstable -24 VDC supply rail will cause all proximity channels in the rack to report false high-vibration alarms, masking the root cause of the original transducer fault. Measure supply rail ripple with an oscilloscope if intermittent alarms preceded the transducer failure.

For installations where the 3300 XL system feeds a DCS or safety PLC, confirm that the 4–20 mA or relay output signals from the monitor are reaching the control system correctly. Inspect the signal isolator or barrier (such as a Pepperl+Fuchs or MTL unit) in the intrinsically safe circuit, as these devices can degrade silently over time. Verify that the relay output module (3500/32 or equivalent) is operating within its contact resistance specification.

If the installation includes a Bently Nevada System 1 condition monitoring software node, confirm that the channel configuration reflects the new transducer’s serial number and calibration data. Misconfigured channel scaling is a common post-replacement error that generates nuisance alarms during the first weeks of operation.

Finally, inspect the terminal strips and grounding bus inside the control cabinet. Loose ground connections are a leading cause of high-frequency noise on proximity channels. Verify that the transducer cable shield is grounded at one end only (typically at the Proximitor), per Bently Nevada installation guidelines, to prevent ground loop interference.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 330180-91-00 matches the installed transducer’s cable length and connector type. Verify the Proximitor driver part number is compatible with the 8mm transducer system. Document the current gap voltage reading from the monitor display before removing the old transducer.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. Notify the control room that the affected vibration channel will be in bypass mode during replacement. Set the monitor channel to bypass to prevent spurious trips during installation.

Step 3 — Mechanical installation: Remove the old transducer using the correct spanner. Clean the probe boss threads and inspect for damage. Install the new 330180-91-00 and set the gap to the OEM-specified nominal value (typically 1.27 mm / 50 mil) using a non-ferrous feeler gauge. Secure with the locknut to the specified torque.

Step 4 — Electrical verification: With the Proximitor powered, measure the output voltage at the monitor terminal. Confirm the reading is within the linear range (approximately -10.0 VDC at 50 mil gap). Check for noise on the signal using the monitor’s OK relay status.

Step 5 — Return to service: Remove the channel bypass, confirm the monitor displays a valid vibration reading, and document the as-left gap voltage in the maintenance record. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain minimum stock levels.

Spare Parts Support FAQ

Q: Is the 330180-91-00 a direct drop-in replacement for other 3300 XL 8mm transducers?
A: Yes, within the 3300 XL 8mm transducer family, the 330180-91-00 is interchangeable with other -91-xx suffix variants when used with the matching 330180-series Proximitor driver and 330130-series extension cable. Always verify the complete three-component system (transducer + extension cable + Proximitor) is matched before installation, as mixing components from different sensitivity families will produce calibration errors.

Q: How should this spare be stored to maintain its service life?
A: Store the 330180-91-00 in its original anti-static packaging in a dry, temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Avoid storing near strong magnetic fields or sources of mechanical vibration. Inspect the coaxial connector and probe tip annually. Properly stored proximity transducers have a shelf life exceeding five years without performance degradation.

Q: What pre-shipment testing is performed on each unit?
A: Every 330180-91-00 supplied by SMARTNEXMSK is tested for output sensitivity at the nominal gap, DC resistance of the oscillator coil, connector continuity, and insulation integrity. A test report is available upon request. Units that do not meet OEM specification tolerances are not dispatched.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and performance deviations from the published OEM specification under normal operating conditions. It does not cover damage resulting from incorrect installation, gap setting errors, overvoltage, or mechanical impact. Warranty claims are processed with return of the defective unit; a replacement is dispatched within 5 business days of claim approval.
