Bently Nevada 330180-X1-00 MOD 145004-63 3300 XL Spare

Bently Nevada 330180-X1-00 MOD 145004-63 Maintenance-Ready Spare for 3300 XL Automation

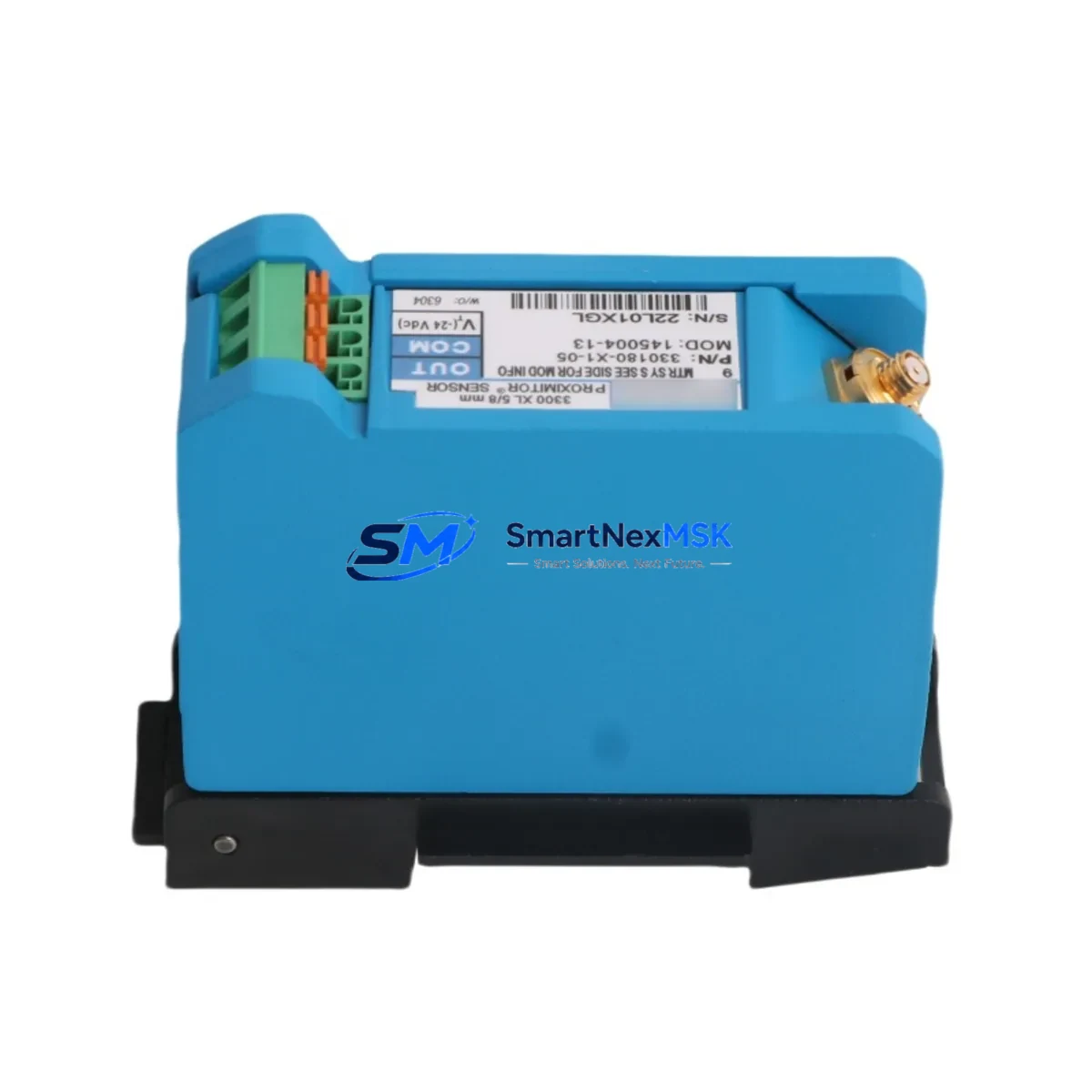

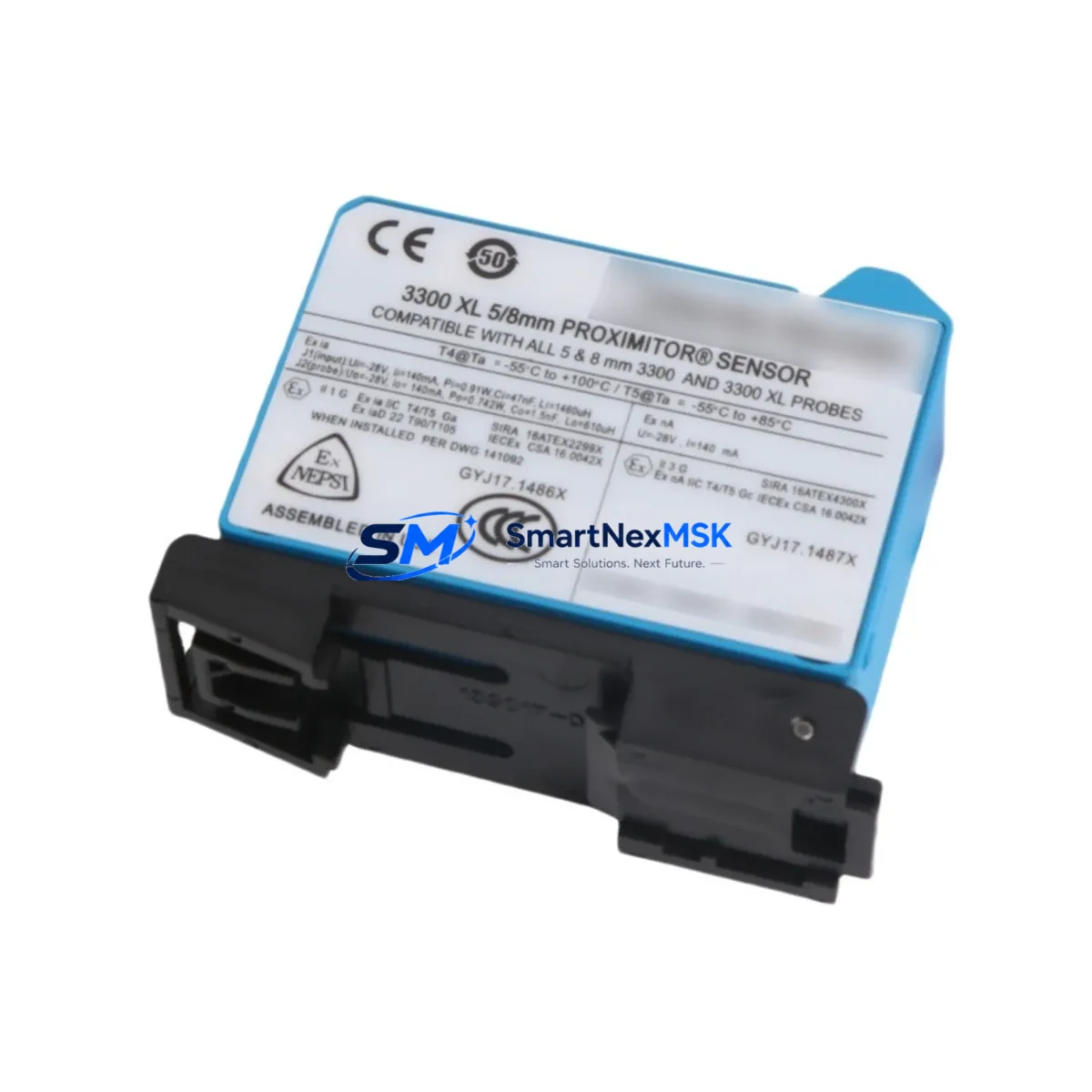

The Bently Nevada 330180-X1-00 MOD 145004-63 is an original Proximitor Sensor designed for the 3300 XL series eddy-current vibration monitoring system. This signal conditioner converts the raw output of a proximity probe into a calibrated DC voltage proportional to the gap between the probe tip and the observed rotating shaft. In continuous-process industries — including oil & gas, power generation, petrochemical, and heavy manufacturing — the 3300 XL Proximitor is a front-line component in machinery protection systems. An unplanned failure of this module can trigger a full machine trip, resulting in costly unplanned downtime. Holding a verified, tested spare on-site is the most effective strategy for rapid restoration of monitoring capability and minimizing mean time to repair (MTTR).

This unit is sourced as an original Bently Nevada spare, fully tested prior to shipment, and backed by a 12-month warranty. It is compatible with the standard 3300 XL monitoring rack architecture and is suitable for direct replacement in existing installations without system reconfiguration, provided probe and extension cable specifications are matched.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330180-X1-00 MOD 145004-63 Proximitor Sensor is flagged for replacement during a planned outage or emergency callout, maintenance engineers should treat the event as an opportunity to audit the entire vibration monitoring loop. The Proximitor does not operate in isolation — its accuracy and reliability depend on the condition of every upstream and downstream component in the measurement chain.

Begin with the 3300 XL proximity probe (e.g., 330103 or 330104 series): inspect the probe tip for mechanical damage, corrosion, or contamination, and verify the installed gap using a calibrated oscilloscope or the rack’s built-in gap display. Next, check the 3300 XL extension cable — connector pins, cable jacket integrity, and shield continuity — since a degraded cable introduces signal noise that can mimic a failing Proximitor. Confirm that the 3300 XL rack power supply module is delivering a stable –24 VDC bias; a drifting supply voltage is a common root cause of Proximitor output instability and should be verified with a calibrated multimeter before condemning the sensor module itself.

Within the monitoring rack, inspect the 3300 XL I/O module and associated terminal block assemblies for loose wiring, oxidized contacts, or heat damage. If the machine is also monitored for temperature or process variables, verify that any signal isolators or signal conditioners in adjacent channels are functioning within specification, as cross-channel interference can produce false alarms. For systems integrated with a Bently Nevada 3500 series rack or a DCS via a 3300 XL communication gateway, confirm that the replacement Proximitor’s output scaling matches the rack’s configured full-scale range to avoid trip setpoint errors after reinstatement.

Where the control system interfaces with a Rockwell or Siemens PLC I/O card for alarm annunciation, verify the analog input channel calibration after Proximitor replacement. Finally, review the junction box and field wiring for moisture ingress, particularly in outdoor or high-humidity installations, and replace any degraded cable glands or conduit seals as part of the same work order. Addressing these adjacent components during a single planned outage window significantly reduces the probability of a repeat callout within the same maintenance cycle.

Site Replacement Workflow

Step 1 — Isolation & Documentation: Before removing the 330180-X1-00 MOD 145004-63, record the current gap voltage, vibration amplitude, and any active alarms from the 3300 XL rack display or DCS historian. Photograph the existing wiring and connector orientation. Inhibit the machine protection trip for the affected channel per your site bypass procedure to prevent a spurious shutdown during the swap.

Step 2 — Module Removal: Disconnect the extension cable connector from the Proximitor input port and the rack output wiring from the terminal block. Remove the module from the rack slot, noting the slot address for correct reinstallation of the replacement unit.

Step 3 — Replacement Installation: Insert the 330180-X1-00 MOD 145004-63 replacement into the same rack slot. Reconnect the extension cable and output wiring, torquing terminal screws to the manufacturer’s specification. Verify that the module’s configuration switches or jumpers (if applicable) match the removed unit’s settings.

Step 4 — Gap Verification & Commissioning: With the machine at rest, verify the probe gap voltage falls within the linear range (typically –10 VDC to –18 VDC for standard 8 mm probes). Compare the reading against the pre-removal baseline. Remove the channel inhibit and confirm that the rack displays a healthy status with no active alarms before returning the machine to service.

Step 5 — Documentation & Spare Replenishment: Update the maintenance management system (CMMS) with the replacement date, new module serial number, and post-installation gap reading. Immediately initiate a purchase order for a replacement spare to restore your on-hand buffer — a single-unit spare strategy leaves the machine unprotected during the next failure event.

Spare Parts Support FAQ

Q1: Is the 330180-X1-00 MOD 145004-63 a direct drop-in replacement for earlier 3300 XL Proximitor variants?
A: In most installations, yes. The MOD 145004-63 designation indicates a specific factory modification level. Before installation, compare the configuration label of the removed unit with the replacement to confirm that output scaling, supply voltage, and any internal jumper settings are identical. If your system uses a non-standard probe gap or a custom scale factor, contact our technical team before shipment to confirm compatibility.

Q2: What pre-shipment testing is performed on this unit?
A: Each 330180-X1-00 MOD 145004-63 unit undergoes functional verification including supply current draw, output voltage linearity across the probe gap range, and connector integrity checks prior to packaging. A test report is available upon request. The 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Q3: How should this spare be stored if not immediately installed?
A: Store the module in its original anti-static packaging in a dry, temperature-controlled environment (0 °C to +40 °C, <85% RH non-condensing). Avoid storing near strong magnetic fields or high-vibration areas. Inspect the unit annually if held in long-term storage and re-test before installation if stored for more than 24 months.

Q4: Can you support long-term or blanket orders for 3300 XL spare parts?
A: Yes. We support scheduled delivery agreements, consignment stock arrangements, and multi-unit blanket orders for 3300 XL series components including Proximitor sensors, proximity probes, extension cables, and rack power supply modules. Contact our sales team to discuss volume pricing and lead-time commitments tailored to your planned maintenance schedule.
