Bently Nevada 330180-X1-CN Maintenance-Ready Spare 3300 XL Automation

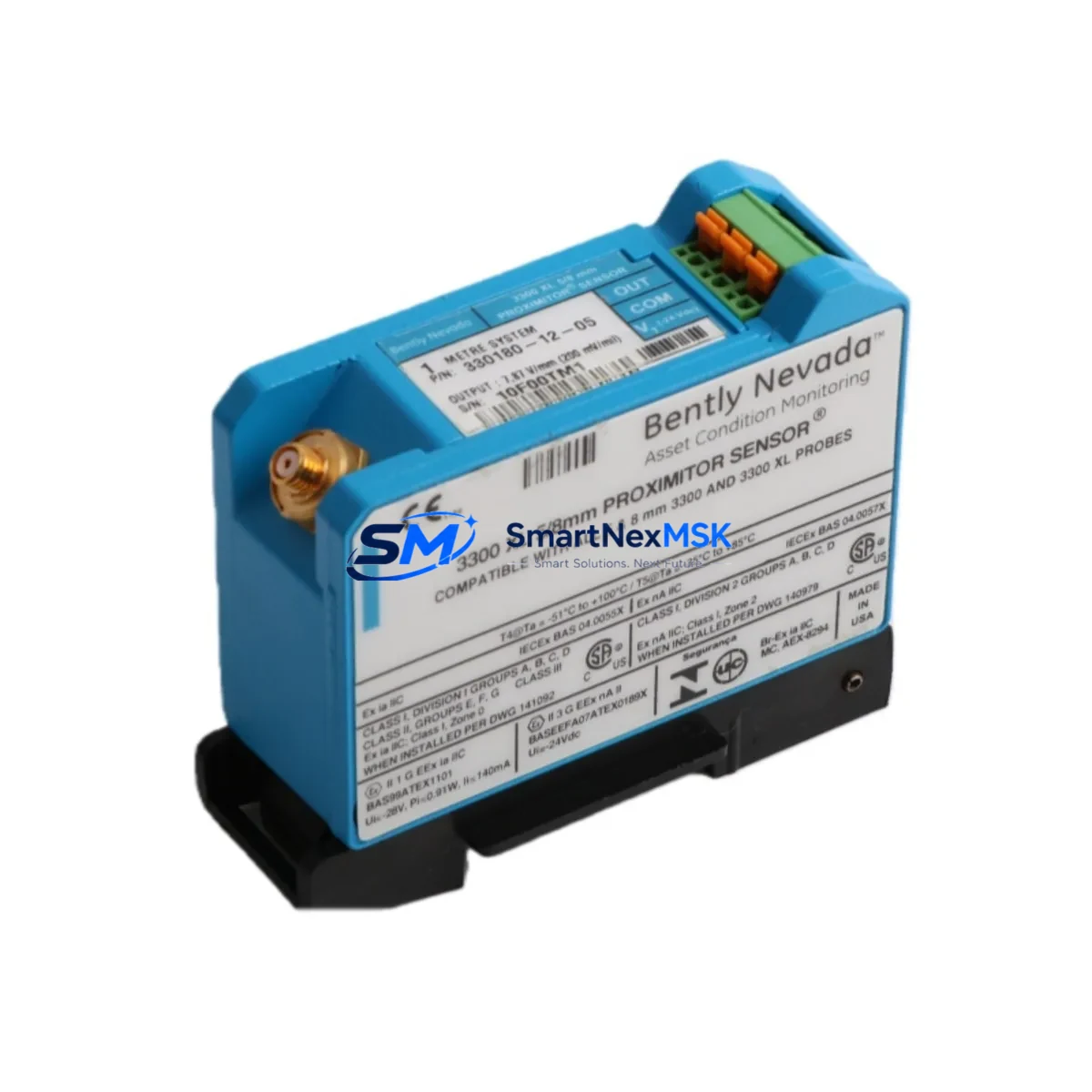

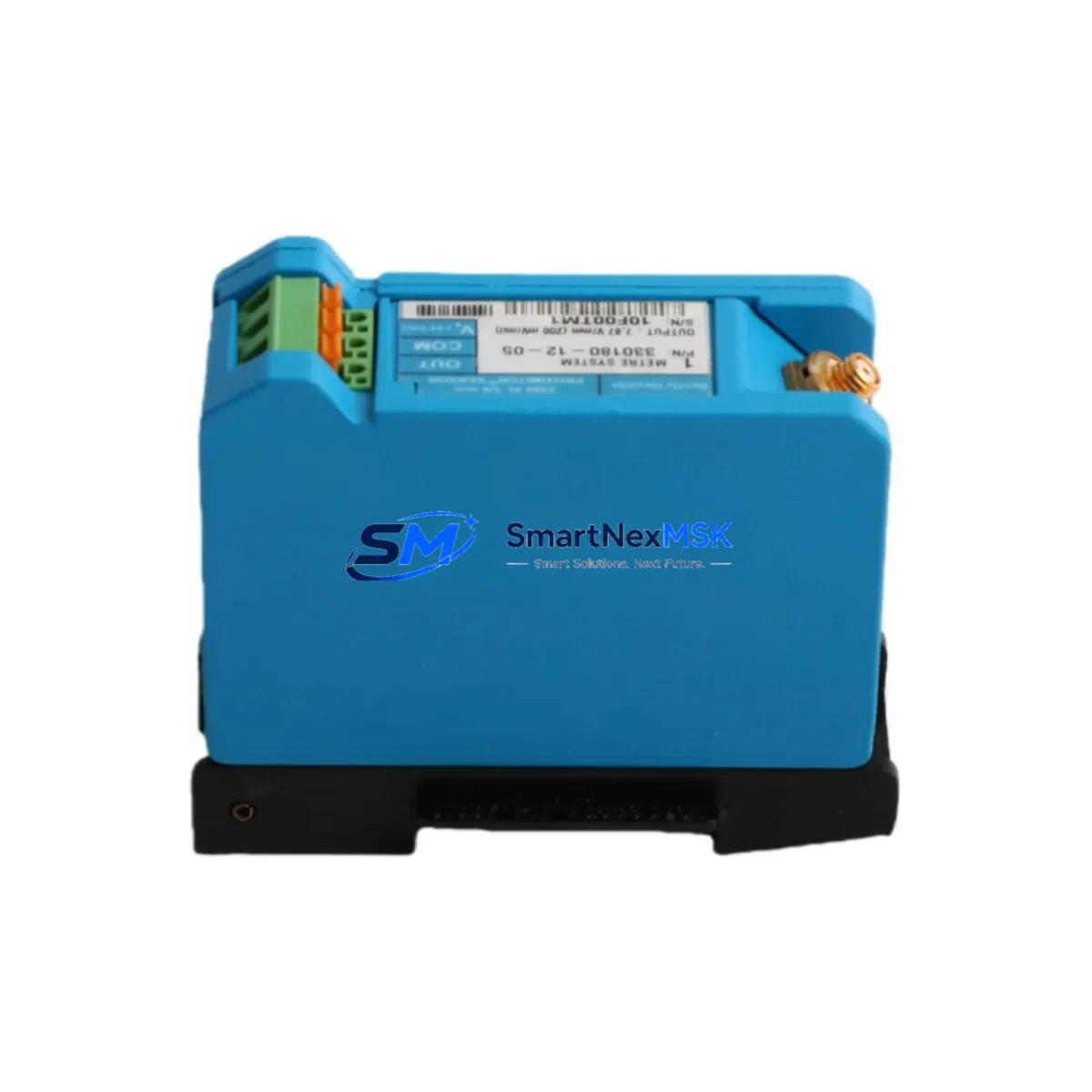

The Bently Nevada 330180-X1-CN (MOD:163339-01) is an 8mm eddy-current Proximitor Sensor engineered for the 3300 XL continuous machinery monitoring system. For maintenance engineers managing rotating equipment — turbines, compressors, pumps, and gearboxes — this sensor is a critical front-line component in vibration and position measurement loops. Unplanned failure of a Proximitor Sensor can trigger immediate machinery shutdown, making rapid access to a verified, tested spare the single most effective strategy for minimizing mean time to repair (MTTR) and protecting production continuity.
This listing supplies an original Bently Nevada 330180-X1-CN spare, sourced from authorized channels, inspected, and tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance. Whether you are executing a planned outage, responding to a vibration alarm, or building a site-level spare parts inventory, this sensor is ready for immediate installation.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330180-X1-CN |
| Modification | MOD:163339-01 |
| Brand | Bently Nevada |
| Series | 3300 XL Machinery Monitoring System |
| Sensor Type | 8mm Eddy-Current Proximitor Sensor |
| Measurement | Radial Vibration, Axial Position, Differential Expansion |
| Output Signal | -24 VDC nominal (standard Bently Nevada output) |
| Compatible Monitors | 3300/16, 3300/20, 3300/25, 3300/55 XL Series |
| Probe Cable Compatibility | 330130 / 330140 / 330150 Series Extension Cables |
| Installation Environment | Industrial — turbine halls, compressor skids, pump stations |
| Operating Temperature | -35°C to +85°C (sensor body) |
| Origin | USA |
| Condition | Original, New / Surplus New |
| Pre-Shipment Test | Yes — functional and output signal verified |
| Warranty | 12 Months |
| Lead Time | In Stock — ships within 1–3 business days |
Maintenance Planning for Continuous Operation
When a 330180-X1-CN Proximitor Sensor is flagged for replacement during a scheduled outage or emergency callout, experienced maintenance engineers know that the sensor itself is rarely the only component requiring attention. A thorough inspection of the complete vibration measurement loop is essential to prevent repeat failures and ensure the monitoring system returns to full accuracy.
Begin by inspecting the 330130 or 330140 series extension cables that connect the probe to the Proximitor. Cable jacket abrasion, connector corrosion, or shield continuity loss are common causes of erratic vibration readings that are frequently misdiagnosed as sensor failure. Simultaneously, verify the 3300 XL monitor module — such as the 3300/16 Dual Vibration Monitor or 3300/20 Radial Vibration Monitor — for alarm setpoint integrity and channel configuration, as a module fault can persist even after a sensor swap.
Check the 3300/05 Power Supply module or equivalent rack power supply feeding the monitoring system. Voltage sag or ripple on the -24 VDC supply rail directly affects Proximitor output linearity and can cause false alarms or missed trips. If the control cabinet houses a 3300/55 Keyphasor Module, confirm that the Keyphasor signal is clean and phase-referenced correctly — a degraded Keyphasor affects all synchronous vibration analysis across the rack.
For sites running older 3300 XL racks, inspect the 3300/93 Rack Interface Module (RIM) or 3300/95 Communication Gateway for firmware currency and communication health. These modules bridge the monitoring rack to DCS or historian systems; a communication fault here can mask real vibration events from the control room. Where signal isolation is required between the Bently Nevada rack and a third-party DCS input card, verify that any installed signal isolators or barriers (such as Pepperl+Fuchs or MTL series) are within calibration and not introducing offset errors.
Finally, during the cabinet inspection, check terminal blocks and field wiring terminations at the junction box between the machine and the control room. Loose terminations on the coaxial probe cable are a leading cause of intermittent vibration channel faults. If the site uses Bently Nevada 3500 series monitors in adjacent racks, confirm that cross-rack communication and relay output modules are unaffected by the maintenance activity.
Site Replacement Workflow
Replacing the 330180-X1-CN on a live or recently shutdown machine follows a structured sequence to minimize downtime and avoid introducing new faults:
1. Isolate and document: Record the existing gap voltage (typically -10.0 VDC ±0.5 VDC for an 8mm probe at nominal gap) before removal. This baseline confirms correct probe-to-target gap and provides a reference for the replacement unit.
2. Remove and inspect: Disconnect the extension cable at the Proximitor connector. Inspect the probe tip and target area for contamination, scoring, or mechanical damage. A damaged target surface will cause the replacement sensor to read incorrectly regardless of sensor condition.
3. Install replacement: Thread the 330180-X1-CN into the probe holder to the documented gap setting. Reconnect the 330130/330140 extension cable. Verify connector seating and locking ring engagement.
4. Commission and verify: Power the Proximitor and confirm output voltage at the monitor input. Compare against the pre-removal baseline. Confirm that the 3300 XL monitor channel clears any latched alarms and returns to normal OK status.
5. Document and close: Record the replacement in the site CMMS (SAP PM, Maximo, or equivalent). Update the spare parts inventory and flag a reorder for the consumed unit to maintain minimum stock levels.
This workflow applies equally to planned turnaround replacements and emergency callouts, and is compatible with both hot-standby and single-channel monitoring configurations.
Spare Parts Support FAQ
Q1: Is the 330180-X1-CN a direct drop-in replacement for earlier 330180 variants?
Yes. The 330180-X1-CN is dimensionally and electrically compatible with earlier 330180 series Proximitor Sensors used in 3300 XL monitoring racks. MOD:163339-01 reflects a manufacturing revision that does not affect field interchangeability. Always confirm the extension cable series (330130/330140/330150) matches the probe cable length required for your installation.
Q2: How is the unit tested before shipment?
Each 330180-X1-CN is bench-tested for output voltage linearity, gap response, and connector integrity prior to packaging. A functional test report is available upon request. Units that do not meet Bently Nevada original performance specifications are not shipped.
Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional performance failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed with return authorization; replacement units are dispatched within 5 business days of claim approval.
Q4: Can you support long-term or blanket spare parts orders for multi-site operations?
Yes. For maintenance teams managing multiple facilities or executing multi-year service contracts, we support blanket purchase orders, consignment stock arrangements, and scheduled delivery programs. Contact our team to discuss volume pricing, dedicated inventory reservation, and documentation packages (test reports, country of origin certificates) required for your procurement process.
