The Bently Nevada 330191-00-33-90-05 is an original eddy-current proximity probe engineered for the 3300 XL Series machinery protection and condition monitoring platform. Designed for continuous shaft vibration, position, and eccentricity measurement in rotating machinery, this probe is a critical spare component for turbines, compressors, pumps, and gearboxes operating in demanding industrial environments. Sourced as an original spare, each unit is inspection-tested prior to dispatch and backed by a 12-month warranty, ensuring maintenance teams can restore system integrity with confidence and minimal downtime.

For maintenance engineers managing aging 3300 XL installations, securing a verified replacement for the 330191-00-33-90-05 is a proactive step in any planned maintenance or emergency recovery strategy. The probe’s 8 mm tip diameter, standard 5-metre extension cable compatibility, and -24 VDC bias voltage output make it a direct drop-in replacement within existing 3300 XL monitor racks without requiring recalibration of the full channel — provided the matched driver and extension cable assembly remain unchanged.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330191-00-33-90-05 proximity probe in the field, a thorough inspection of the surrounding measurement channel is essential to prevent repeat failures and ensure accurate vibration data. Maintenance engineers should treat this replacement as an opportunity to audit the complete signal chain and associated components within the control cabinet.

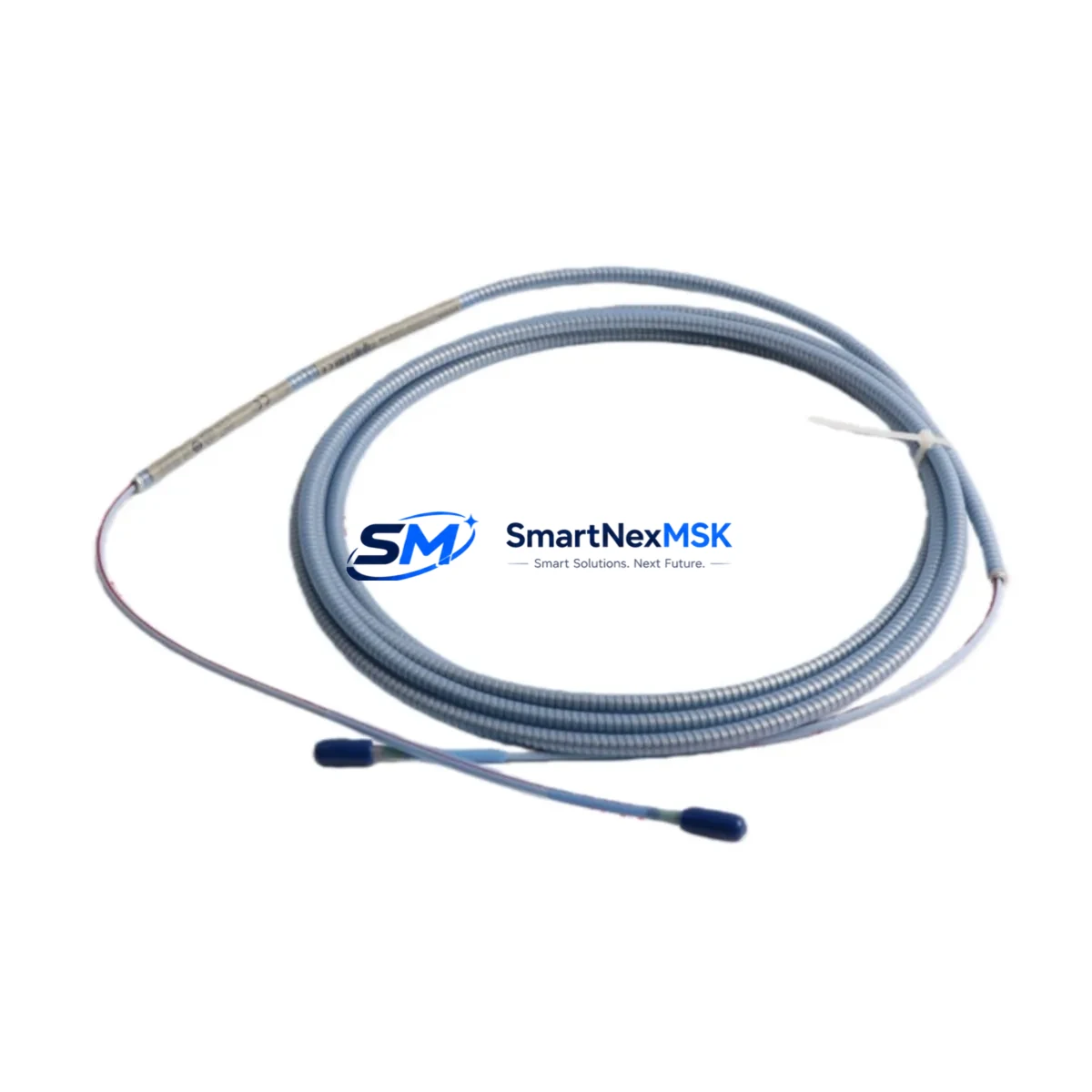

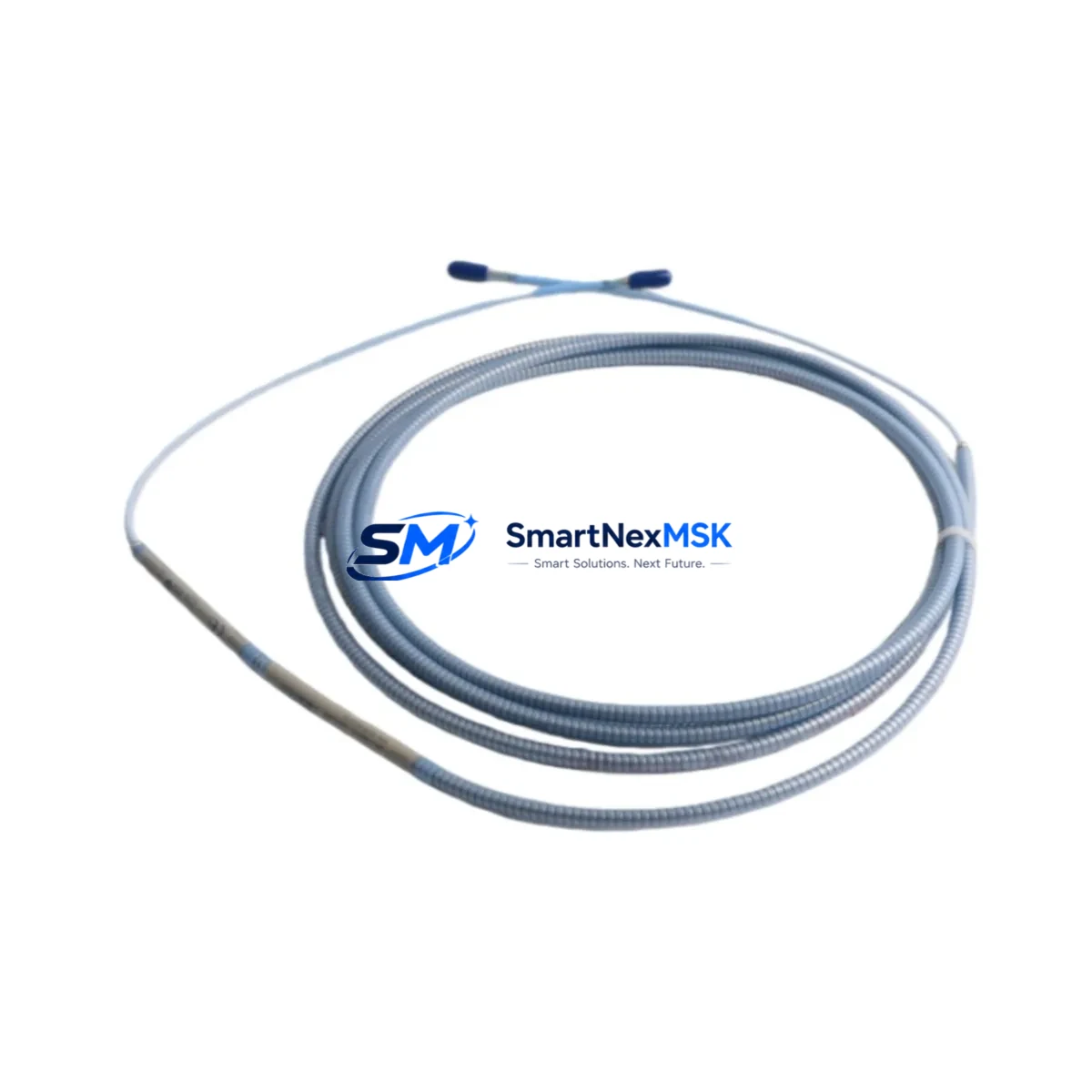

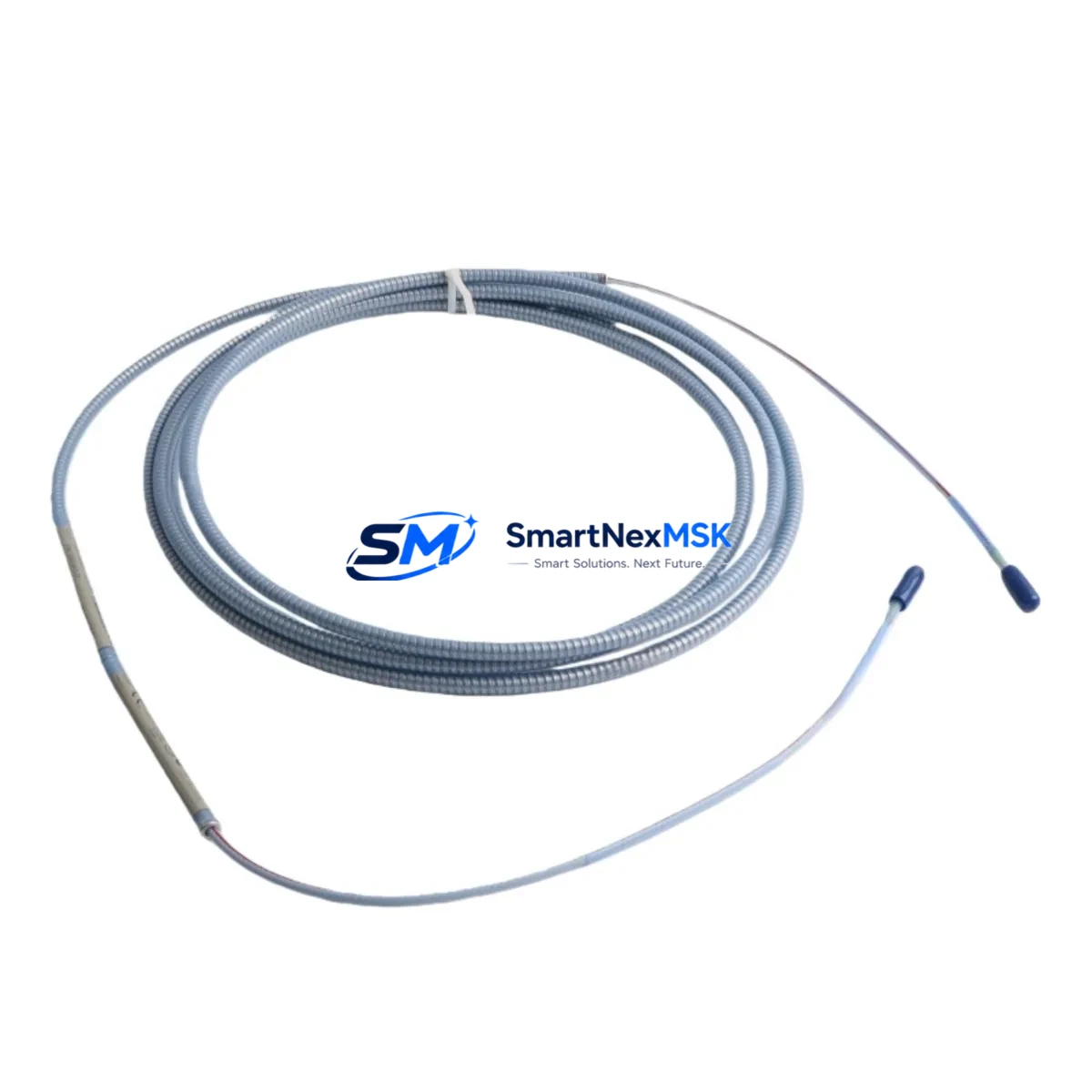

Begin by verifying the matched 3300 XL Proximitor/Driver (such as the 330180-X1-05 or 330130-040-00-00 series) — the probe and driver must be a matched pair to maintain calibrated sensitivity. Inspect the extension cable assembly (typically 330130 series) for jacket damage, connector corrosion, or impedance drift caused by mechanical abrasion near rotating machinery. A degraded extension cable is a common root cause of false vibration alarms even after probe replacement.

Check the 3300 XL monitor card installed in the rack — cards such as the 3300/16 or 3300/20 series should be inspected for relay output integrity, OK LED status, and alarm setpoint configuration. If the monitor card has been in service for more than 10 years, consider scheduling a parallel replacement during the same maintenance window. Review the rack power supply module (e.g., 3300/05 Power Supply) for output voltage stability; a drifting -24 VDC rail will affect all proximity channels simultaneously and can be misdiagnosed as multiple probe failures.

Inspect terminal blocks and field wiring within the junction box for loose terminations, moisture ingress, or corrosion — particularly in outdoor or high-humidity installations. Verify the signal isolator or barrier (if installed in hazardous area applications) for correct range and output impedance. For systems integrated with a DCS or safety PLC, confirm that the 4–20 mA or relay output from the monitor card is correctly received at the I/O module and that no channel mapping changes are required after probe replacement.

If the machine is part of a turbine train, also inspect the keyphasor probe assembly (e.g., 330180 series) and its associated driver, as keyphasor signal integrity directly affects phase-referenced vibration analysis. For older installations approaching end-of-life, consider stocking a 3300 XL spare module kit covering the probe, extension cable, proximitor, and monitor card as a complete channel spare — this strategy significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the monitor channel is bypassed or the alarm is inhibited at the DCS/SIS level before disconnecting the probe to avoid spurious trips.

Step 2 — Probe Removal: Unscrew the probe from the bracket, noting the gap distance (typically 1.0–1.5 mm for standard installations). Disconnect the extension cable at the junction box. Inspect the probe tip for mechanical damage or contamination.

Step 3 — Matched Assembly Verification: Confirm the replacement 330191-00-33-90-05 probe is paired with the correct extension cable and proximitor driver. Mismatched assemblies will produce incorrect sensitivity and invalidate calibration.

Step 4 — Installation and Gap Setting: Install the new probe into the bracket. Set the air gap to the specified value using a non-magnetic feeler gauge or by monitoring the DC bias voltage output (target: -10 VDC ± 0.5 VDC at nominal gap). Secure the locknut to the specified torque.

Step 5 — Signal Verification: Restore power to the proximitor. Verify OK status on the 3300 XL monitor card. Confirm vibration readings are within expected baseline range before releasing the bypass. Document the replacement in the maintenance management system (CMMS).

This workflow supports direct replacement of legacy probe models including the 330101, 330104, and 330105 series where physical and electrical compatibility has been confirmed, enabling system life extension without full rack replacement.

Spare Parts Support FAQ

Q1: Is the 330191-00-33-90-05 compatible with older 3300 Series monitors, not just 3300 XL?
The 330191-00-33-90-05 is optimized for the 3300 XL platform. Compatibility with earlier 3300 Series monitors depends on the specific monitor card and proximitor driver in use. We recommend confirming the matched driver part number before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What is included in the 12-month warranty?
Each 330191-00-33-90-05 unit is pre-shipment tested for electrical continuity, bias voltage output, and physical integrity. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, mismatched assemblies, or mechanical impact.

Q3: How quickly can this spare be dispatched for emergency maintenance?
In-stock units are typically dispatched within 1–2 business days. Express international shipping options are available for critical breakdown situations. Contact sales@smartnexmsk.com or call +86 18259474341 to confirm stock availability and arrange priority dispatch.

Q4: Should I stock this probe as a long-term spare for my 3300 XL system?
Yes. For any facility operating rotating machinery monitored by the 3300 XL platform, maintaining at least one matched spare channel assembly — probe, extension cable, and proximitor — is strongly recommended. Proximity probes are wear items subject to mechanical damage, contamination, and cable fatigue. A pre-stocked, tested spare eliminates procurement lead time during unplanned outages and supports your planned maintenance intervals.
