Bently Nevada 330192-00-28-05-00 Spare 3300 XL NSv: Precision Spare Parts for Industrial Downtime Control

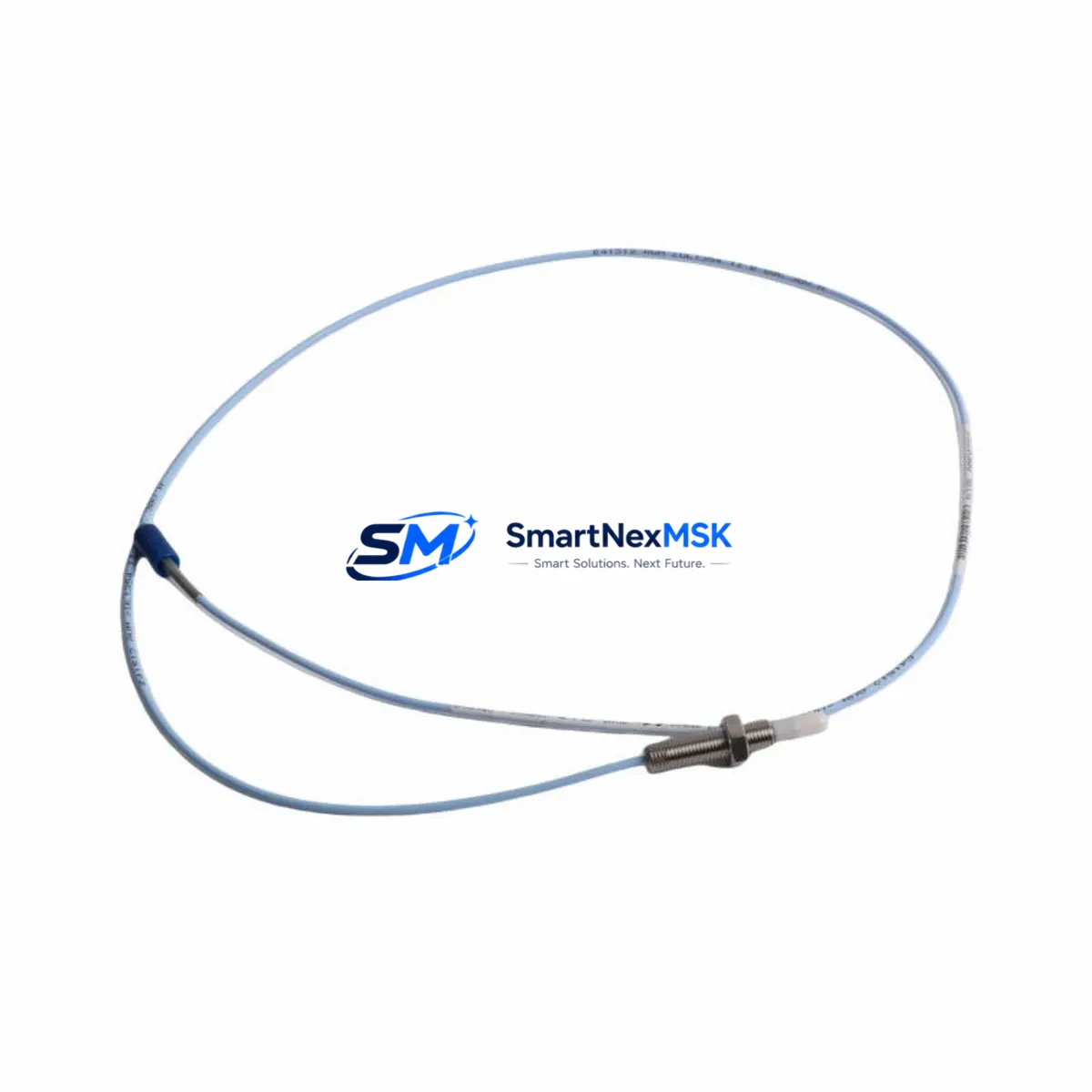

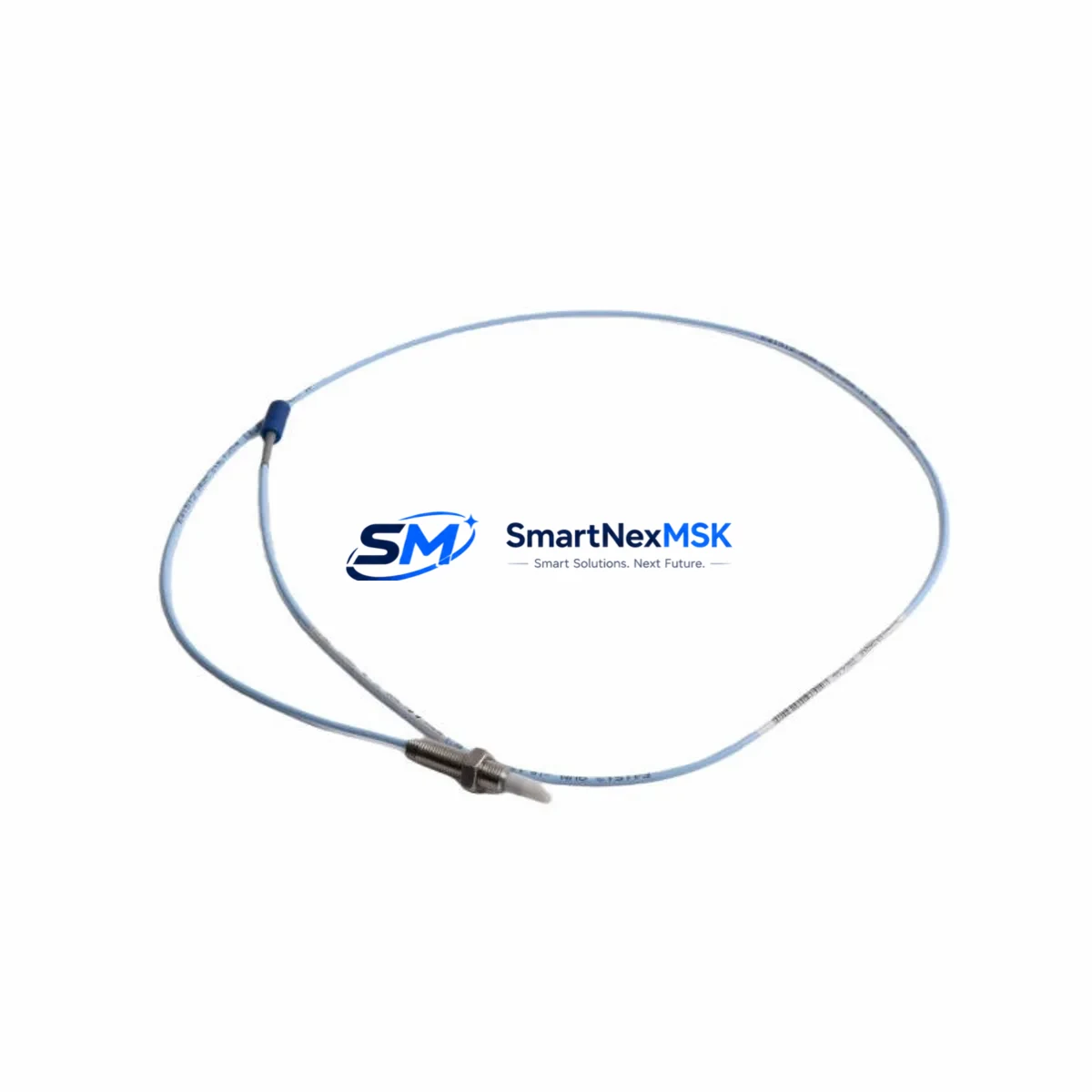

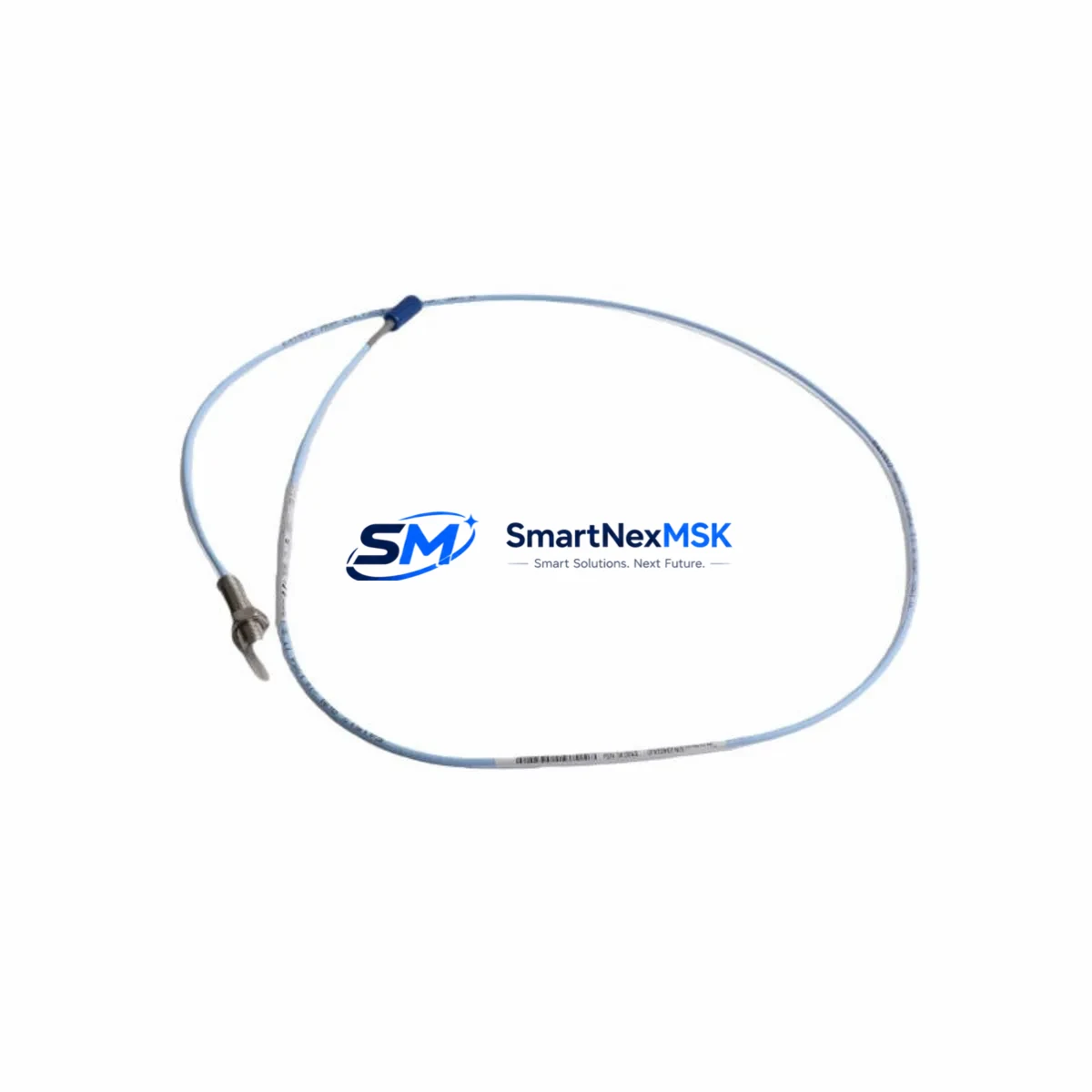

The Bently Nevada 330192-00-28-05-00 is an original eddy-current proximity transducer engineered for the 3300 XL NSv series vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and generators — this transducer is a critical front-line sensor responsible for shaft displacement measurement, radial vibration monitoring, and thrust position detection. When this component fails or degrades, the entire machinery protection loop is compromised, creating immediate risk of undetected mechanical faults and unplanned downtime.

Sourced directly from verified supply channels, this unit is tested prior to shipment and backed by a 12-month warranty. Whether you are executing a planned turnaround, responding to an emergency shutdown, or building a strategic spare parts inventory, the 330192-00-28-05-00 is available for fast dispatch to minimize your mean time to repair (MTTR).

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330192-00-28-05-00 in the field, maintenance engineers should treat this as a system-level intervention rather than a single-component swap. The 3300 XL NSv proximity measurement chain consists of three interdependent elements: the transducer probe, the extension cable (such as the 330130 series), and the Proximitor® sensor driver (such as the 3300 XL NSv 330180 series). Replacing only the probe without inspecting the extension cable for shield continuity, connector corrosion, or jacket damage will leave latent failure modes in the loop.

During the same maintenance window, technicians should verify the condition of the 3300 XL monitor rack itself — specifically the I/O module termination boards and the power supply module feeding the monitoring rack. A degraded rack power supply can introduce noise into transducer output signals, causing false vibration alarms or masking real shaft movement. The 3300 XL series rack power supplies and I/O termination assemblies are commonly stocked alongside transducer spares in well-managed rotating equipment programs.

For facilities running integrated machinery protection systems, the 330192-00-28-05-00 replacement should also trigger a review of adjacent monitoring channels. Keyphasor® transducers (such as the 330980 series) mounted on the same shaft train provide the phase reference signal used by the 3300 XL system for vector analysis. If the Keyphasor® transducer or its dedicated Proximitor® driver is aging, this is the right moment to inspect or replace it as part of the same outage.

Control cabinet inspections during this replacement should include terminal block integrity checks, cable tray routing for signal cable separation from power cables, and verification of grounding continuity on the transducer shield drain wire. Signal isolation barriers or Zener barriers used in hazardous area installations should also be tested for proper clamping voltage and leakage current. Relay output modules connected to the 3300 XL monitor — used for alarm and trip actuation — should be exercised to confirm contact integrity before the machine is returned to service.

For older systems where the 3300 XL NSv series is approaching end-of-support, procurement engineers should consider building a minimum 2-year forward stock of matched transducer and Proximitor® sets. This is particularly important for facilities where the monitoring system cannot be easily upgraded without a major capital project. Long-term supply agreements for the 330192-00-28-05-00 and its associated extension cables ensure that aging machinery protection systems remain operational without forcing premature platform migrations.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the monitoring channel at the 3300 XL rack. Do not de-energize the entire rack unless required — most 3300 XL systems support hot-swap of individual monitor modules, but transducer replacement at the machine requires local isolation.

Step 2 — Gap Measurement Baseline: Before removing the old transducer, record the existing gap voltage using a calibrated voltmeter at the Proximitor® output terminals. This baseline confirms whether the original transducer was still within calibration or had drifted — useful data for root cause analysis.

Step 3 — Probe Removal and Inspection: Remove the 330192-00-28-05-00 probe from the mounting bracket. Inspect the probe tip for mechanical damage, shaft contact marks, or contamination. Inspect the probe body threads and locknut for corrosion. Clean the mounting bore and verify concentricity.

Step 4 — New Probe Installation: Install the replacement 330192-00-28-05-00 and set the gap to the manufacturer-specified nominal gap (typically 1.0 mm / 40 mils for standard steel targets, verify against system documentation). Torque the locknut to specification.

Step 5 — Cable Reconnection and Verification: Reconnect the extension cable. Verify connector seating and locking ring engagement. Measure output voltage at the Proximitor® to confirm the new gap setting matches the calibration curve.

Step 6 — System Functional Test: With the machine at rest, verify that the 3300 XL monitor displays correct gap, that alarm and trip setpoints are active, and that the channel is not in bypass. Document the as-left gap voltage and return the channel to normal monitoring mode.

Step 7 — Return to Service: Remove the work permit, confirm with the control room that the channel is healthy, and update the maintenance management system (CMMS) with the replacement record, new serial number, and as-left gap value.

Spare Parts Support FAQ

Q1: Is the 330192-00-28-05-00 compatible with all 3300 XL monitors?
The 330192-00-28-05-00 is designed for the 3300 XL NSv (Non-Standard Voltage) Proximitor® system. It is not interchangeable with standard-voltage 3300 XL transducers without verifying the Proximitor® driver model. Always confirm the Proximitor® part number on your rack before ordering. If you are unsure, contact our technical team with your monitor model number for compatibility confirmation.

Q2: What is included in the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment for output linearity and gap response. The warranty period begins from the date of shipment. Warranty claims require return of the defective unit for inspection. Physical damage caused by installation errors, shaft contact, or improper gap setting is not covered.

Q3: Can this transducer be used as a direct replacement for an older 330192 variant?
The 330192 series uses a structured part number where cable length and connector type are encoded in the suffix. The -00-28-05-00 suffix specifies a 28-foot cable with a 5-pin connector. If your existing installation uses a different cable length or connector variant, you must order the matching suffix. Cross-referencing the full part number against your as-built drawings before ordering is strongly recommended.

Q4: What is your typical lead time and do you maintain stock?
We maintain forward stock of the 330192-00-28-05-00 to support emergency replacement requirements. Standard orders ship within 1–3 business days after order confirmation. For facilities with planned turnarounds, we recommend placing orders 4–6 weeks in advance to allow for pre-shipment testing documentation and export compliance review where applicable. Long-term blanket order arrangements are available for high-volume maintenance programs.

—
