Bently Nevada 330193-00-08-10-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

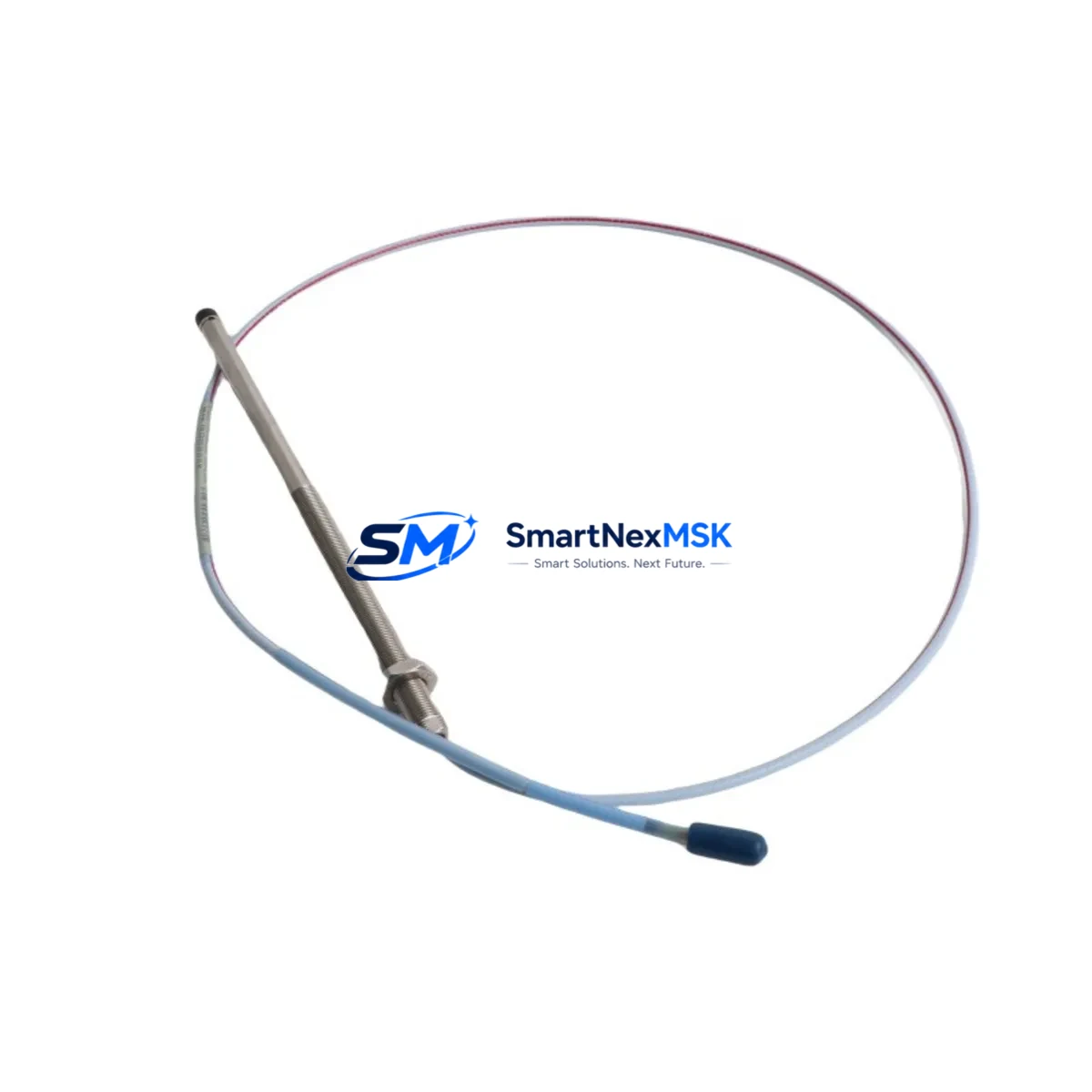

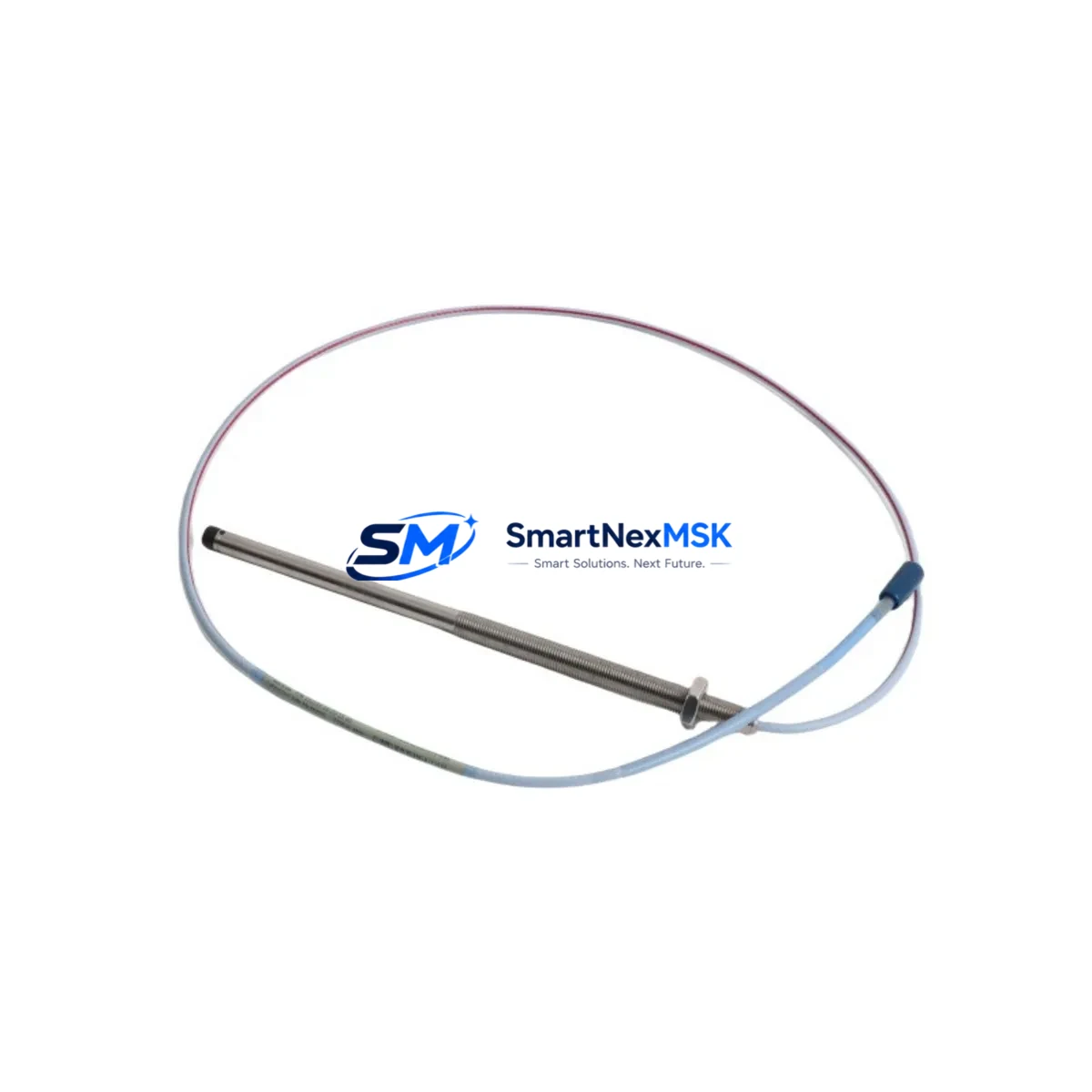

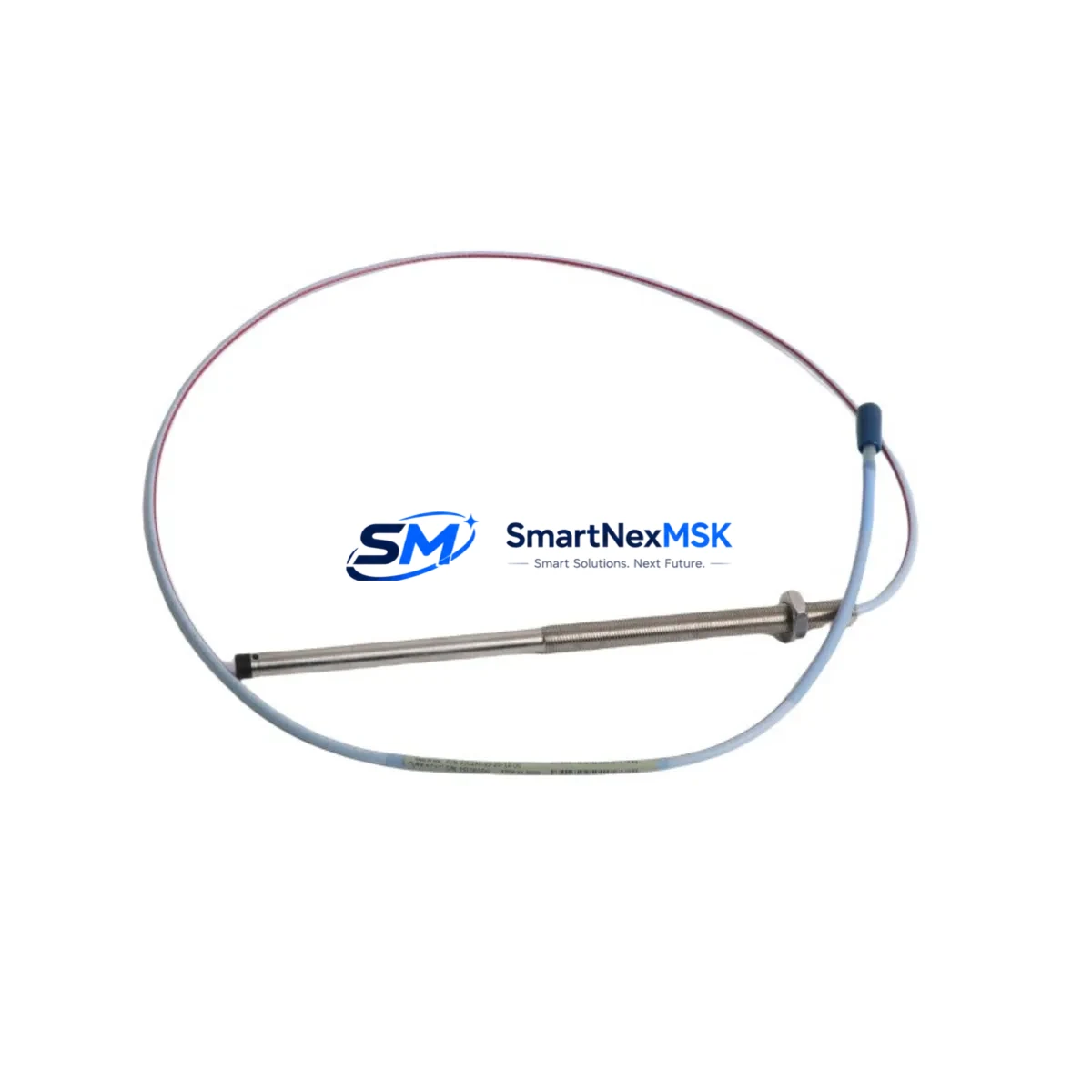

The Bently Nevada 330193-00-08-10-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Extended Temperature Range (ETR) monitoring platform. As legacy vibration monitoring systems reach end-of-life or face discontinued spare-parts availability, this probe serves as a verified retrofit-ready replacement that preserves existing wiring infrastructure, rack geometry, and signal conditioning compatibility. Whether you are upgrading a turbine protection panel, replacing a failed channel in a compressor train, or migrating from an older 3300/5 or 7200 series installation, the 330193-00-08-10-00 delivers a direct-fit solution with minimal engineering rework.
Industrial facilities operating rotating machinery — gas turbines, steam turbines, centrifugal compressors, pumps, and gearboxes — rely on continuous shaft vibration and position monitoring to prevent catastrophic failure. When a proximity probe fails or a monitoring channel becomes unreliable, the pressure to restore protection quickly is intense. The 330193-00-08-10-00 is stocked and tested to support rapid deployment, reducing mean time to repair (MTTR) and protecting production continuity.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330193-00-08-10-00 |
| Brand | Bently Nevada |
| Series Compatibility | 3300 XL ETR (Extended Temperature Range) |
| Probe Diameter | 8mm |
| Cable Length | 1.0 m (extension cable required for full system reach) |
| Tip Clearance Range | 0.25 mm – 2.54 mm (10 – 100 mil) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Driver / Oscillator Compatibility | 3300 XL 8mm Proximitor® Sensor (e.g. 330180 series) |
| Connector Interface | Standard coaxial, compatible with 3300 XL extension cable assemblies |
| Installation Requirement | Verify probe holder thread (M10×1 standard), gap voltage at commissioning |
| Communication / Signal | Analog DC voltage output; integrates with 3500 rack monitors and legacy 3300 monitors |
| Replacement Recommendation | Direct replacement for discontinued 330103 and 330130 series 8mm probes |
| Commissioning Focus | Gap voltage verification (–10 VDC nominal), polarity check, OK relay confirmation |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins well before the probe is physically installed. Engineers planning a 3300 XL channel replacement must first audit the existing Proximitor® sensor — typically a 330180-X1-05 or similar 8mm driver — to confirm it remains within calibration and that its power supply rail (–24 VDC) is stable. The extension cable assembly, often a 330130-080-00-00 or equivalent armored cable, must be inspected for jacket integrity and connector corrosion, as a degraded cable will introduce noise that mimics probe failure even after a new probe is installed.
Within the 3500 monitoring rack, the relevant monitor card — such as the 3500/42M Proximitor®/Seismic Monitor or the 3500/40M Proximitor® Monitor — should have its channel configuration reviewed in the 3500 Rack Configuration Software before the probe swap. Confirm that the transducer type is set to 8mm, the gap voltage setpoint matches the new probe’s nominal output, and that alert and danger setpoints are appropriate for the machine’s bearing clearance. If the installation previously used a 5mm probe on an adapter, the channel configuration and physical probe holder must both be updated.
For facilities still operating legacy 3300/5 or 3300/16 monitors, the 330193-00-08-10-00 remains signal-compatible, but the monitor’s internal scaling must be verified against the probe’s 200 mV/mil sensitivity. In some cases, a firmware update to the monitor or a reconfiguration of the 3300 XL I/O module is required to accept the ETR probe’s extended temperature output characteristics. Coordinate with your DCS or safety system integrator if the vibration channel feeds a Triconex or Ovation safety instrumented system, as the analog input card scaling may also need adjustment.
When the control cabinet houses multiple monitoring channels — for example, a four-bearing turbine train with both radial vibration and axial position probes — it is efficient to audit all channels simultaneously. Companion probes such as the 330103-00-08-10-00 (standard temperature 8mm) or the 330500-02-00 thrust position probe may be due for replacement on the same maintenance window. Replacing the full probe set during a planned outage eliminates the risk of a second unplanned shutdown within the same maintenance cycle.
Wiring documentation is critical. Each probe’s home-run cable must be traced from the field junction box back to the monitor rack terminal block. Confirm that the 3500 rack I/O module terminal assignments match the as-built drawings, and that the shield drain wire is grounded at one end only (typically at the monitor rack) to prevent ground loops. If the installation uses a 3300 XL junction box with a barrier terminal strip, verify that the barrier’s impedance does not attenuate the probe signal below the monitor’s input threshold.
Downtime Control During System Migration
Minimizing downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, download and archive the current 3500 rack configuration using the 3500 Rack Configuration Software. This backup preserves all channel setpoints, transducer types, OK limits, and communication settings, and can be reloaded immediately if the new probe installation reveals an unexpected configuration conflict.
During the outage window, follow a parallel-verification approach: install the 330193-00-08-10-00, connect the extension cable, and power the Proximitor® sensor before the machine shaft begins to rotate. Measure the static gap voltage with a calibrated digital multimeter at the monitor rack terminal. A reading of –10 VDC ± 1 VDC confirms correct probe-to-target gap and a healthy signal chain. If the OK relay on the 3500/42M or 3500/40M monitor does not assert within 30 seconds of powering the channel, recheck the gap, cable continuity, and Proximitor® sensor supply voltage before assuming probe defect.
For facilities where the vibration channel feeds a hardwired trip relay or a safety PLC, coordinate with the control room to place the affected channel in bypass mode before disconnecting the old probe. This prevents a spurious trip signal from propagating to the emergency shutdown system during the swap. Once the new probe is gapped and the OK relay is confirmed, remove the bypass and verify that the channel’s live vibration reading is consistent with adjacent channels and historical baseline data. Document the as-left gap voltage and vibration amplitude in the maintenance management system before returning the machine to service.
If the retrofit is part of a broader migration from a legacy 3300 monitor to a modern 3500 rack, plan for a parallel-run period where both systems monitor the same shaft simultaneously. This allows engineers to validate that the new rack’s alert and danger setpoints are correctly scaled before the old system is decommissioned, protecting program logic continuity and HMI display accuracy throughout the transition.
Retrofit Support FAQ
Q1: Is the 330193-00-08-10-00 a direct replacement for the 330103-00-08-10-00?
Yes. The 330193-00-08-10-00 (ETR, Extended Temperature Range) is the current-production successor to the 330103-00-08-10-00 (standard temperature). Both are 8mm probes with 200 mV/mil sensitivity and are mechanically and electrically interchangeable in 3300 XL and 3500 series installations. The ETR variant operates reliably across a wider ambient temperature range, making it the preferred choice for high-temperature turbine environments.
Q2: What commissioning steps are required after installation?
After physical installation, measure the static gap voltage at the monitor rack terminal (target: –10 VDC ± 1 VDC). Confirm the OK relay asserts on the monitor card. Verify that the live vibration reading is within expected baseline range for the machine at rest or at operating speed. Record the as-left gap voltage in the maintenance log. If the channel feeds a safety system, confirm bypass removal and trip relay restoration with the control room before returning to service.
Q3: Can this probe be used with non-Bently Nevada monitor cards?
The 330193-00-08-10-00 is designed for use with Bently Nevada Proximitor® sensors (330180 series). It can interface with third-party monitor cards that accept a –24 VDC-powered eddy-current probe signal at 200 mV/mil sensitivity, but compatibility must be verified against the third-party card’s input specifications. Signal conditioning differences may require scaling adjustments in the monitor configuration.
Q4: What does the 12-month warranty cover?
All units are functionally tested prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the probe’s specified temperature and gap range. Warranty claims are supported with return merchandise authorization (RMA) and replacement shipment within standard lead times.
