Bently Nevada 330193-10-17-10-00 3300 XL ETR Spare

Bently Nevada 330193-10-17-10-00 3300 XL ETR Spare: Proximity Probe Replacement for Industrial Downtime Control

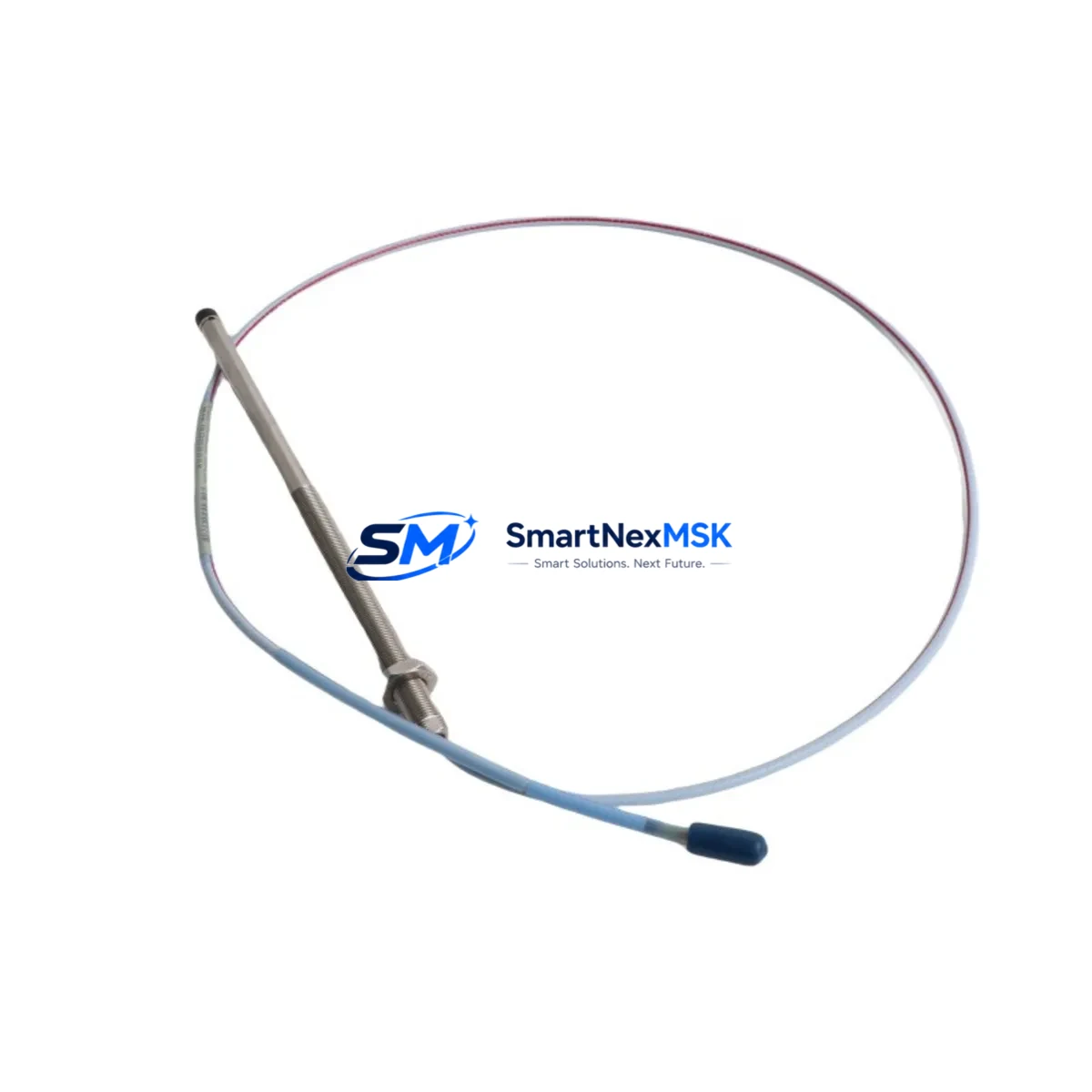

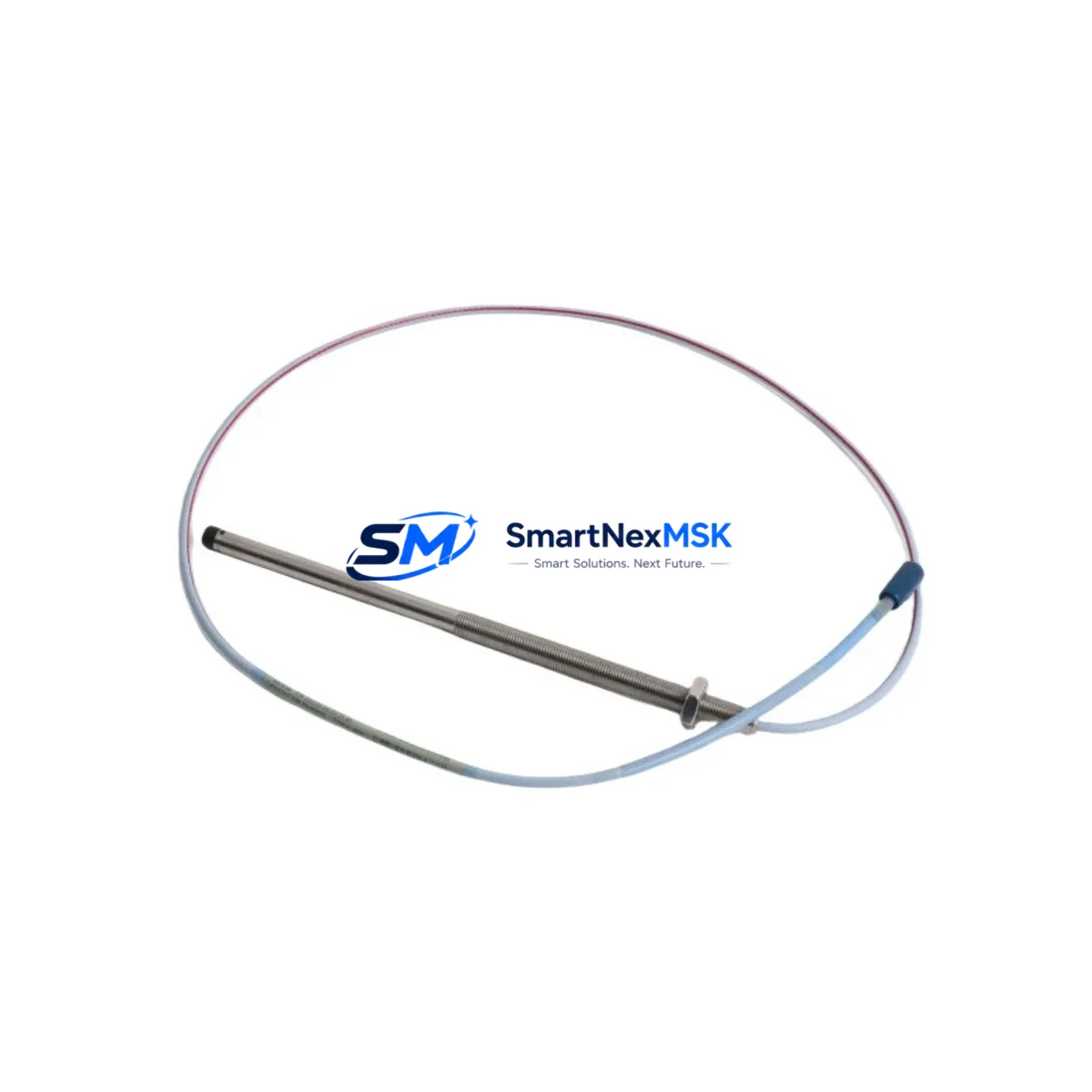

The Bently Nevada 330193-10-17-10-00 is an original proximity probe engineered for the 3300 XL Extended Temperature Range (ETR) vibration monitoring system. In rotating machinery protection applications — turbines, compressors, pumps, and generators — this probe is a critical sensing element responsible for continuous shaft displacement measurement. When this component fails or degrades, the entire vibration monitoring loop is compromised, triggering unplanned shutdowns and exposing rotating assets to undetected mechanical faults. Maintaining a verified spare of the 330193-10-17-10-00 in your parts inventory is a fundamental requirement for any maintenance strategy targeting high-availability operations.

This listing supplies the 330193-10-17-10-00 as a maintenance-ready original spare, fully tested prior to shipment, backed by a 12-month warranty, and available for rapid dispatch to minimize your mean time to repair (MTTR). Each unit is verified against Bently Nevada 3300 XL ETR system specifications before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330193-10-17-10-00 in the field is rarely an isolated task. Maintenance engineers and procurement teams working on 3300 XL ETR systems should treat this probe replacement as an opportunity to inspect and verify the entire vibration monitoring loop. The 3300 XL proximitor / extension cable assembly (typically a 330130 or 330180 series extension cable) connects the probe to the monitor and should be inspected for insulation damage, connector corrosion, and continuity before reinstalling a new probe — a degraded cable will cause erratic gap voltage readings even with a new probe installed.

The 3300 XL monitor module itself (such as the 3300/16 or 3300/20 series) should be checked for correct channel configuration, alert and danger setpoints, and OK relay status. If the monitor has been in service for more than five years without recalibration, this replacement event is an appropriate trigger for a full channel verification. Similarly, the 3300 XL power supply module supplying the monitor rack should be load-tested; a sagging supply rail is a common root cause of false OK dropouts that are misdiagnosed as probe failures.

For systems where the 330193-10-17-10-00 is used in axial position or differential expansion measurement, the associated thrust position monitor channel and its trip multiplier relay should be verified in parallel. Procurement engineers building a comprehensive spare parts kit for a 3300 XL ETR installation should also stock the 330180-51-05 extension cable, a spare 3300/55 keyphasor module if the machine train uses phase reference, and at minimum one spare 3300/16 dual-channel vibration monitor card to cover both probe channels on a single bearing plane.

In control cabinet inspections, verify that the terminal strip and field wiring connecting the proximitor output to the monitor input are free of ground loops and that cable shields are terminated at one end only per Bently Nevada wiring guidelines. For older installations, the junction box housing the probe-to-extension cable connection should be inspected for moisture ingress, which is a leading cause of premature probe failure in outdoor or high-humidity environments. Where the 3300 XL system interfaces with a DCS or safety system via 4–20 mA output modules or relay output cards, confirm that the analog output scaling and relay trip logic remain correctly configured after any monitor card replacement.

Site Replacement Workflow

When replacing the 330193-10-17-10-00 on-site, begin by placing the affected monitor channel in bypass mode at the DCS or safety system to prevent a spurious trip during the swap. Remove the existing probe carefully, noting the installed gap (typically measured in volts DC at the proximitor output, with the standard Bently Nevada target gap of –10 VDC ± 1 V for most 3300 XL configurations). Install the new 330193-10-17-10-00, set the gap per the OEM procedure using a calibrated gap-setting tool, and verify the output voltage before releasing the channel from bypass.

This workflow is directly compatible with legacy 3300 series installations where the 330193-10-17-10-00 replaces older 330100 or 330105 series probes, provided the extension cable and proximitor are also updated to ETR-rated components. The ETR designation ensures reliable operation in ambient temperatures from –50°C to +177°C at the probe tip, making this part the correct choice for high-temperature turbine bearing housings where standard-range probes would drift or fail prematurely. Maintaining two spare probes per machine train — one for immediate replacement and one as a secondary buffer — is the recommended inventory posture for critical rotating equipment.

Spare Parts Support FAQ

Q1: Is the 330193-10-17-10-00 compatible with non-ETR 3300 XL monitors?
Yes. The 330193-10-17-10-00 is electrically compatible with the full 3300 XL monitor family. The ETR designation refers to the probe’s extended operating temperature range, not a different signal standard. It can be used as a direct replacement in standard-temperature installations as well, providing additional thermal margin at no functional penalty.

Q2: How is each unit tested before shipment?
Every 330193-10-17-10-00 we supply is bench-tested for coil resistance, insulation integrity, and output linearity against a reference target before dispatch. Units that do not meet Bently Nevada OEM specifications are rejected. A test report is available upon request for critical applications.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover physical damage from improper installation or operation outside the specified temperature and gap range. Warranty claims are processed with priority to minimize your downtime.

Q4: Can you support long-term or blanket purchase orders for ongoing spare parts programs?
Yes. We support scheduled delivery agreements, blanket POs, and consignment stock arrangements for maintenance teams managing multiple 3300 XL ETR installations. Contact our team to discuss volume pricing, lead time commitments, and documentation packages including material certifications and country-of-origin declarations.
