Bently Nevada 330194-04-20-50-CN Spare 3300 XL ETR: Precision Vibration Monitoring Spare for Industrial Downtime Control

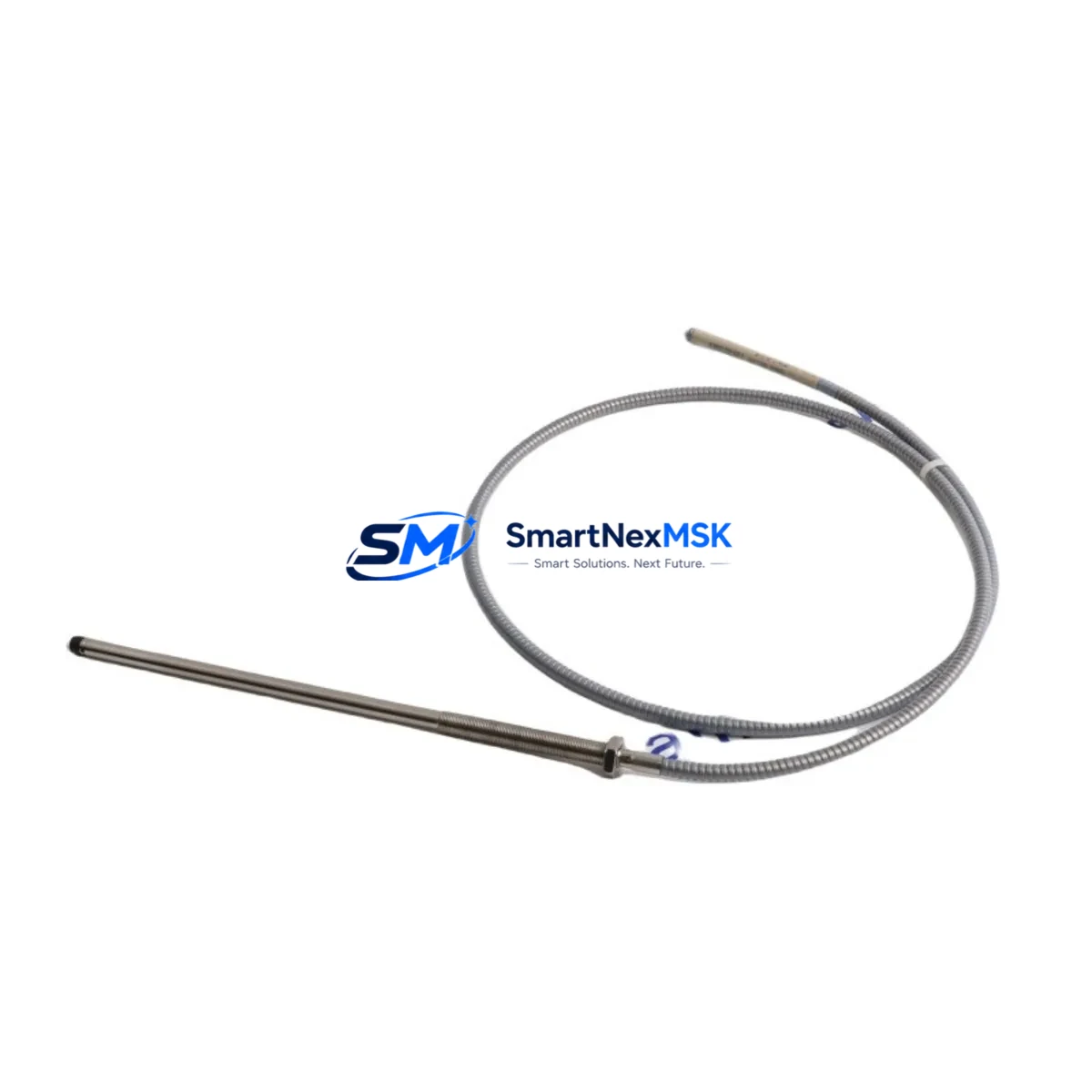

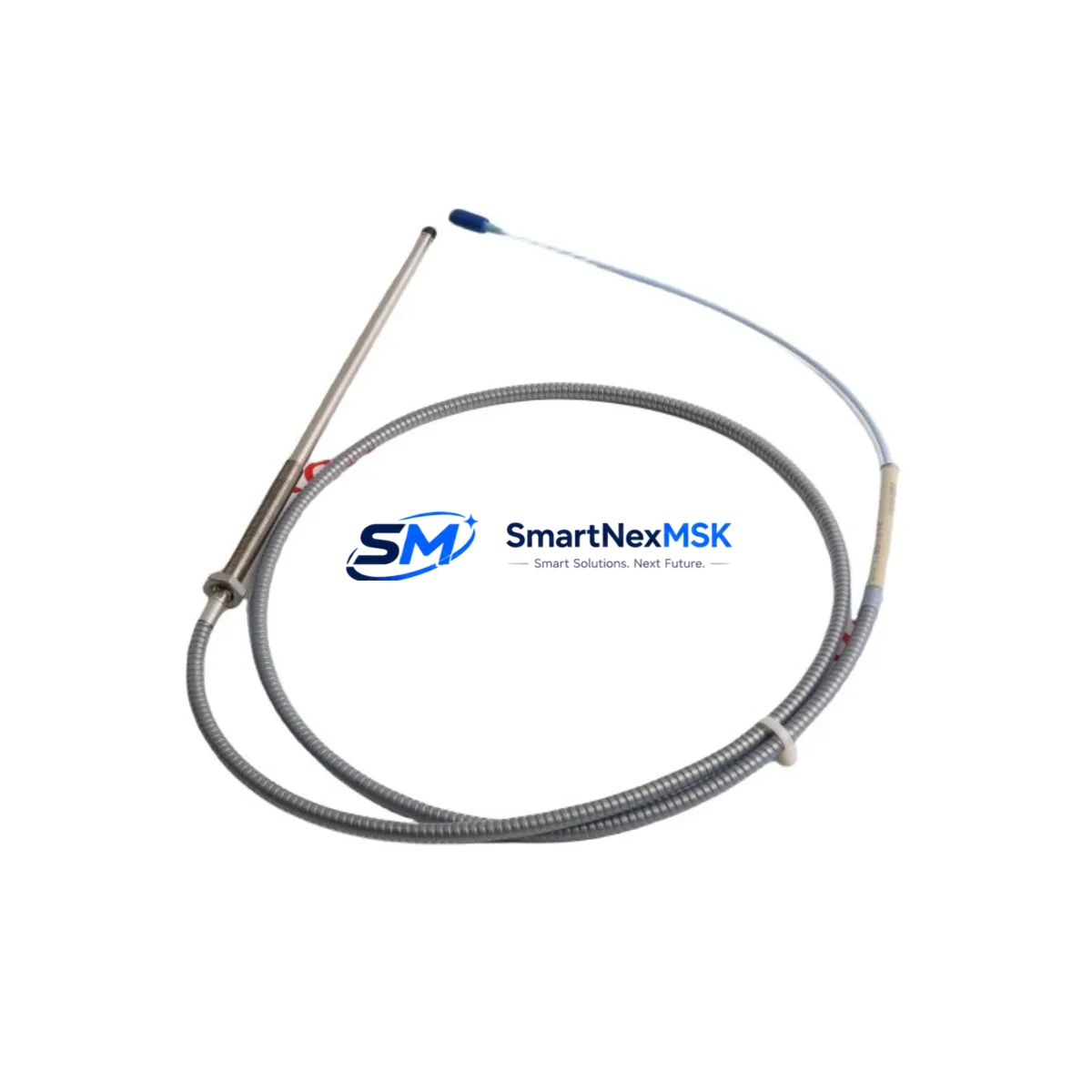

The Bently Nevada 330194-04-20-50-CN is an original ETR (Extended Temperature Range) proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for shaft displacement and radial vibration measurement in rotating machinery — including turbines, compressors, pumps, and motors — this probe is a critical maintenance-ready spare for any facility operating Bently Nevada 3300 XL monitoring infrastructure. With a 20 mm sensing range, 50 cm armored extension cable, and CN connector termination, the 330194-04-20-50-CN delivers reliable eddy-current sensing performance in demanding industrial environments including high-temperature, high-vibration, and chemically aggressive zones.

Maintaining an on-hand stock of this probe eliminates unplanned downtime caused by probe degradation, cable fatigue, or connector failure — three of the most common failure modes in long-running vibration monitoring installations. Each unit shipped by SMARTNEXMSK is tested prior to dispatch and covered by a 12-month warranty, ensuring your maintenance team can install with confidence and your procurement team can plan with certainty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330194-04-20-50-CN proximity probe is flagged for replacement during a scheduled outage or triggered by a high-vibration alarm, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A comprehensive inspection of the full measurement chain is essential to restore system integrity and prevent repeat failures.

Begin with the 3300 XL Proximitor® Sensor (e.g., 330180-X1-05 or 330180-X1-CN) — the signal conditioning module that pairs with this probe. Proximitor output drift or calibration shift is a common co-failure mode when probes are replaced after extended service. Verify the gap voltage and sensitivity (typically -7.87 V/mm) against the system datasheet before returning the loop to service.

Inspect the 330130-080-01-00 extension cable or equivalent armored interconnect between the probe and Proximitor. Cable jacket cracking, connector corrosion, and shield continuity loss are frequent causes of erratic vibration readings that are misdiagnosed as probe failure. Replace the cable assembly if any physical damage or impedance anomaly is detected.

At the rack level, audit the 3500/42M Proximitor®/Seismic Monitor or 3500/40M Proximitor® Monitor input card for alarm setpoint integrity, OK relay status, and channel-to-channel crosstalk. If the facility runs a 3500/20 Rack Interface Module (RIM) for Modbus or Ethernet communication, confirm that the replacement probe’s channel data is correctly mapped and that no latched alarms are masking live readings.

For control cabinet inspections, check the terminal blocks and field wiring connecting the Proximitor output to the DCS or safety system. Loose terminations on Weidmüller or Phoenix Contact terminal strips are a known source of intermittent signal loss. Verify shielding continuity and grounding at the cabinet entry point to eliminate common-mode noise that can corrupt vibration amplitude readings.

If the monitored machine is part of a turbine protection loop, coordinate with the safety instrumentation team to verify that the 3500/33 16-Channel Relay Module or equivalent trip relay output is functioning correctly after probe replacement. A probe swap without relay verification leaves the protection system in an unvalidated state.

For facilities managing aging 3300 XL installations alongside newer 3500 Series racks, consider stocking both 330194-series probes and their 3500-compatible equivalents to support mixed-generation monitoring architectures. SMARTNEXMSK maintains long-term supply of both series to support legacy system life extension programs.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement probe SKU (330194-04-20-50-CN) matches the installed probe’s sensing range, cable length, and connector type. Cross-reference the machine’s vibration monitoring datasheet and the existing Proximitor calibration record.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Notify the control room to acknowledge the channel before disconnecting the probe. This prevents nuisance trips on the 3500/33 relay module during the swap.

Step 3 — Physical Replacement: Remove the old probe using the correct torque specification (typically 20–25 Nm for M10 probe bodies). Install the new 330194-04-20-50-CN, set the gap to the machine-specific target (commonly 1.0–1.5 mm / 40–60 mil), and verify gap voltage at the Proximitor OK terminal.

Step 4 — Signal Verification: With the machine at rest, confirm the Proximitor output is within the linear range. Compare the static gap voltage against the calibration curve. Document the as-found and as-left gap values in the maintenance management system (CMMS).

Step 5 — Return to Service: Clear the channel alarm in the 3500 rack, restore the relay to the armed state, and confirm the DCS historian is receiving valid vibration data. Retain the replaced probe for failure analysis if the root cause of the original fault is undetermined.

This workflow minimizes mean time to repair (MTTR), maintains system compatibility, and ensures the protection loop is fully validated before the machine returns to load.

Spare Parts Support FAQ

Q1: Is the 330194-04-20-50-CN compatible with both 3300 XL and 3500 Series monitoring systems?
The 330194-04-20-50-CN is natively designed for the 3300 XL 8mm Proximity System and pairs directly with 3300 XL Proximitor® Sensors. It can be used with 3500 Series monitors when the appropriate Proximitor interface is installed. Always verify the system’s probe compatibility matrix before installation in a 3500 rack.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every 330194-04-20-50-CN shipped by SMARTNEXMSK undergoes electrical continuity, insulation resistance, and output linearity verification prior to dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or full refund, subject to failure analysis.

Q3: How should this probe be stored as a long-term spare?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH). Avoid coiling the extension cable tightly or compressing the probe tip. Inspect connector pins for oxidation annually. Properly stored, the probe maintains full specification for 5+ years as a shelf spare.

Q4: Can SMARTNEXMSK supply other 330194-series variants and related 3300 XL components?
Yes. SMARTNEXMSK maintains stock of multiple 330194-series configurations (varying cable lengths, connector types, and temperature ratings) as well as related 3300 XL Proximitor® Sensors, extension cables, and 3500 Series monitor cards. Contact our team for availability and lead times on specific variants or bulk spare packages.
