Bently Nevada 330194-10-24-50-CN Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330194-10-24-50-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

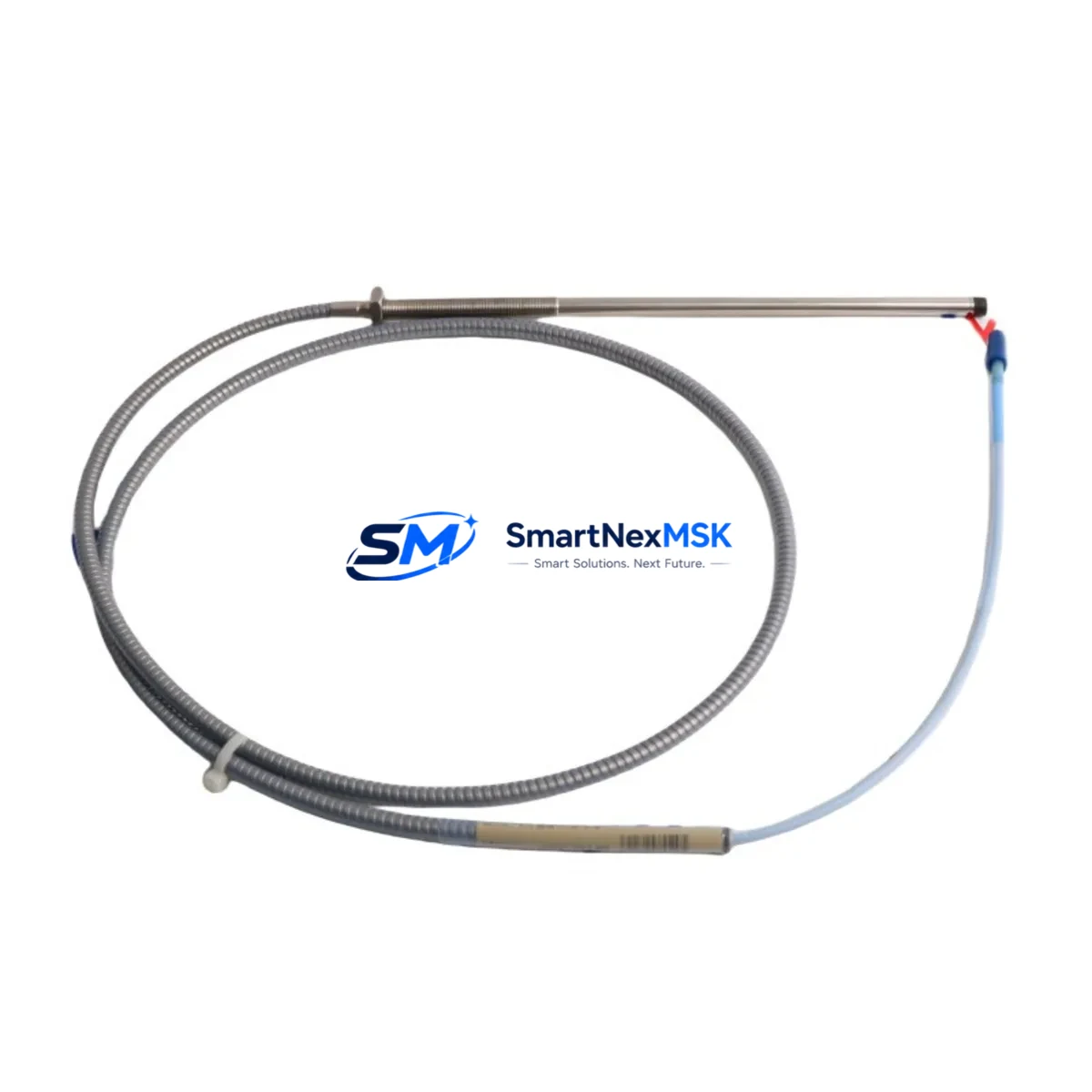

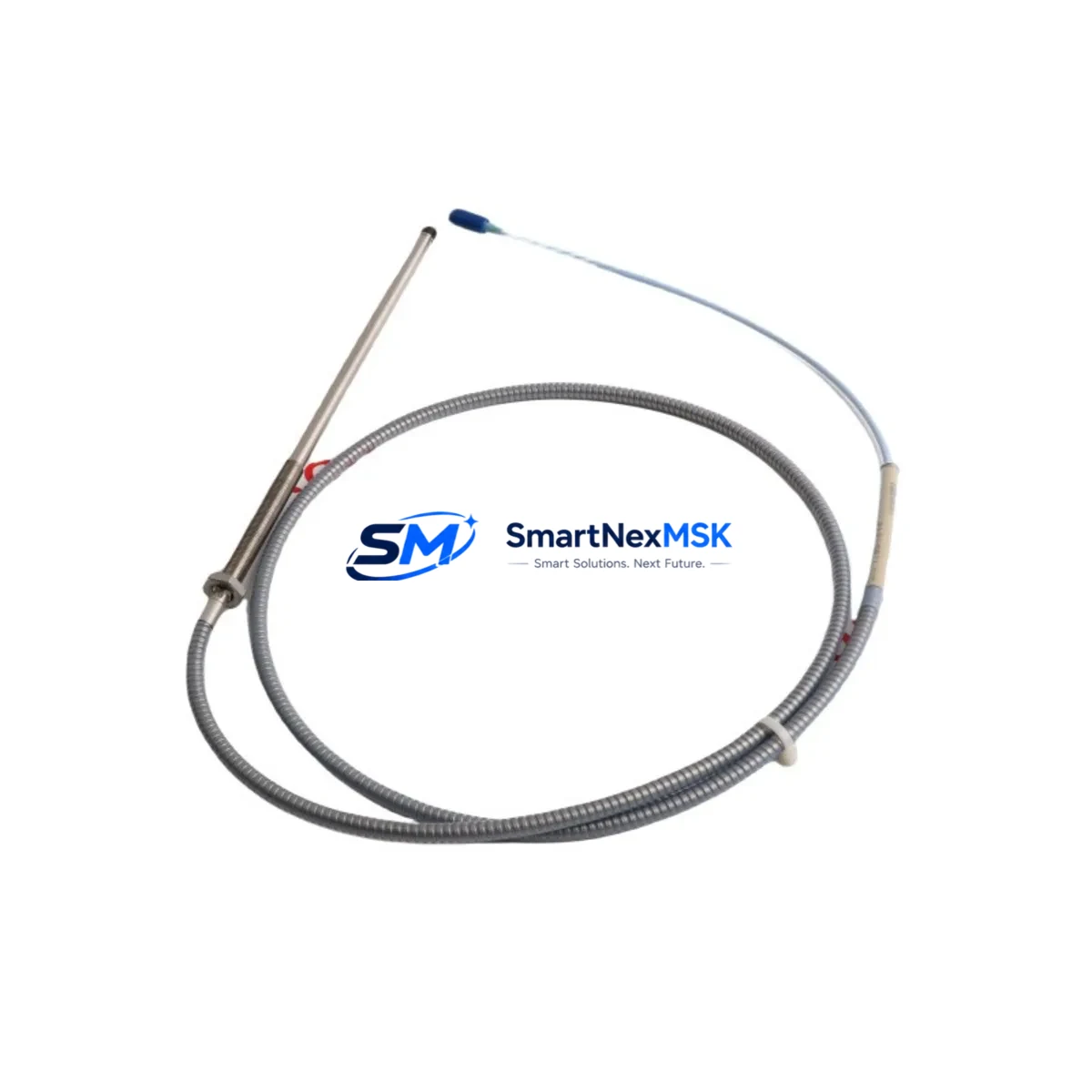

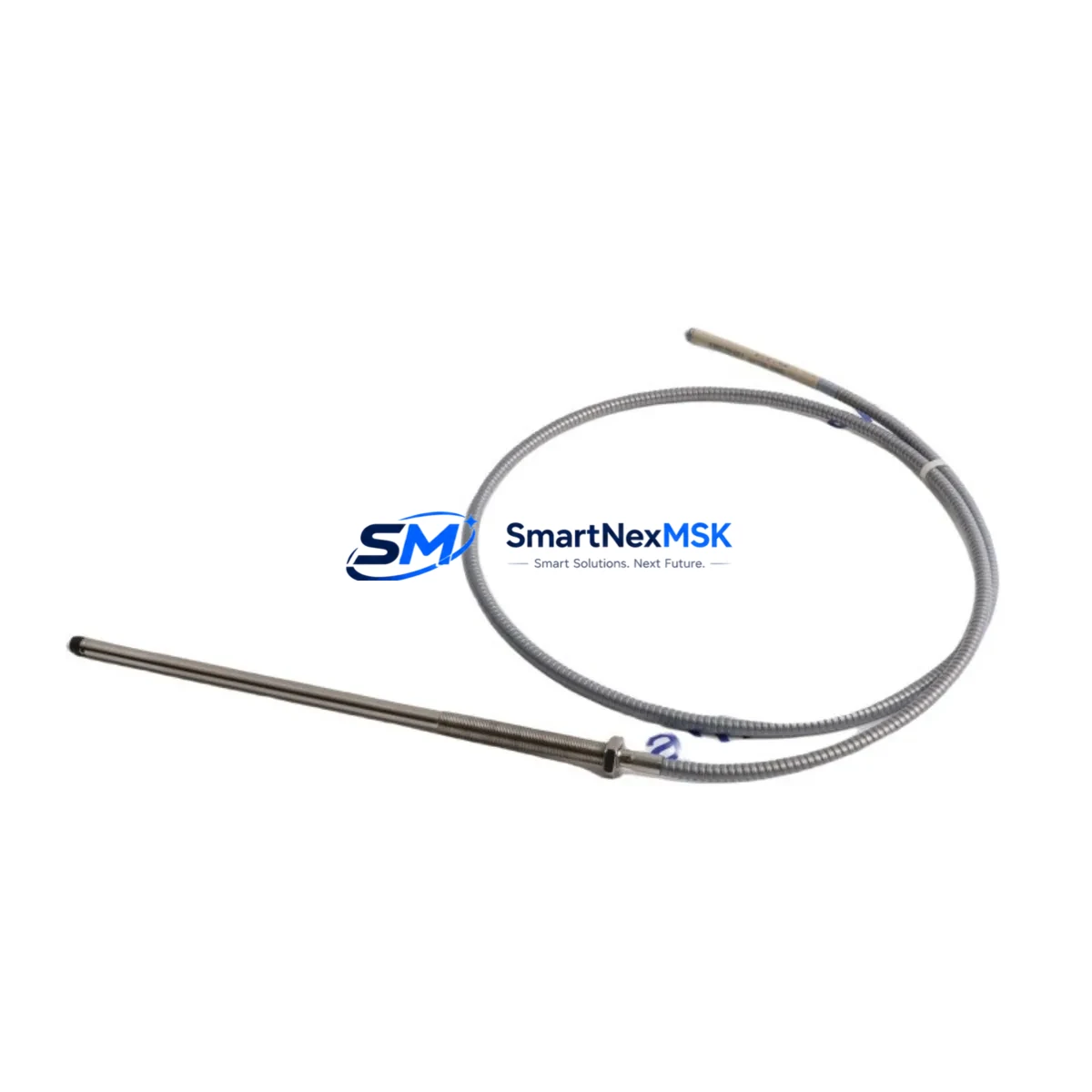

The Bently Nevada 330194-10-24-50-CN is a 10mm Eddy Current proximity probe engineered for the 3300 XL series machinery protection platform. With a 24-inch (610 mm) integral cable and CN-style connector, this probe is a direct retrofit replacement for aging or discontinued units in continuous monitoring systems across turbines, compressors, pumps, and rotating machinery installations. Whether you are executing a planned upgrade, recovering from an unplanned failure, or modernizing a legacy vibration monitoring rack, the 330194-10-24-50-CN delivers verified compatibility with the 3300 XL signal conditioning chain without requiring firmware changes or re-engineering of the monitoring loop.

This probe operates within the standard Bently Nevada proximity system architecture, pairing directly with the 330130-080-00-00 or 330130-040-00-00 extension cables and the 330180-X1-05 proximitor/driver to form a complete transducer system. The output signal is fully compatible with the 3300/16 XL and 3300/20 XL monitor cards installed in standard 3300 XL racks, ensuring that existing alarm setpoints, gap voltage calibration, and vibration scale factors remain valid after swap-out.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330194-10-24-50-CN in a live plant environment requires careful pre-work to avoid introducing new faults during the changeover. Begin by documenting the existing gap voltage reading on the 3300/16 XL or 3300/20 XL monitor card before removing the old probe. This baseline reading, typically between −9.5 VDC and −10.5 VDC at the nominal air gap, serves as your acceptance criterion after the new probe is installed and the machine is returned to operating clearance.

Inspect the 330130-080-00-00 extension cable for insulation damage, connector corrosion, or shield continuity issues before reuse. A degraded extension cable is a common source of erratic gap voltage readings that can be misattributed to the probe itself. If the extension cable is more than five years old or shows any sign of mechanical stress at the junction with the proximitor housing, replace it concurrently with the probe to avoid a repeat outage.

At the 330180-X1-05 proximitor/driver, verify that the driver is within its calibrated range for the 10mm probe system. The proximitor output should be checked against the published calibration curve before the machine is restarted. If the proximitor has accumulated significant operating hours or shows drift on the gap voltage output, this is an appropriate time to replace it as part of a planned system refresh rather than waiting for a field failure.

For installations where the 3300 XL rack also houses 3300/55 XL thrust position monitors or 3300/46 XL temperature monitors, confirm that the rack power supply — typically a 3300/05 or 3300/10 power supply module — has sufficient headroom to support the transducer system after the swap. Overloaded rack power supplies are a silent failure mode that can cause intermittent monitor resets during high-load periods.

If the plant DCS receives vibration data from the 3300 XL system via a System 1 data acquisition gateway or a Modbus/TCP interface card, verify that the channel tag mapping and engineering unit scaling remain consistent after the probe replacement. A mismatch between the new probe’s scale factor and the DCS historian tag configuration can produce false trend data that misleads maintenance planning for months after the retrofit.

For facilities migrating from older 7200 Series proximity systems to the 3300 XL platform, the 330194-10-24-50-CN is a key component in the transducer upgrade path. The 7200 Series used a different connector standard and a slightly different scale factor, so a full transducer system replacement — probe, extension cable, and proximitor — is required rather than a probe-only swap. Ensure that the 3300 XL monitor card channel configuration is updated to reflect the new scale factor before the machine is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging all replacement components before the maintenance window opens. Have the 330194-10-24-50-CN probe, the extension cable, and a spare 330180-X1-05 proximitor on the bench and functionally tested before the machine is taken offline. A bench test using a calibrated target block and a portable gap voltage meter takes less than 15 minutes and eliminates the risk of discovering a defective replacement component after the machine is already shut down.

During the swap, do not remove the monitor card from the 3300 XL rack unless it is also being replaced. The monitor card retains its configuration — alarm setpoints, danger setpoints, time delays, and relay assignments — in non-volatile memory. Removing and reinserting the card unnecessarily introduces the risk of a configuration loss if the card’s memory is marginal. Instead, inhibit the channel at the monitor card front panel before disconnecting the transducer system, perform the swap, reconnect, and then verify gap voltage before releasing the inhibit.

If the plant operates under a safety instrumented system (SIS) that receives a hardwired trip signal from the 3300 XL monitor, coordinate with the SIS engineer to place the relevant SIS input in bypass mode for the duration of the probe replacement. Document the bypass start and end times in the management of change (MOC) record. Restoring the SIS input from bypass should only occur after the gap voltage has been verified and the monitor channel has been confirmed healthy.

For multi-channel installations where the machine has both radial vibration probes (X and Y planes) and a keyphasor probe — such as a 330180-91-00 keyphasor proximitor — replace one channel at a time and verify each channel before proceeding to the next. This approach preserves at least partial monitoring coverage throughout the maintenance window and allows the machine to be restarted on reduced monitoring if a schedule constraint requires it.

All units are pre-shipment tested and supplied with a 12-month warranty covering manufacturing defects. In-stock units are available for same-week dispatch to minimize the gap between order placement and machine return-to-service.

Retrofit Support FAQ

Q: Is the 330194-10-24-50-CN a direct drop-in replacement for the original Bently Nevada probe in my 3300 XL system?
A: Yes. The 330194-10-24-50-CN is manufactured to the same dimensional and electrical specification as the original. It uses the same CN connector, the same 10mm tip geometry, and the same scale factor, so no changes to the monitor card configuration are required. Verify gap voltage at installation to confirm correct probe positioning.

Q: What checks should I perform before energizing the system after the probe swap?
A: Confirm the gap voltage reading at the 3300 XL monitor card is within the acceptable range (typically −9.5 to −10.5 VDC at nominal air gap). Check that the extension cable shield is continuous and that the CN connector is fully seated at both the probe and the proximitor. Verify that the monitor channel is not in inhibit mode before releasing the channel to normal operation.

Q: Can I reuse the existing 330130-080-00-00 extension cable and 330180-X1-05 proximitor?
A: In most cases, yes — provided the extension cable and proximitor are in good condition and within their calibration interval. Inspect the cable for insulation damage and verify the proximitor output against the calibration curve. If either component shows signs of degradation, replace them concurrently to avoid a repeat outage.

Q: What does the 12-month warranty cover, and how is it supported?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes a pre-shipment functional test. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. Replacement units are dispatched promptly to minimize impact on plant availability.
