Bently Nevada 330194-13-20-10-00 Spare for 3300 XL ETR

Bently Nevada 330194-13-20-10-00 Spare for 3300 XL ETR: Precision Replacement for Vibration Monitoring Systems

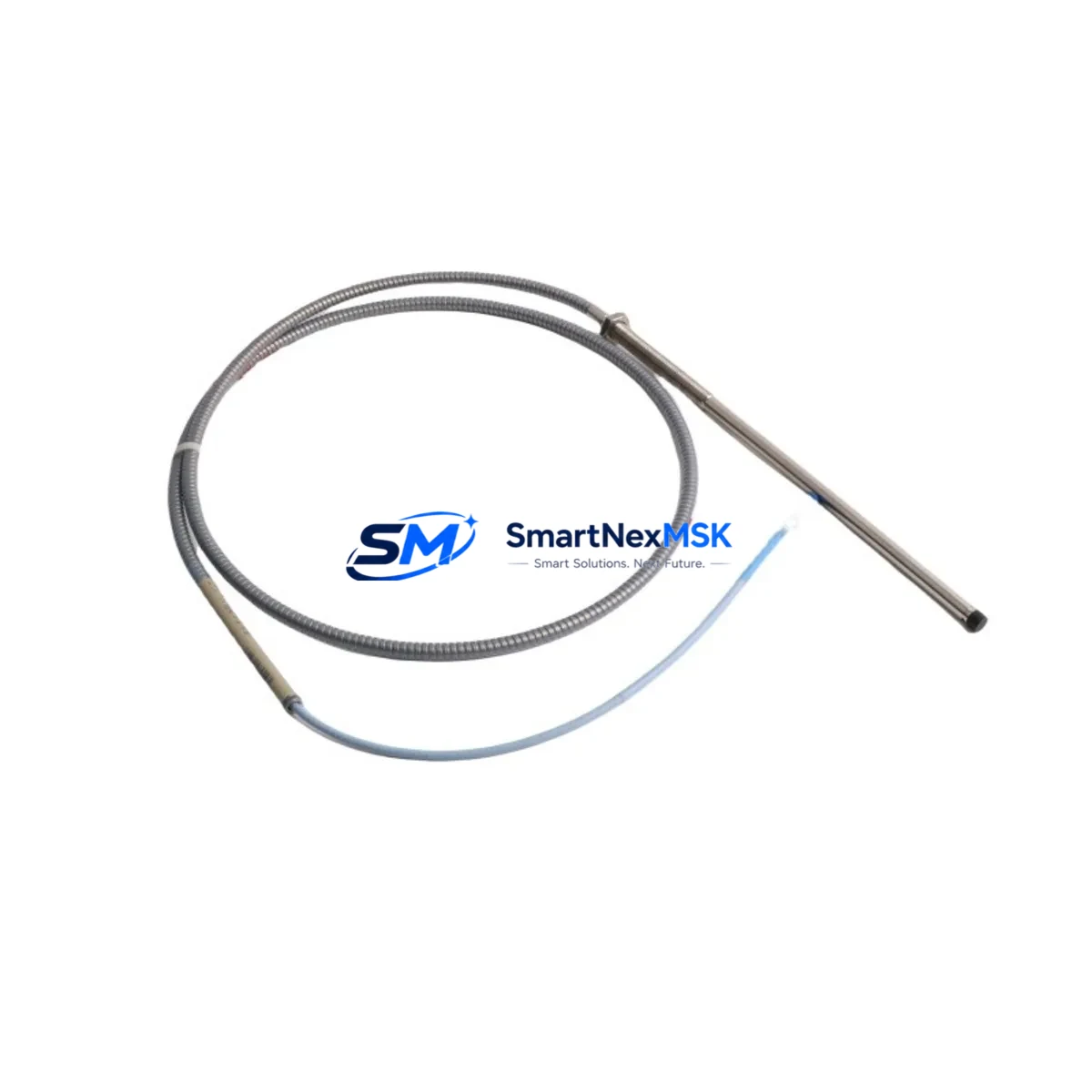

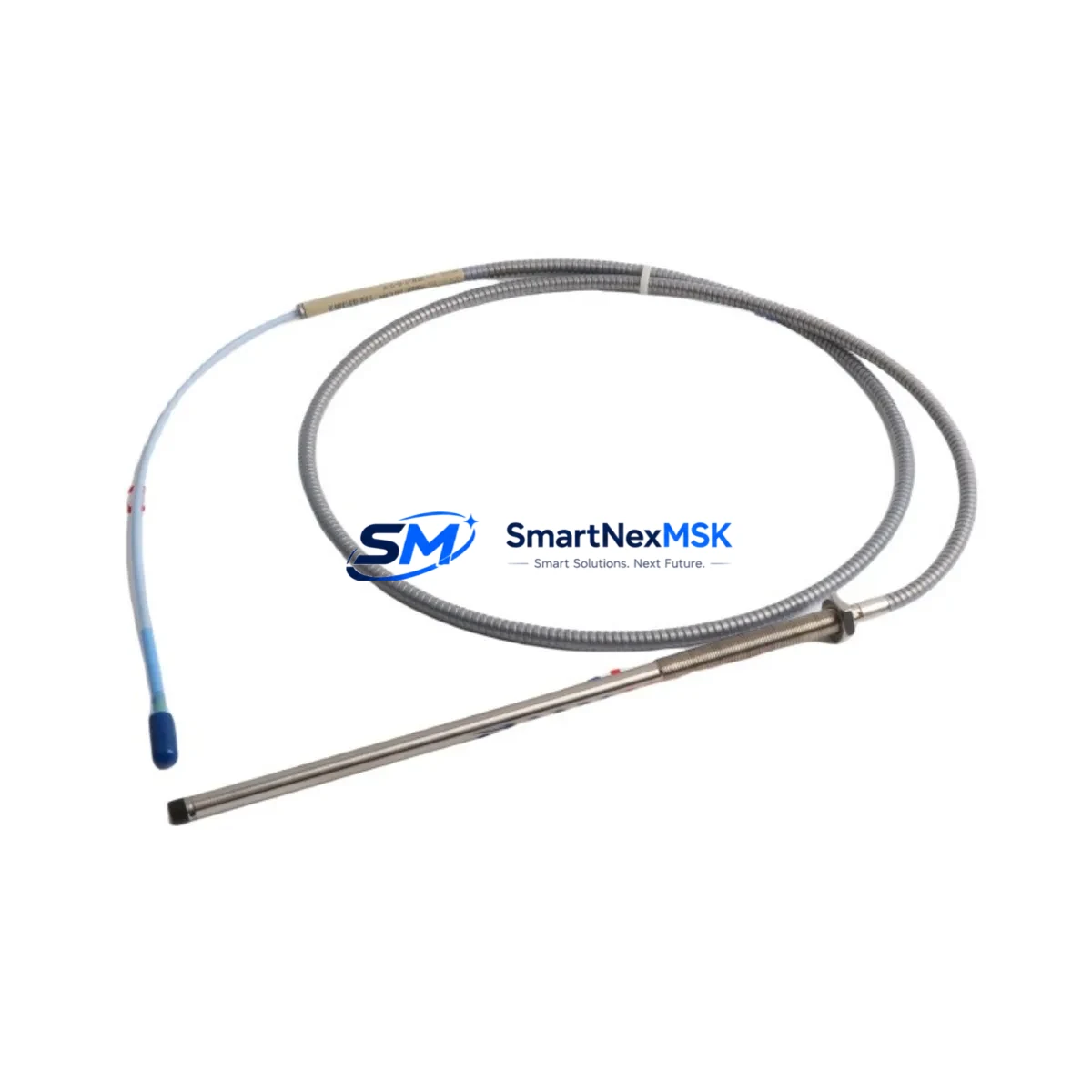

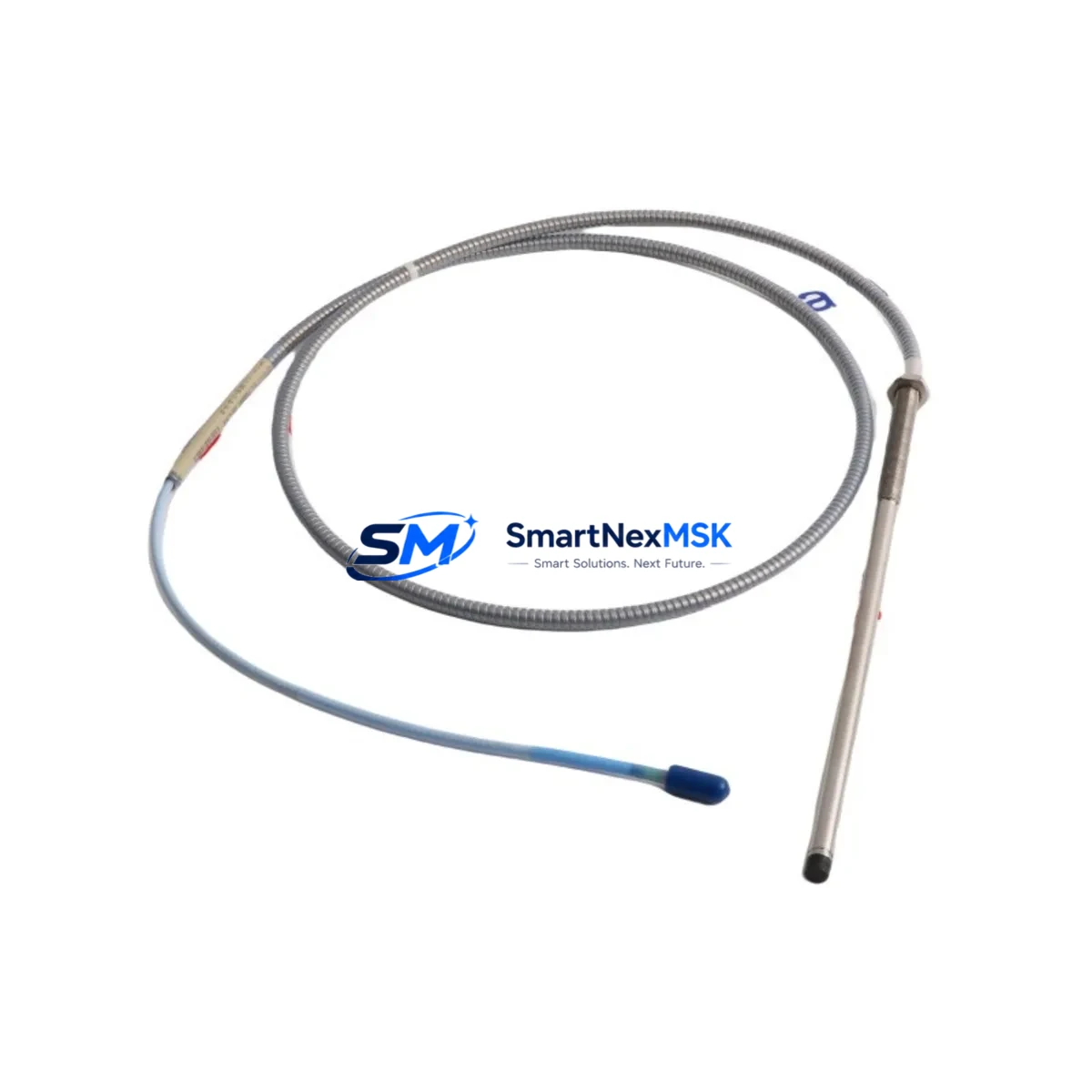

The Bently Nevada 330194-13-20-10-00 is an original proximity probe designed for continuous shaft vibration and position monitoring within the 3300 XL Extended Temperature Range (ETR) machinery protection system. For maintenance engineers managing rotating equipment — turbines, compressors, pumps, and gearboxes — this probe is a critical field-replaceable unit. Unplanned downtime caused by a failed proximity probe can cascade into full train shutdowns, making rapid access to a verified spare essential for any serious maintenance program.

This unit ships tested and verified, with full dimensional and electrical conformance to Bently Nevada OEM specifications. Each unit undergoes pre-shipment functional checks covering output voltage linearity, gap sensitivity, and cable integrity. A 12-month warranty is included from date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330194-13-20-10-00 proximity probe in the field, a disciplined maintenance engineer will treat the replacement as an opportunity to audit the entire vibration monitoring loop — not just the probe tip. The 3300 XL ETR system is an integrated measurement chain, and a degraded component anywhere in the loop can produce false readings or missed trips even after a new probe is installed.

Begin by inspecting the 3300 XL 8mm Proximitor Sensor (the signal conditioner paired with this probe). Check the output voltage at the nominal gap (typically –10 VDC ±0.2 V) and verify the gap voltage is within the linear range. If the Proximitor shows drift or erratic output, replace it alongside the probe to avoid a repeat callout.

Next, examine the 330130 extension cable connecting the probe to the Proximitor. ETR-rated cables are specified for high-temperature zones, and any cracking, abrasion, or connector corrosion will introduce noise into the vibration signal. Confirm the cable’s temperature rating matches the installation environment before reinstalling.

At the 3300 XL rack, inspect the 3300/20 Rack Interface Module (RIM) and the 3300/15 Power Supply. A sagging power rail (–24 VDC nominal) will shift the Proximitor’s operating point and produce false vibration readings. Use a calibrated multimeter to verify rail voltage under load before declaring the probe replacement successful.

For systems with 3300/55 Dual Voting or 3300/46 Overspeed Detection modules installed in the same rack, verify that the voting logic and trip setpoints have not been inadvertently altered during the maintenance window. These modules share the rack backplane and can be affected by power interruptions during probe changeout.

If the machine train includes a 3300/25 Keyphasor Module, confirm the Keyphasor gap voltage and phase reference signal are stable after the probe swap. The Keyphasor is essential for synchronous vibration analysis and balancing runs; a misadjusted gap will corrupt all phase-referenced data from the entire monitoring system.

In control cabinets housing Bently Nevada 3500 series racks alongside legacy 3300 XL equipment, also inspect the 3500/22M Transient Data Interface and any signal isolators or barriers (such as MTL or P+F Zener barriers) in the intrinsically safe circuit. These components age independently of the probe and are a common source of unexplained signal degradation in older installations.

Finally, update your spare parts inventory record to reflect the consumed probe and schedule replenishment. Best practice for critical rotating equipment is to maintain a minimum of two proximity probe assemblies (probe + extension cable + Proximitor) per monitored bearing position, ensuring that a second unplanned failure can be addressed without waiting for procurement.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Confirm the monitoring channel is bypassed at the 3300 XL rack to prevent a spurious trip during probe removal.

Step 2 — Gap measurement before removal: Record the existing probe gap voltage (should be –10 VDC ±0.2 V at nominal gap). This baseline confirms whether the old probe had drifted before failure, which informs root-cause analysis.

Step 3 — Probe removal: Unthread the 330194-13-20-10-00 probe from the bearing housing using the correct spanner. Avoid bending the cable at the connector junction. Inspect the probe tip for mechanical damage or target contact marks, which indicate excessive shaft runout or a bearing failure event.

Step 4 — New probe installation: Install the replacement probe to the manufacturer’s specified gap (typically 1.0–1.5 mm for 8mm probes, confirmed against the machine’s original commissioning data). Torque the locknut to specification. Route the extension cable away from heat sources and secure with appropriate clamps.

Step 5 — Functional verification: Restore power to the Proximitor and measure the output voltage. Confirm the gap voltage is within the linear range. Observe the vibration reading on the 3300 XL display or DCS historian for at least 10 minutes at operating speed before removing the bypass.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the new probe serial number, installation gap, and post-installation gap voltage. Update the spare parts inventory system.

This workflow minimizes total downtime to under 2 hours for a trained technician and ensures the replacement is fully documented for regulatory and reliability audits.

Spare Parts Support FAQ

Q: Is the 330194-13-20-10-00 compatible with both 3300 XL and standard 3300 series racks?
A: The 330194-13-20-10-00 is specifically rated for the 3300 XL ETR (Extended Temperature Range) system. It is electrically compatible with standard 3300 XL Proximitor Sensors but should not be substituted in non-ETR applications where the temperature rating is not required, as the ETR cable jacket and connector materials are optimized for high-temperature environments. Always verify the Proximitor model number before installation.

Q: What is the recommended spare parts stocking strategy for this probe?
A: For critical rotating machinery (turbines, compressors, main pumps), maintain a minimum of two complete probe assemblies — probe, extension cable, and Proximitor — per monitored position. For non-critical or standby equipment, one assembly per two monitored positions is acceptable. Probes stored in original packaging in a climate-controlled environment have a shelf life of 5+ years.

Q: How is each unit tested before shipment?
A: Every 330194-13-20-10-00 unit is bench-tested prior to shipment using a calibrated Proximitor and target simulator. Tests include output voltage at nominal gap, linearity across the measurement range, and cable continuity. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q: Can this probe replace older Bently Nevada 330100 or 330105 series probes?
A: The 330194 series uses the same 8mm sensing element and –24 VDC supply as the legacy 330100/330105 probes, making it a functional replacement in most installations. However, the ETR cable jacket and connector are different, so verify that the extension cable and Proximitor in your installation are also 3300 XL ETR rated. If upgrading from a legacy probe, update the commissioning documentation to reflect the new part number and ETR rating.
