Bently Nevada 330195-02-12-05-CN 3300 XL Spare Probe: Spare Replacement & Industrial Downtime Risk Control

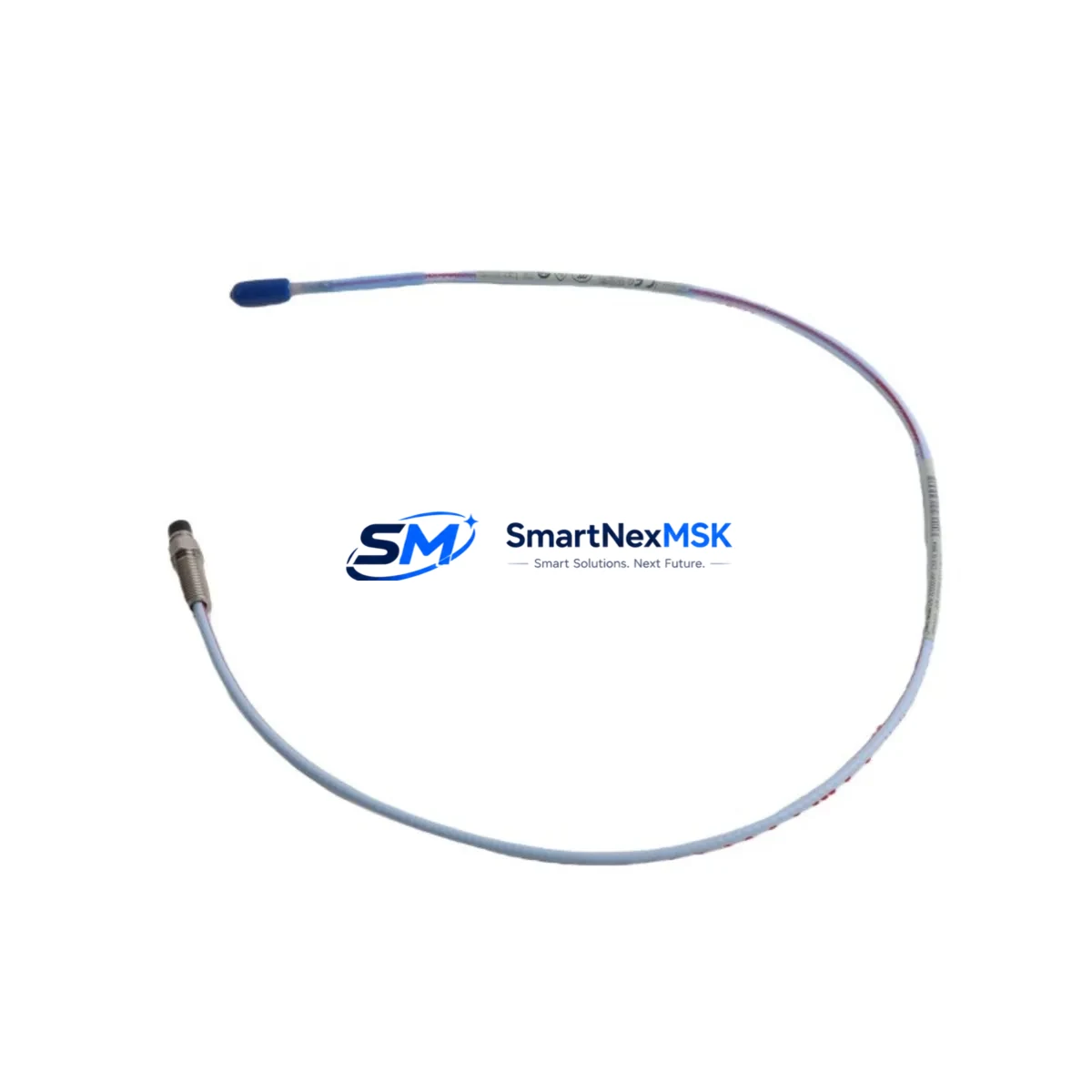

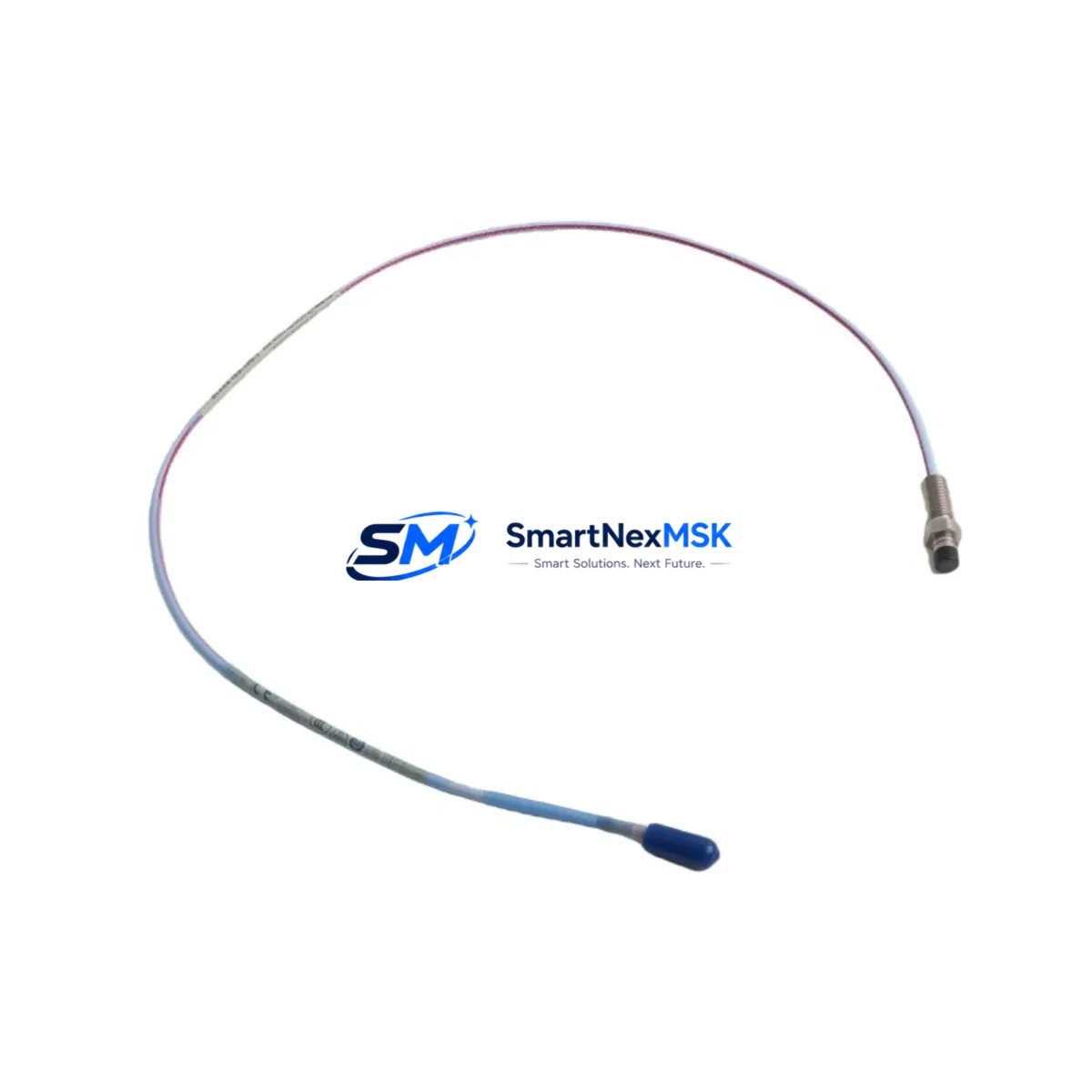

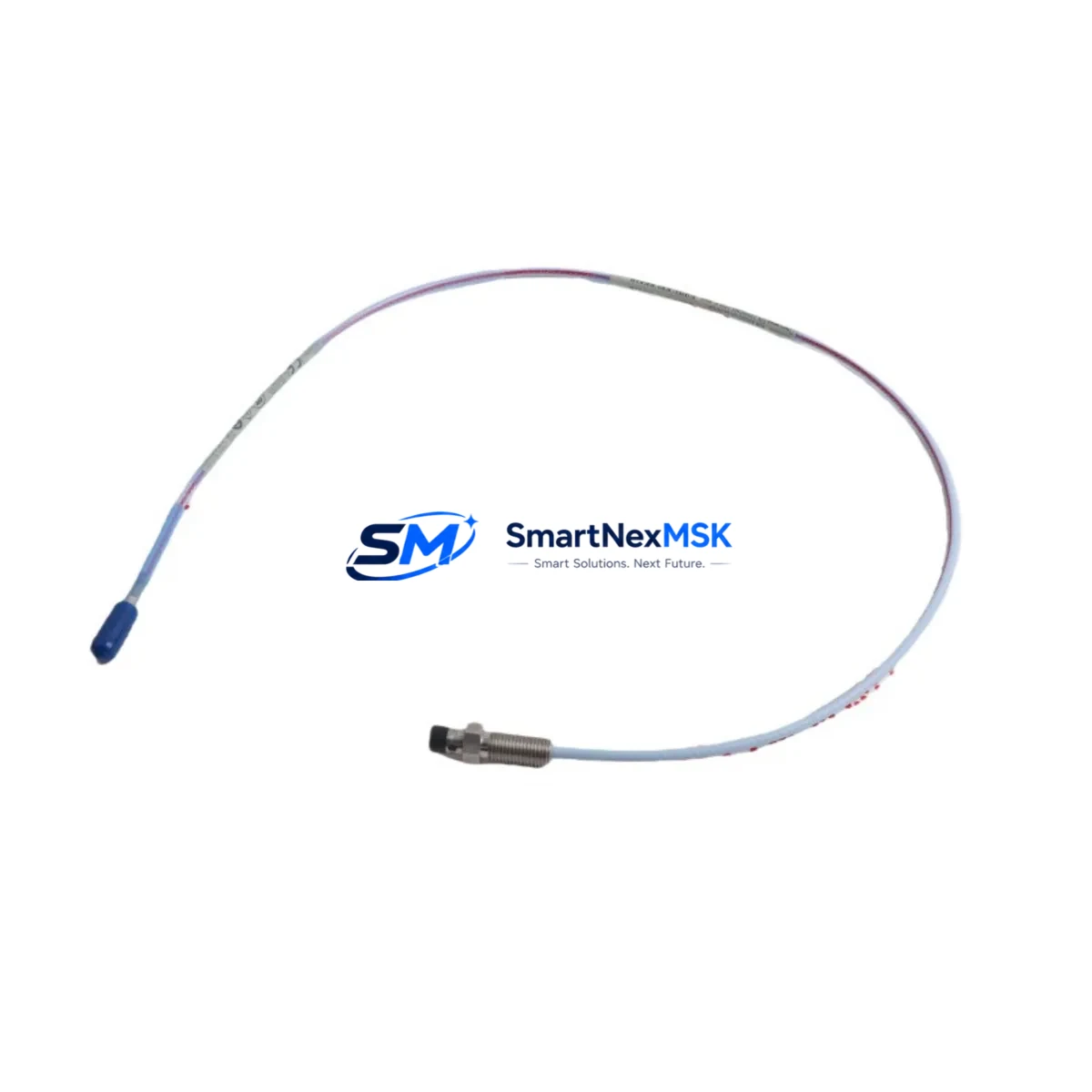

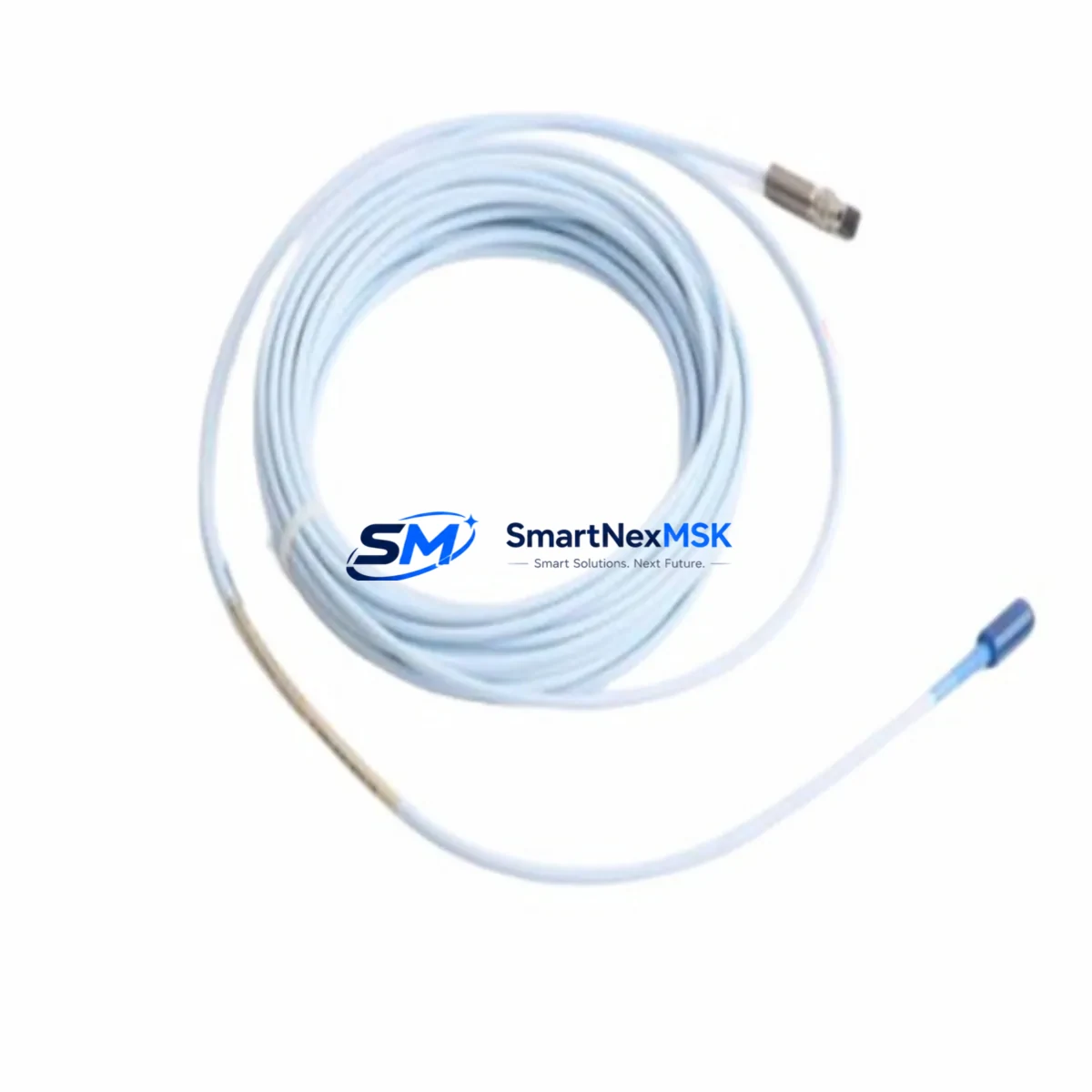

The Bently Nevada 330195-02-12-05-CN is an original eddy current proximity probe engineered for the 3300 XL Proximity Transducer System. Designed for continuous shaft vibration and position monitoring in rotating machinery, this probe is a critical spare component for maintenance engineers managing turbines, compressors, pumps, and other high-availability rotating assets. When a proximity probe fails or degrades, the consequences extend beyond a single sensor — unplanned downtime, missed vibration alarms, and compromised machinery protection system integrity can cascade rapidly across the entire monitoring loop.

Sourced as an original Bently Nevada component, the 330195-02-12-05-CN is fully compatible with the 3300 XL signal conditioning system and integrates directly with existing Proximitor® sensor assemblies without requiring recalibration of the full loop. Maintenance teams operating legacy or mid-life rotating machinery installations rely on this probe as a like-for-like replacement that preserves system accuracy, alarm setpoints, and API 670 compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330195-02-12-05-CN proximity probe, a thorough inspection of the entire vibration monitoring loop is essential to prevent repeat failures and ensure measurement integrity. Maintenance engineers should begin by verifying the condition of the 3300 XL 8mm Proximitor® Sensor (typically model 330180-X1-05), which conditions the probe signal and converts gap voltage to a usable output. A degraded Proximitor can produce erratic readings even with a new probe installed.

The extension cable assembly — commonly the 330130-080-00-CN or equivalent 3300 XL series cable — should be inspected for insulation damage, connector corrosion, and continuity. Eddy current systems are highly sensitive to cable impedance changes; a compromised cable will introduce measurement error that mimics probe failure. Simultaneously, check the terminal block and field wiring at the junction box for loose terminations, moisture ingress, and ground loops that can corrupt the 0–24 VDC gap voltage signal.

At the rack level, inspect the 3500/40M Proximitor® Monitor or equivalent 3500 series I/O module receiving the probe signal. Verify that channel gain, alert, and danger setpoints remain correctly configured after the probe swap. If the installation uses a 3500/20 Rack Interface Module (RIM) for Modbus or Ethernet communication to the DCS or historian, confirm that the communication link is active and that the new probe’s gap voltage falls within the linear range specified for the target material.

For installations where the 330195-02-12-05-CN monitors axial position or differential expansion, cross-check the paired thrust position monitor channel and any associated 4–20 mA signal isolator feeding the DCS analog input card. Signal isolators from the Phoenix Contact MACX or Pepperl+Fuchs KFD series are commonly found in these loops and should be verified for output accuracy. Additionally, inspect the 24 VDC power supply module feeding the Proximitor — power supply ripple or voltage sag can directly affect probe sensitivity and gap voltage linearity.

For planned outage windows, procurement engineers should consider stocking the complete probe-cable-Proximitor assembly as a matched set. Maintaining at least one spare 330195-02-12-05-CN probe, one spare extension cable, and one spare Proximitor sensor per critical machine train reduces mean time to repair (MTTR) significantly and supports a proactive spare parts strategy aligned with API 670 machinery protection best practices.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Coordinate with operations to place the affected machine in a safe state. Isolate the monitor channel at the 3500 rack to prevent spurious alarms or trips during probe removal. Document the existing gap voltage reading before disconnection.

Step 2 — Probe Removal: Disconnect the extension cable at the field junction box. Using the appropriate spanner, carefully unthread the 330195-02-12-05-CN from the probe holder. Inspect the probe tip for physical damage, target surface condition, and any signs of oil contamination or fretting.

Step 3 — New Probe Installation: Install the replacement 330195-02-12-05-CN, setting the probe gap to the manufacturer-specified linear range (typically 1.0–2.5 mm for 8 mm probes on steel targets). Reconnect the extension cable, ensuring the coaxial connector is fully seated and the locking nut is torqued correctly to prevent intermittent contact.

Step 4 — Gap Voltage Verification: With the Proximitor powered, measure the DC gap voltage at the monitor input. Confirm the reading falls within the calibrated linear range. Compare against the baseline gap voltage recorded in Step 1. Adjust probe position if necessary.

Step 5 — Functional Test & Return to Service: Restore the monitor channel, verify alarm and danger setpoints are active, and confirm the DCS or historian is receiving a valid signal. Document the replacement in the maintenance management system (CMMS) and update the spare parts inventory accordingly.

This workflow ensures a like-for-like replacement that maintains system compatibility, preserves API 670 alarm integrity, and minimizes total downtime from probe failure to return-to-service.

Spare Parts Support FAQ

Q1: Is the 330195-02-12-05-CN compatible with both the 3300 XL and legacy 3300 series Proximitor sensors?
The 330195-02-12-05-CN is specifically designed and calibrated for the 3300 XL 8mm Proximitor® Sensor system. While physical installation may be possible in some legacy 3300 series housings, full electrical compatibility and calibration accuracy are only guaranteed within the 3300 XL system. Always verify Proximitor model compatibility before installation to ensure measurement integrity and API 670 compliance.

Q2: What pre-shipment testing is performed on this spare probe?
Each 330195-02-12-05-CN unit undergoes functional verification prior to dispatch, including tip continuity check, coaxial connector integrity inspection, and cable insulation resistance testing. Units are packaged in anti-static, moisture-resistant packaging to preserve condition during international transit. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How should this probe be stored as a long-term spare in a maintenance inventory?
Store the 330195-02-12-05-CN in its original packaging in a dry, temperature-controlled environment (10°C–35°C), away from strong magnetic fields and corrosive atmospheres. Inspect the probe tip and connector annually for oxidation or physical damage. Rotate stock on a first-in, first-out basis and replace any unit showing connector corrosion or insulation degradation before it enters service.

Q4: Can this probe be used as a direct replacement for discontinued or obsolete Bently Nevada proximity probe models?
The 330195-02-12-05-CN can serve as a functional replacement for earlier 3300 series 8mm probes with the same thread specification (M10 x 1) and cable length, provided the Proximitor sensor is also updated to the 3300 XL version. For legacy system upgrades or obsolescence management, contact our technical team to confirm full loop compatibility before ordering. Long-term supply availability is maintained to support extended asset life programs and old-system life extension strategies.
