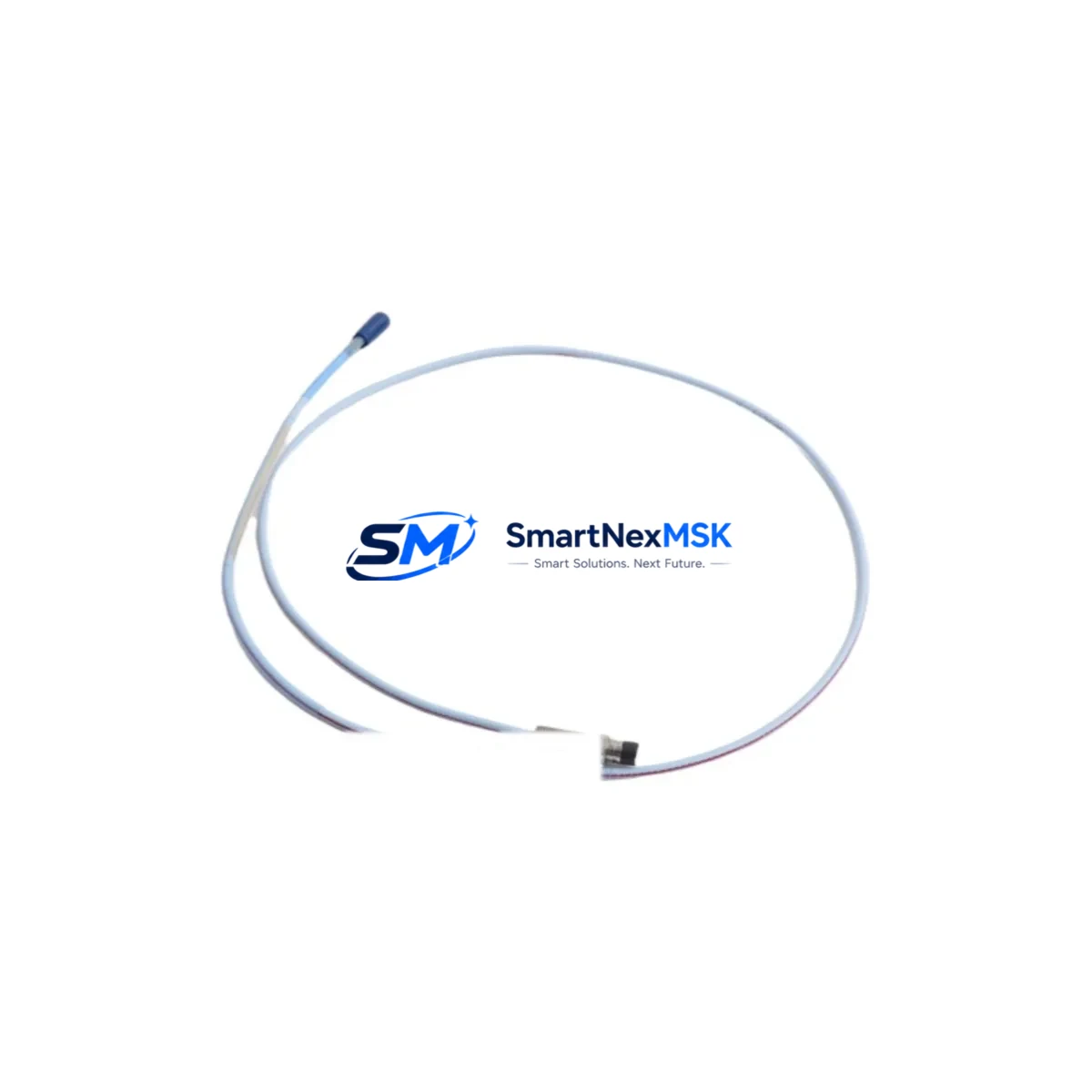

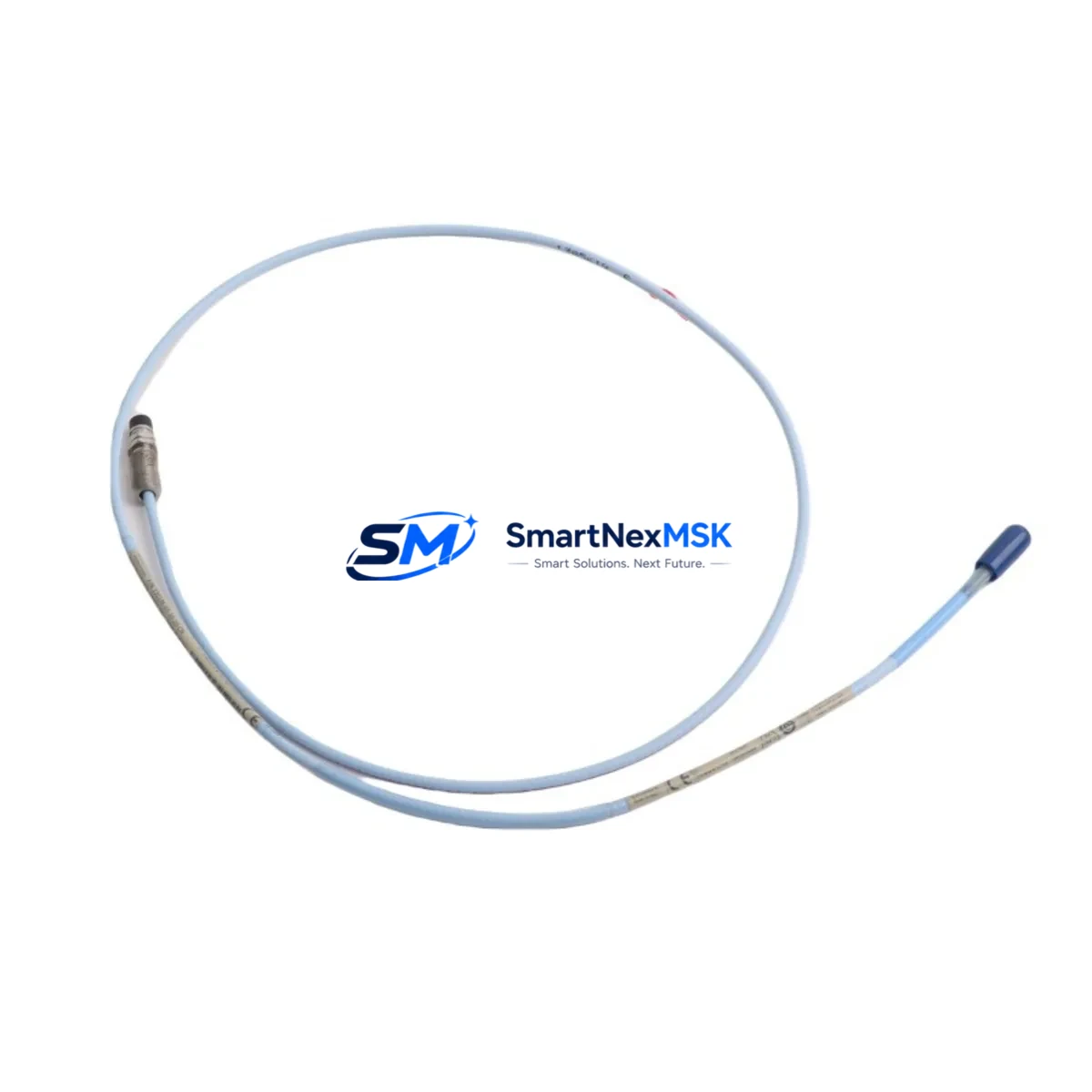

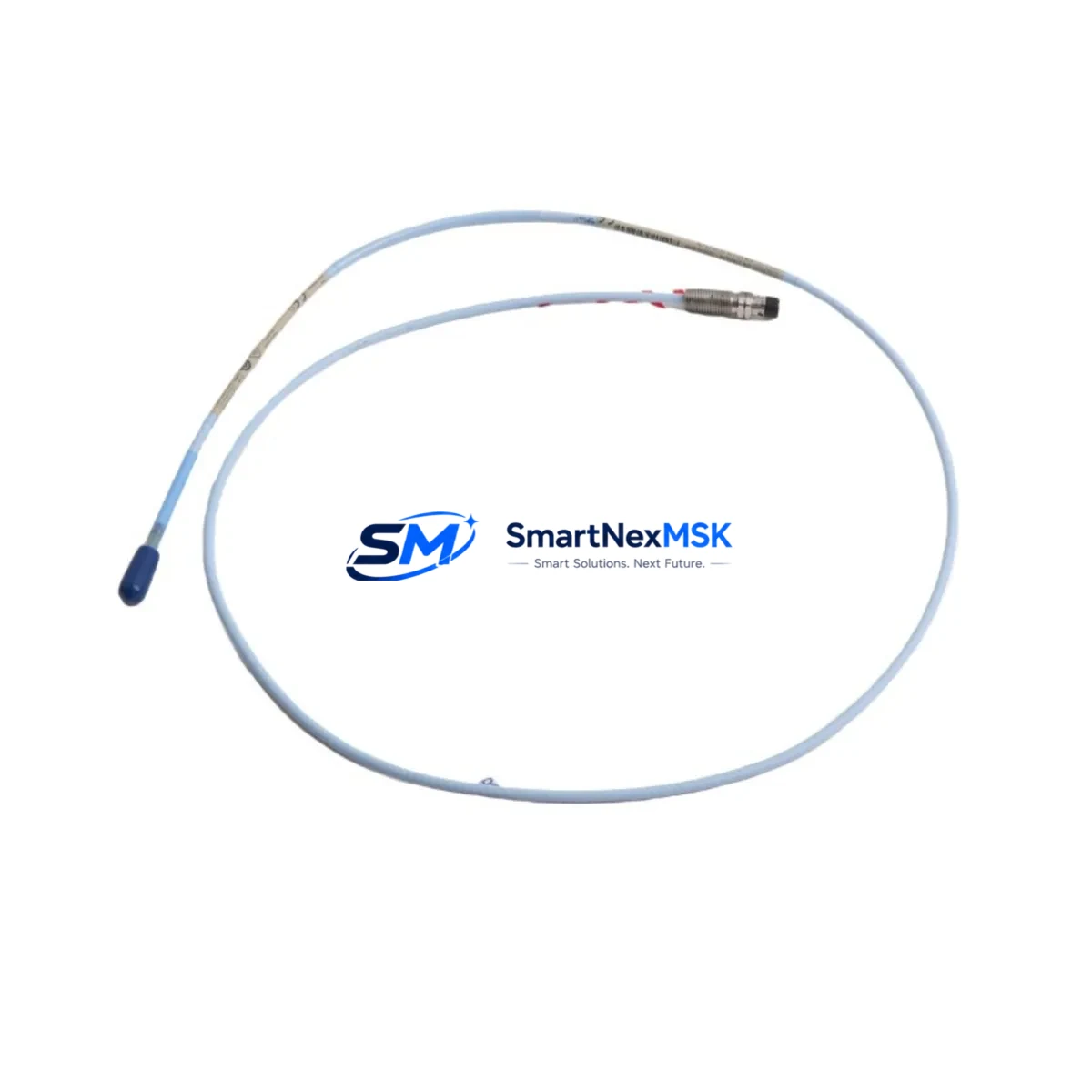

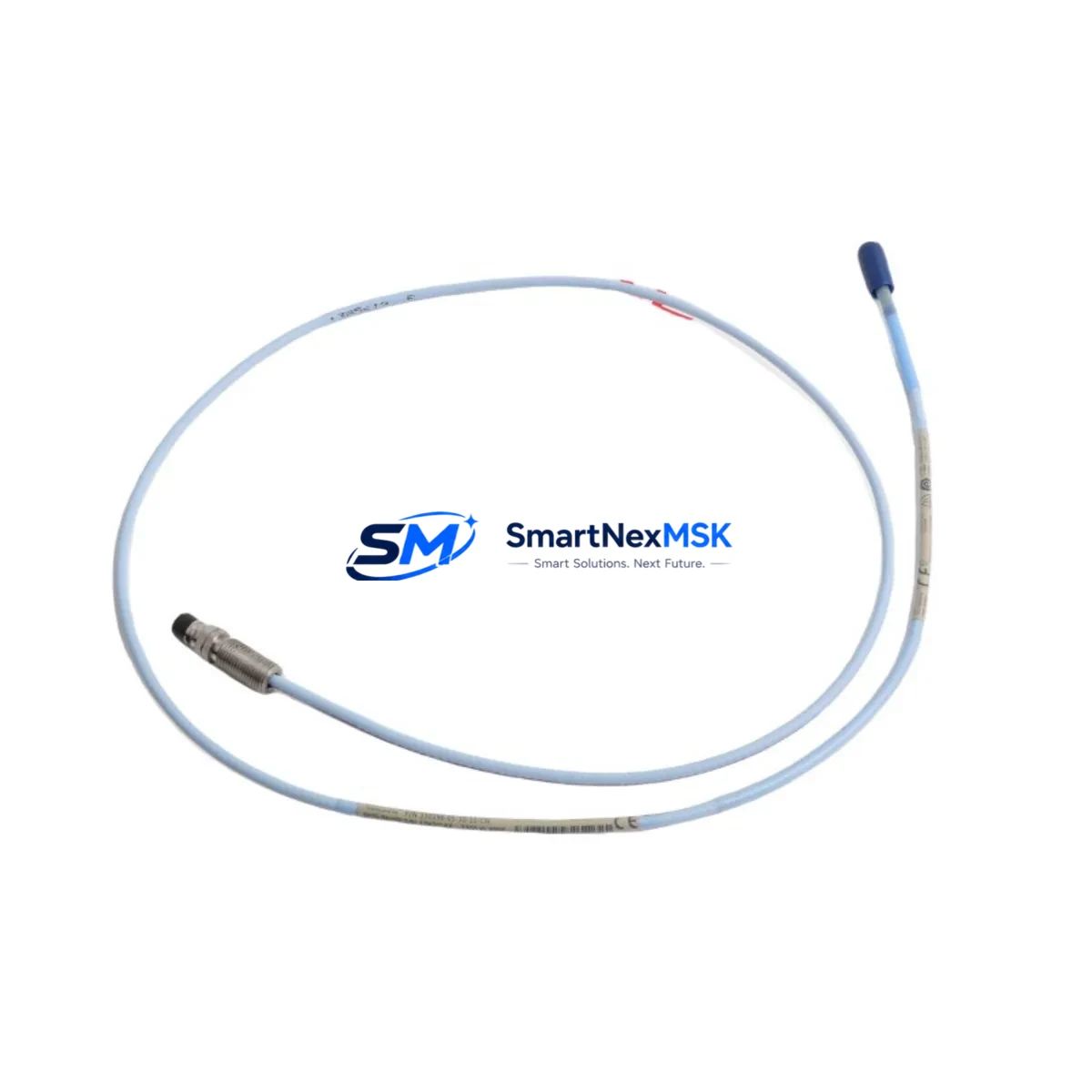

Bently Nevada 330196-05-30-10-00 Retrofit-Ready 3300 XL 8mm Proximity Probe: Seamless Legacy System Upgrade
The Bently Nevada 330196-05-30-10-00 is an 8mm proximity probe designed for the 3300 XL Series continuous machinery monitoring system. As original equipment reaches end-of-life or becomes increasingly difficult to source, this retrofit-ready replacement enables maintenance engineers and reliability teams to restore full vibration monitoring capability without redesigning the measurement chain or replacing the entire monitoring rack.
This probe is engineered to deliver drop-in compatibility with existing 3300 XL field wiring, extension cables, and Proximitor® sensor assemblies. Whether you are replacing a failed unit on a critical rotating machine or proactively upgrading aging probes across a turbine monitoring panel, the 330196-05-30-10-00 maintains the electrical characteristics, gap voltage linearity, and sensitivity specifications required by the 3300 XL system architecture.
For retrofit projects, engineers should verify the existing extension cable length and part number — typically a 330130-series or 330180-series cable — to confirm the total probe-plus-cable system length matches the Proximitor® sensor calibration range. The Proximitor® sensor, such as the 330180-91-00 or 330180-51-00, must be matched to the correct system length to maintain the ±200 mV/mil sensitivity standard. Mismatched system lengths are a common source of calibration drift during field replacements and should be confirmed before installation.
When integrating this probe into an existing 3300 XL rack, technicians should also confirm the monitor module configuration. The 3300/16 Dual Voting Logic Monitor and 3300/20 Radial Vibration Monitor are the most common host modules in legacy installations. Both accept the standard -24 VDC bias voltage and 200 mV/mil output from the 330196-series probe system. If the rack includes a 3300/55 Keyphasor® module for phase reference, no wiring changes are required on the Keyphasor® channel during a probe swap.
For plants migrating from older 7200-series or 3000-series Bently Nevada hardware to the 3300 XL platform, the 330196-05-30-10-00 represents a forward-compatible choice that aligns with the current Bently Nevada System 1 software ecosystem. System 1 configuration files referencing the probe transducer type and gap setpoints can typically be preserved without modification when replacing like-for-like within the 3300 XL family.
Power supply capacity is a critical checkpoint during any retrofit. The 3300 XL rack power supply — commonly the 3300/05 or 3300/10 Power Supply module — must have sufficient headroom to support the additional probe bias current if new monitoring channels are being added alongside the replacement. A full rack audit of current draw is recommended before commissioning.
All units are pre-shipment tested for gap voltage output, frequency response, and insulation resistance. Stock is maintained for immediate dispatch to support unplanned outages and emergency maintenance windows.
Upgrade Compatibility Table
| Parameter | Specification / Recommendation |
|---|---|
| Replaces / Compatible With | Bently Nevada 330196-05-30-10-00 (direct replacement) |
| Probe Diameter | 8mm |
| System Series | 3300 XL Proximity Transducer System |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Bias Voltage | -24 VDC nominal |
| Compatible Extension Cables | 330130-series, 330180-series (verify system length) |
| Compatible Proximitor® Sensors | 330180-91-00, 330180-51-00 (match system length) |
| Compatible Monitor Modules | 3300/16, 3300/20 Radial Vibration Monitor |
| Compatible Keyphasor® Module | 3300/55 (no wiring change required) |
| Installation Type | Drop-in field replacement |
| Communication Protocol | Analog (4–20 mA / voltage output via monitor module) |
| Software Compatibility | Bently Nevada System 1 (configuration preserved) |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330196-05-30-10-00 begins with a complete audit of the existing measurement chain. Start by documenting the installed extension cable part number and length — the total probe-plus-cable system length must match the Proximitor® sensor calibration. In most 3300 XL installations, the extension cable is a 330130-040-00-CN or similar 330130-series assembly. If the cable is damaged or its part number is unreadable, measure the physical length and cross-reference with the Bently Nevada transducer system length tables.
Next, inspect the Proximitor® sensor housing and confirm the sensor part number. The 330180-91-00 is the most widely deployed sensor in 3300 XL systems and is calibrated for a specific system length. Substituting a probe without verifying sensor compatibility can introduce a gap voltage offset that triggers false alarms on the 3300/20 monitor module or causes the System 1 software to flag a transducer fault.
For installations that include a 3300/25 Temperature Monitor or 3300/46 Aeroderivative Vibration Monitor in the same rack, confirm that the rack backplane connections and address assignments are not affected by the probe replacement. The 3300 XL rack uses a passive backplane, so module address settings are determined by slot position — no DIP switch or firmware changes are required for a like-for-like probe swap.
If the retrofit is part of a broader control system upgrade that includes replacing a legacy DCS or safety system, consider whether the analog output signals from the 3300/20 monitor module are being consumed by a third-party PLC or DCS input card. In these cases, the 4–20 mA or 0–10 V output scaling should be verified against the receiving system’s input range before the machine is returned to service.
For sites also upgrading HMI displays or historian connections, the System 1 software configuration — including alarm setpoints, transducer type assignments, and trend display templates — can be exported and re-imported after the hardware replacement, minimizing re-engineering time. Programming cables and USB-to-serial adapters compatible with the System 1 workstation should be on hand during commissioning to support any configuration adjustments required after the probe swap.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern during any proximity probe replacement on a critical rotating machine. The 330196-05-30-10-00 is designed for field replacement without requiring rack removal or monitor module reconfiguration, which significantly reduces the maintenance window duration.
Before breaking the measurement chain, export the current System 1 configuration and capture a screenshot or data log of the current gap voltage readings for all channels in the rack. This baseline allows technicians to verify that the replacement probe is installed at the correct gap distance — typically 50 mils (1.27 mm) for an 8mm probe on a steel target — and that the output voltage matches the pre-replacement baseline within acceptable tolerance.
To protect original program logic in any associated PLC or safety system, place the relevant monitor channels in bypass mode through the 3300/16 or 3300/20 module front panel before disconnecting the probe. This prevents spurious trip signals from propagating to the emergency shutdown system during the swap. Restore bypass only after the new probe is installed, gapped, and the output voltage is confirmed stable.
For sites with redundant monitoring channels, the replacement can often be performed online by switching the active channel to the redundant path, replacing the probe on the inactive channel, verifying output, and then switching back. This approach eliminates downtime entirely for machines that cannot be taken offline.
After installation, allow a 15–30 minute thermal soak period before logging final gap voltage readings. Thermal expansion of the probe tip and target material can shift the gap by several mils in high-temperature environments, and the final gap adjustment should be made after the machine has reached normal operating temperature.
Retrofit Support FAQ
Q: Is the 330196-05-30-10-00 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. This unit is manufactured to the same dimensional, electrical, and sensitivity specifications as the original 330196-05-30-10-00. It is compatible with the same extension cables, Proximitor® sensors, and 3300 XL monitor modules without any wiring or configuration changes.
Q: What commissioning checks are required after installation?
A: After installation, verify the gap voltage at the Proximitor® sensor output (typically -10 VDC ±0.5 V at the nominal 50 mil gap for a steel target), confirm the System 1 software shows a valid transducer status, and check that alarm and danger setpoints are active. A short trend log at normal operating speed should be reviewed before returning the machine to full load.
Q: Can this probe be used with older 7200-series or 3000-series Bently Nevada systems?
A: The 330196-series probes are calibrated for the 3300 XL Proximitor® sensor system. Use with 7200-series or 3000-series Proximitor® sensors is not recommended without re-calibration, as the sensitivity and bias voltage characteristics differ between platforms.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Units that fail due to installation errors, mechanical damage, or operation outside specified environmental limits are not covered. Warranty claims are supported by our technical team at sales@smartnexmsk.com.
