Bently Nevada 330703-00-100-10-11-CN Spare 3300 XL NSv

Bently Nevada 330703-00-100-10-11-CN Maintenance-Ready Spare for 3300 XL NSv Automation

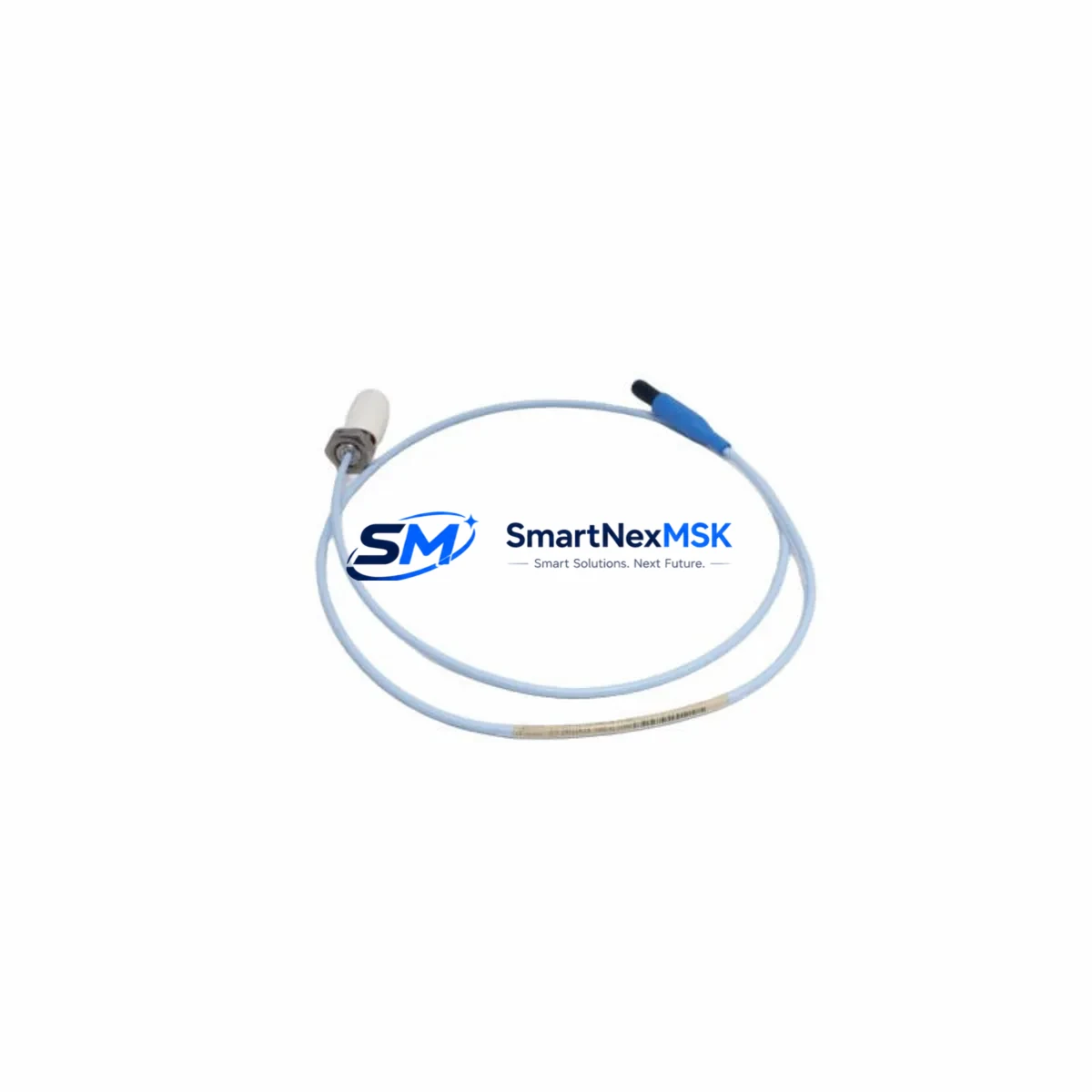

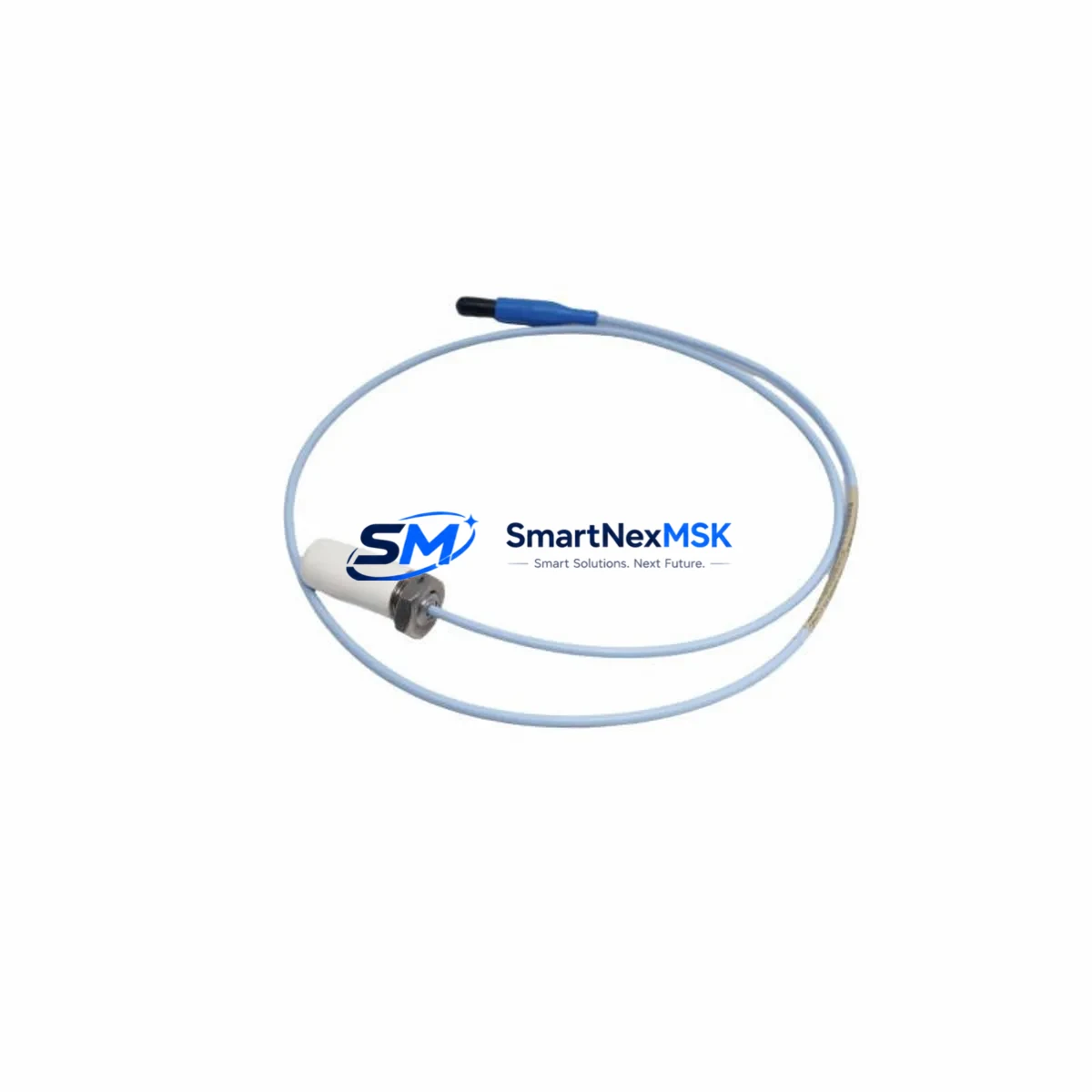

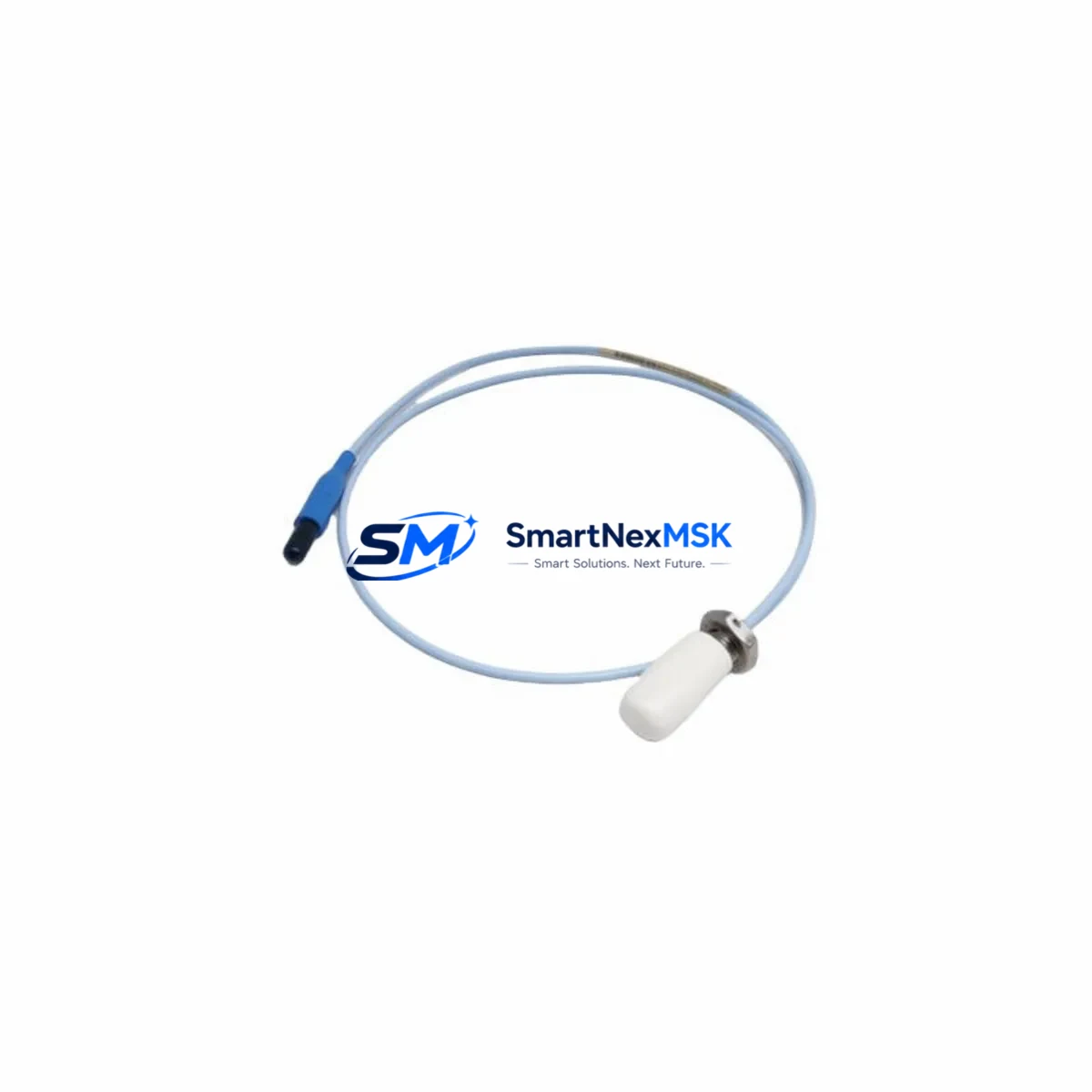

The Bently Nevada 330703-00-100-10-11-CN is an original eddy current proximity transducer engineered for the 3300 XL NSv series vibration monitoring system. Designed for continuous industrial operation in rotating machinery protection applications — including turbines, compressors, pumps, and gearboxes — this transducer delivers reliable non-contact displacement and vibration measurement critical to plant uptime. Sourced as an original spare, it is tested prior to shipment and backed by a 12-month warranty, making it a dependable choice for both planned maintenance and emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330703-00-100-10-11-CN in the field, a thorough inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure accurate vibration data after recommissioning. Maintenance engineers should begin by verifying the condition of the 3300 XL NSv Proximitor driver module (typically mounted in the control cabinet), as a degraded driver will produce erratic output even with a new transducer installed. The 3300 XL 5m or 10m extension cable connecting the transducer to the Proximitor should be inspected for insulation damage, connector corrosion, and continuity — cable faults are a leading cause of false vibration alarms.

Within the same vibration monitoring loop, engineers should also check the 3500/42M Proximitor Monitor card or equivalent rack-mounted monitor for firmware integrity and channel calibration. If the machine is equipped with a dual-channel redundant configuration, the companion transducer on the opposing measurement plane should be inspected simultaneously. The 3500 Series rack power supply module supplying -24 VDC to the Proximitor should be load-tested to confirm stable output under full channel load.

For plants running integrated condition monitoring, the System 1 Evolution software configuration should be reviewed to confirm that gap voltage, sensitivity, and alarm setpoints are correctly mapped to the replacement transducer’s calibration curve. Where the machine is part of a turbine protection system, the 3500/20 Rack Interface Module (RIM) and associated 3500/22M Transient Data Interface should be verified for communication integrity with the DCS or safety system.

Procurement engineers building a spare parts inventory for 3300 XL NSv-equipped machinery should consider stocking the 330130-080-01-00 8mm Proximitor as a companion driver spare, along with a set of 330030-045-00-00 extension cables to cover the most common cable lengths on site. For facilities with multiple machine trains, maintaining at least two transducer spares per critical machine is recommended to support rapid swap-out during unplanned shutdowns.

Site Replacement Workflow

Step 1 — Isolation and Safety: Coordinate with operations to place the affected machine in a safe state. Confirm that the vibration monitor channel is bypassed or inhibited in the DCS/safety system before disconnecting the transducer to avoid spurious trips.

Step 2 — Gap Voltage Verification: Before removing the old transducer, record the existing gap voltage reading from the Proximitor output. The nominal gap for the 330703-00-100-10-11-CN is typically -10.0 VDC ± 0.5 VDC at the recommended installation gap of 50 mil (1.27 mm). This baseline will be used to validate the replacement installation.

Step 3 — Transducer Removal: Disconnect the integral cable from the extension cable junction. Unthread the transducer from the mounting bracket using the correct spanner. Inspect the mounting threads and bracket for wear or corrosion before installing the replacement.

Step 4 — Installation and Gap Setting: Thread the 330703-00-100-10-11-CN replacement into the bracket. Adjust the gap to achieve the target gap voltage using a calibrated DC voltmeter at the Proximitor output. Lock the transducer in position with the jam nut and confirm gap voltage stability over 5 minutes.

Step 5 — Functional Test and Recommission: Restore the Proximitor supply voltage, confirm output signal is within the linear range, and verify alarm and trip setpoints in the monitor. Remove the bypass/inhibit in the DCS and return the channel to normal monitoring service. Document the replacement in the maintenance management system (CMMS) with the new part serial number and gap voltage record.

Spare Parts Support FAQ

Q1: Is the 330703-00-100-10-11-CN compatible with both 3300 XL and 3500 Series monitors?
Yes. The 330703-00-100-10-11-CN is designed for the 3300 XL NSv Proximitor system and is also compatible with 3500 Series rack-mounted monitors when used with the appropriate Proximitor driver. Always confirm the driver model and sensitivity setting before installation.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes electrical continuity verification, output linearity check across the full sensing range, and insulation resistance testing before dispatch. A test report is available upon request for critical plant applications.

Q3: How should this transducer be stored if not immediately installed?
Store in the original packaging in a dry, temperature-controlled environment (0°C to 40°C) away from strong magnetic fields and mechanical vibration. Inspect the connector and cable jacket for damage before installation if stored for more than 12 months.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental range. Warranty claims are supported with a replacement unit dispatched after fault confirmation.
