Bently Nevada 330703-000-040-10-02-0 Spare 3300 XL

Bently Nevada 330703-000-040-10-02-0 Maintenance-Ready Spare for 3300 XL Automation

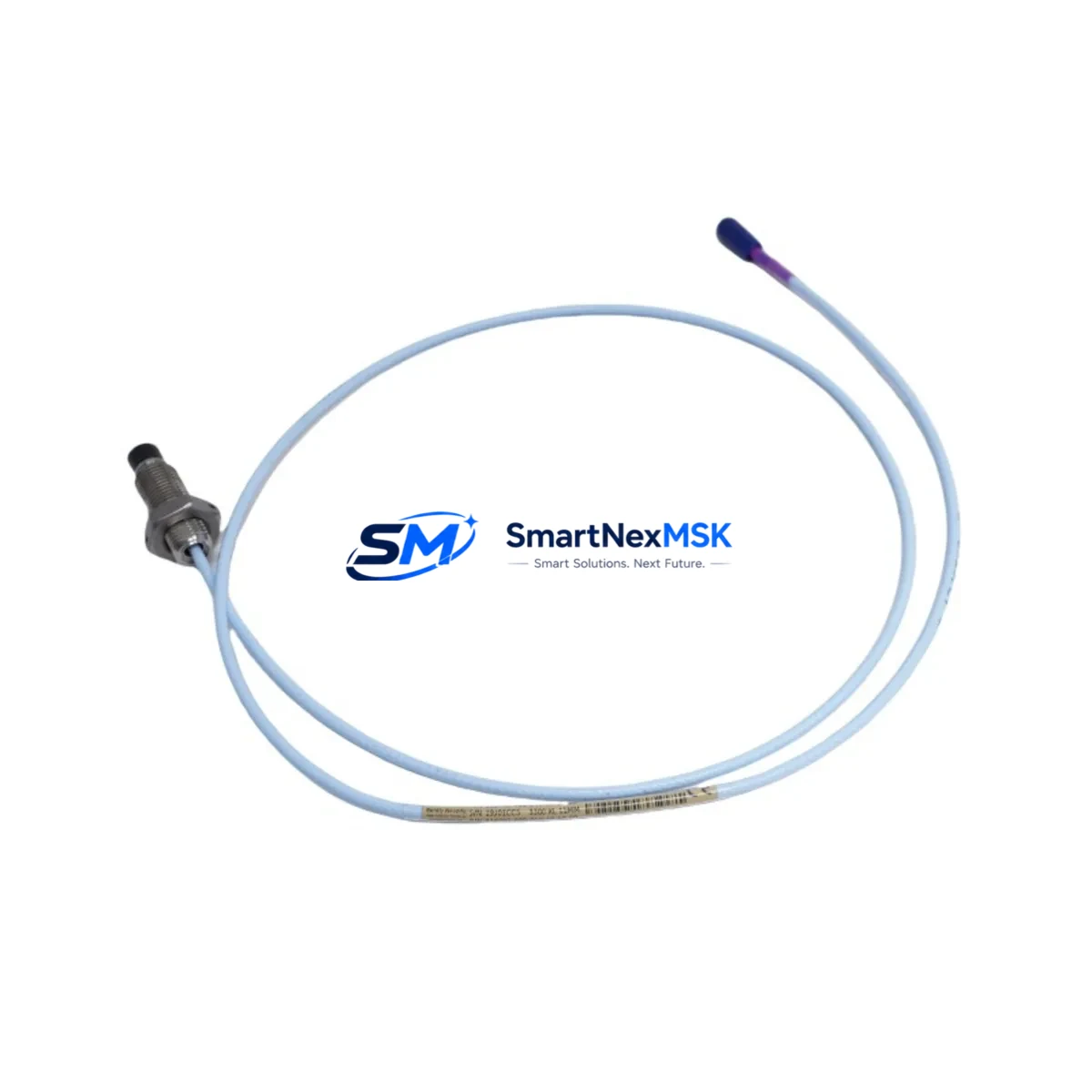

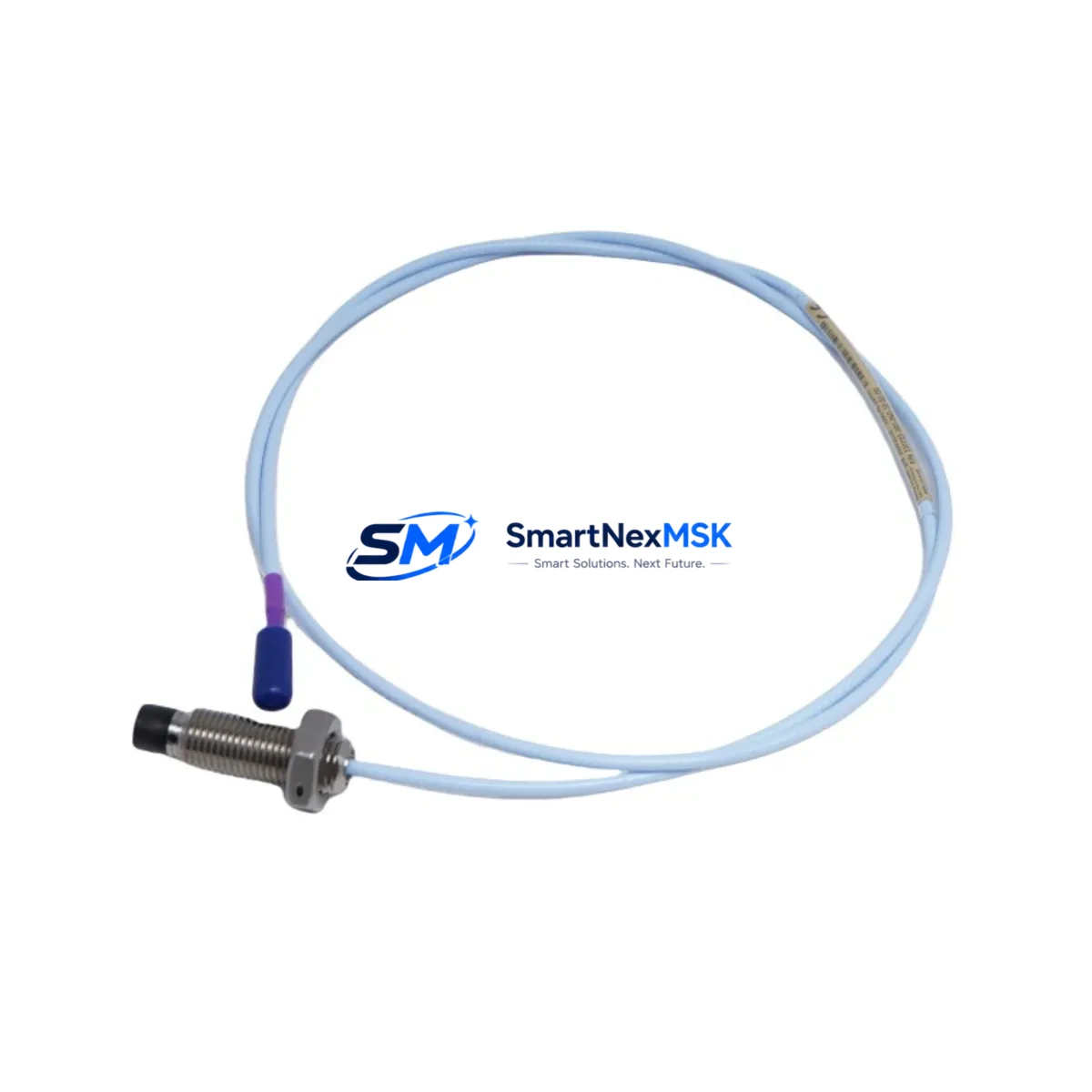

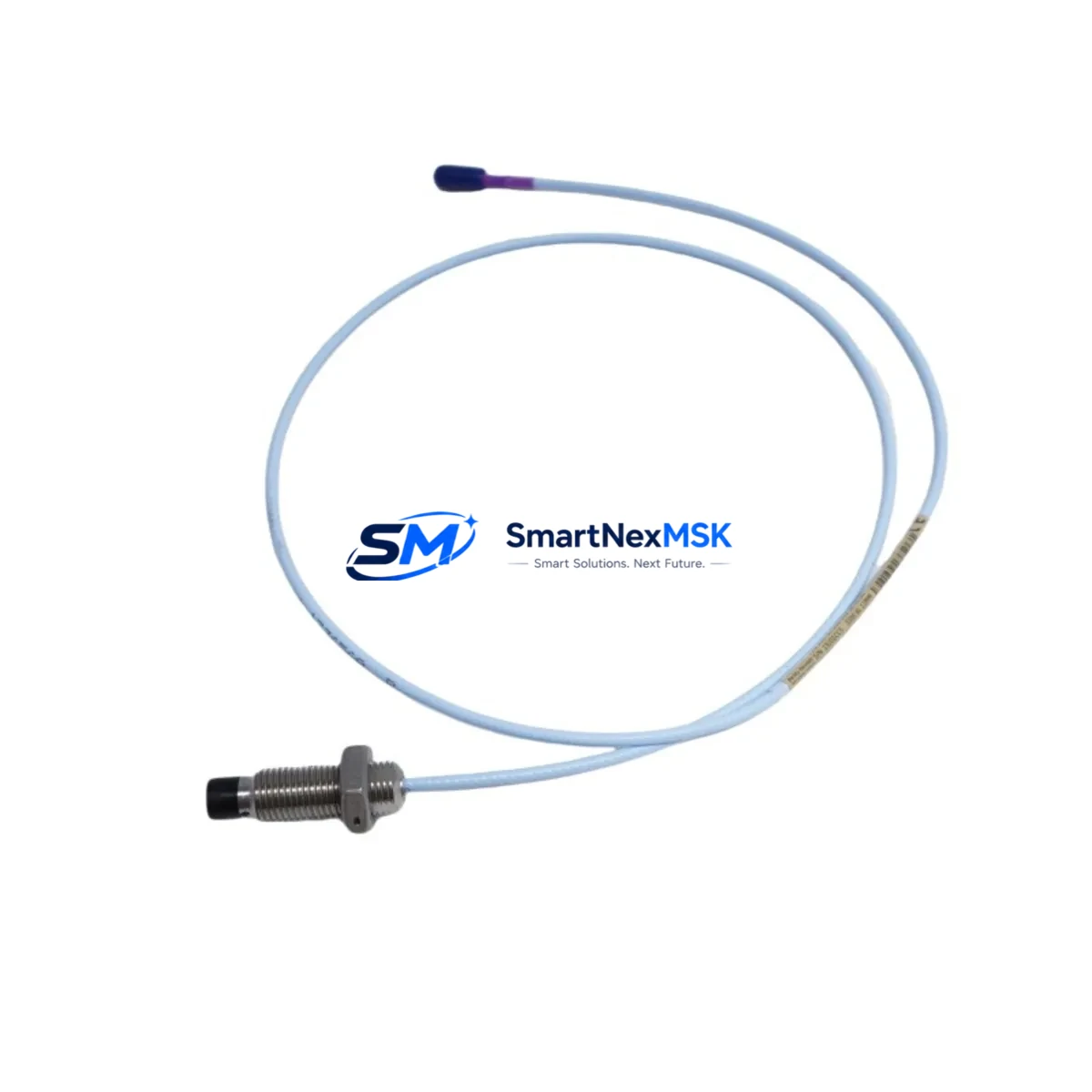

The Bently Nevada 330703-000-040-10-02-0 is an original 11mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a front-line component for radial shaft vibration measurement. When it fails or degrades, the entire protection loop is compromised, and unplanned downtime follows. Stocking a verified original spare is the most effective strategy for minimizing mean time to repair (MTTR) and sustaining ISO 13373 / API 670 compliance.

This listing supplies maintenance engineers and procurement teams with a tested, original-specification replacement unit. Each unit is inspected prior to dispatch, ships with full documentation, and is backed by a 12-month warranty covering manufacturing defects and performance deviation from published specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330703-000-040-10-02-0 probe is flagged during a routine control cabinet inspection or triggered a Not OK (NOK) alarm on the 3300 XL Proximitor module, experienced maintenance engineers know that replacing the probe alone is rarely sufficient for a complete fault clearance. A disciplined site replacement workflow requires parallel inspection of the full measurement chain.

Start with the 330130-090-01-00 extension cable — the coaxial cable connecting the probe to the proximitor. Cable jacket cracking, connector corrosion, or impedance drift from mechanical stress are common failure modes that mimic probe faults. Inspect the full cable run from the probe tip to the junction box. Next, verify the 330180-X1-05 Proximitor / driver module output voltage: a healthy system should read between −10 VDC and −18 VDC at the gap center. If the driver output is out of range after probe replacement, the driver itself may require substitution.

Within the 3300 XL monitor rack, check the 3300/16 dual-channel vibration monitor card for alarm relay status and channel configuration. Confirm that the OK relay is energized and that the channel is not in bypass mode. If the rack includes a 3300/55 keyphasor module, verify that the reference signal is clean and phase-locked — a degraded keyphasor signal can cause false vibration readings even with a new probe installed.

For installations where the 3300 XL rack feeds a 3500/22M transient data interface or a System 1 Evolution condition monitoring platform, confirm that the new probe’s gap voltage is correctly re-entered into the software configuration. Failure to update the gap setpoint after probe replacement is a common commissioning error that generates nuisance alarms.

Procurement engineers building a spare parts inventory for a 3300 XL-protected train should also consider stocking the 330500-02-00 thrust position probe for axial measurement redundancy, and the 330104-00-06-10-02-0 standard proximity probe as a cross-compatible spare for adjacent measurement points. Where the control cabinet also houses a Bently Nevada 3500/20 rack power supply, a spare power supply module should be included in the critical spares list — power supply failure is the single most common cause of full-rack NOK conditions.

For older installations running legacy 3300 Series (non-XL) hardware, the 330703-000-040-10-02-0 is backward-compatible with appropriate driver selection, extending the service life of existing infrastructure without requiring a full rack upgrade. This makes it a cost-effective choice for plant life extension programs targeting 10–20 additional years of operation.

Site Replacement Workflow

1. Isolate and document: Place the affected channel in bypass on the 3300 XL monitor before removing the probe. Record the existing gap voltage (typically displayed on the front panel or via System 1) as a baseline for the new installation.
2. Remove the old probe: Unthread the probe from the mounting bracket. Inspect the probe tip for impact damage, corrosion, or target surface contamination. Clean the target area with a lint-free cloth before installing the replacement.
3. Install 330703-000-040-10-02-0: Thread the new probe to the same depth as the original, achieving the specified gap (typically 1.0–1.5 mm / 40–60 mil for most shaft diameters). Use a non-metallic feeler gauge or the driver output voltage to confirm gap.
4. Reconnect and verify: Reconnect the extension cable. Confirm the driver output voltage is within the linear range (−10 to −18 VDC). Remove bypass and confirm the OK relay energizes within 5 seconds.
5. Update CMMS records: Log the replacement in your computerized maintenance management system with the new probe serial number, installation date, and gap voltage. Set a re-inspection interval per your predictive maintenance schedule.

Spare Parts Support FAQ

Q: Is the 330703-000-040-10-02-0 compatible with both 3300 XL and legacy 3300 Series monitors?
A: Yes. The probe is electrically compatible with the 3300 XL Proximitor and, with correct driver selection, with legacy 3300 Series drivers. Always verify driver part number compatibility before installation in a legacy rack.

Q: What is included in the 12-month warranty?
A: The warranty covers manufacturing defects and performance deviation from published Bently Nevada specifications. It does not cover damage from incorrect installation, mechanical impact, or operation outside the rated temperature and voltage range. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q: How do you verify the probe before shipment?
A: Each unit undergoes a pre-shipment functional check including output voltage verification at a calibrated gap distance, connector integrity inspection, and cable continuity test. A test report is available upon request.

Q: What is the recommended spare inventory strategy for a 3300 XL-protected critical train?
A: For a single critical train (e.g., a steam turbine-generator set), we recommend a minimum of two probe spares per measurement plane, one spare extension cable per probe, and one spare Proximitor module per rack. For plants with multiple identical trains, a pooled spare strategy with 10–15% of installed probe count held in stock is a common industry practice aligned with API 689 spare parts management guidelines.
