Bently Nevada 330703-000-040-10-02-05 3300 XL Spare

Bently Nevada 330703-000-040-10-02-05 3300 XL Spare: Precision Proximity Probe for Industrial Downtime Recovery

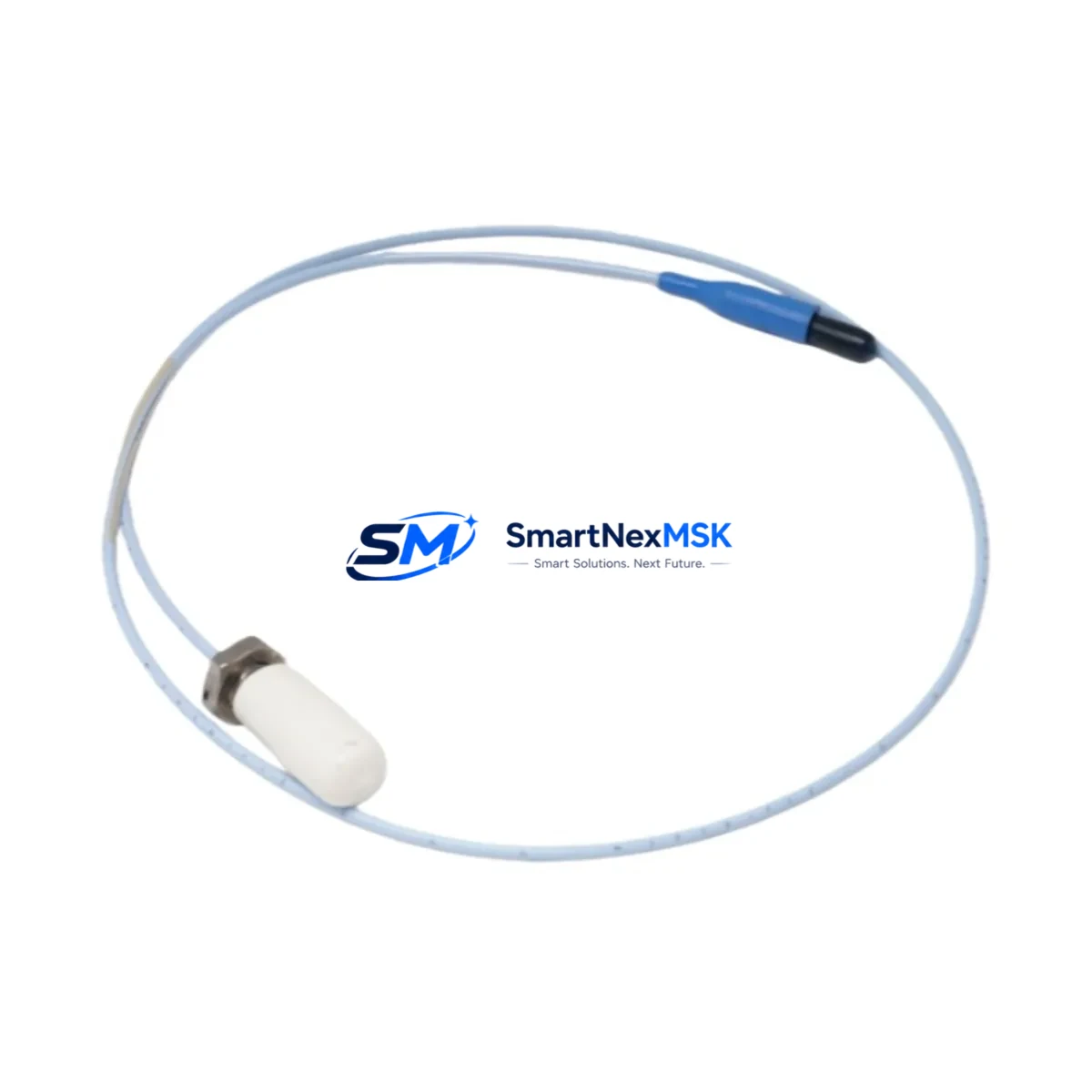

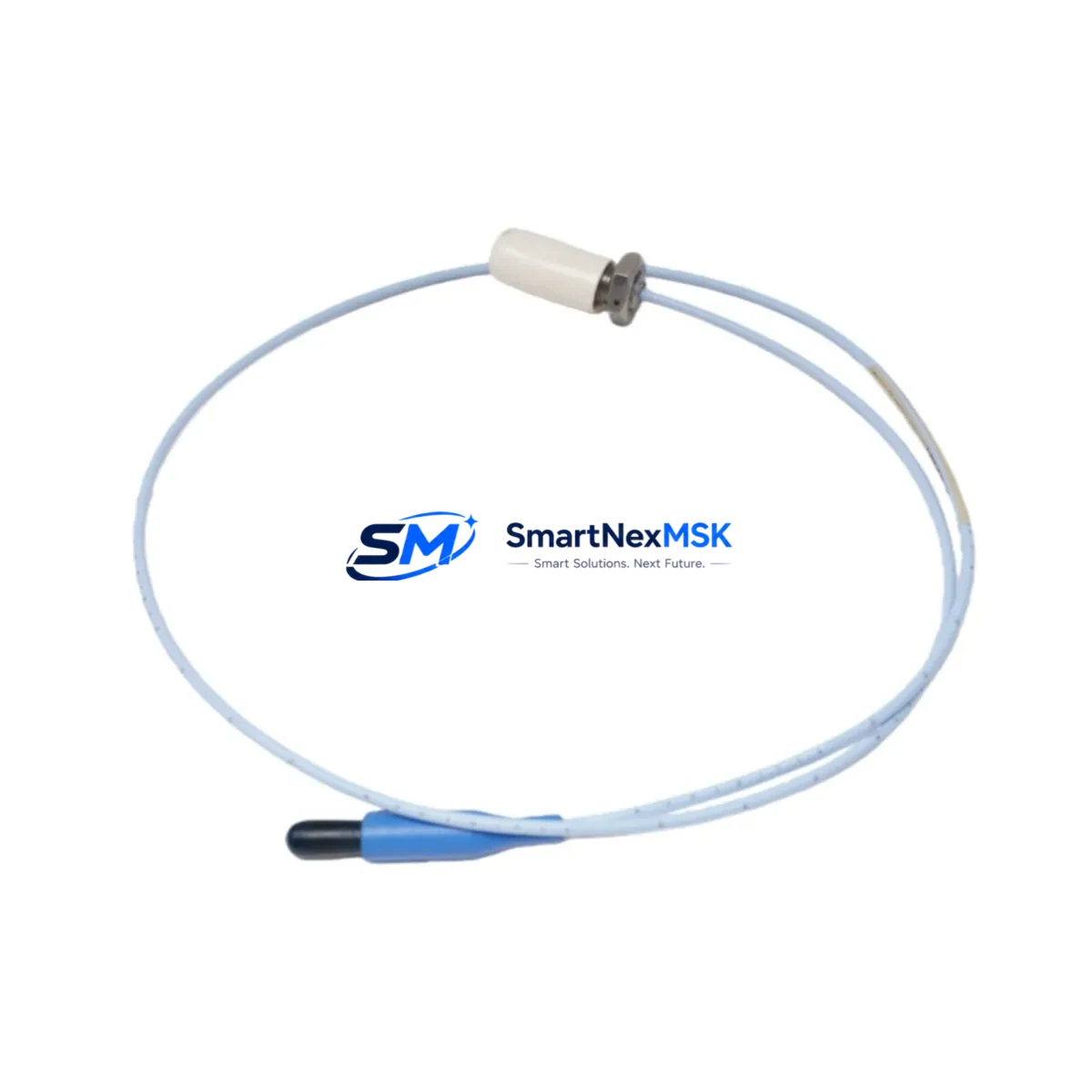

The Bently Nevada 330703-000-040-10-02-05 is an original eddy-current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. When this probe fails or degrades, the consequences extend beyond a single sensor — unplanned downtime on turbines, compressors, pumps, and generators can cascade into costly production losses. Stocking a verified replacement is the first line of defense for any maintenance-ready facility.

This unit is supplied as an original spare, individually tested prior to shipment, and backed by a 12-month warranty. It is designed for direct replacement in existing 3300 XL monitoring systems without requiring recalibration of the full measurement chain, provided the extension cable and proximitor module remain within specification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement should never be treated as an isolated swap. The 3300 XL measurement chain is a system: the probe, the extension cable, and the proximitor module must all be within specification for the output signal to be reliable. When replacing the 330703-000-040-10-02-05, maintenance engineers should simultaneously inspect the matched 330130-080-00-00 extension cable for jacket damage, connector corrosion, or impedance drift — a degraded cable will corrupt the gap voltage reading even with a new probe installed.

The 330180-X1-05 proximitor module (or equivalent 3300 XL Proximitor®) should be bench-tested for output linearity before the machine is returned to service. If the proximitor is approaching its recommended service interval or shows drift on the OK relay, replace it concurrently to avoid a repeat outage. In 3500 Series monitoring racks, verify that the 3500/42M Proximitor® I/O module is correctly configured for the probe’s sensitivity factor and gap range.

During a planned outage, the control cabinet inspection should extend to the 3500/20 rack power supply — a marginal power supply introduces noise into the measurement chain that can trigger false vibration alarms. Check the 3500/15 power supply module input fuses and output voltage rails. If the machine is part of a turbine protection system, the 3500/40M velocity monitor and 3500/50 tachometer module should be verified for correct speed and phase reference signals, as these interact with the proximity probe data in the overall machinery protection logic.

For facilities running older 3300 Series (non-XL) racks, confirm that the replacement probe is compatible with the installed proximitor before ordering — the 3300 XL probe family uses a different sensitivity curve than legacy 3300 probes. If the system is being upgraded from a legacy 3300 rack to a 3500 Series rack, the 3500/22M transient data interface may also require configuration updates to accept the new probe’s signal format.

Spare parts inventory best practice for rotating machinery sites: maintain at least one matched probe-and-cable set per critical machine train, stored in a climate-controlled cabinet away from strong magnetic fields. Label each spare with the machine tag, installation date of the current probe, and the gap voltage recorded at last calibration. This documentation accelerates fault isolation during emergency replacements and supports root-cause analysis after a trip event.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring rack is in bypass mode before removing the probe.

Step 2 — Record baseline data: Note the existing gap voltage (DC bias) from the proximitor output before disconnection. This value is your reference for setting the new probe gap. Typical target gap for 3300 XL 8 mm probes is –10.0 VDC ± 0.5 V, corresponding to approximately 1.27 mm physical gap.

Step 3 — Remove the old probe: Disconnect the extension cable at the probe connector. Unscrew the probe from the bracket using the correct spanner. Inspect the bracket threads and locknut for wear — replace if damaged.

Step 4 — Install the 330703-000-040-10-02-05: Thread the new probe into the bracket by hand, then advance to the target gap position. Use a feeler gauge or the proximitor output voltage to set the gap precisely. Tighten the locknut to the manufacturer’s specified torque.

Step 5 — Reconnect and verify: Reconnect the extension cable. Power the proximitor and confirm the OK LED is illuminated and the output voltage is within the linear range. Check the monitoring rack for any active alarms before releasing the bypass.

Step 6 — Return to service: Remove bypass, confirm the monitoring system is reading correctly, and document the new gap voltage and installation date in the maintenance record.

This workflow applies equally to legacy 3300 XL installations and to 3500 Series racks where the probe is used as a direct replacement. The standardized replacement procedure minimizes re-work risk and ensures the monitoring system is fully functional before the machine is restarted.

Spare Parts Support FAQ

Q: Is the 330703-000-040-10-02-05 compatible with both 3300 XL and 3500 Series monitoring systems?
A: Yes. The 3300 XL probe family is designed to interface with 3300 XL Proximitor® modules and is also compatible with 3500 Series I/O modules configured for the correct sensitivity factor. Always verify the proximitor model and configuration before installation.

Q: What is included in the 12-month warranty?
A: Each unit is tested prior to shipment and covered for 12 months from the date of delivery against manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or refund, subject to inspection of the returned unit.

Q: Can I order this probe as part of a matched set with an extension cable?
A: Yes. We recommend ordering the probe together with a compatible 3300 XL extension cable (such as the 330130-080-00-00 or equivalent length) to ensure the measurement chain is replaced as a matched system. Contact our team to confirm the correct cable length for your installation.

Q: How do I verify the probe is functioning correctly after installation?
A: With the probe installed at the correct gap, the proximitor output should read within the linear range (typically –10.0 VDC ± 0.5 V for a 1.27 mm gap on an 8 mm probe). The OK relay on the proximitor should be energized. If the output is out of range or the OK relay is de-energized, check the gap setting, cable continuity, and proximitor supply voltage before concluding the probe is faulty.
