Bently Nevada 330703-000-050-10-11-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

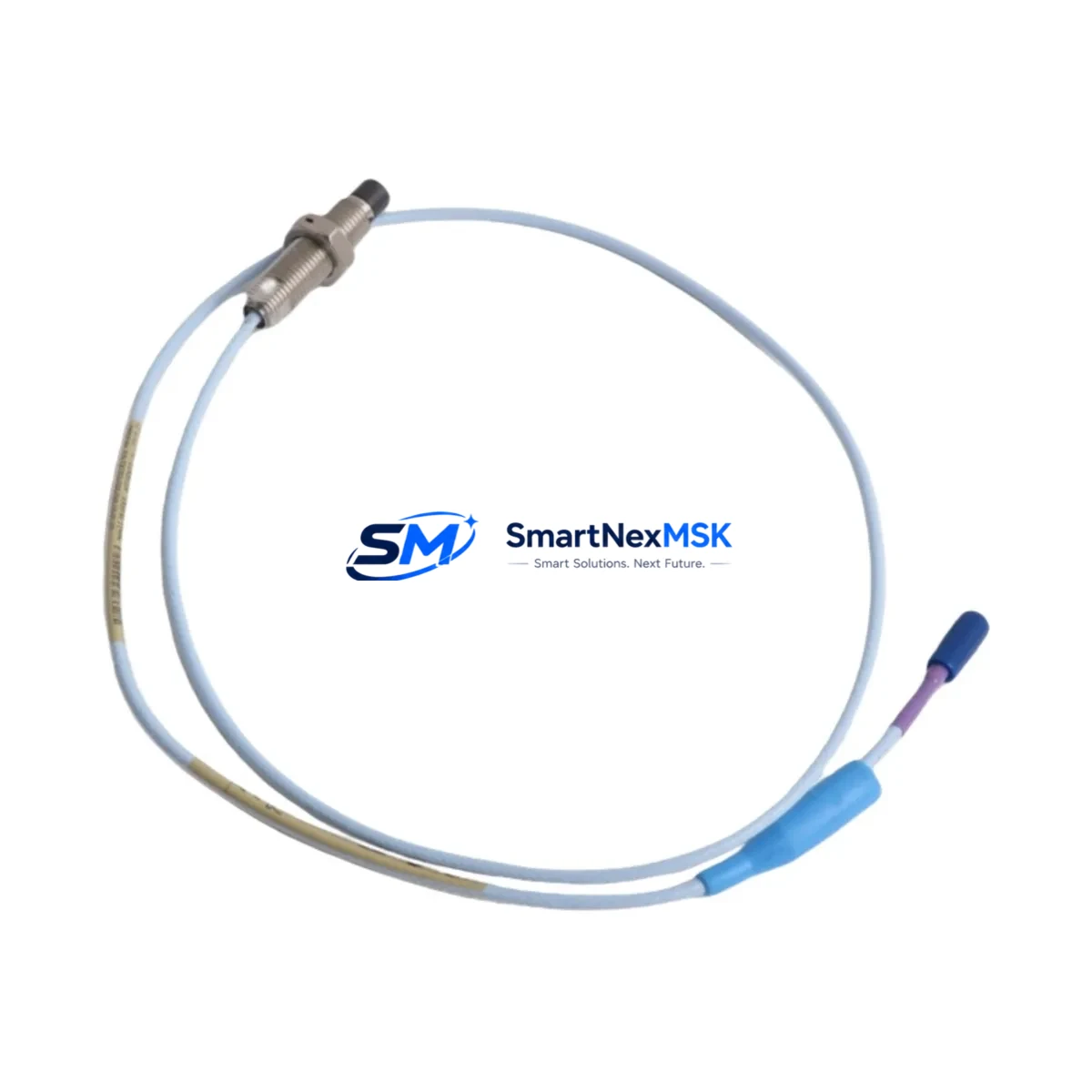

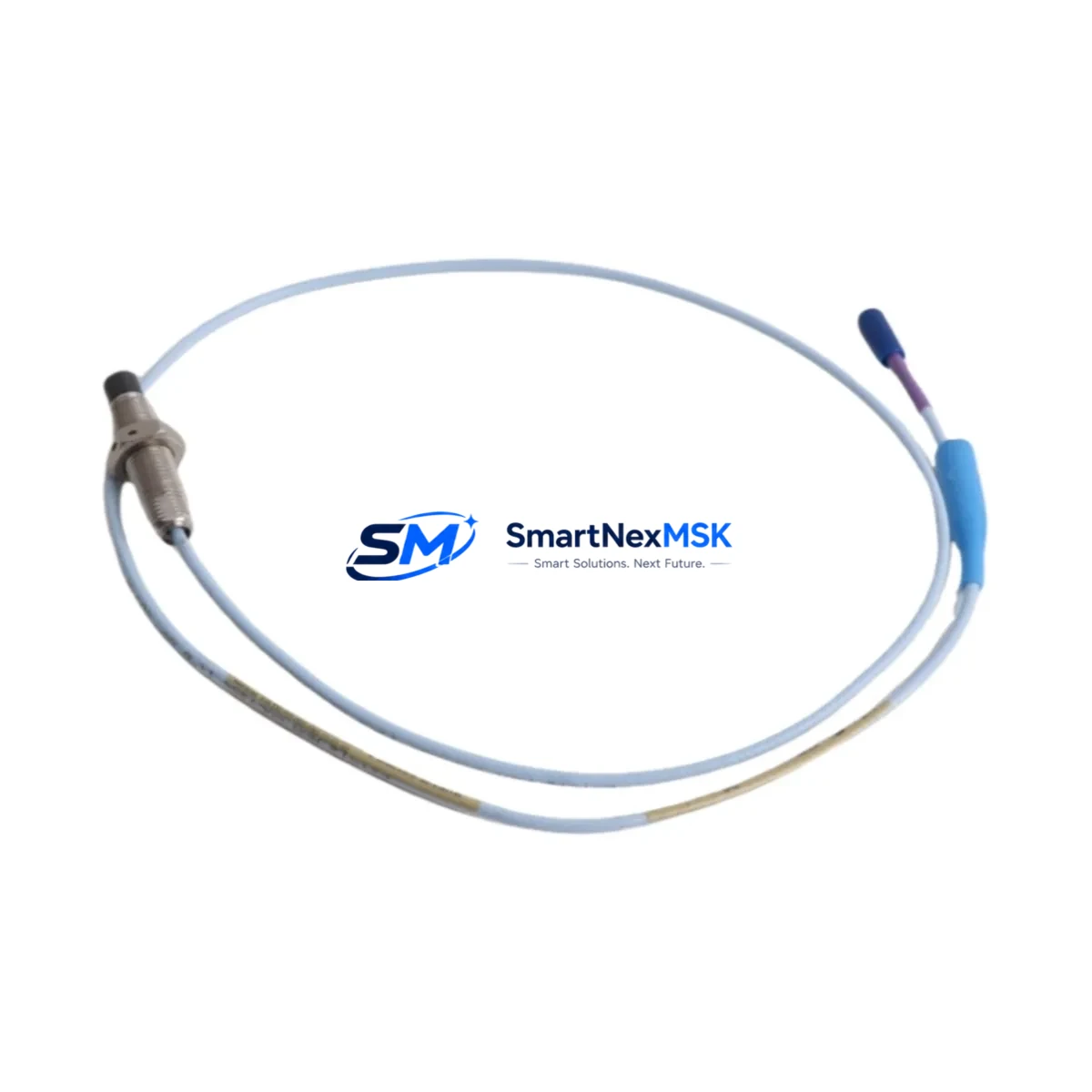

The Bently Nevada 330703-000-050-10-11-00 is a 5mm eddy current proximity probe engineered for seamless integration into Bently Nevada 3300 XL vibration monitoring systems. Whether you are replacing a discontinued sensor on an aging turbomachinery train, upgrading a legacy 3300 Series installation, or restoring a critical condition monitoring loop after an unplanned failure, this probe delivers the dimensional accuracy, signal linearity, and environmental robustness required for continuous industrial operation. With a 12-month warranty and pre-shipment functional testing on every unit, it is a dependable choice for maintenance engineers managing rotating equipment reliability programs.
The 330703-000-050-10-11-00 features a 5mm probe tip diameter, a 10mm linear range, and a standard 11mm thread body, making it a direct mechanical replacement for the original factory-installed sensor without bracket modification or housing rework. The probe is designed to work within the 3300 XL proximitor/seismic system architecture, pairing directly with the 3300 XL 8mm Proximitor Sensor (such as the 330180-X1-05 series) and the associated extension cables in the 330130 and 330140 cable families. When retrofitting, engineers should verify that the existing extension cable length matches the probe’s calibrated system length, as the probe, extension cable, and proximitor form a calibrated set that determines the output scale factor (typically 200 mV/mil or 7.87 V/mm).
Upgrade Compatibility Table
| Parameter | 330703-000-050-10-11-00 | Notes |
|---|---|---|
| Probe Tip Diameter | 5 mm | Direct fit for standard 3300 XL probe mounts |
| Linear Range | 10 mm (0.4 in) | Verify gap setting during commissioning |
| Thread Size | M11 × 1.0 | Compatible with OEM probe holders |
| System Compatibility | Bently Nevada 3300 XL Series | Pairs with 330180 Proximitor and 330130/330140 cables |
| Output Scale Factor | 200 mV/mil / 7.87 V/mm | Calibrated set: probe + cable + proximitor |
| Communication / Signal | Analog voltage (DC) | Compatible with 3500 Series rack inputs via signal conditioning |
| Installation Requirement | No bracket modification required | Drop-in mechanical replacement |
| Commissioning Focus | Gap voltage, scale factor, alarm setpoints | Verify in System 1 or 3500 rack configuration |
| Replacement Recommendation | Replace probe, cable, and proximitor as a set | Ensures calibration integrity |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment test report |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330703-000-050-10-11-00 into an existing plant begins well before the probe reaches the machine. Maintenance teams should start by auditing the current installation: confirm the proximitor model (typically a 330180-X1-05 or equivalent 3300 XL Proximitor Sensor), measure the installed extension cable length, and cross-reference the cable part number against the 330130 or 330140 series to ensure the calibrated system length is preserved. If the original extension cable is damaged or its length has been altered, a replacement from the 330130-080-00-00 or 330140-080-00-00 families should be sourced simultaneously to maintain the calibrated set.
For installations where the 3300 XL rack is being migrated to a Bently Nevada 3500 Series condition monitoring rack, the probe itself remains compatible, but the proximitor and I/O module assignments within the 3500/42M Proximitor/Seismic Monitor or 3500/40M Proximitor/Seismic Monitor must be reconfigured. The 3500 rack’s channel configuration software requires the engineer to input the correct scale factor and gap voltage range to match the 5mm probe’s calibration curve. During this migration, it is also common to update the 3500/20 Rack Interface Module firmware and reconfigure the Modbus or FOUNDATION Fieldbus communication links that feed the plant DCS or historian.
In control cabinet upgrades where the 3300 XL system shares a panel with legacy relay logic or older PLC-based interlock systems, the probe’s analog output is typically wired to a terminal block strip before routing to the proximitor input. Engineers should verify terminal torque specifications and confirm that shielded cable grounding follows Bently Nevada’s single-point grounding practice to prevent ground loop interference. If the panel also houses a 3300/16 or 3300/20 I/O module from an earlier generation, those modules should be evaluated for replacement with current 3500 Series I/O cards to consolidate the monitoring architecture.
For plants running System 1 Evolution software, the probe replacement triggers a recalibration workflow within the software’s device management module. The engineer must update the probe serial number, confirm the gap voltage at the operating air gap (typically 10–12 VDC for a 5mm probe at mid-range), and validate the overall vibration channel against a known reference before returning the machine to service. If the plant uses a Bently Nevada 1900/65A General Purpose Equipment Monitor as a standalone device for smaller machines, the same probe family is compatible, and the channel configuration follows a similar gap-and-scale-factor verification process.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, the maintenance team should download and archive the current 3500 rack configuration using Rack Configuration Software (RCS), export all alarm setpoints and relay logic from the 3500/32 Relay Module, and document the existing gap voltage readings for each monitored shaft position. This baseline data protects the original program logic and allows rapid restoration if the replacement probe exhibits unexpected behavior during initial commissioning.
During the physical swap, the probe should be installed to the correct air gap using a non-contact gap-setting tool or a calibrated feeler gauge, with the gap voltage confirmed at the proximitor output before the extension cable is reconnected to the rack. If the machine train includes both radial and thrust position probes — for example, a 330703-000-050-10-11-00 for radial vibration alongside a 330705-000-050-10-11-00 for axial position — both channels should be verified sequentially before the machine is restarted to avoid a partial-channel alarm condition that could trigger an unnecessary trip.
Once the probe is installed and the gap voltage is confirmed, the engineer should perform a slow-roll check at low shaft speed to verify that the vibration signal is clean, the DC gap voltage is stable, and the overall vibration reading is within the expected baseline range. Any deviation from the pre-outage baseline should be investigated before the machine is returned to full operating speed. This disciplined commissioning sequence, combined with the pre-shipment functional test report supplied with every 330703-000-050-10-11-00 unit, ensures that the replacement probe meets the original system specification and that field control continuity is maintained throughout the migration.
Retrofit Support FAQ
Q: Is the 330703-000-050-10-11-00 a direct drop-in replacement for the original Bently Nevada probe?
A: Yes. The 330703-000-050-10-11-00 is dimensionally and electrically equivalent to the original factory-installed probe. It uses the same M11 × 1.0 thread body, 5mm tip diameter, and 200 mV/mil scale factor, allowing direct installation without bracket modification. The probe must be used as part of a calibrated set with a compatible extension cable and 3300 XL or 3500 Series proximitor.
Q: What commissioning steps are required after installation?
A: After mechanical installation, set the air gap to the manufacturer’s recommended value (typically 1.0–1.5 mm for a 5mm probe), confirm the gap voltage at the proximitor output (10–12 VDC at mid-range), and verify the vibration channel reading against the pre-outage baseline. Update the probe serial number in System 1 or the 3500 rack configuration software, and validate all alarm setpoints before returning the machine to service.
Q: Can this probe be used with a Bently Nevada 3500 Series rack if we are migrating from a 3300 XL system?
A: Yes, the 330703-000-050-10-11-00 is compatible with the 3500 Series rack when paired with a compatible 3500 Series proximitor and the correct extension cable. The 3500 rack channel must be configured with the correct scale factor and gap voltage range to match the 5mm probe’s calibration curve. Consult the 3500 Series rack configuration documentation and verify the I/O module assignments before commissioning.
Q: What does the 12-month warranty cover, and is a test report included?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Every unit undergoes pre-shipment functional testing, and a test report is included with the shipment. The warranty does not cover damage resulting from improper installation, incorrect gap setting, or use outside the specified operating environment. For warranty claims or technical support, contact our team directly.
