Bently Nevada 330703-000-060-50-02-05 Spare 3300 XL Probe

Bently Nevada 330703-000-060-50-02-05 Spare 3300 XL Probe: Reliable Spare Parts for Uninterrupted Industrial Operations

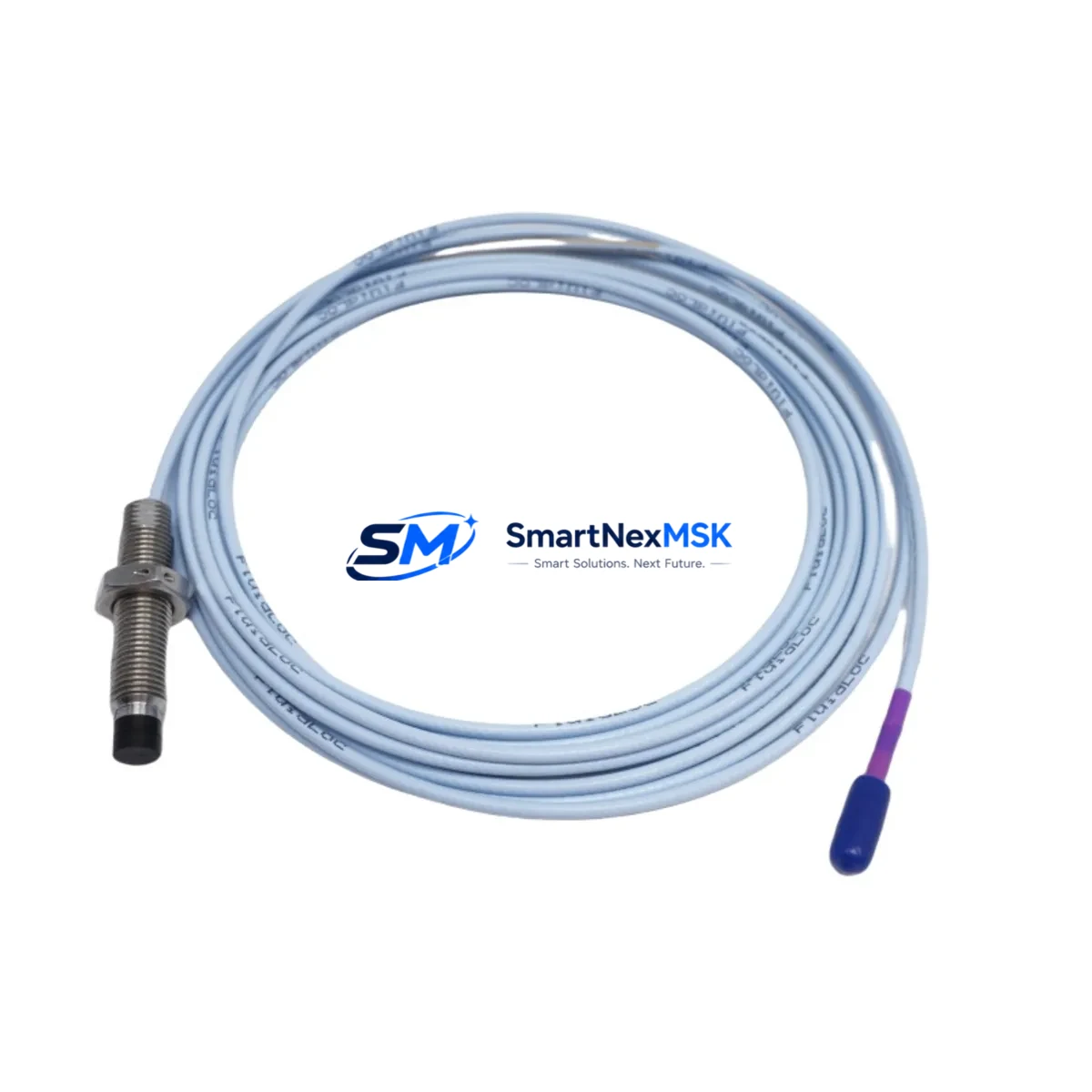

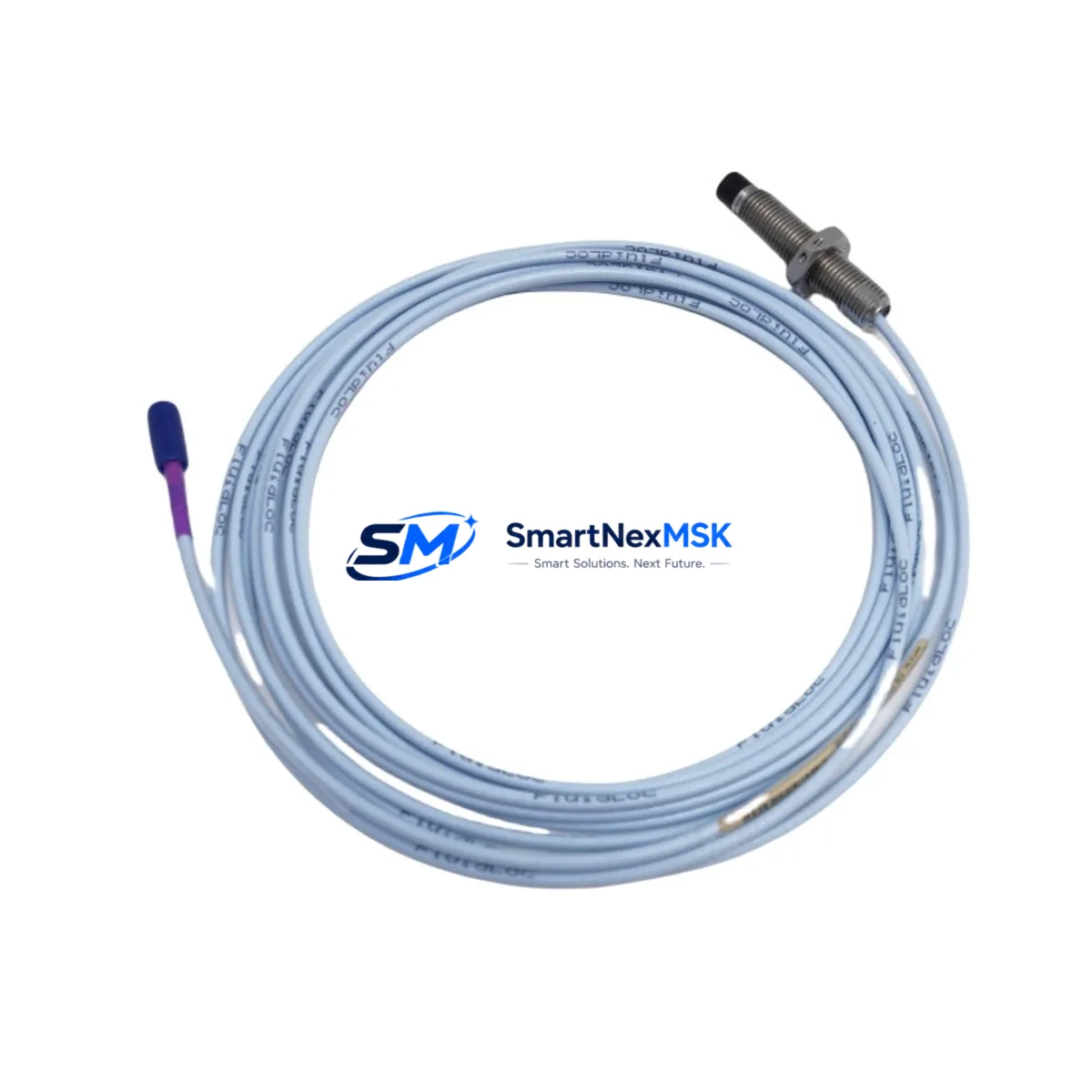

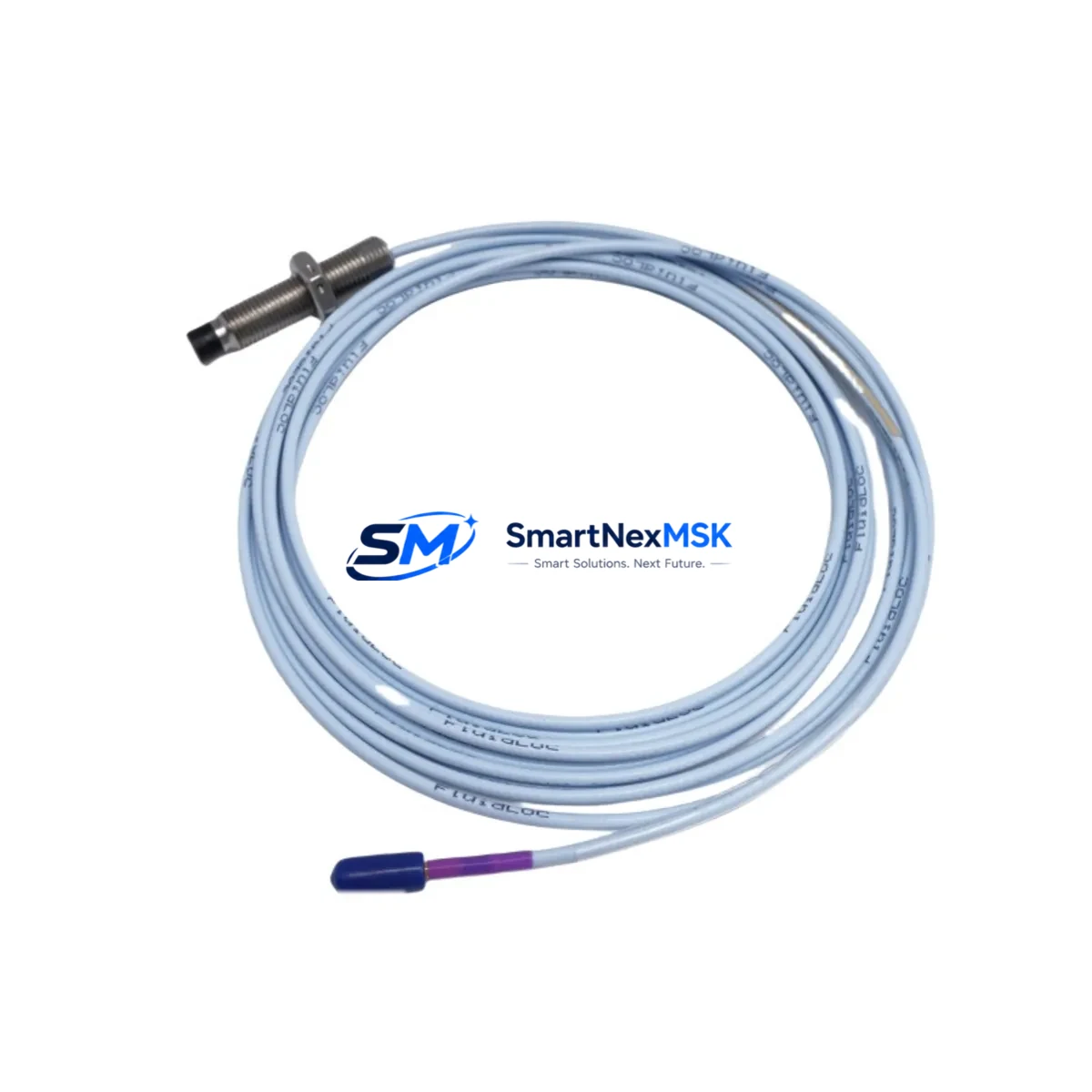

In continuous production environments — from petrochemical refineries and power generation plants to steel mills and offshore platforms — unplanned downtime caused by a failed proximity probe can cascade into hours of lost output and costly emergency repairs. The Bently Nevada 330703-000-060-50-02-05 is an original 11mm eddy-current proximity probe from the industry-trusted 3300 XL Series, engineered to deliver precise, non-contact shaft displacement and vibration measurement in the most demanding rotating machinery applications. Keeping this part in your maintenance inventory is not just a best practice — it is a frontline defense against unscheduled shutdowns.

Maintenance engineers and procurement specialists working with Bently Nevada vibration monitoring systems recognize the 330703-000-060-50-02-05 as a direct-fit replacement for worn or damaged probes in turbines, compressors, pumps, and gearboxes. Its eddy-current sensing principle ensures reliable gap measurement without physical contact, eliminating mechanical wear and providing consistent signal output over extended service intervals. Whether you are executing a planned turnaround, responding to a vibration alarm, or building a strategic spare parts buffer, this probe delivers the dimensional accuracy and electrical performance your system demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated task. When a maintenance team identifies a failed or drifting 330703-000-060-50-02-05 probe during a routine vibration survey or alarm response, experienced engineers know that the surrounding measurement chain must be inspected simultaneously to prevent repeat failures and ensure signal integrity.

The probe connects to the machine via a Bently Nevada 3300 XL extension cable (such as the 330130 series), which routes the high-frequency coaxial signal from the probe tip to the 3300 XL Proximitor® Sensor (e.g., 330180-X1-05). Any damage, kinking, or connector corrosion in the extension cable will degrade the gap voltage output even after a new probe is installed — always inspect and replace the cable as part of the same work order. The Proximitor sensor itself should be checked for output voltage stability and power supply rail integrity; a failing sensor can mimic a probe fault and lead to misdiagnosis.

At the rack level, the Bently Nevada 3500/42M Proximitor®/Seismic Monitor or equivalent I/O module receives the conditioned signal. Maintenance engineers should verify that the monitor card’s input channel is correctly configured for 11mm probe sensitivity and that the OK relay output is functioning. Alongside the monitor card, the 3500/15 Power Supply Module should be checked for output voltage stability — an under-voltage condition on the 24 VDC rail can cause false OK dropouts and erratic vibration readings across all channels in the rack.

For installations where the 3300 XL system feeds into a DCS or safety instrumented system (SIS), the 4–20 mA output from the monitor rack passes through signal isolators or barriers before reaching the control system I/O cards. Inspect these isolators (such as those in the MTL or P+F series) for loop resistance compliance and isolation integrity. A degraded isolator can introduce ground loops that corrupt vibration trend data and trigger nuisance trips. Similarly, the terminal blocks and field junction boxes connecting the probe cable to the rack should be inspected for moisture ingress, loose terminations, and corrosion — particularly in outdoor or high-humidity installations.

If the machine is part of a critical protection loop, the 3500 Series relay output module and its associated trip multiplier settings should be reviewed after any probe replacement to confirm that alarm and danger setpoints remain correctly configured. For sites running older Bently Nevada 7200 Series or 3300 Series (non-XL) probes in adjacent measurement points, this is also an appropriate time to assess whether those legacy probes are approaching end-of-life and should be added to the next planned replacement cycle.

Site Replacement Workflow

Replacing the 330703-000-060-50-02-05 in the field follows a structured process that minimizes exposure time and ensures the machine returns to monitored operation without signal errors:

1. Pre-Replacement Verification: Confirm the replacement probe part number matches the installed probe’s suffix codes (cable length, connector type, and temperature rating). Cross-reference with the machine’s vibration monitoring datasheet and the Bently Nevada system configuration record. If the original probe was a 330703-000-060-50-02-00 or similar variant, verify that the sensitivity and linear range are compatible with the existing Proximitor sensor calibration before installation.

2. Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. For online replacement on non-shutdown machines (where permitted by site procedures), bypass the protection channel at the 3500 rack before disconnecting the probe to prevent a spurious trip. Document the bypass in the permit-to-work system.

3. Physical Installation: Thread the new probe into the bracket to the correct gap setting — typically 1.0 mm to 1.5 mm for most steel shaft applications, verified with a calibrated gap meter. Torque the locknut to specification. Route the extension cable with adequate bend radius and secure it away from high-voltage conductors and heat sources.

4. Signal Verification: With the Proximitor sensor powered, measure the DC gap voltage at the OK terminal. For an 11mm probe at nominal gap, the output should be approximately −10 VDC to −18 VDC depending on gap distance. Confirm the OK relay is energized and the monitor channel shows a valid vibration reading within expected baseline range.

5. Documentation and Spare Stock Update: Record the replacement in the CMMS, update the probe serial number in the vibration monitoring database, and replenish the consumed spare. Sites with multiple machines using 3300 XL probes should maintain a minimum buffer of two to three units of the 330703-000-060-50-02-05 to support both planned and emergency replacements without lead-time exposure.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 330703-000-060-50-02-05?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional performance from the date of shipment. Each probe undergoes pre-shipment electrical testing to verify sensitivity, gap voltage output, and cable continuity. If a unit fails within the warranty period under normal operating conditions, we provide a replacement or full refund.

Q2: Is this probe compatible with the Bently Nevada 3500 Series monitoring system?
Yes. The 330703-000-060-50-02-05 is a 3300 XL Series probe designed to work with the 3300 XL Proximitor® Sensor, which in turn interfaces with the 3500 Series rack via standard coaxial cabling. The probe’s 7.87 V/mm sensitivity is the standard calibration for 3500/42M and 3500/40M monitor cards configured for 11mm probes. Always verify the monitor card’s probe type setting matches before installation.

Q3: Can this probe replace older Bently Nevada 7200 or 3300 (non-XL) probes?
The 330703-000-060-50-02-05 is a 3300 XL Series component and is not a direct drop-in replacement for 7200 Series or original 3300 Series probes, which use different connector standards and sensitivity specifications. However, many sites upgrade legacy probe systems to 3300 XL during planned maintenance to benefit from improved EMI resistance and wider temperature range. Contact our technical team to confirm compatibility with your specific installation before ordering.

Q4: How quickly can this spare part be shipped, and do you support long-term supply?
We maintain stock of the 330703-000-060-50-02-05 for immediate dispatch. Standard international shipments are processed within 1–3 business days with full tracking. For procurement engineers managing multi-year maintenance contracts or turnaround schedules, we offer long-term supply agreements and reserved stock arrangements to eliminate lead-time risk. Contact us to discuss volume pricing and scheduled delivery programs.
