Bently Nevada 330703-000-100-10-02-05 Spare 3300 XL: Precision Replacement for Vibration Monitoring Continuity

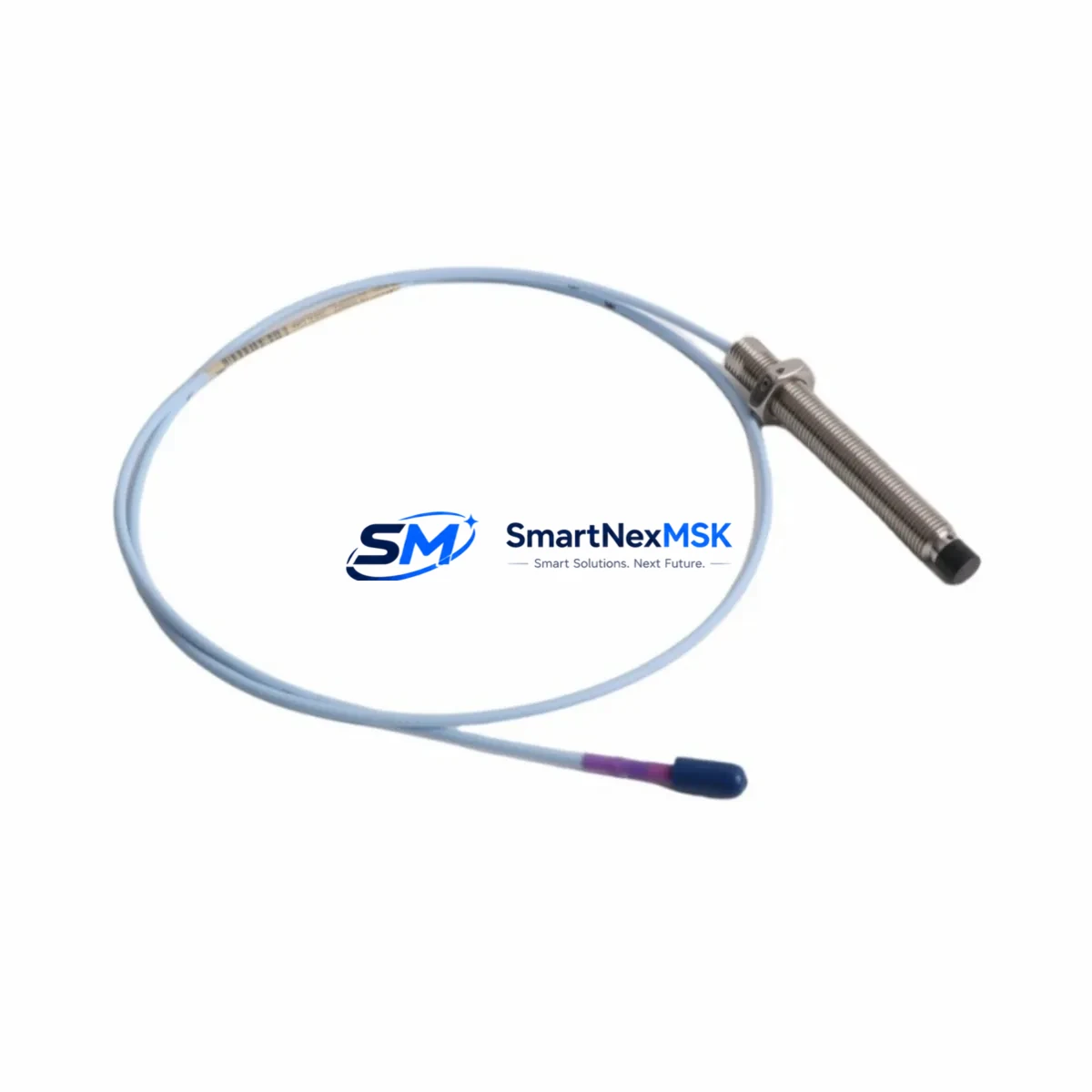

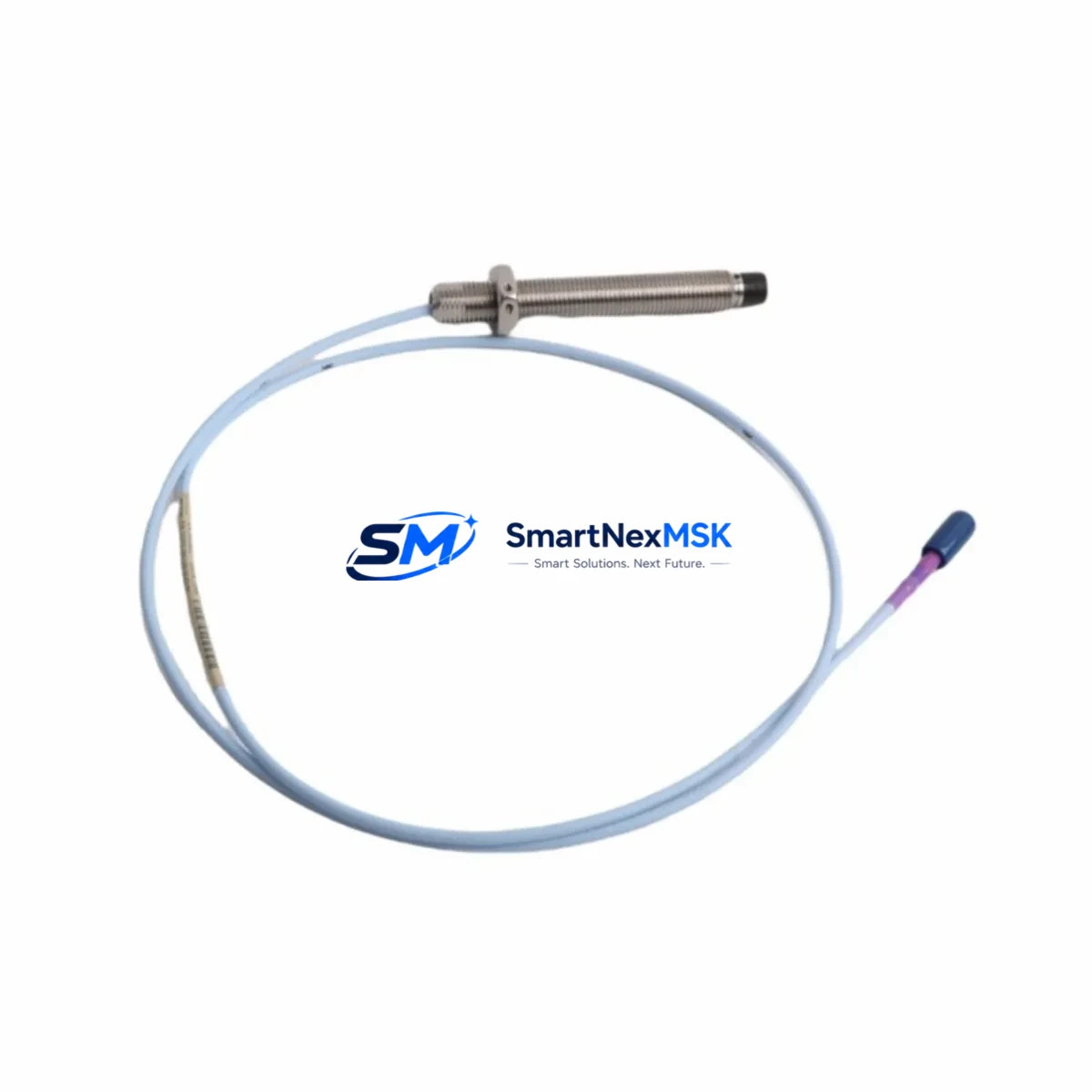

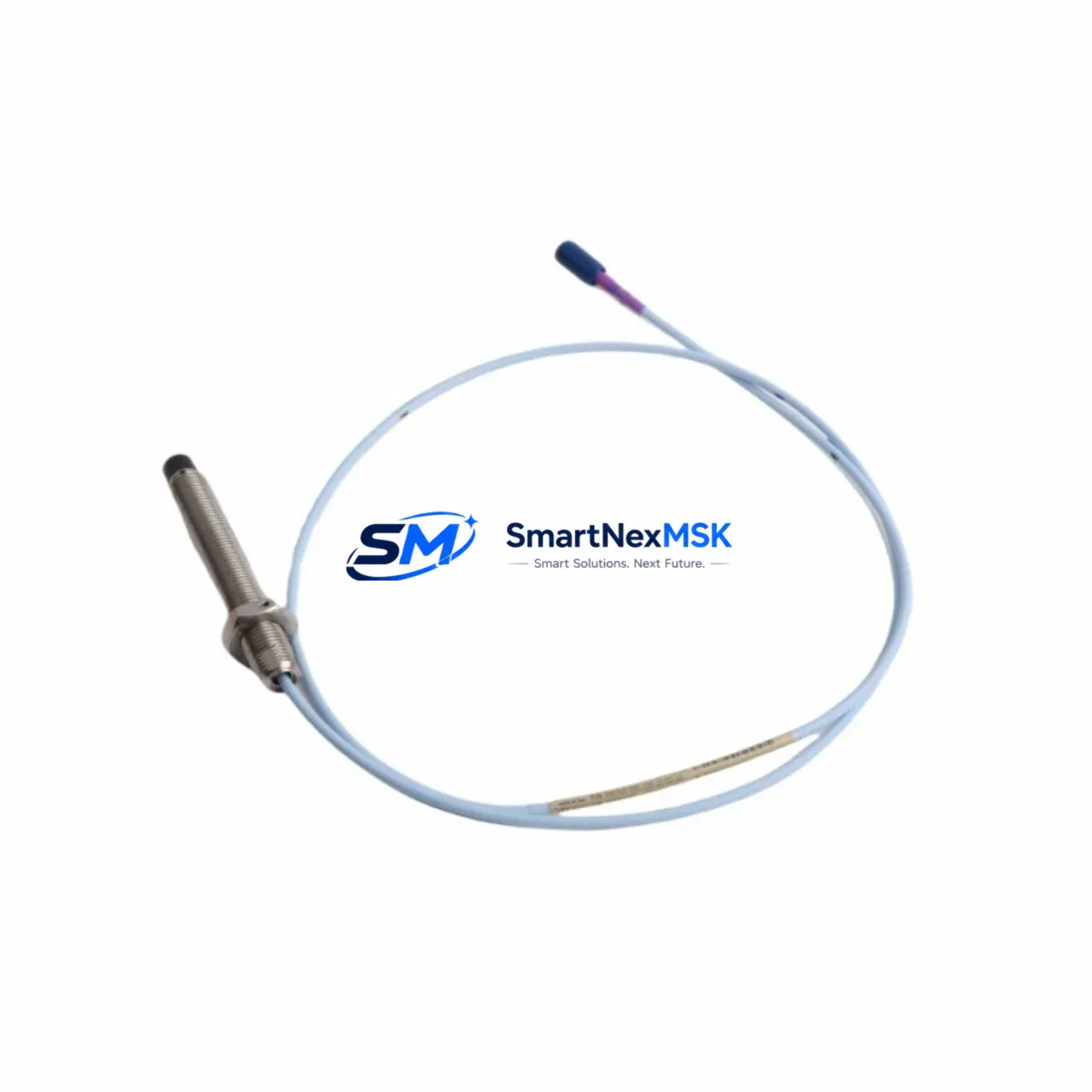

Unplanned downtime in rotating machinery monitoring is one of the most costly events in industrial plant operations. The Bently Nevada 330703-000-100-10-02-05 is an original 11mm eddy-current proximity transducer engineered for the 3300 XL Series vibration monitoring system — a platform widely deployed across turbines, compressors, pumps, and critical rotating assets in oil & gas, power generation, petrochemical, and heavy manufacturing facilities.

When this transducer fails or degrades, the entire vibration channel goes blind. Maintenance engineers lose real-time shaft displacement data, and the plant risks operating outside safe vibration limits without alarm coverage. Stocking a verified replacement of the 330703-000-100-10-02-05 is not optional — it is a fundamental element of any serious predictive maintenance and spare parts strategy for 3300 XL-equipped machinery trains.

This unit ships fully tested, individually packaged, and backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm output sensitivity, gap voltage linearity, and cable integrity before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330703-000-100-10-02-05 transducer in the field is rarely an isolated task. Experienced maintenance engineers know that a degraded proximity probe is often a symptom of broader system stress. During any planned or emergency replacement of this transducer, the following associated components should be inspected or replaced concurrently to prevent repeat failures and maximize the value of the maintenance window:

• Bently Nevada 330130-080-00-00 Proximitor Sensor — the signal conditioning driver paired with this probe. If the transducer has been running in a degraded state, the Proximitor may have been exposed to out-of-range input signals. Verify output voltage and replace if drift is detected.
• Bently Nevada 330180-X0-05 Extension Cable — the coaxial interconnect between probe and Proximitor. Inspect for jacket cracking, connector corrosion, and impedance continuity. A faulty extension cable is a common root cause of false vibration alarms.
• Bently Nevada 3300/16 I/O Module — the rack-mounted I/O interface card receiving the transducer signal. Check for channel-level faults, blown protection fuses, and firmware revision compatibility with the current rack configuration.
• Bently Nevada 3500/42M Proximitor I/O Module — if the system has been migrated or partially upgraded to the 3500 platform, verify that the 3300 XL transducer is operating within the 3500 input specification window.
• Terminal Block and Field Wiring — inspect the DIN-rail terminal blocks connecting the Proximitor output to the monitor rack. Loose terminations and oxidized contacts are a leading cause of intermittent channel faults in vibration monitoring loops.
• 24 VDC Power Supply Module — the Proximitor requires a stable −24 VDC supply. Measure supply voltage under load and verify ripple is within specification. A marginal power supply will cause systematic gap voltage errors across all channels.
• Bently Nevada 3300/55 Keyphasor Module — if the machinery train uses a Keyphasor reference signal for phase-referenced vibration analysis, inspect the Keyphasor transducer and its cable simultaneously. A failed Keyphasor will invalidate 1X and 2X vibration vectors across the entire train.
• Signal Isolator / Barrier (Zener or Galvanic) — in hazardous area installations, the intrinsic safety barrier or galvanic isolator in the Proximitor signal loop should be tested for leakage current and voltage clamping performance. Replace any barrier that has operated beyond its rated service life.
• Rack Backplane and Power Distribution Card — for 3300 XL rack-based systems, inspect the backplane connector pins for fretting corrosion and verify that the power distribution card is delivering correct voltages to all module slots.
• Bently Nevada 3300/20 Rack Interface Module (RIM) — if the system communicates with a DCS or historian via the RIM, verify that the communication link is active and that the channel configuration in the RIM matches the physical transducer installation.

Addressing these components during the same maintenance window eliminates the risk of a second unplanned outage caused by an adjacent failure — a scenario that is both operationally costly and entirely preventable with disciplined spare parts planning.

Site Replacement Workflow

The 330703-000-100-10-02-05 is a direct replacement for earlier 3300 XL 11mm proximity transducer variants. The replacement procedure follows standard Bently Nevada field installation practice:

1. Isolate the channel — place the affected monitor channel in bypass mode at the 3300 XL rack to suppress spurious alarms during the swap. Do not de-energize the entire rack unless required by site safety procedures.
2. Remove the existing transducer — disconnect the extension cable at the Proximitor end first, then unthread the probe from the bearing housing bracket. Record the existing gap measurement before removal.
3. Install the replacement unit — thread the new 330703-000-100-10-02-05 into the bracket and set the gap to the nominal value specified in the machinery OEM documentation (typically 1.0–1.5 mm for 11mm probes). Reconnect the extension cable.
4. Verify gap voltage — with the Proximitor energized, measure the DC output voltage at the monitor input. Confirm it falls within the linear range (typically −7 to −18 VDC for a 3300 XL system). Adjust gap as needed.
5. Restore the channel — remove the bypass, confirm the monitor displays a valid vibration reading, and verify that alarm setpoints are active. Log the replacement in the plant CMMS with the new transducer serial number.
6. Functional test — if the machinery is offline, perform a slow-roll check to confirm the vibration channel responds correctly to shaft movement before returning the asset to service.

This workflow minimizes total downtime exposure and ensures the replacement is fully commissioned before the asset returns to load. For legacy installations where the original bracket or cable assembly is worn, replacement of the full transducer assembly — probe, extension cable, and Proximitor — is recommended to restore the system to a known-good baseline.

Spare Parts Support FAQ

Q1: Is the 330703-000-100-10-02-05 compatible with both the 3300 XL and 3500 Series monitors?
The 330703-000-100-10-02-05 is natively designed for the 3300 XL Series. It can be used with 3500 Series monitors in many configurations, but compatibility depends on the specific 3500 I/O module and its input voltage range. Always verify the gap voltage output against the 3500 module specification before installation in a 3500 rack.

Q2: What is the recommended spare parts stocking strategy for this transducer?
For critical rotating machinery, a minimum of one spare transducer per monitored shaft position is recommended, with an additional unit held at the plant level for emergency response. For facilities with multiple identical machinery trains, a pooled spare of 2–3 units per site is a cost-effective approach that balances inventory carrying cost against downtime risk.

Q3: How is each unit tested before shipment?
Every 330703-000-100-10-02-05 unit undergoes pre-shipment functional verification including gap voltage linearity check, output sensitivity measurement, cable continuity test, and connector integrity inspection. A test report is available upon request. Units that do not meet specification are quarantined and not shipped.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, output sensitivity deviation beyond published specification, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the rated temperature and voltage range. Warranty claims are processed with return of the defective unit and a completed failure report.
