Bently Nevada 330703-020-100-90-02-00 Spare 3300 XL NSv: Precision Replacement for Industrial Downtime Control

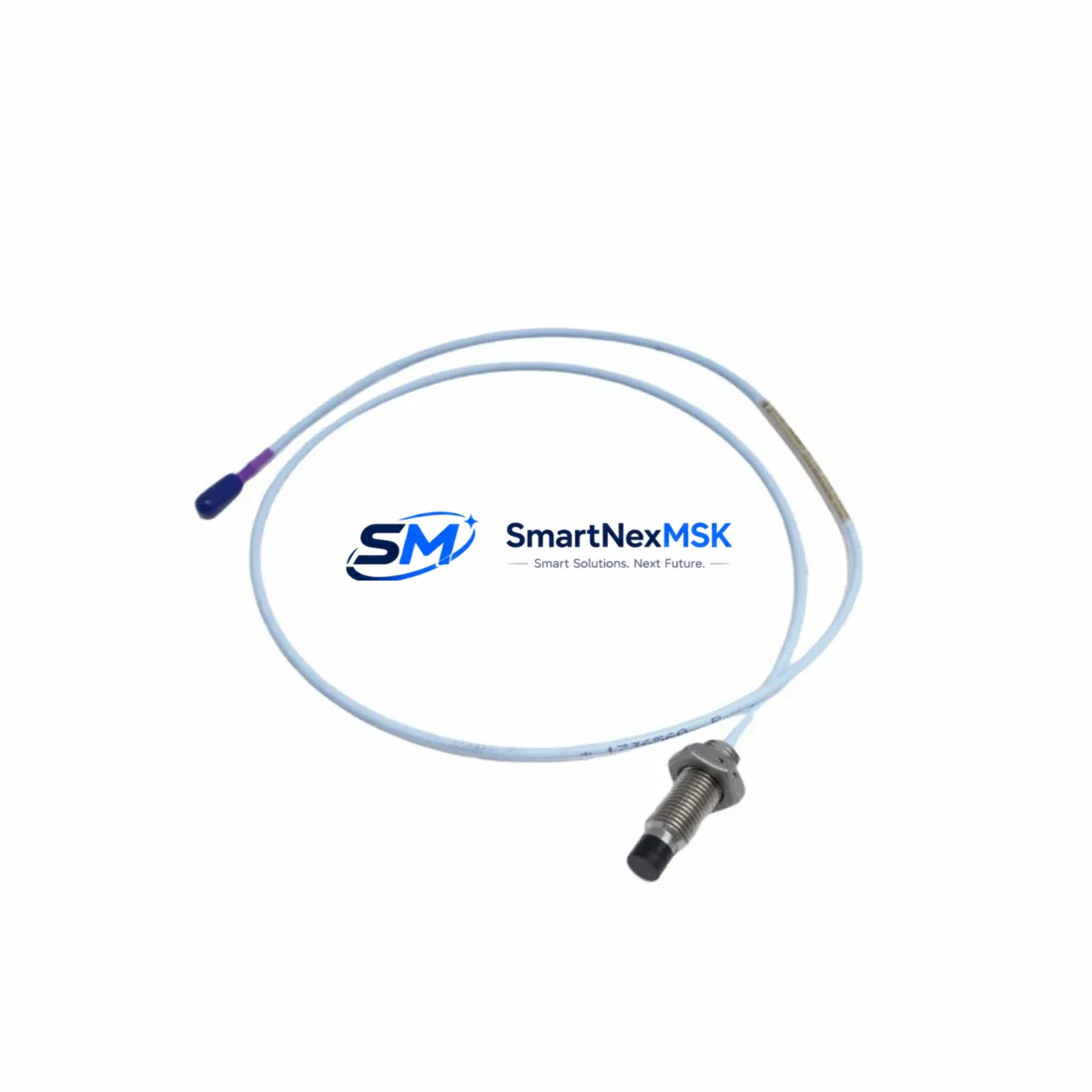

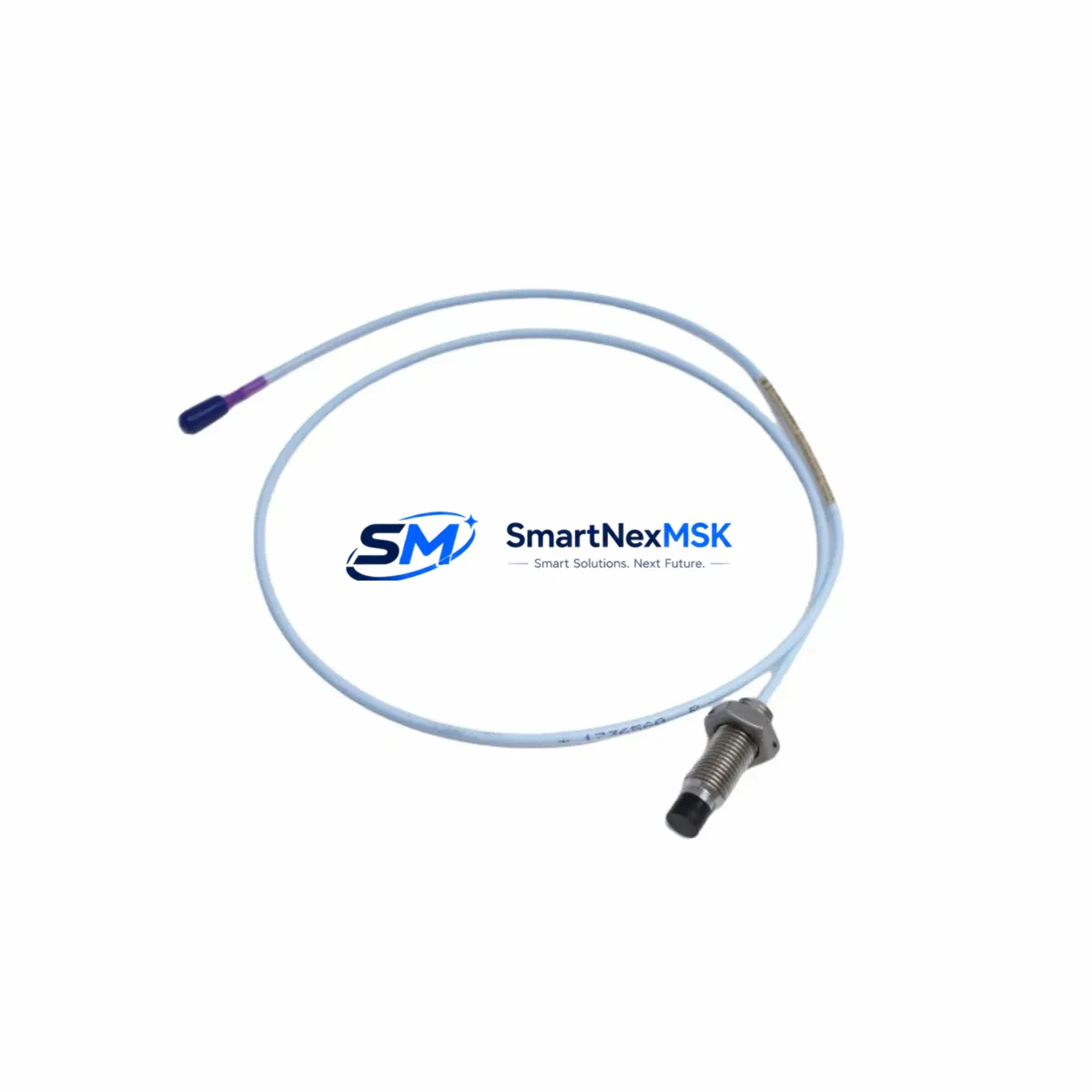

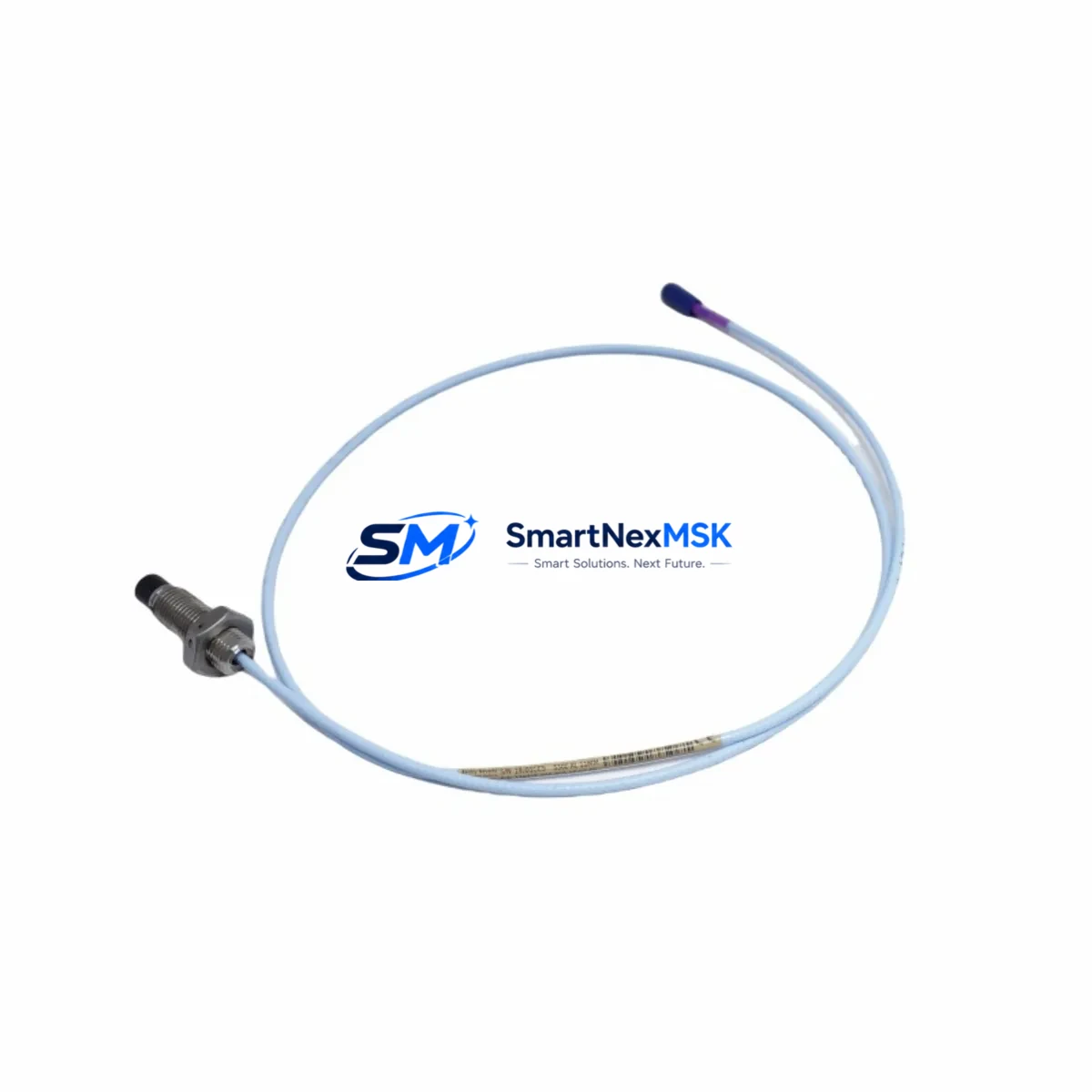

The Bently Nevada 330703-020-100-90-02-00 is an original proximity transducer engineered for the 3300 XL Non-contacting Vibration (NSv) measurement system. Designed for continuous-duty rotating machinery monitoring, this transducer is a critical spare component in turbine, compressor, pump, and motor protection panels across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. When a proximity transducer fails or degrades, the entire vibration monitoring loop is compromised — triggering nuisance trips, masking real faults, or causing unplanned shutdowns. Stocking a verified replacement of the 330703-020-100-90-02-00 is a fundamental element of any proactive maintenance strategy.

This unit ships tested and verified against original Bently Nevada factory specifications. Each unit undergoes pre-shipment functional inspection covering output voltage linearity, gap sensitivity, and cable continuity. A 12-month warranty is included from the date of delivery, covering manufacturing defects and performance deviations from published specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 330703-020-100-90-02-00 proximity transducer does not operate in isolation. It is one node in a complete vibration monitoring chain, and a disciplined maintenance engineer will treat any transducer replacement as an opportunity to inspect the entire measurement loop. When replacing this unit during a planned outage or emergency callout, the following associated components should be inspected or replaced as part of the same work order.

The 3300 XL extension cable (such as the 330130 series) connects the probe to the proximitor and is subject to mechanical fatigue, connector corrosion, and insulation breakdown — particularly in high-vibration or high-temperature environments. A degraded cable will produce erratic gap voltage readings even with a new transducer installed. Similarly, the 3300 XL proximitor/oscillator-demodulator (e.g., 330180 or 330185 series) should be bench-tested or swapped if the transducer replacement does not restore expected output linearity.

At the panel level, inspect the Bently Nevada 3500 rack system I/O modules if the vibration signal feeds into a 3500/40M or 3500/42M monitor card. Connector pins, terminal blocks, and field wiring terminations are common failure points after years of thermal cycling. If the plant uses a 3300/16 or 3300/20 monitor for older installations, verify that the monitor input impedance and power supply rails are within specification — a failing monitor power supply can mimic transducer faults.

For facilities running DCS integration via 4–20 mA or HART output from the vibration monitor, check the signal isolator or barrier (such as a Phoenix Contact or Pepperl+Fuchs HART isolator) in the marshalling cabinet. These devices degrade silently and can introduce offset errors into the vibration trend data. Terminal blocks (e.g., Phoenix Contact PTFIX or Weidmüller series) adjacent to the monitor card should also be inspected for loose connections and corrosion, especially in coastal or humid environments.

If the machinery protection system feeds a safety PLC or SIS, confirm that the discrete trip output from the vibration monitor is correctly received at the SIS input card after the transducer swap. For plants with HMI or SCADA integration, verify that the vibration trend tag is updating correctly and that no stale or frozen values remain in the historian after the replacement. A functional test of the trip relay output — using a calibrated gap simulator — is recommended before returning the machine to service.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 330703-020-100-90-02-00 matches the installed probe thread size, cable length, and connector type. Cross-reference the machine vibration monitoring datasheet to confirm the gap voltage setpoint (typically -10.0 VDC ± 0.5 VDC at calibrated gap for 3300 XL NSv systems).

Step 2 — Safe isolation: Follow site LOTO procedures. For online replacement on non-critical auxiliary machinery, confirm with the control room that the monitor is in bypass mode before disconnecting the transducer. Never disconnect a live transducer on a machine in a trip-armed state without authorization.

Step 3 — Physical installation: Install the new 330703-020-100-90-02-00 to the correct gap (typically 50 mil / 1.27 mm for standard steel targets). Use a calibrated gap-setting tool. Torque the locknut to the manufacturer specification. Reconnect the extension cable and verify connector seating.

Step 4 — Electrical verification: With the proximitor powered, measure the DC gap voltage at the proximitor output terminals. Confirm the reading is within the calibrated range. Check for noise or oscillation on the signal using a handheld oscilloscope or the monitor diagnostic display.

Step 5 — System restoration: Remove the monitor bypass, confirm the vibration trend is live in the DCS/SCADA, and document the replacement in the CMMS. Update the spare parts inventory to trigger reorder of a replacement 330703-020-100-90-02-00 for the next event. This workflow minimizes machine downtime, ensures measurement integrity from day one, and maintains compliance with API 670 machinery protection standards.

Spare Parts Support FAQ

Q1: Is the 330703-020-100-90-02-00 compatible with both 3300 XL and older 3300 series monitors?
The 330703-020-100-90-02-00 is designed for the 3300 XL NSv system. Compatibility with older 3300 (non-XL) monitors depends on the specific monitor card and system configuration. We recommend verifying the proximitor model and monitor input specifications before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What is included in the 12-month warranty?
The 12-month warranty covers manufacturing defects and performance deviations from Bently Nevada published specifications, including output voltage linearity, gap sensitivity, and connector integrity. Warranty claims require the unit to be returned in its original packaging with a fault description. Physical damage caused by incorrect installation, over-torquing, or electrical overstress is excluded.

Q3: How is the unit tested before shipment?
Each 330703-020-100-90-02-00 unit undergoes pre-shipment inspection covering DC output voltage at calibrated gap, cable continuity and insulation resistance, connector condition, and physical inspection of the probe tip and thread. A test report is available upon request for critical applications.

Q4: Can you supply multiple units for a planned shutdown or spare parts kit?
Yes. We support bulk orders for planned shutdowns, annual turnarounds, and strategic spare parts programs. Lead times and pricing for multi-unit orders are available upon inquiry. Long-term supply agreements are also available for facilities requiring guaranteed stock availability across multiple maintenance cycles.
