Bently Nevada 330704-00-030-50-02-00 Spare 3300 XL

Bently Nevada 330704-00-030-50-02-00 Maintenance-Ready Spare for 3300 XL Automation

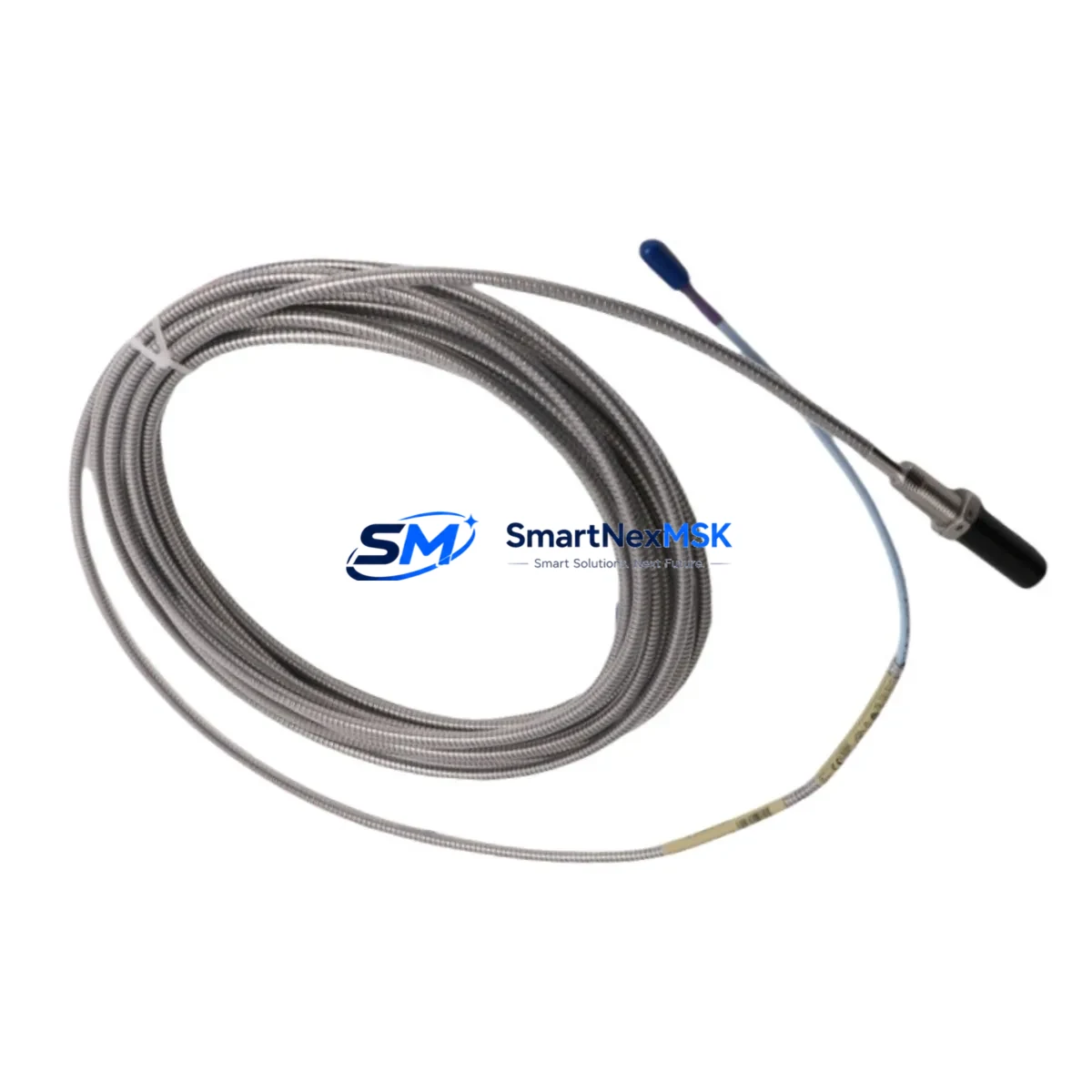

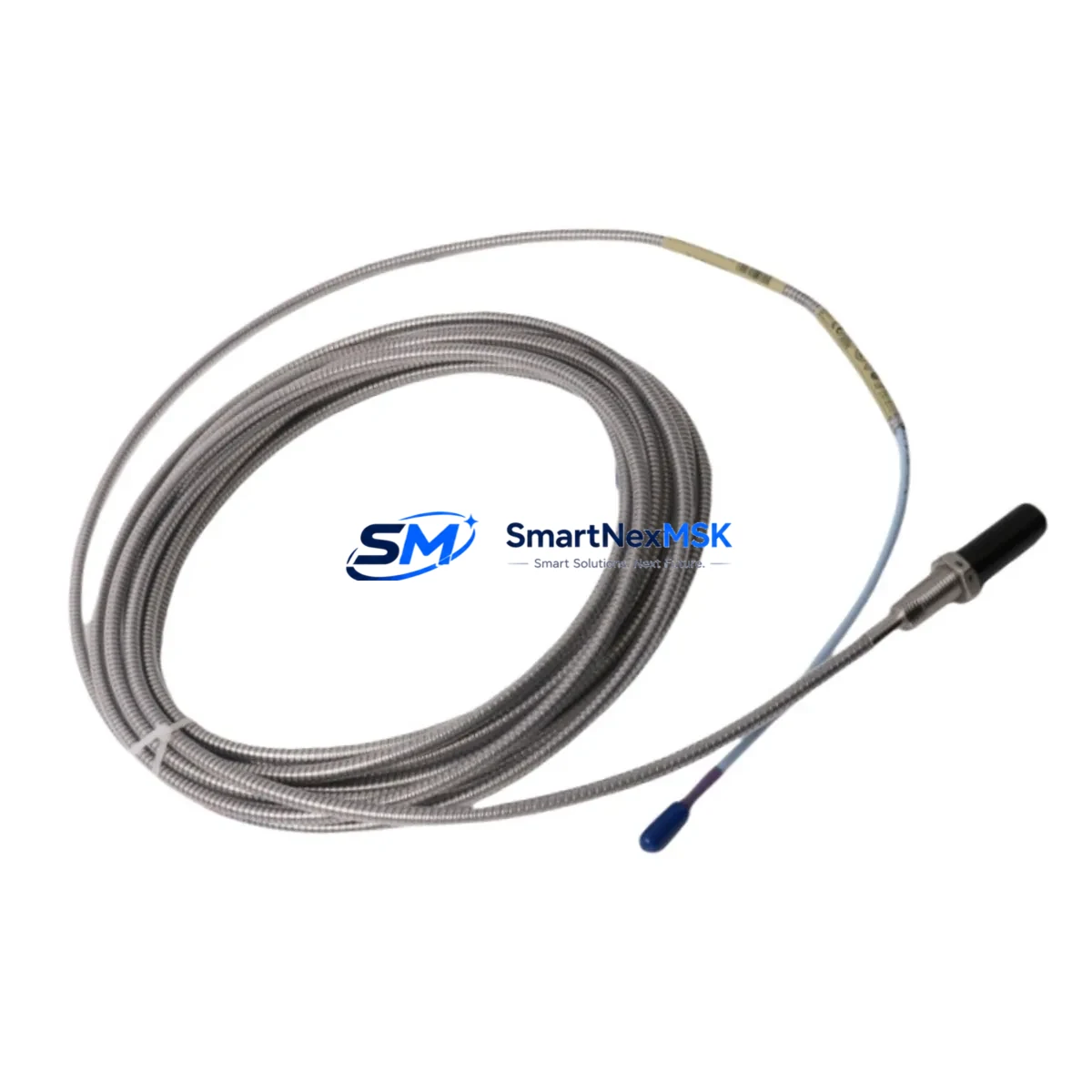

The Bently Nevada 330704-00-030-50-02-00 is an original eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe is a critical front-line sensor whose failure can trigger unplanned shutdowns, cascade protection trips, and costly production losses. Holding a verified spare of the 330704-00-030-50-02-00 in your parts inventory is a fundamental element of any proactive maintenance strategy.

This probe operates on the eddy-current (non-contact) measurement principle, delivering continuous radial vibration and position data to the 3300 XL monitor rack. Its 30 mm cable length, 50 mm extension cable configuration, and 02-00 connector designation make it a direct fit for standard 3300 XL installations without field modification. When sourced as an original spare, it arrives factory-calibrated and ready for immediate installation, eliminating the re-calibration delays that often extend downtime windows during emergency replacements.

From a procurement engineering perspective, the 330704-00-030-50-02-00 should be treated as a consumable-class critical spare — not a one-time purchase. Probe tip wear, cable fatigue at conduit entry points, connector corrosion in humid or chemically aggressive environments, and signal drift over extended service cycles all contribute to a finite service life. Establishing a minimum stock level of one to two units per monitored machine train is standard practice in facilities operating continuous processes where unplanned downtime carries significant financial exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330704-00-030-50-02-00 proximity probe is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance teams know that the probe itself is rarely the only component requiring attention. A thorough inspection of the surrounding measurement chain and control cabinet is essential to restore full system integrity and prevent repeat failures.

Begin with the 3300 XL Proximitor / Seismic Monitor module — the signal conditioning unit that powers the probe and converts its output to a 4–20 mA or voltage signal for the protection system. A faulty or aging Proximitor can mask probe performance issues or introduce false readings even after a new probe is installed. Verify the module’s gap voltage output and confirm it falls within the –18 VDC nominal range specified for the 3300 XL system.

Inspect the extension cable assembly (typically a 330130-series or equivalent matched cable) for jacket cracking, shield continuity breaks, and connector pin corrosion. The probe, extension cable, and Proximitor form a matched system — replacing the probe without verifying cable integrity is a common source of post-maintenance signal anomalies. Similarly, check the armored conduit and cable glands at machine casing penetration points for mechanical damage or moisture ingress.

At the rack level, audit the 3300 XL power supply module — typically a redundant 24 VDC supply feeding the monitor rack. Voltage sag or ripple on the supply rail can degrade probe gap voltage stability and introduce noise into vibration readings. If the facility runs a Bently Nevada 3500 Series rack in parallel for critical machines, cross-check that the I/O module termination boards and 3500/42M Proximitor I/O Module are seated correctly and free of corrosion on the terminal strips.

For facilities using DCS integration — such as Emerson DeltaV or Honeywell Experion — verify that the 4–20 mA signal from the 3300 XL monitor is reaching the DCS I/O card correctly after probe replacement. A signal interruption during replacement can trigger spurious alarms or cause the DCS historian to log a data gap, complicating post-maintenance trend analysis. Check the signal isolator or barrier (such as a P+F or MTL Zener barrier if the probe is installed in a hazardous area) for correct range configuration.

Terminal blocks and DIN rail mounted relay modules in the vibration monitoring cabinet should also be inspected during any probe replacement outage. Loose terminations on the monitor output relay — which drives the machine trip or alarm circuit — are a known source of nuisance trips in aging control cabinets. If the cabinet houses a Bently Nevada 3300/16 I/O module or similar expansion card, verify that all field wiring terminations are torqued to specification.

Finally, if the machine train includes an HMI panel (such as a Siemens TP700 or Allen-Bradley PanelView) displaying real-time vibration trends, confirm that the display updates correctly after probe replacement and that no latched alarms remain active in the protection system before returning the machine to service.

Site Replacement Workflow

Replacing the 330704-00-030-50-02-00 in the field follows a structured sequence designed to minimize downtime and ensure system compatibility from the first power-up after installation.

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel associated with the probe being replaced. Do not de-energize the entire rack if other channels are monitoring running equipment.

Step 2 — Gap Measurement Before Removal: Record the existing probe gap voltage (typically –10 VDC ±0.5 VDC for a correctly installed probe at nominal gap). This baseline confirms whether the outgoing probe was still functional or had already drifted out of range — useful data for root cause analysis.

Step 3 — Probe Removal: Unscrew the probe from its mounting bracket. Note the number of turns required to reach the correct gap — this serves as a reference for the new probe installation. Disconnect the extension cable at the probe connector.

Step 4 — New Probe Installation: Thread the 330704-00-030-50-02-00 into the bracket. Set the gap to the target value specified in the machine’s vibration monitoring datasheet (commonly 1.0 mm / –10 VDC for 3300 XL systems). Reconnect the extension cable and verify connector seating.

Step 5 — Signal Verification: Re-energize the monitor channel. Confirm gap voltage at the Proximitor output connector. Verify that the 3300 XL monitor displays a valid reading within the OK band and that no fault or not-OK indicators are active.

Step 6 — System Handback: Clear any latched alarms in the protection system. Confirm with the control room that the DCS is receiving a valid signal. Document the replacement in the maintenance management system (CMMS) with the new probe serial number and installation gap voltage.

This workflow applies equally to planned outage replacements and emergency shutdowns. Having the 330704-00-030-50-02-00 pre-staged in the spare parts store — with its extension cable and connector verified — reduces the active replacement window to under 30 minutes for experienced technicians.

Spare Parts Support FAQ

Q1: What is the recommended spare parts inventory strategy for the 330704-00-030-50-02-00?
For machines in continuous service, maintain a minimum of one probe per monitored measurement point as a ready spare. For critical machines (turbines, high-speed compressors), a two-unit buffer per machine train is advisable. Probes stored in original packaging in a climate-controlled environment maintain full performance for up to five years. Rotate stock on a first-in, first-out basis and inspect connectors annually for corrosion.

Q2: Is the 330704-00-030-50-02-00 compatible with both 3300 XL and 3500 Series monitors?
The 330704-00-030-50-02-00 is designed and calibrated for the 3300 XL Series. While the eddy-current measurement principle is shared with the 3500 Series, probe-to-Proximitor matching is system-specific. Always verify the target monitor’s probe compatibility list before cross-applying probes between rack generations. Contact our technical team for compatibility confirmation if your installation uses a mixed 3300/3500 architecture.

Q3: What pre-shipment testing is performed on this spare?
Each 330704-00-030-50-02-00 unit is inspected for physical integrity, connector condition, and cable continuity before dispatch. Units sourced as original spares are verified against Bently Nevada factory specifications. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and performance deviations from published specifications.

Q4: How quickly can this spare be shipped for emergency breakdown situations?
In-stock units are available for same-day or next-business-day dispatch via DHL Express or FedEx International Priority. Emergency orders placed before 14:00 CST are prioritized for same-day processing. Contact sales@smartnexmsk.com or call +86 18259474341 to confirm stock availability and arrange expedited shipping for breakdown situations.
