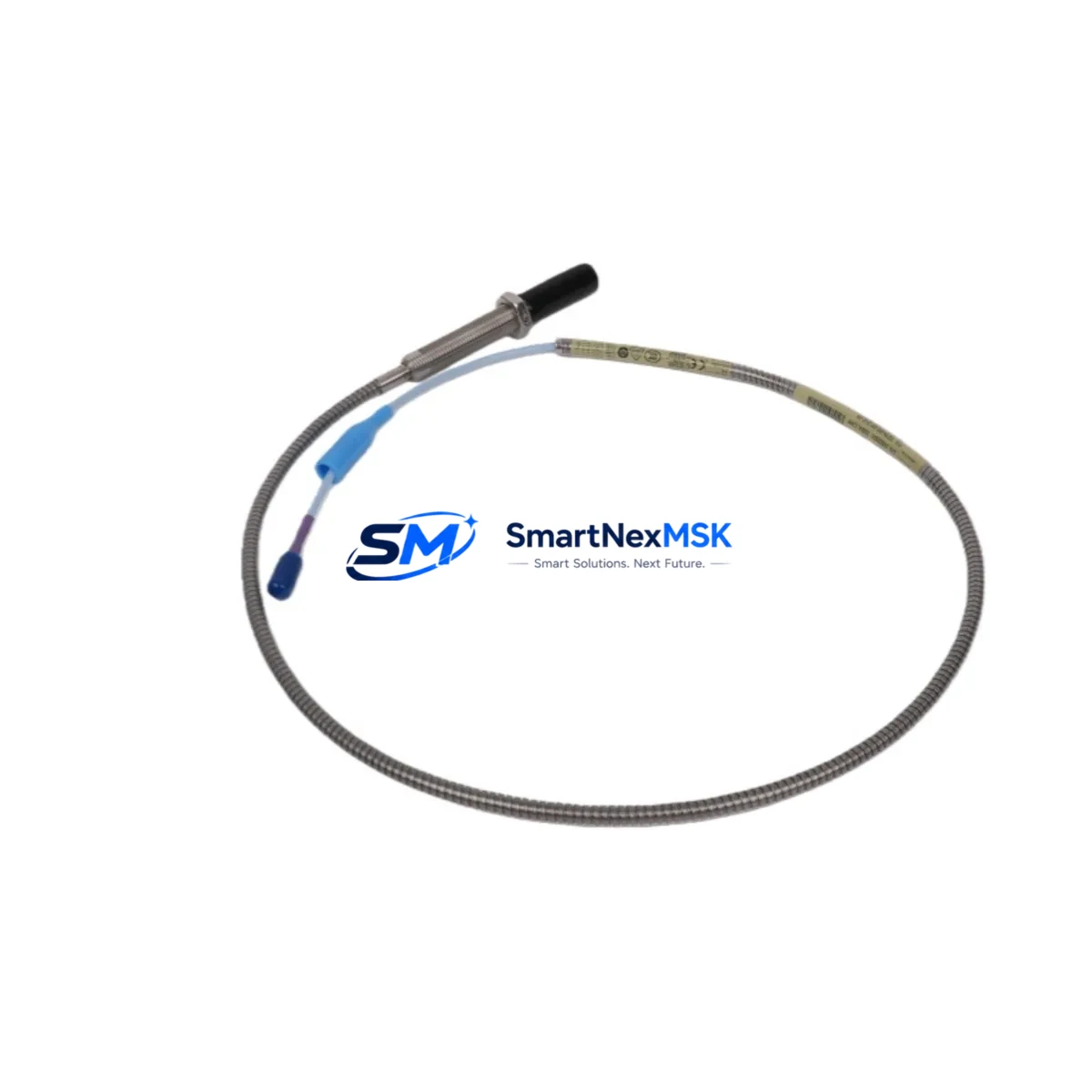

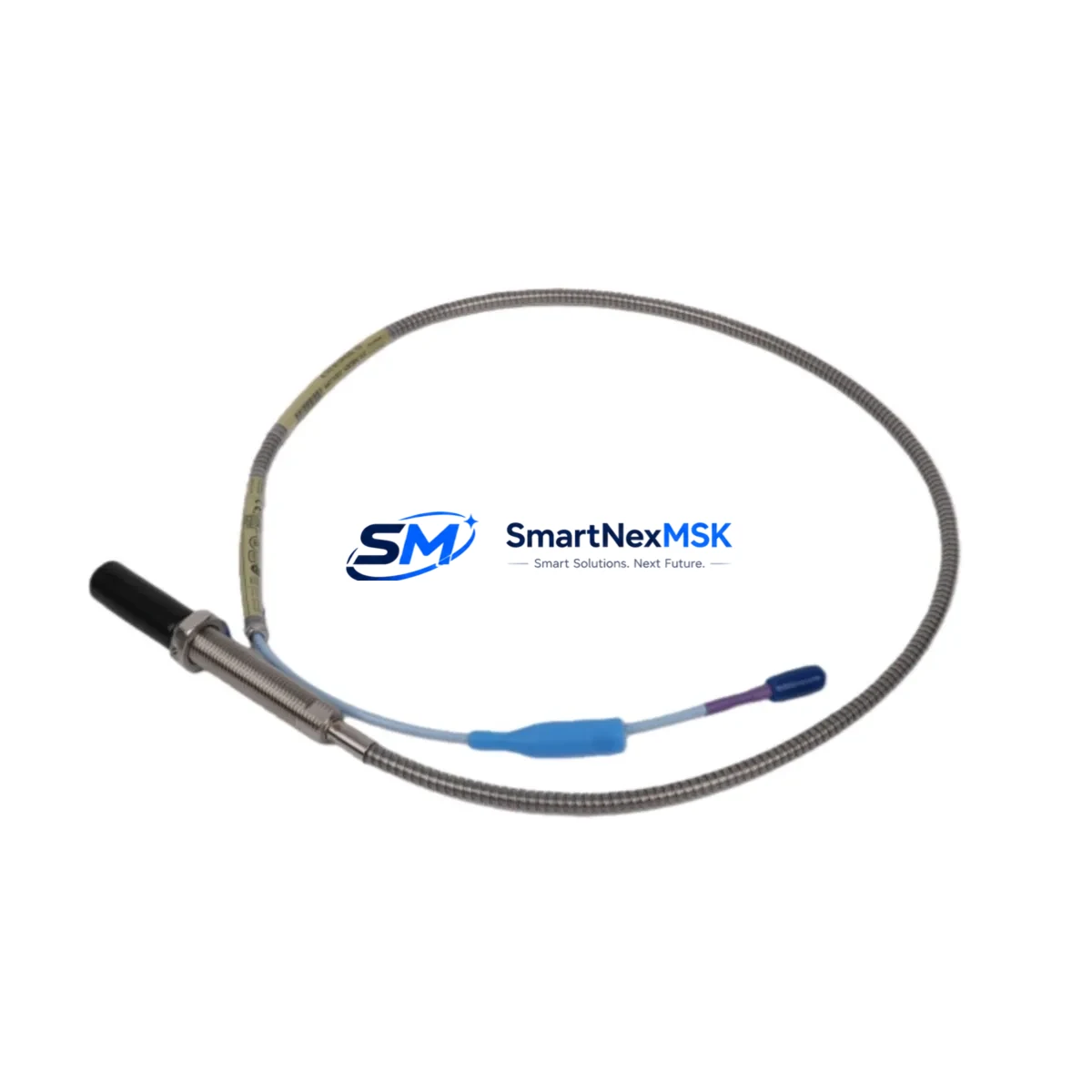

Bently Nevada 330704-00-50-10-01-05 Retrofit-Ready Proximity Probe

Bently Nevada 330704-00-50-10-01-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

The Bently Nevada 330704-00-50-10-01-05 is a 5mm eddy-current proximity probe engineered for seamless integration into legacy 3300 XL Series vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of existing machinery protection infrastructure while managing obsolescence risk, this probe serves as a verified drop-in replacement for discontinued or end-of-life units within the 3300 XL platform. Whether you are executing a planned control system upgrade, recovering from an unplanned failure, or modernizing a rotating machinery protection loop, the 330704-00-50-10-01-05 delivers the signal fidelity and dimensional compatibility required for uninterrupted plant operation.

Designed to interface directly with the Bently Nevada 3300 XL proximitor/extension cable assemblies, this probe maintains the standard 5mm sensing range and output sensitivity of -7.87 V/mm (-200 mV/mil), ensuring that existing vibration monitors, relay modules, and data acquisition systems continue to receive correctly scaled signals without recalibration of upstream instrumentation. Engineers replacing worn or damaged probes in turbine, compressor, pump, or gearbox applications will find that the 330704-00-50-10-01-05 preserves the original system’s gap voltage setpoints and alarm thresholds, significantly reducing commissioning time and the risk of nuisance trips during restart.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330704-00-50-10-01-05 into an operating plant begins well before the probe is physically installed. Maintenance engineers should first audit the existing 3300 XL rack configuration, confirming the slot assignments of each proximitor module and the corresponding channel mapping within the machinery protection system. In multi-channel installations, it is common to find a mix of 5mm and 8mm probe assemblies sharing the same rack, so verifying that the replacement probe matches the proximitor channel’s configured sensitivity is essential before any wiring is disturbed.

The extension cable — typically a 330130 or 330140 series cable — must be inspected for continuity and insulation integrity before reuse. A degraded extension cable is a frequent root cause of erratic gap voltage readings that can be misattributed to a faulty probe. If the cable shows any sign of jacket damage, connector corrosion, or impedance deviation, replacing it alongside the probe with a matched-length assembly eliminates a common source of post-retrofit signal instability.

At the rack level, the 3300 XL monitor module — such as a 3300/16 or 3300/20 vibration monitor — should be confirmed to be in a healthy state before the new probe is commissioned. If the monitor module itself is approaching end-of-life, this retrofit is an appropriate trigger to evaluate a parallel upgrade to a 3500 Series rack, which accepts 3300 XL-compatible probes and extension cables while offering expanded Modbus TCP and EtherNet/IP communication options. The 3500/22M monitor and 3500/42M Proximitor I/O module are common migration targets in facilities transitioning from legacy serial communication to plant-wide DCS integration via OPC-UA or PROFIBUS DP.

For facilities operating Emerson DeltaV or Honeywell Experion PKS as the supervisory DCS, the vibration data from the 3300 XL system is typically aggregated through a dedicated machinery protection gateway. Confirming that the gateway’s channel configuration reflects the correct probe sensitivity and gap voltage range for the 330704-00-50-10-01-05 prevents false OK-relay dropout events during the first hours of operation after restart. Similarly, any HMI faceplate that displays gap voltage or vibration amplitude for the affected measurement point should be reviewed to ensure the engineering unit scaling remains consistent with the replacement probe’s output curve.

In I/O-intensive installations where the 3300 XL rack feeds discrete relay outputs to a PLC — such as an Allen-Bradley ControlLogix or Siemens S7-300 safety interlock system — the relay module wiring should be documented and verified against the original loop drawing before the probe is swapped. A momentary OK-relay state change during probe installation can trigger a spurious shutdown if the PLC logic does not include a maintenance bypass or inhibit function. Coordinating with the control room operator to place the affected channel in bypass mode before beginning physical work is a standard precaution that protects both personnel and production continuity.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330704-00-50-10-01-05 probe should be bench-tested against a known-good proximitor module to confirm gap voltage linearity across the full measurement range. This pre-shipment functional verification — which is included as part of SMARTNEXMSK’s outgoing quality inspection — ensures that the unit arriving on-site is ready for immediate installation without additional bench calibration.

During the outage, the sequence of operations should follow the original OEM installation procedure: remove the old probe from the probe holder, inspect the holder threads and target surface for wear or contamination, install the new probe to the specified gap dimension, and verify the gap voltage at the proximitor terminal before reconnecting the monitor channel. Restoring the channel from bypass or inhibit mode should only occur after the gap voltage has been confirmed within the monitor’s configured OK-voltage window, typically between -9.5 VDC and -10.5 VDC for a 1.0 mm gap on a 5mm probe system.

For facilities with redundant measurement loops — where a radial vibration measurement point uses two probes mounted 90° apart — the replacement of one probe while the machine remains online is feasible if the monitor supports single-channel operation and the plant’s risk assessment permits it. In this scenario, the active channel continues to provide vibration protection while the replacement probe is installed and verified on the inactive channel, after which both channels are returned to service simultaneously. This approach eliminates the need for a full machine shutdown in many turbomachinery applications and is a proven strategy for reducing the total maintenance window duration.

All replaced probes, extension cables, and proximitor modules should be tagged with the removal date and gap voltage reading at time of removal, then retained as spare inventory or returned for evaluation. Maintaining a documented history of probe service life supports predictive maintenance planning and helps identify target surfaces or probe holders that may require refurbishment in future outage cycles.

Retrofit Support FAQ

Q1: Is the 330704-00-50-10-01-05 a direct replacement for my existing 3300 XL probe without any wiring changes?
Yes. The 330704-00-50-10-01-05 uses the standard 3300 XL coaxial connector and is dimensionally identical to the original probe. No adapter, rewiring, or connector modification is required. The only field adjustment needed is re-verification of the gap voltage after installation to confirm the probe is seated at the correct sensing distance.

Q2: What commissioning checks are required after installing the replacement probe?
After physical installation, verify the DC gap voltage at the proximitor terminal (target: approximately -10.0 VDC at 1.0 mm gap), confirm the OK relay is energized, check that the vibration amplitude reading is within the expected baseline range for the machine at rest, and review the monitor’s alarm and danger setpoints to ensure they remain appropriate for the application. If the machine has been offline for an extended period, a slow-roll vibration check before returning to full speed is recommended.

Q3: Can this probe be used with a 3500 Series rack if we are migrating from 3300 XL?
The 330704-00-50-10-01-05 probe and its compatible extension cables are mechanically and electrically compatible with 3500 Series Proximitor I/O modules configured for 5mm probe systems. However, the 3500 rack’s channel configuration must be set to match the probe’s sensitivity (-200 mV/mil) and the correct OK voltage window. Consult the 3500 Series configuration guide and verify the Proximitor module firmware revision before completing the migration.

Q4: What warranty coverage is provided, and what does it include?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes outgoing quality inspection including functional verification prior to dispatch. For warranty claims or technical support, contact sales@smartnexmsk.com or call +86 18259474341.
