Bently Nevada 330704-00-60-10-02-CN 3300 XL Proximity Transducer

Bently Nevada 330704-00-60-10-02-CN 3300 XL Proximity Transducer: Retrofit-Ready Replacement for Legacy Vibration Monitoring Systems

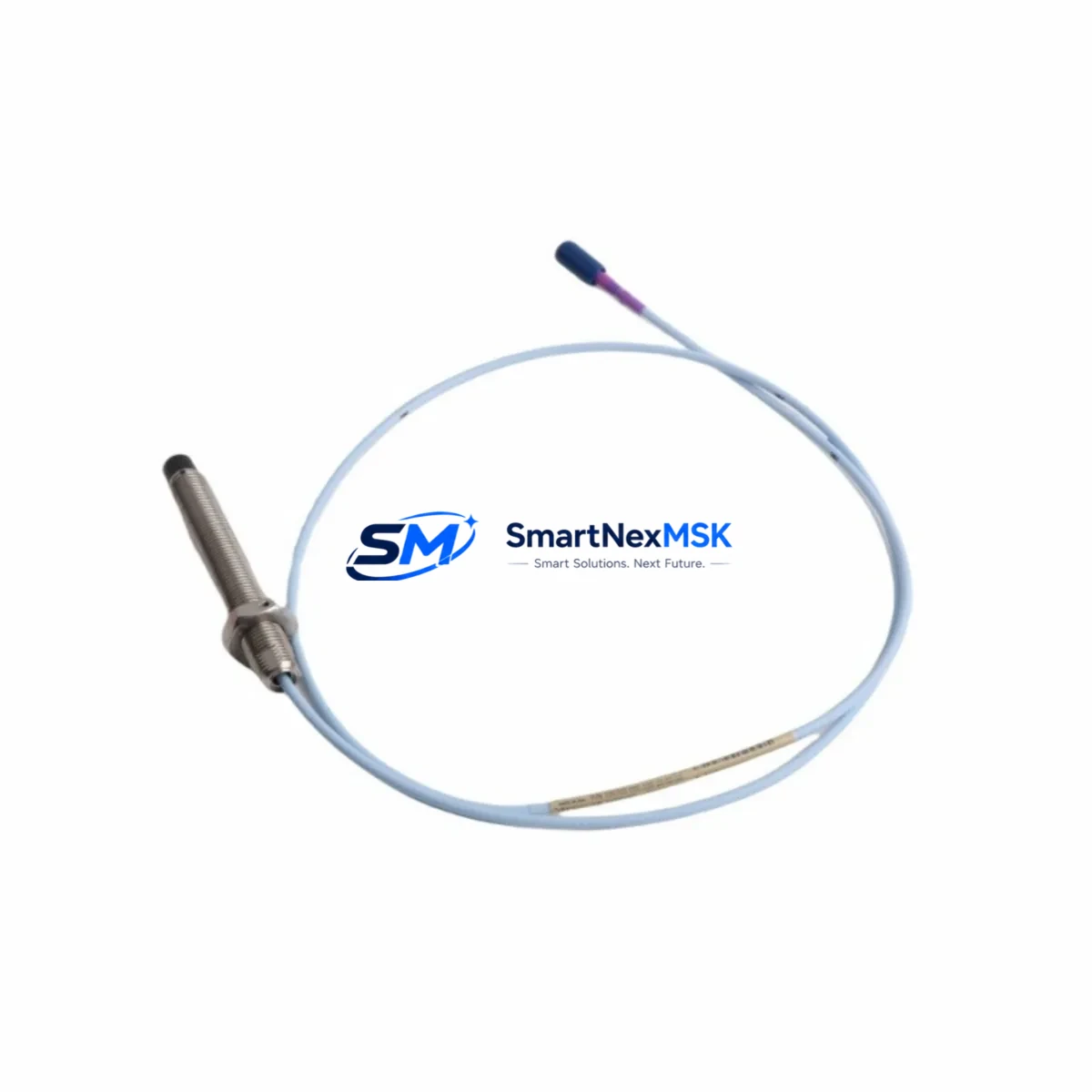

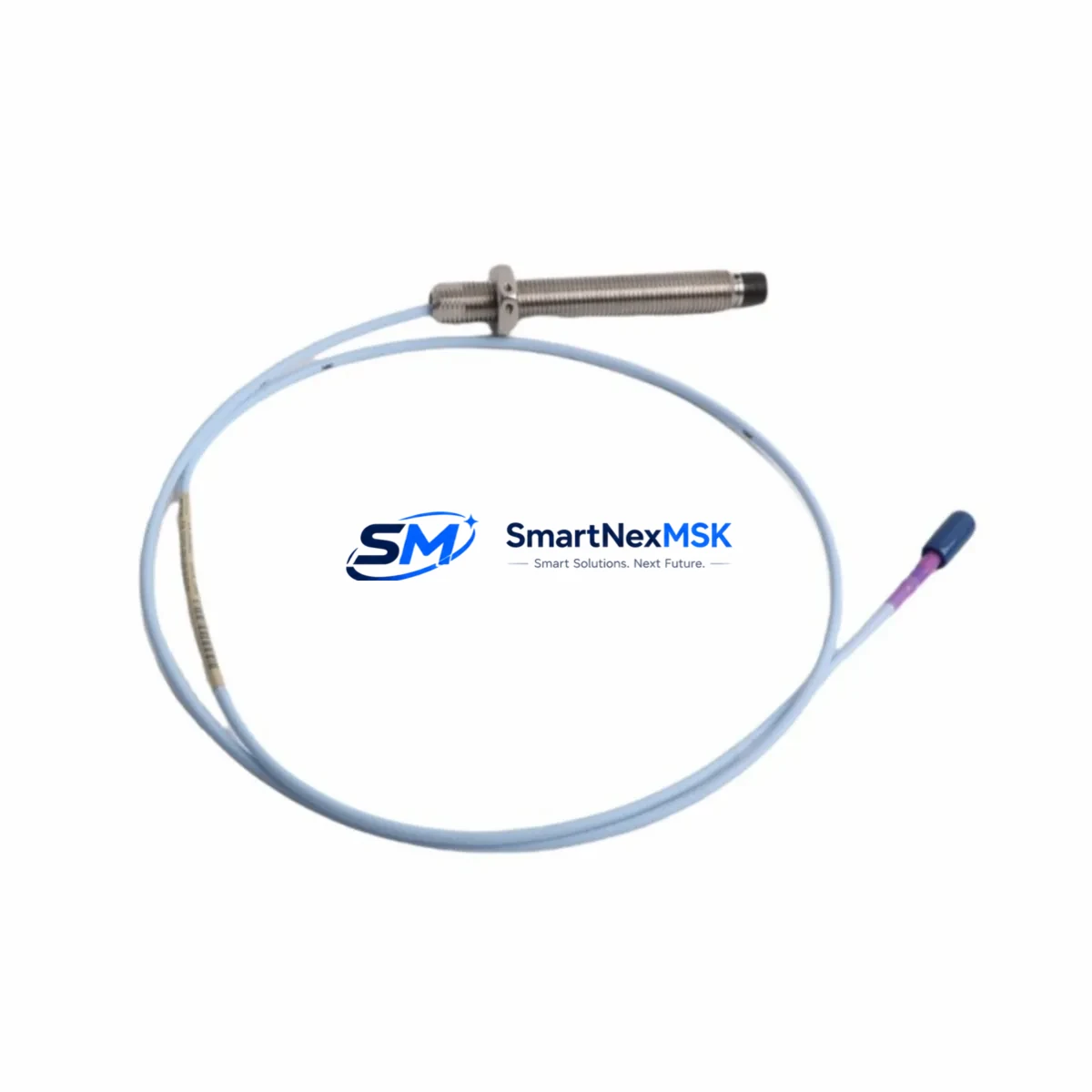

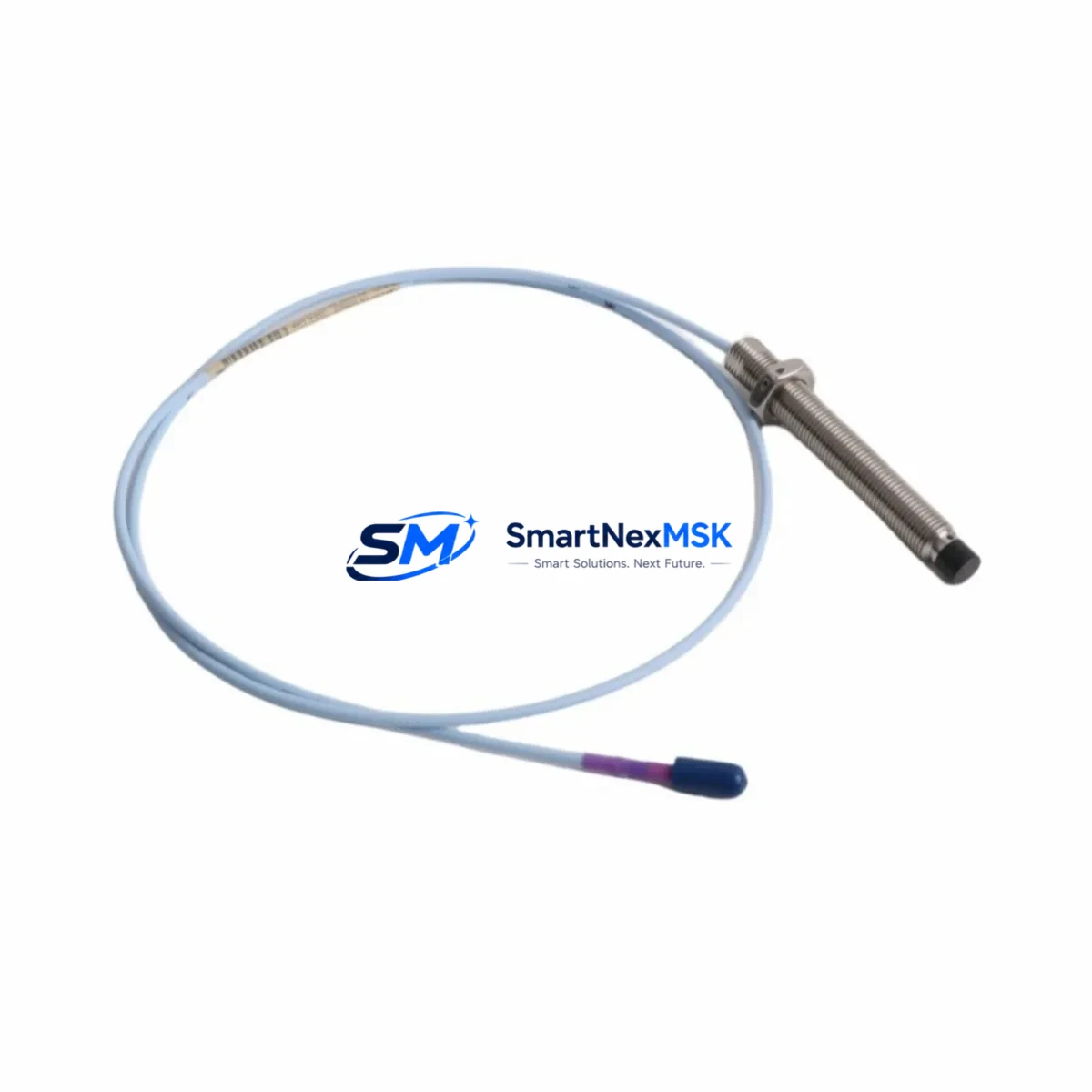

The Bently Nevada 330704-00-60-10-02-CN is an 11mm proximity transducer designed for the 3300 XL Series continuous vibration monitoring platform. This unit serves as a direct retrofit replacement for aging or discontinued transducer assemblies in rotating machinery protection systems, including steam turbines, gas compressors, centrifugal pumps, and large induction motors. Whether you are executing a planned upgrade, responding to a failed sensor, or modernizing a legacy control cabinet, this transducer delivers drop-in compatibility with existing 3300 XL monitor racks, extension cables, and signal conditioning modules without requiring program re-engineering or panel rewiring.

Industrial facilities running Bently Nevada 3300 XL systems often face procurement challenges when original transducer assemblies reach end-of-life. The 330704-00-60-10-02-CN addresses this directly by maintaining full electrical and mechanical compatibility with the standard 3300 XL signal chain. The transducer operates on the established eddy-current sensing principle, producing a voltage output proportional to the gap between the probe tip and the observed shaft surface. This output feeds directly into paired 3300 XL monitor modules such as the 3300/16 or 3300/20 series, preserving existing alarm setpoints, gap voltage calibration, and Keyphasor reference configurations without modification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330704-00-60-10-02-CN into an operating plant begins well before the transducer arrives on site. Engineers should first audit the existing 3300 XL rack configuration, confirming which monitor slots are occupied and verifying that the paired 330180 proximitor module is functional. If the proximitor shows drift or output instability, it is advisable to replace it alongside the transducer to avoid masking a secondary fault after commissioning. The 330130 extension cable connecting the transducer to the proximitor should also be inspected for jacket damage, connector corrosion, and continuity — a degraded cable will introduce noise into the gap voltage signal regardless of transducer condition.

Terminal block wiring follows the standard 3300 XL color code: the transducer integral cable connects to the proximitor input terminals, and the proximitor output feeds the monitor module input card. Facilities using a 3300/16 dual-channel monitor should confirm channel assignment and verify that the Keyphasor input — typically sourced from a separate 330980 Keyphasor transducer — remains correctly routed. For systems where the 3300 XL rack feeds a DCS such as a Honeywell Experion or Emerson DeltaV, the 4–20 mA analog output from the monitor module should be loop-checked against the DCS input card before the machine is returned to service.

Plants upgrading from older 7200 Series or 3000 Series Bently Nevada hardware to the 3300 XL platform will need to account for differences in probe sensitivity (200 mV/mil for 3300 XL versus 100 mV/mil for some legacy 7200 probes) and adjust alarm setpoints in the monitor configuration accordingly. The 3300 XL system manager software or a laptop running System 1 Evolution can be used to verify channel configuration, review historical trend data, and confirm that the new transducer’s gap voltage falls within the linear range before the machine is restarted. If the control system includes a safety instrumented function tied to vibration, the SIS logic solver input should be verified against the updated analog signal range to maintain SIL compliance.

For facilities managing multiple machine trains, it is common to stock the 330704-00-60-10-02-CN alongside complementary components: the 330180-X1-05 proximitor for signal conditioning, 330130-080-00-00 extension cables for standard 8-meter runs, and 3300/16 monitor modules for dual-channel radial vibration measurement. Axial position monitoring on the same machine train typically uses a 330500 series thrust position transducer, while phase reference is handled by the 330980 Keyphasor transducer. Having these components available as a coordinated spare kit significantly reduces the time required to restore a tripped machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a transducer replacement requires a structured pre-outage checklist. Before isolating the machine, capture a full set of baseline readings from the 3300 XL monitor: gap voltage, direct vibration amplitude, 1X and 2X vector components, and any active alarm or danger states. These values serve as the acceptance benchmark after the new 330704-00-60-10-02-CN is installed and the machine is restarted.

During the physical swap, the original transducer mounting bracket position should be recorded — probe gap is typically set to achieve a gap voltage of -10 VDC to -12 VDC at the operating shaft position, corresponding to the linear center of the eddy-current range. After installing the new transducer and reconnecting the extension cable to the 330180 proximitor, measure the static gap voltage with the shaft stationary before energizing the monitor rack. This confirms correct installation depth and eliminates the risk of a probe-to-shaft contact event on startup.

If the machine cannot be taken offline for a full replacement, some facilities use a temporary bypass strategy: the monitor channel is placed in bypass mode within the 3300 XL configuration, the transducer is replaced, gap voltage is verified, and the channel is returned to active monitoring — all without triggering a machine trip. This approach requires coordination with the control room operator and should be documented in the management of change record. Once the channel is restored, confirm that the DCS faceplate, historian tag, and any HMI graphic associated with the vibration point reflect the correct engineering units and alarm limits before closing the work order.

Retrofit Support FAQ

Q: Is the 330704-00-60-10-02-CN a direct replacement for all 330704 series variants?
A: The 330704-00-60-10-02-CN is compatible with standard 3300 XL 11mm probe applications. Variants differ in cable length and connector type; confirm your existing extension cable and proximitor model before ordering to ensure the complete signal chain is matched. The -CN suffix denotes the connector style — verify this matches your 330130 extension cable connector.

Q: What commissioning steps are required after installation?
A: After physical installation, set the probe gap to achieve -10 VDC to -12 VDC static gap voltage using the 330180 proximitor output. Verify sensitivity at 200 mV/mil using a calibrated gap simulation tool or by referencing the proximitor output at a known gap distance. Confirm alarm and danger setpoints in the 3300 XL monitor module, perform a loop check to the DCS or safety system, and document all readings in the commissioning record before returning the machine to service.

Q: Does this unit ship pre-tested with a 12-month warranty?
A: Yes. Every 330704-00-60-10-02-CN unit is functionally tested prior to shipment, including gap voltage linearity and sensitivity verification. A 12-month warranty from the date of shipment covers manufacturing defects and electrical performance. Warranty claims require the unit to be returned in original condition with the commissioning record and fault description.

Q: Can this transducer be used with a Bently Nevada 3500 Series rack?
A: The 330704-00-60-10-02-CN is designed and calibrated for the 3300 XL signal chain. The 3500 Series uses a different proximitor (3500/42 or 3500/45 monitor modules with matched probes) and a different sensitivity standard. Direct cross-series use is not recommended without re-calibration and monitor reconfiguration. If you are migrating from a 3300 XL to a 3500 Series platform, contact our technical team for a matched replacement recommendation.
